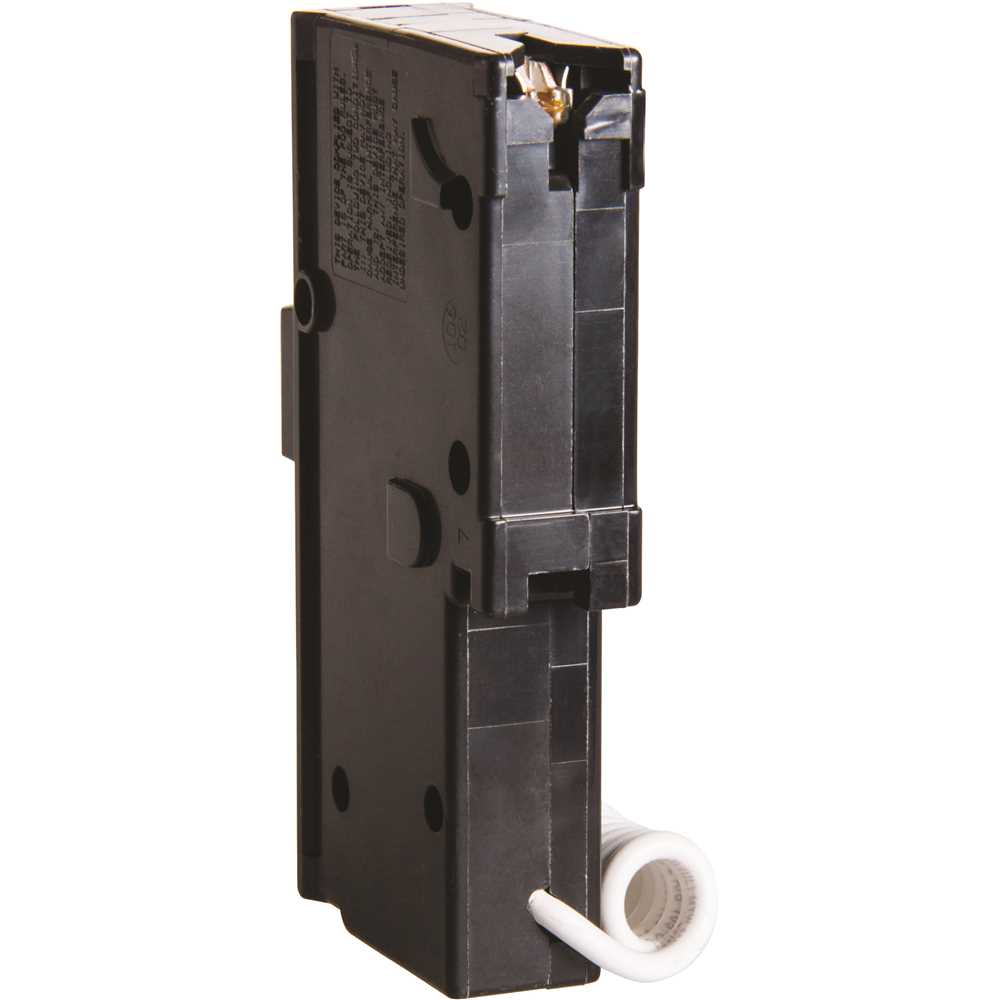

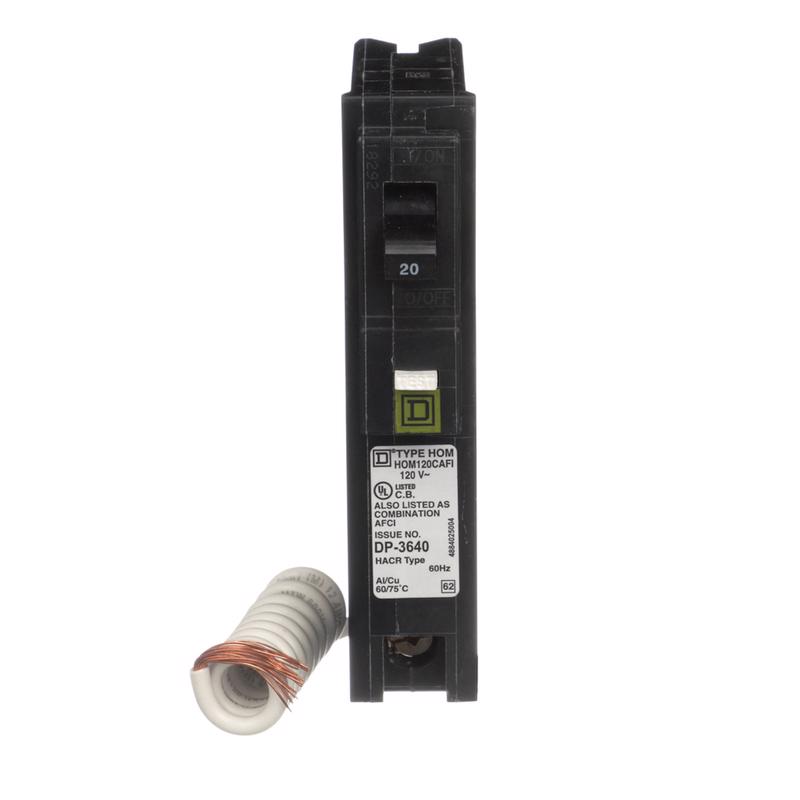

Square D HOM120CAFIC Circuit Breaker, AFCI, Combination, 20 A, 1 -Pole, 120 V, Fixed Trip, Plug Mounting
FEATURES
- 120/240-Volt AC
- Compatible with Homeline load centers and CSED devices
- Homeline 20 Amp single-pole Combination AFCI circuit breaker
- Plug-on design, easy to install
- 10,000 AIR
- Limited Lifetime Warranty
DESCRIPTION
CIRCUIT BRKR ARC FAULT HOM 20A
Specifications:
Specifications:
Application: For homeline load centers and CSED devices
Dimensions: 1 in W x 2.98 in D x 3.13 in H
Single-pole 1 in combination CAFCI circuit breaker is designed for arc-fault, overload and short-circuit protection of an electrical system. Designed to detect arcs that are caused by damaged, aged or improperly used wires or cords and to disconnect the power. With Time-Saver Diagnostics, advanced trip indication technology, identifying the type of fault that last occurred. White push to test button. 10 kA interrupting rating. Rated for 120 VAC. Meets Canadian Electrical code. Carded.
SPECS
| Warranty | Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed. |
| Pack Size | 1 |
| Returnable | Yes |
| UL Listed | Yes |
| Height | 6.00 |
| Defective Code | A |
| Number of Spaces | 1 space |
| Width | 4.50 |
| Circuit Protection Type | Surge |
| Sub Brand | HomeLine |
| Mounting Type | Plug |
| Indoor or Outdoor | Indoor |
| Volts | 120/240 V |
| Packaging Type | Sleeve |
| Depth | 2.98" |
| Number of Poles | 1 |
| Product Type | Circuit Breaker |
| AMPS | 20 Amps |
| CSA Listed | No |
| Each Weight | 0.660 LB |
| Velocity | D |
| Hazardous Material | No |
| UNSPSC | 39121601 |
| ECCN | EAR99 |
| Country Origin Code | CN |
| Length | 1.50 |
| Dimensions | 1 in W x 2.98 in D x 3.13 in H |
| Application | For homeline load centers and CSED devices |
| Type | AFCI Combination |
| Operating Temperature | 104 deg F |
| Wire Size | 14 to 8 14 to 10 AWG |
| Number of Phases | 1 |
| Terminal Type | Screw Clamp |
| Interrupt Rating | 10 kA |
| Trip Type | Fixed |
| Nomenclature | HOM120CAFIC 20A COMB AF BREAKR |
| Current Rating | 20 A |
| Voltage | 120 |
| Frame Size | 1-Space |
| Amperage | 20 |
| Width (in) | 1 |
| Certification | UL Listed |
| Mount Type | Plug-In |
| Interruption Type | CAFCI |
| Material | Other |
| For Use With | Homeline Load Center |
| Package Quantity | 1 |
| ADA Compliant | No |
| Circuit Breaker Type | Standard Circuit Breaker |
| Maximum Amperage | 20 Amp |
| Maximum Operating Temperature | 104 F |
| MADE IN THE USA | No |
| Terminal Connection Type | Screw |
| Tripping Mechanism | Electronic |
| Wire Connection Type | Screw-Clamp Terminals |
| Assembled Product Depth | 2.98 in. |
| Assembled Product Height | 3.13 in. |
| Assembled Product Width | 1 in. |
| GSA Approved | No |
| Breaking Capacity | 10 kA |
| AbilityOne | No |
| TAA/BAA Compliant | Yes |
| Space Required | 1 |
| Weight (lb) | 0.73 |
| Size (W x H x D) | 7.65×1.20×4.40 |
