ANCEL HD601 OBD2 Truck Scanner
HD OBD: Diagnostic procedures for diesel 6/9 OBD vehicles.
WWH-OBD(World-Wide Harmonized On-Board Diagnostics): Diagnostic procedures for vehicles complying with ISO 27145-4 and ISO 14230-4, ISO 15764-4 and ISO 9141-2 protocols.
SETTINGS: Set the measurement unit (English/Metric) and language (English/Spanish).
ABOUT: Find the serial number and version number of the product and update the software version (connect the code reader to a PC with update software via the USB interface).
All-system Diagnostic Scan Tool for heavy duty trucks
HD601 diesel scanner tool can do a full Systems diagnostic for most American trucks, included Engine, Transmission, Body Controller, Chassis Control, Cruise Control, ABS, Instrument Cluster, Gateway etc. Make it easy for you to have accurate information to avoid auto repair scams. No training required.
- Engine System: Read the fault codes and find the cause of warning light, point you in the direction of where the problem was. HD601 diesel code reader will show you the live data stream in graph , like fuel, cylinder misfire, intake air temperature and so on. Turn off the warning light after repair or maintenance.
- Transmission System: It can help before transmission problems become a big hassle. That's because most trouble codes come from your truck's transmission. With a transmission diagnostic tool, you can get a fault code if there is one. All you need to do is troubleshoot a fault code.
- ABS (Anti-lock Braking) System: The HD601 heavy truck scanner diagnoses ABS problem always start with a visual inspection of all brake components, read ABS trouble codes and view the live data to find out exactly where the problem was and reset the warning light after repair or maintenance.
- SRS System: Made up of impact sensors, control module and airbags. When the control module detects a problem with the airbags or sensors, the Malfunction Indicator Light( MIL) will turn on. HD601 can retrieve the SRS issues timely to ensure your driving safety, and turn off the warning light of Airbag.
- Airbag System: The SRS is a device that deploys the airbag to protect the passenger before the second collision occurs. The HD601 diesel scan tool can read and clear the code.
In addition to diagnosing these common truck systems, other systems can also be diagnosed, such as Integrated Control System, Integrated Safety System, Motor Control System, Battery/ SCR, Suspension System, Pro-Shift, Inverter, Kneeling, Drivetrain, Scanning Cruise/LDWS/PCS, Tire Pressure Monitoring System, Ldfing Stop System, Clutch System, Anti-Theft System, Blocker, PESS (Passive entry and Start System), PIM (Powertrain Interface Module), Chassis ESC, Air Suspension, Headlight Auto-leveling, etc.
Comprehensive Diagnostic Scanner
HD601 diagnostic scanner is exclusive for most American heavy-duty trucks & 12v vehicles, enthusiasts, DIYers, independent repairs, specialized garages and technicians. It is a professional car scanner worth having.
What HD OBD functions does HD601 have:
- Read fault codes
- Clear fault codes
- Show Freeze Frame data - this is a snapshot of the data captured by an electrical sensor almost immediately after the sensor detected an issue.
- Read and display Live Data in graph
- Read ECU Information
Reliable Features:
- CPU: 100MHz
- Display 2.8 inch LCD
- Flash: 8M
- Diagnostic Interface: Main line OBDII and Transfer line Diesel-6/9
- Work Voltage: DC 9V~36V
- Work Temperature: -20℃~65℃
Extensive compatibility to meet your more truck diagnostic needs
HD601 diesiel scanner can run diagnostics on Ameican semi-trucks and heavy trucks. These include commercial vehicles such as delivery trucks, school buses, bucket trucks, garbage trucks, long heavy trucks, construction trucks, agriculture trucks, and any other heavy-duty vehicles or equipment! Meet your diagnostic needs!
FAQ:
1. Does this diesel scan tool work on American trucks?
Answer: Yes, it works on most trucks with J1708 and J1939 protocols. Such as Freightliner, Peterbilt, Kenworth, International, Ford(HDtruck), CCC, Autocar, Bluebird, Pierce, GMtruck, Sterling, GMC truck, etc.
2. Why it shows NOT supported when diagnosing the truck?
Answer: Please confirm the power and ignition key of the vehicle to ON or start the engine. Then check if the test path is correct or not. In most cases, for American trucks, please select HDOBD menu. For American pickups, please select both WWW-OBD and HDOBD Code Reader.
3. Why cannot the tool clear the error codes?
Answer:
1) Help to check if the vehicle problems have been solved;
2) The HD601 can only clear standard OBD codes;
3) Some fault codes in the history cannot be cleared.
4. Can this code reader perform forced regeneration?
Answer: No, it only supports basic diagnostic functions such as read/clear codes, read data stream.
5. When I update the HD601 tool, I cannot find the serial port query. How can I find it?
Answer: Please make sure that your computer system is a Windows 10 system. For Windows 10 systems, the update tool will automatically detect the serial port number.

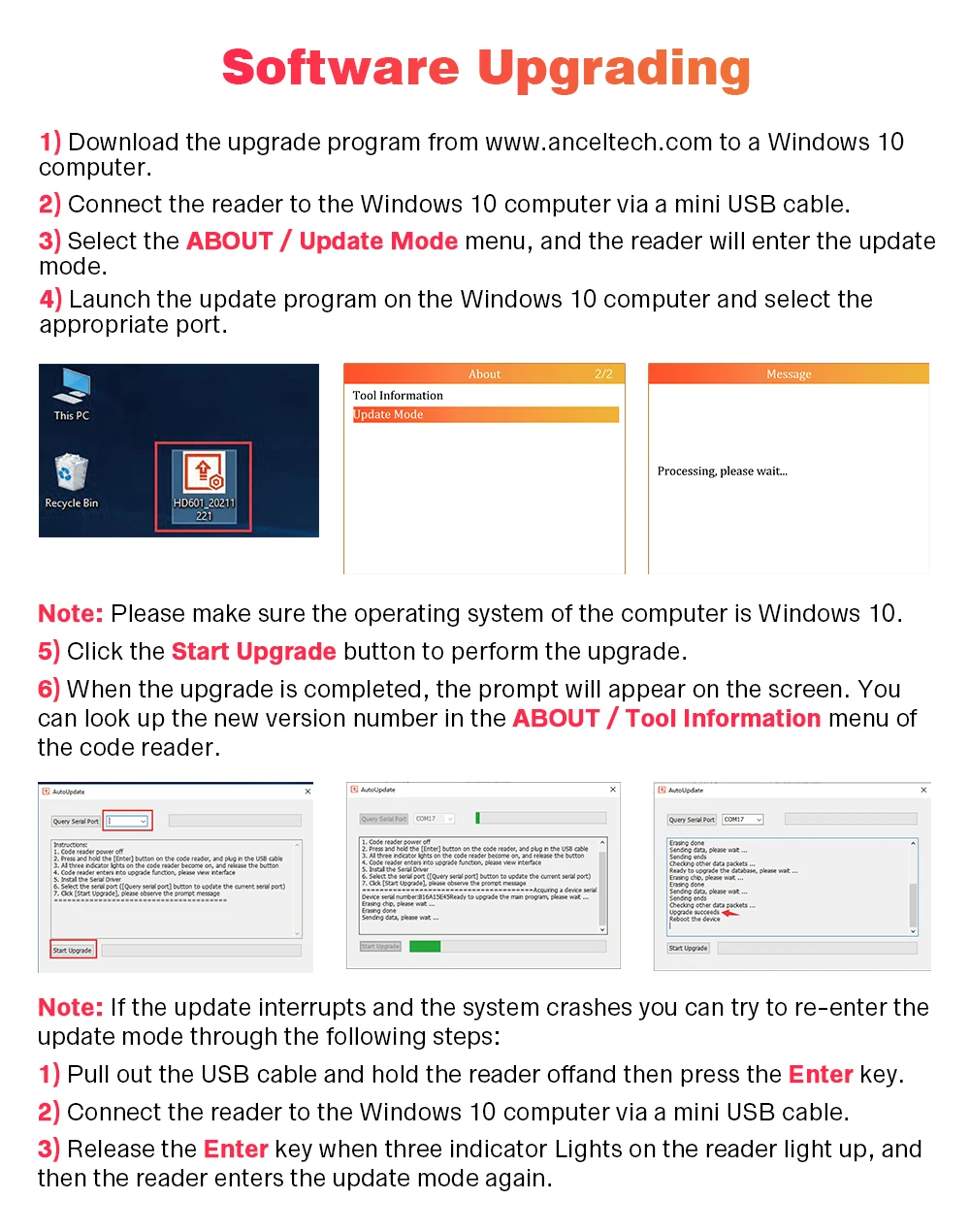

ANCEL HD601 support Lifetime Free Update
1) Download the upgrade program from Ancel official website to a Windows 10 computer.
2) Connect the reader to the Windows 10 computer via a mini USB cable.
3) Select the ABOUT/Update Mode menu, and the reader will enter the update mode.
4) Launch the update program on the Windows10 computer and select the appropriate port.
5) Click the Start Upgrade button to perform the upgrade.
6) When the upgrade is completed, the prompt will appear on the screen. You can look up the new version number in the ABOUT/Tool Information menu of the code reader.
Product Parameters
Name Parameter
CPU 100MHz
Display 2.8 inch LCD
Flash 8M
Diagnostic Interface Main line OBDII and Transfer line Diesel-6/9
Work Voltage DC 9V~36V
Work Temperature -20℃~65℃
Dimension 165mm*97mm*33mm
Product Package:
1*box
1*HD601 Handheld Truck code reader
1*6/9 pin connect cable
1*Manual
