Φ21mm Engine Rebuild Pistons Gasket Bearing Overhaul Kit for 2.0TFSI Audi VW CDN
Item Detail


Engine Repair Pistons Gaskets Bearing Overhaul Kit for 2.0TFSI Audi VW CDN CCZB


Please confirm your original piston pin bolt is Φ21mm

If you need Φ23mm piston pin bolt please contact us before Purchase

If you need oversize 83.01mm ( +0.50mm) pistons please contact us



Pistons & Rings OE#                         Pistons & Rings Replacement OE#
06H 107 065 AM                                            06H 107 065 AB / BE / CM / DD / DM
N 905 583 01 (Φ21mm)                                 06H 107 099 AM
06H 198 151 B                                              06H 198 151 C / J
MAHLE - 028 PI 00 119 000                          06J 198 151 B / C


Pistons & Rings Spec
STD 0.00 spec (no fit  expanded cylinder)
Piston Diameter Φ82.51mm （3.25" / 3.25in.）
Pin bolt Diameter Φ21mm
Ring Thickness 82.5x1.2, 82.5x1.5 , 82.5x2.0
Buckle Size 21x1.5mm


Bearing Shell OE#                          Bearing Shell Replacement OE#
06H 105 561 L                                            06H 105 561 A
06H 105 591 L                                            06H 105 591 A
06H 105 701 D GLB                                     06H 105 701 C GLB


Seals & Gasket Kit OE#                         Included Parts
06J 103 383 D / 06H 103 483 C                            Valve oil seal
06H 103 483 D / 06H 103 484 A                           Cylinder Head Gasket
06F 129 717 D / 06F 253 039 F                            Crankshaft oil seal
1K0 253 115 AB / 06J 117 070 C                          Camshaft oil seal
06J 115 441 A / 06J 121 119                                Intake & Exhaust manifold Gasket
06H 103 121 J / 06H 103 171 F                            Valve Cover Gasket
06H 103 085 G / 036 109 675 A

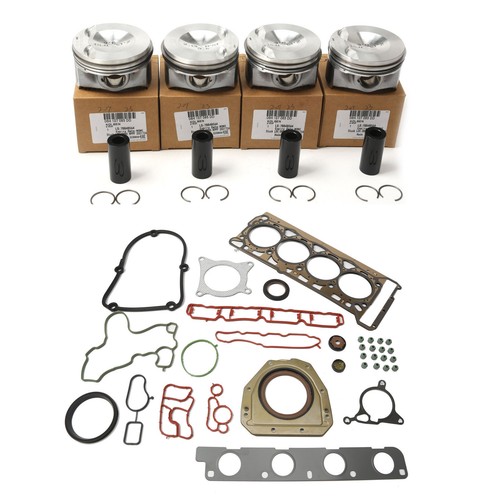

Package includes

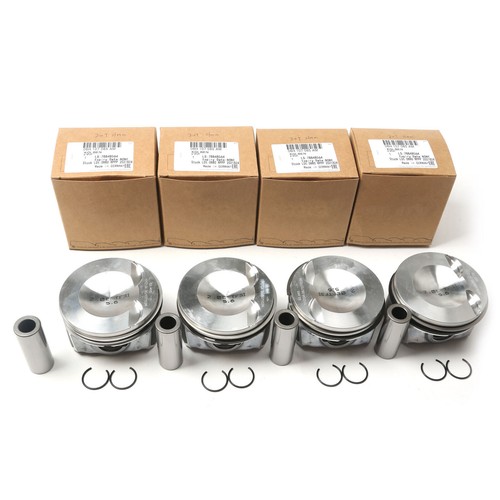

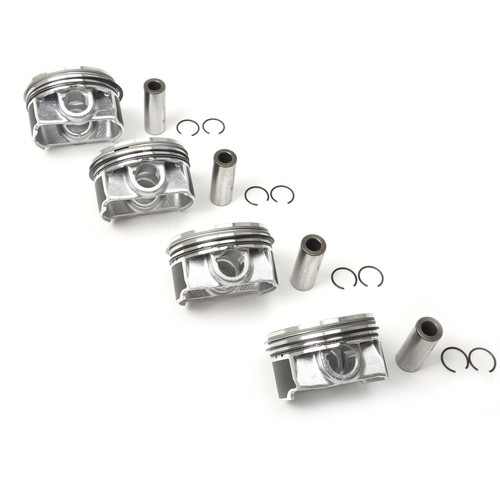

Piston & Ring         x4        (MAHLE)
Bearing Shell         x1 set   (MAHLE)
Repair Kit              x1 set   (VW OE)
Head Bolt              x10 pcs (VW OE)



Fit Car Model


Brand & Model             Produce Year      Fit Engine
Audi
Piston pin bolt Φ21mm
A3 / A3 Quattro2008-30.5.20112.0 TFSI CAWB CCTA CCZA CBFA
A4 / A4 Quattro2009-30.5.20112.0 TFSI CAEA CAEB CDNB CDNC
A4 Allroad Quattro2010-30.5.20112.0 TFSI CDNC
A5 / A5 Quattro2008-30.5.20112.0 TFSI CAEB CDNB CDNC
Q52009-30.5.20112.0 TFSI CAEB CDNB CDNC
TT / TT Quattro2007-20102.0 TFSI CCTA CCZA


Volkswagen
Piston pin bolt Φ21mm
EOS2009-30.4.20112.0 TSI CCTA CCZA CCZB CBFA
Golf GTI2008-20112.0 TSI CAWB CCTA CBFA CCZB
Jetta 2009-20112.0 TSI CCTA CCZA CAWA CAWB CBFA
Passat2008-20112.0 TSI CCTA CCTB CAWB CCZA
Passat CC2009-30.5.2011 2.0 TSI CCTA CAWB CBFA
Scirocco2009-30.4.20112.0 TSI CAWB CCZB
Tiguan2008-20112.0 TSI / 2.0 TFSI


Skoda
Piston pin bolt Φ21mm
Octavia2009-15.5.20112.0 TSI CCZA
Superb2008-15.5.20112.0 TSI CCZA
