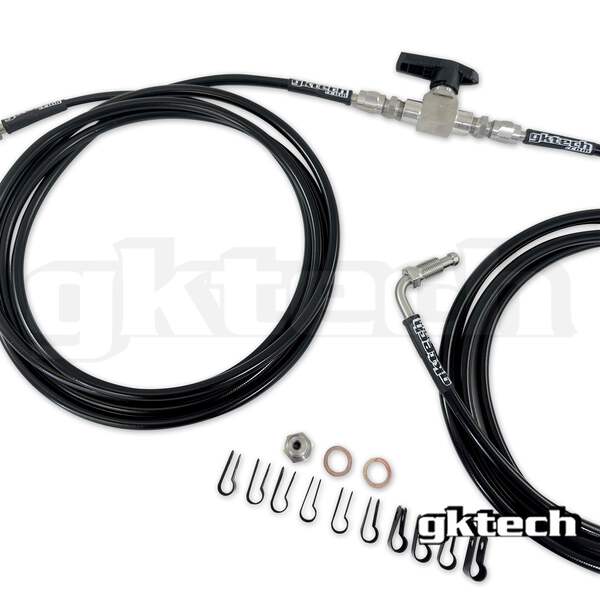

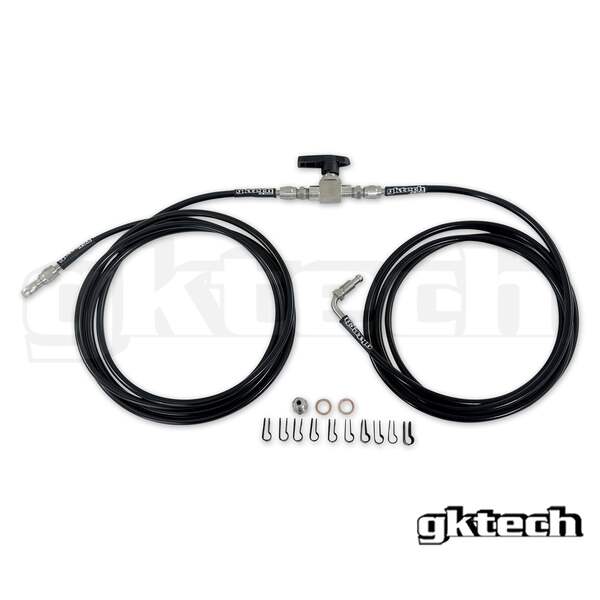

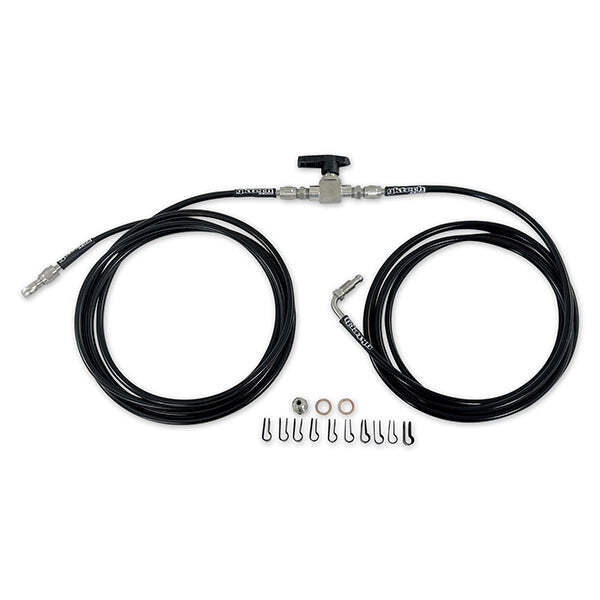

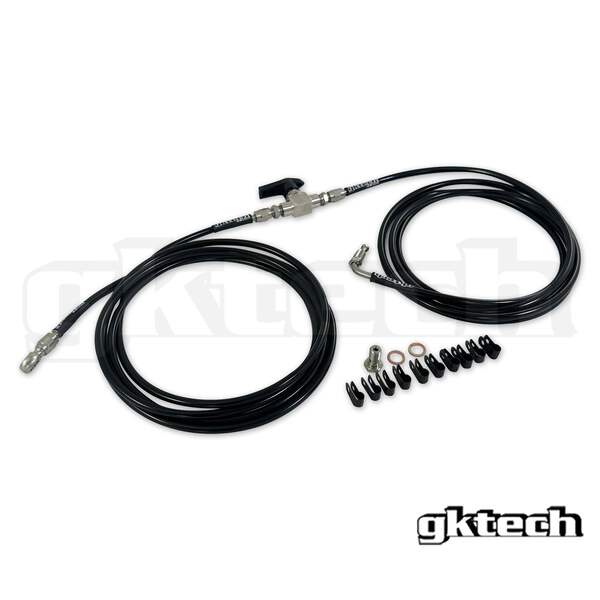

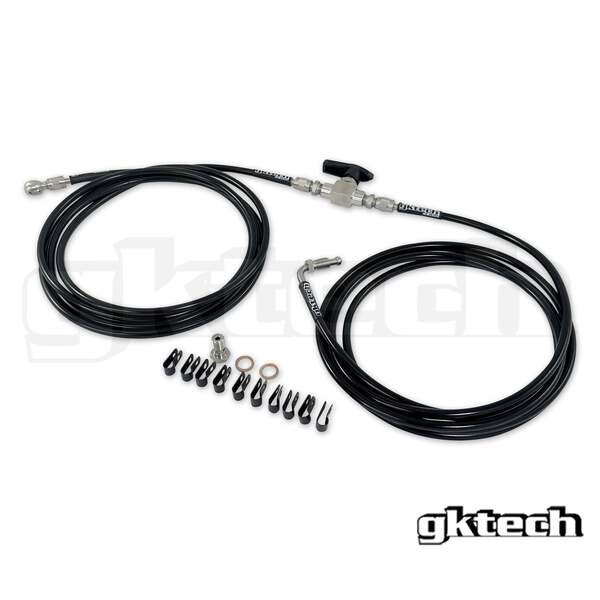

GKTECH S13/180sx/S14/S15/R32/R33/R34 Rear Brake Line Locker Kit Free Shipping

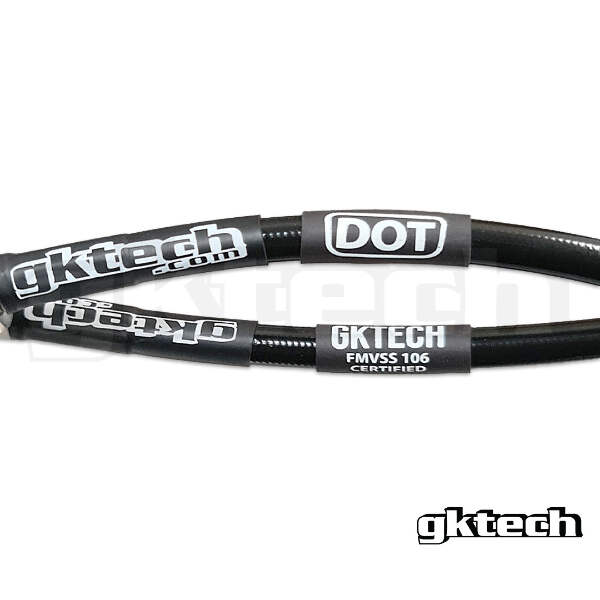

The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines ADR approved in Australia and they are marked as such on the brake line assemblies.

The FMVSS106 testing procedure that the lines have been tested against includes the following tests:

370lbs pull test
35 hour whip test
7000psi burst test
-45degC to 146degC temperature tests
24 hour salt corrosion resistance test

We developed these kits so that the rear brake lines can be simply disengaged in the flick of a switch for your next victory burnout, without frying the rear brakes!

Our kit is super easy to install, simply remove the single hard line and connect our braided line to the master cylinder, running the lock off valve where ever you desire in the cabin, and then the braided line back to the rear brake line block in the engine bay. Total install time should be around 30 minutes.

For race cars only however no permanent modifications are required.

NOTE: Will fit both LHD and RHD vehicles

NOTE: Will NOT fit with the ABS unit, ABS would need to be deleted for this kit to work

FAQs

Will this fit my car? We can only confirm fitment for the vehicles listed above under vehicle compatibility. If your car is not listed there, then we don't know if it will fit. Do you make these to suit other cars? We only sell the parts listed on our website. If it's not listed on our website, then we don't sell it. Sorry. What's the advantage of using the GKTech rear brake line locker kit? When the vehicle is doing a burnout, the rear brakes tend to cause friction resulting in fried pads and discs (even sometimes catching fire). This small yet effective device allows you to shut off the rear brakes avoiding any pressure getting to the rear calipers. This results in a resistance-free rear brake setup. What modifications are required, is this hard to fit? No modifications are required, just remove the OEM hardline that goes from the master cylinder to the rear brake line block on the chassis rail, and replace it with our kit. Is there anything else needed for installation? You will need to supply brake fluid only. In terms of the kit, it will arrive as shown in the product photo. Can I install this myself? If so how long will installation take? Yes, the kit is super easy to install. Simply remove your old lines and replace them with your new lines, then tighten the lines referencing the OEM torque specs. You will then need to top up the brake fluid and bleed the brake system. However, being the brake system we recommend only a trained professional to install this product.

Compatibility

NISSAN

Z32 300ZX
S13 CA18 180SX
R32 SKYLINE GTR
R32 SKYLINE GTS-T
S13 CA18 SILVIA
S13 SR20 SILVIA
S13 SR20 180SX
S14 200SX/SILVIA
S15 200SX/SILVIA
R33 SKYLINE GTS-T
R33 SKYLINE GTR
R34 SKYLINE GT-T
