Welcome  to use the constant decoder, which take advantage of advanced microelectronic control technology. This  technology changes the international fashion DMX512/1990 standard digital control  signals into analog control signals. There are 1 ~ 3/4/6/12/24/30 output  channels; each channel can achieve 256 control levels. This constant decoder is used when DMX512  control equipment control general LED lighting.

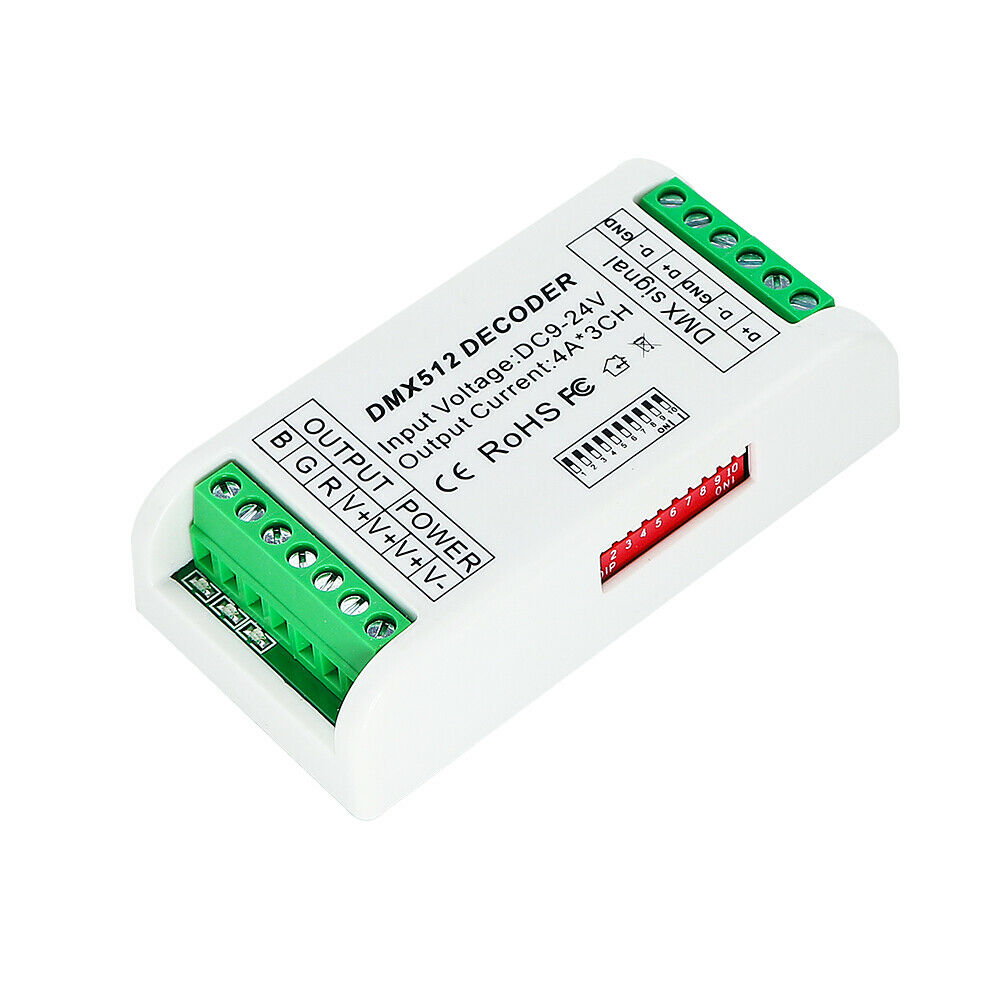

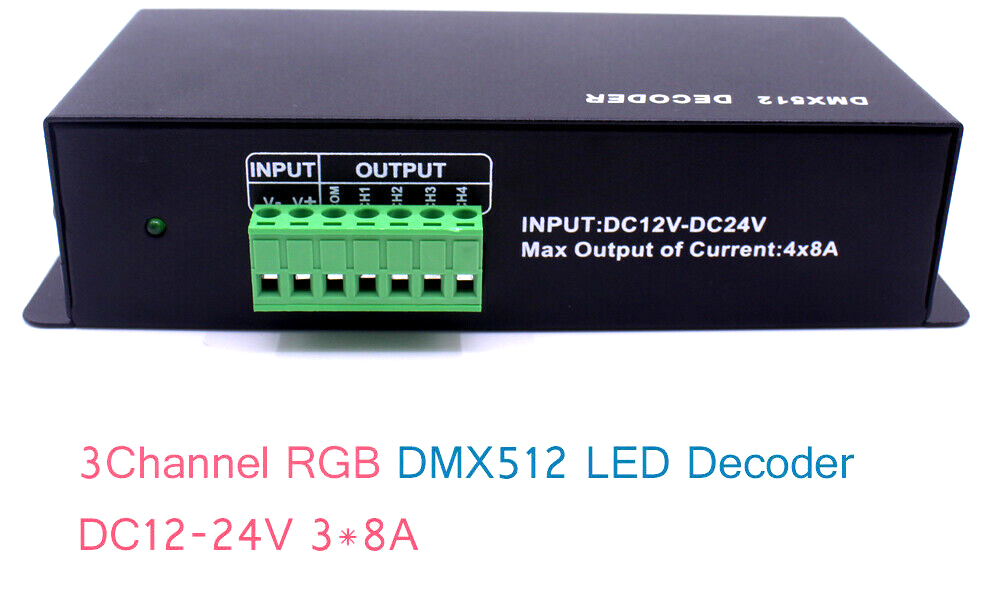

3 Channels Mini:

Products Performance:

Input Power:  DC12V～DC24V                                    Maximum load current:  4A/3CH

Maximum power load: 144W (12V)288W (24V)           Output gray level: 256

1x RGB 3CH DMX 512 Constant Decoder
1x User  Manual

4 Channels Mini:

Products Performance:

Input Power:  DC12V～DC24V                                    Maximum load current:  4A/4CH

Maximum power load: 144W (12V)288W (24V)              Output gray level: 256

Input Signal: DMX512/1990                                        Output signal:  4 channels Constant PWM

Output DMX: 4 channels                                             DMX512 socket standard RJ45;

Size:94MM*47MM*24MM                                            Net Weight: 64g

Gross Weight:80g

Package  included:

1x RGBW 4CH DMX 512 Constant Decoder
1x User  Manual

---

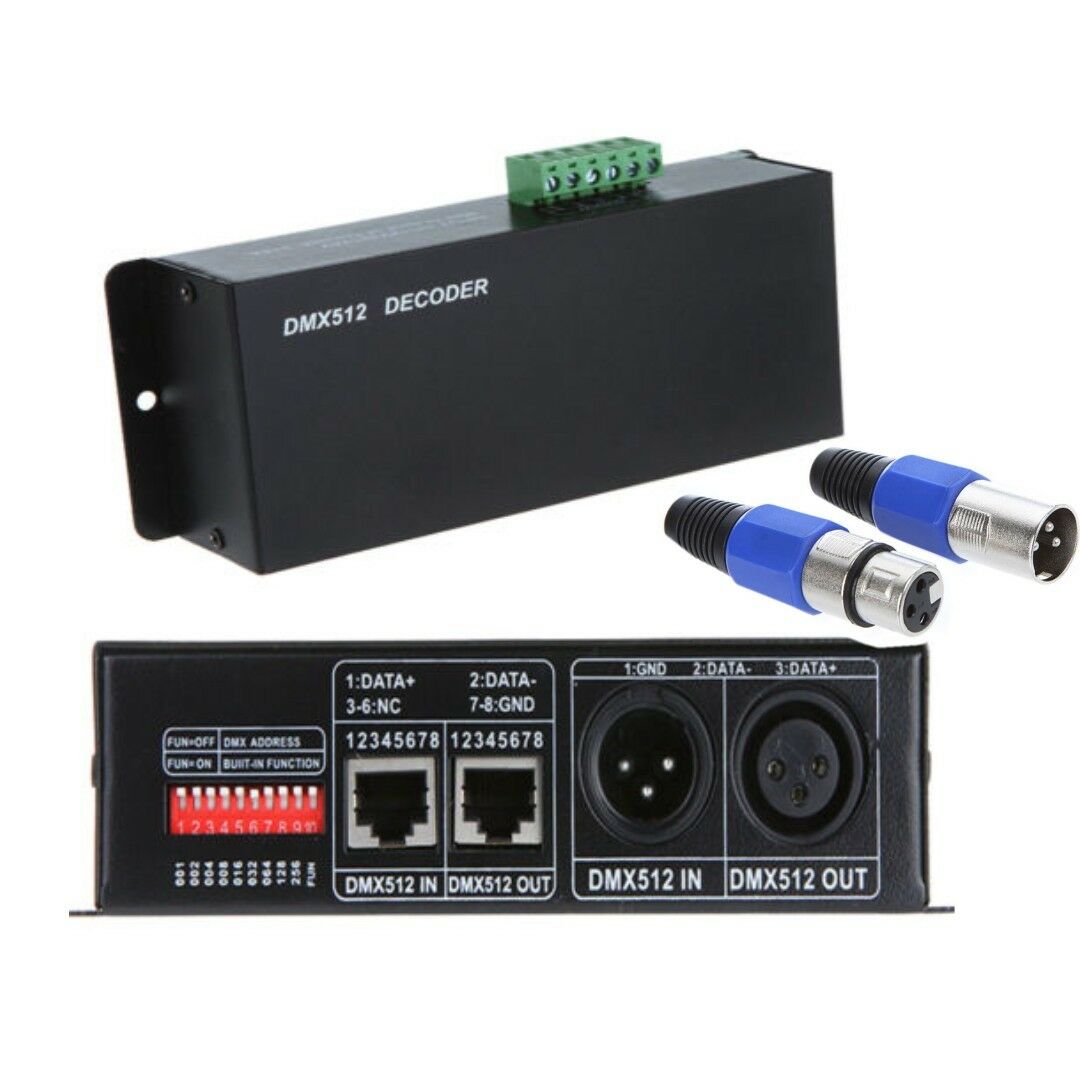

3 Channels (Iron Shell) :

Descriptions:

Package  included:

4 Channels (Iron Shell) :

12 Channels (Iron Shell):

Products  Performance:

Input Power: DC5V～DC24V
Maximum load current:  5A/CH×12
Maximum power load: 300W (12V) 720W (24V) 1440W (24V)
Output gray level: 256
Input Signal:  DMX512/1990
Output signal: 12 channels Constant PWM
Output DMX: 12 channels
DMX512 socket standard RJ45
Size: L155*W88*H32
Package Measurement: L173MM*W700MM*H50MM
Net Weight:  290g
Gross Weight: 330g

24 Channels (Iron Shell):

Size: L172*W96*H23

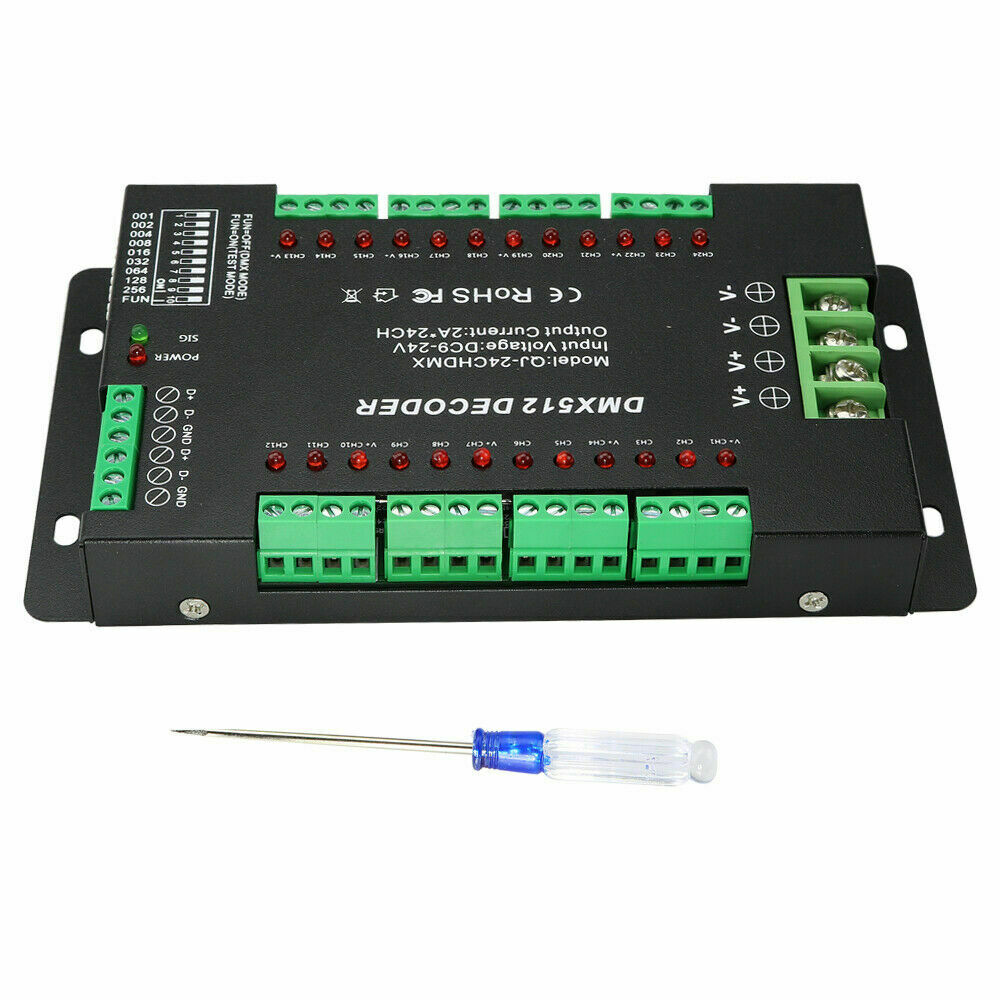

30 Channels (Bare board):

Products Performance:

Input Power: DC9V-DC24V (If you want to connect to a 5V light, you need to use two power supplies.)
Maximum load current:  2A/CH×30
Maximum power load: 360W (12V) 720W (24V)
Output gray level: 256
Input Signal:  DMX512/1990
Output signal:  30 channels Constant PWM
Output DMX :  30 channels
standard XLR-3 caron plug,
Gross Weight: 700g


Package included:

1 x 30CH DMX 512 Constant Decoder
1 x User Manual

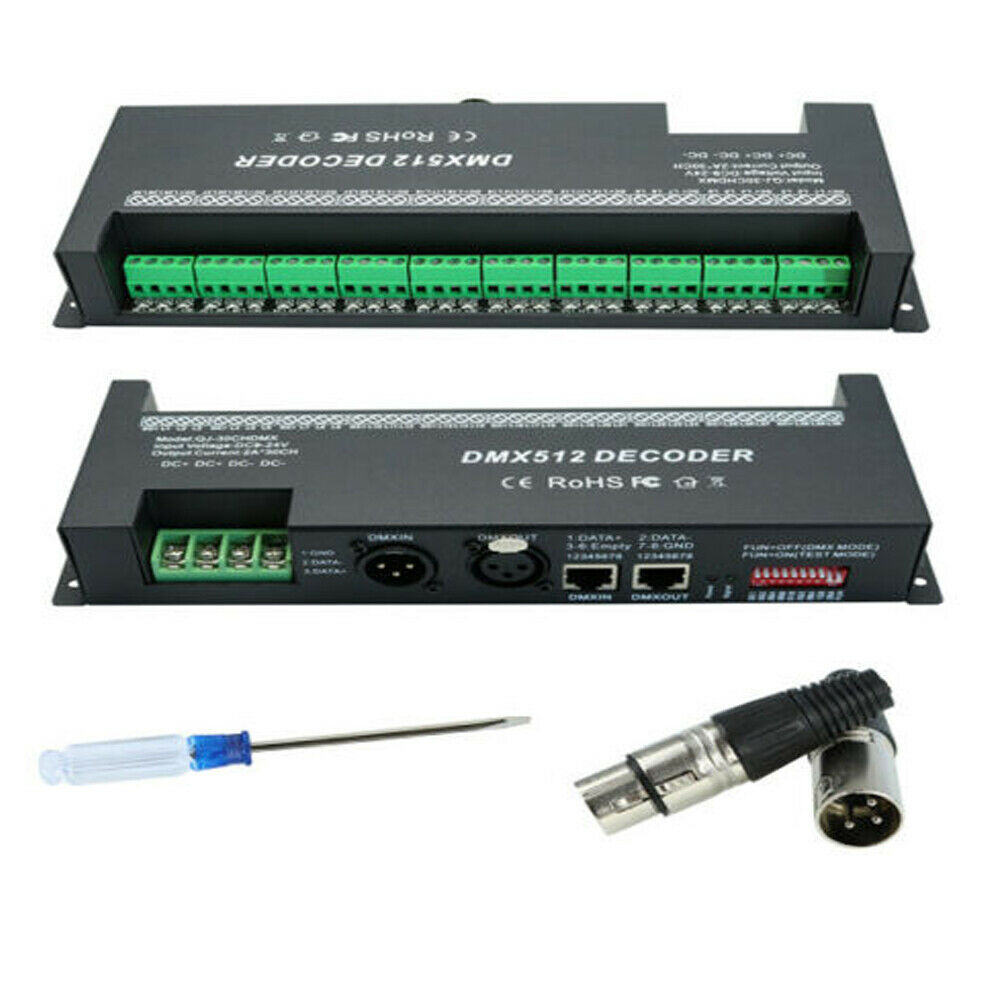

30 Channels (Iron Shell):

Input Power:  DC9V～DC24V
Maximum load current:  2A/CH×30
Maximum power load: 720W (12V) 1440W (24V)
Output gray level: 256
Input Signal:  DMX512/1990
Output signal:  30 channels Constant PWM
Output DMX:  30 channels
standard XLR-3 caron plug, RJ45
Size:  L255*W82*H42MM
Gross Weight: 338g


Package included:

1x 30CH DMX Decoder
1 x User Manual

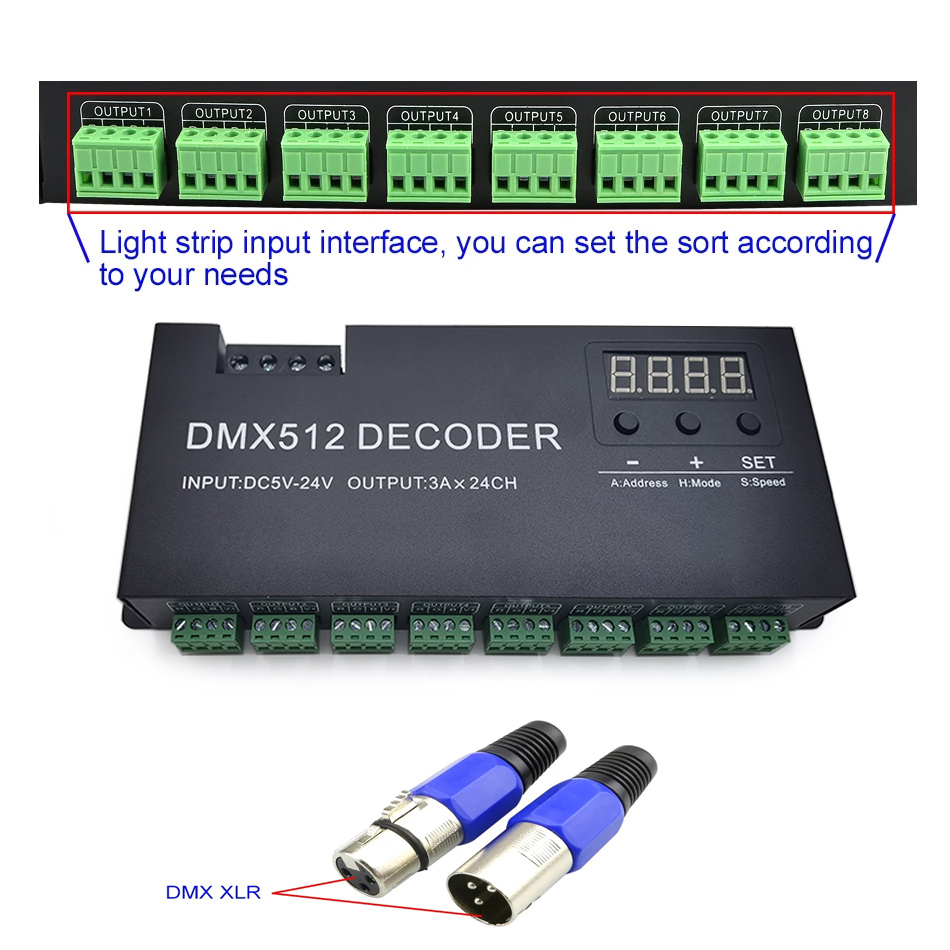

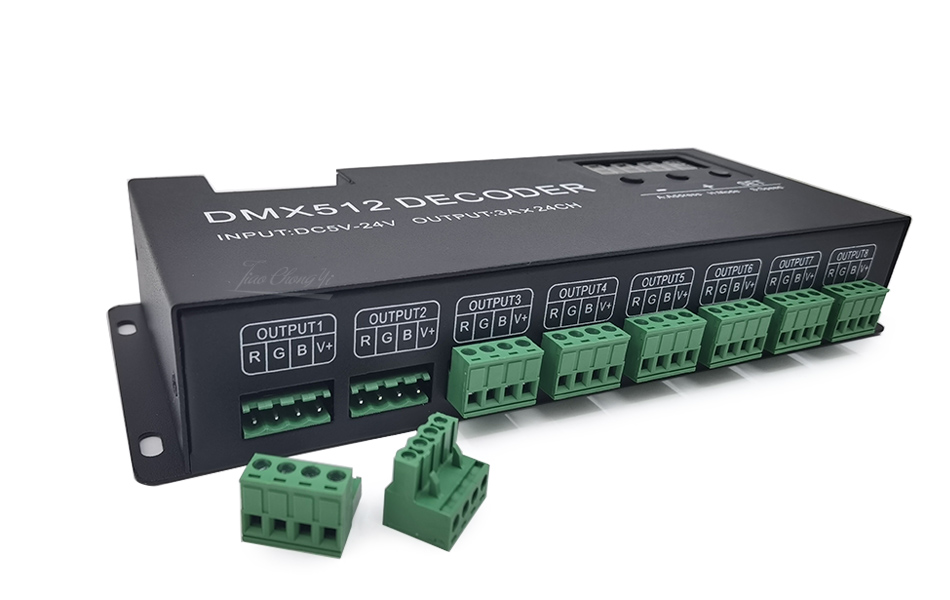

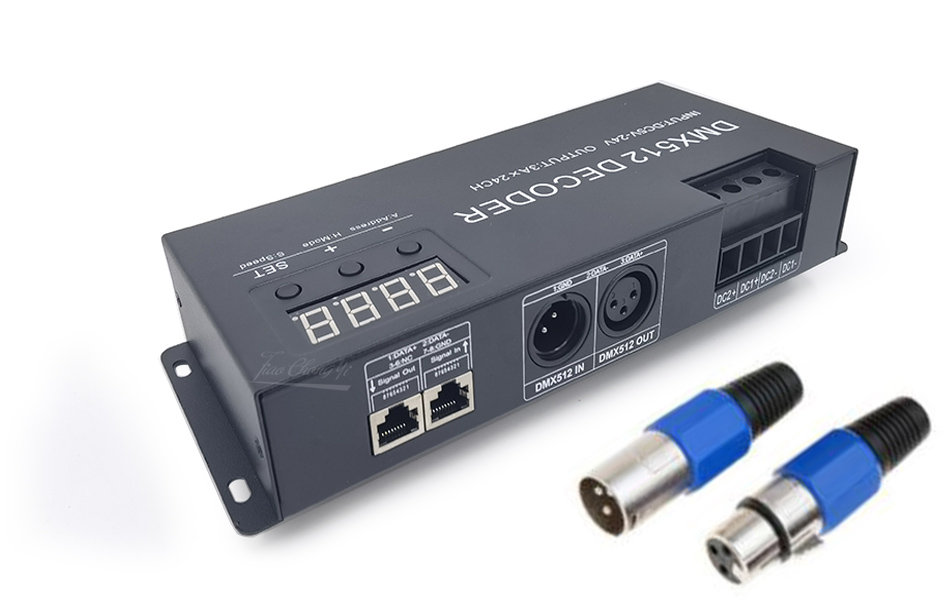

24CH 3A Channels (Iron Shell):

24CH RGB DMX decoding driver works to convert universal DMX512/1990digital signal to PWM signal, which controlled by DMX512 console, with 4096 levels grey scale output per channel. Adopting, unique programming technology, Creating exclamatory, perfect color fade  smooth effect, simultaneously let LED color more affluent

Specifications:

Input voltage: DC5V-24V
Max load current: 3A/CHtimes24
Output power: 360W(5V)860W/1720W(12V/24V)
Output Scale level: 4096 levels
Input signal: DMX512/1990
Output DMX Channel: 24CH CV PWM

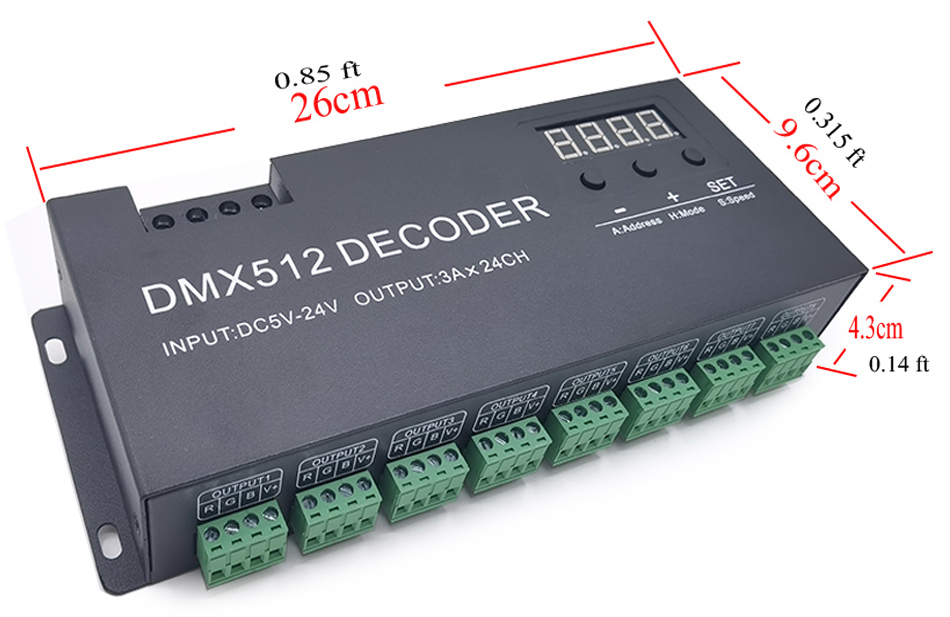

Dimension: L260timesW110timesH43(mm)
Package Size: L270timesW130timesH53(mm)

Weight (G.W): 920g

 Basic Features:

1. Universal standard DMX512 input protocol; 3-digital-display shows DMX address code.
2. Working voltage from DC5V-24V
3. 24 output channels, 4096 grey steps per channel.
4. Multiple self-change modes, 10 speed levels.

 Product included

1 * DMX decoder
2 * DMX signal plug
1 * User Manual

 Direction of use

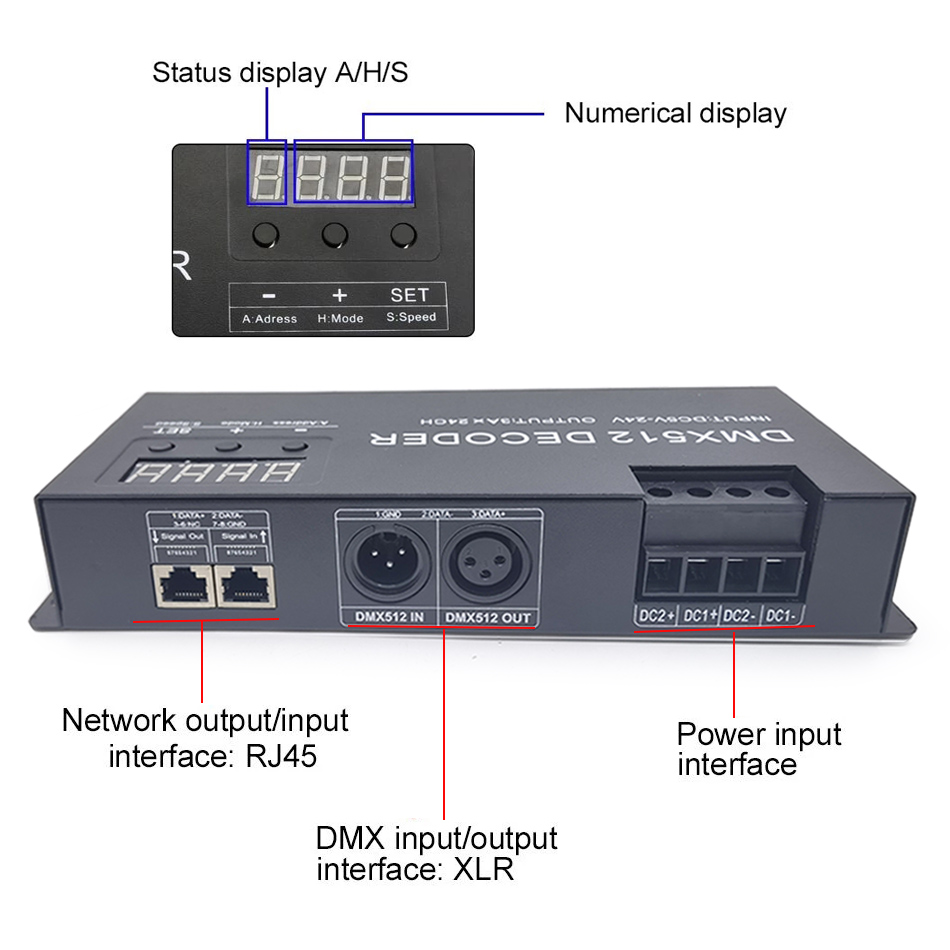

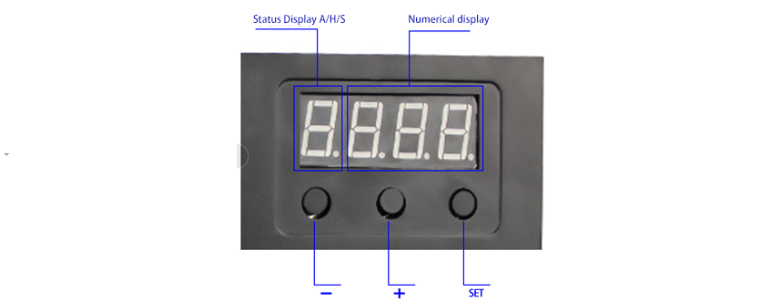

● Digital display specification:

Adopt the 512 numbers digital tube, and with three button to setting the address code.Each Decoder occupy 24 address code.The first number on the digital tube is to show the Function symbol,it have A,H,or S letter optional, and the last three number is to show the arabic date from 001-512.

When the fist letter shown "A",Its on the DMX512 State,means that this decoder is under the DMX512 Signal control state, at this time connect the decoder to the DMX console with network cable, it can be controlled by the DMX console.if the digital tube shown "A001",means that the first of the address code is 001,and the other 23 channels are Corresponding to 002,003....023,024. If connected this decoder with the other decoder,then the other decoder's first address code is 025,and the others 24 channels of it is 026,027....047,048.It can be connected with numbers of decoder,and can be controlled alone.

If two or several decoder's address code are the same , means that these same address code decoder are changing in the same effect, and they can be realize synchronous controlled effect.

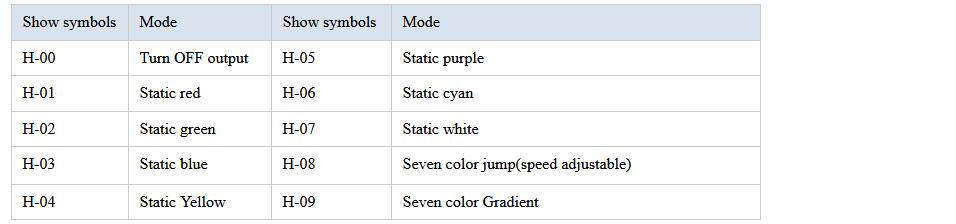

1)When the fist letter shown "H",it will be in the built-in mode function,means that this decoder will be working in the built-in program.the build-in models are as below:

2)When the first letter shown "S",it will be in the built-in speed setting state function, at this state just the H-08 and the H-09 are valid,press the SET button lightly to enter the speed adjustable state,then press the button +/- can be realize the 11 level speed option. Others functions are no effective.

● Key function specification:

There are three buttons (Button 1: SET ,Button 2:- Button 3:+)on the decoder,the function of them are as below:

● Button SET :Mode switch key,press this key last for about 2 seconds,can be switch from function A to function H (function H to function A),press SET Button lightly can be switch from function H to function S(function S to function H)

● Button +: increase button,the last three number of the digital tube will be increase one when press the + key each time.If want to make the address code increase rapidly,just simply need to press this key last for some time.(Remarks :the max address code is 512,if it appear 512 and still press + key, it will be return back to 001) ;

●Button - :decrease button,he last three number of the digital tube will be decrease one when press the - key each time.If want to make the address code decrease rapidly,just simply need to press this key last for some time.
