Portable IR Infrared Thermometer Calibrator Temperature 50-500ºC CEM BX-500 220v

  Description:

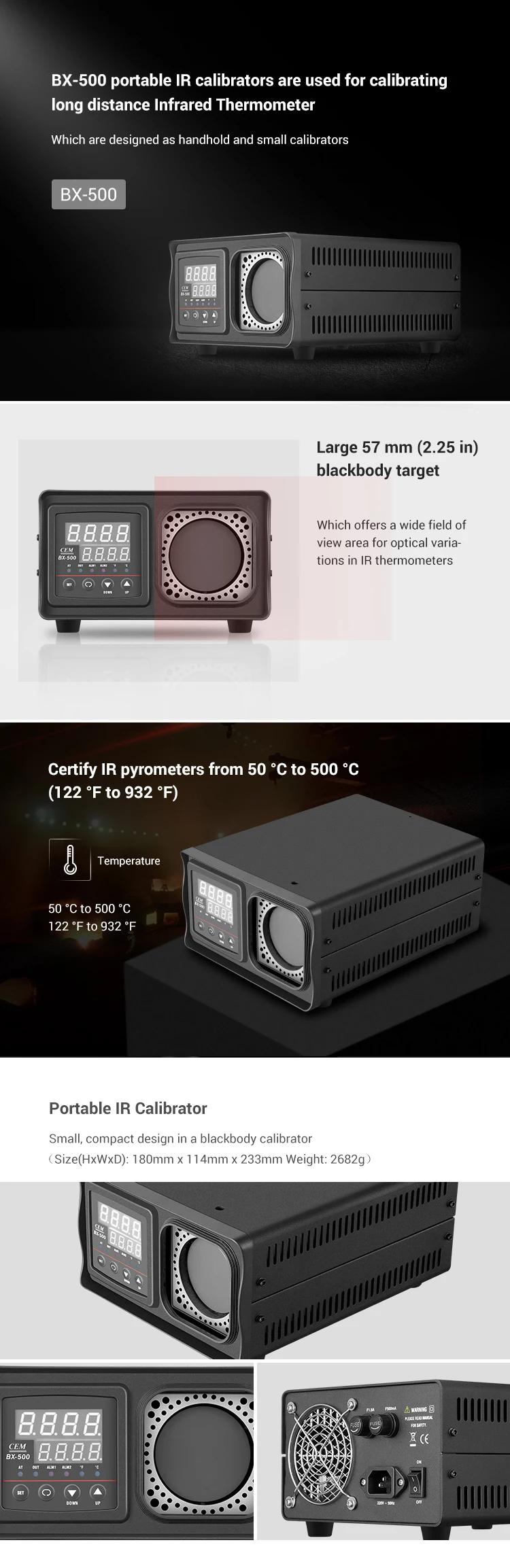

BX-500 Portable IR Calibrators are used for calibrating long distance Infrared Thermometer, which are designed as handhold and small calibrations.
  Whether you’re using in-line or handheld infrared pyrometers, you need a high performance calibration standard to verify accuracy. Portable IR Calibrator provides a stable black body target for calibrating non-contact IR thermometers up to 500ºC.
  The portable IR calibrator features a large temperature controlled blackbody target with a diameter of 2.25’’ (57mm), which offers a wide field of view area for optical variations in IR thermometers. With an emissivity of 0.95, the isothermal target can be controlled in set-point increments of 0.1°from 50ºC to 500ºC.
  For even higher precision, a contact calibration well is located directly behind the blackbody surface. Using an optional digital RTD thermometer and calibrated secondary probe, accuracies of ±0.1ºC can be achieved.

DETAILS:

Specifications	BX-350	BX-500
Temperature Range	50ºC ~ 350ºC/ 122ºF ~ 662ºF	50ºC ~ 500ºC/ 122ºF ~ 932ºF
Accuracy	±0.5ºC @ 100ºC/ ±1.0ºF @ 212ºF     ±1.2ºC @ 350ºC/ ±2.4ºF @ 662ºF	±0.5ºC @ 100ºC/ ±1.0ºF @ 212ºF      ±1.8ºC @ 500ºC/ ±3.6ºF @ 932ºF
Stability	±0.1ºC @ 100ºC/ ±0.2ºF @ 212ºF     ±0.2ºC @ 350ºC/ ±0.4ºF @ 662ºF	±0.1ºC @ 100ºC/ ±0.2ºF @ 212ºF   ±0.3ºC @ 500ºC/ ±0.6ºF @ 932ºF
Target size	2.25" (57mm)	2.25" (57mm)
Target Emissivity	0.95	0.95
Resolution	0.1ºC/ºF	0.1ºC/ºF
Heating Time	30 minutes to max	40 minutes to max
Cooling Time	30 minutes max to 100ºC	45 minutes max to 100ºC
Power	110V AC, 3A
