support input motor's shaft diameter 19mm 22mm and 24mm .
check the drawing below to confirm before order.
1,we have other ratios , if you need, please ask .
2nd:Input Size
We will ship the planetary reducer as the standard dimension as follows:
Frame | Shaft diameter of motor | Rabbet | Screw hole distance |
130mm | 19 or 22 or24mm | 110mm | φ=145mm |
If any question on the dimension of the planetary reducer, please write me the dimension drawing of your motor. We offer customize service for your motor and can help you choose the suitable planetary reducer for your motor.

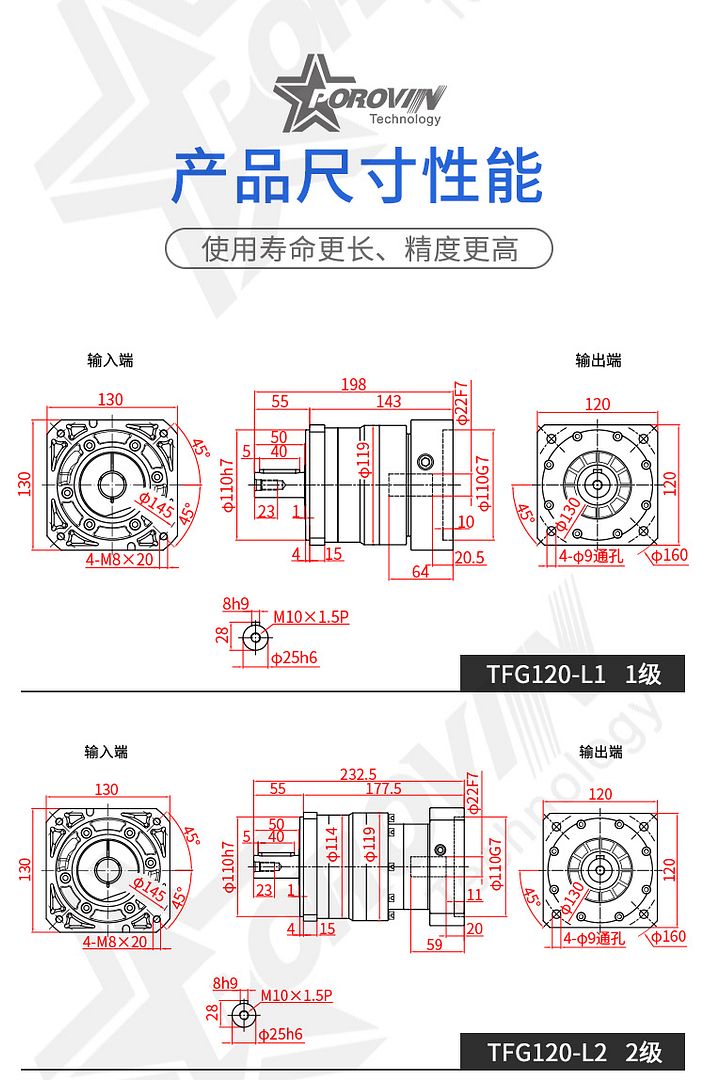

For 24mm input drawing:
For 22mm input drawing:
For 19mm input drawing:

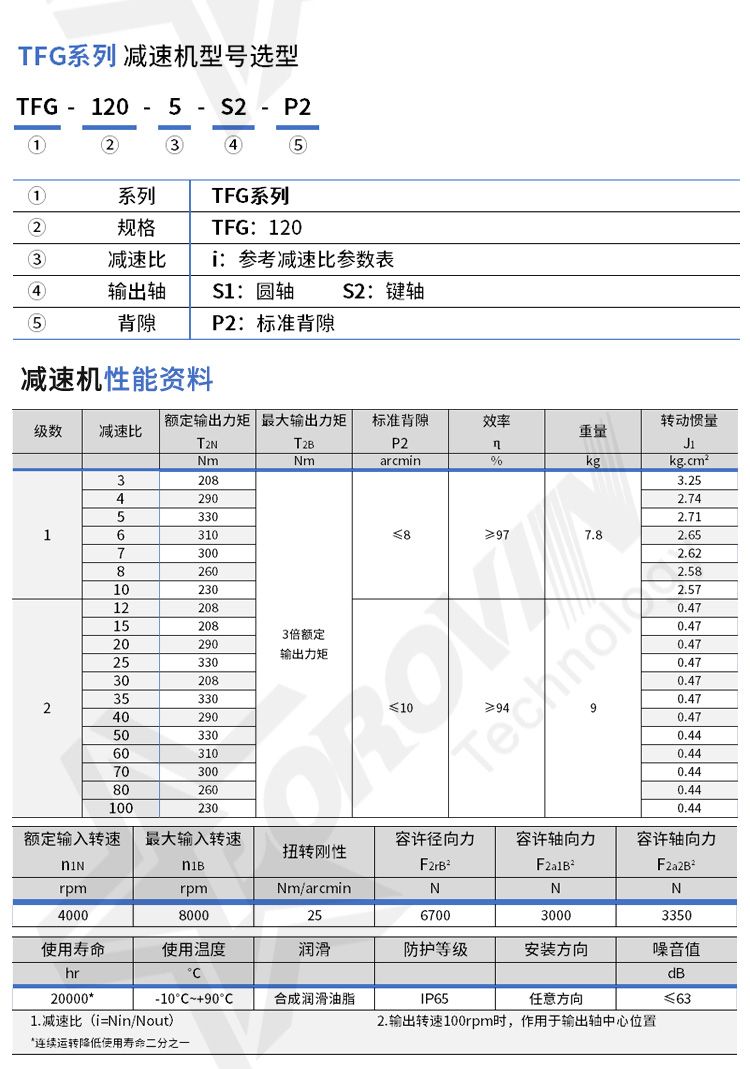

TF series details
