0.5X Optical Microscope Adapter Reduce Lens C-mount Industrial Camera Scale Adapter with Calibration Reticle

Specification

1.Materials: Full Aluminum Metal and Optical Lenses 2.Magnification:0.5X
3.Upper Thread Size: Standard C-mount (25.4mm)
4.Bottom Mount Size: 23.2mm
5.Reticle Division: 0.1mm = 10mm/100 = X&Y
6.Package Included: 1 x 0.5X Lens only (camera or microscope or other accessories are not included)

Application

1. Can expand field of view. then you could see larger field of view, but smaller image size.
2.There is a calibration reticle inside. It solves the problem that industrial cameras cannot install scale reticles.

Features


1. Upper C-mount thread can connect Industrial Camera well.

2.Bottom 23.2mm mount can connect biological monocular and binocular microscope. If your microscope is stereo, then you need to buy 23.2mm to 30mm adapter or 23.2mm to 30.5mm adapter separatey.

If you have any questions, please contact us. we will solve it for you. thank you.

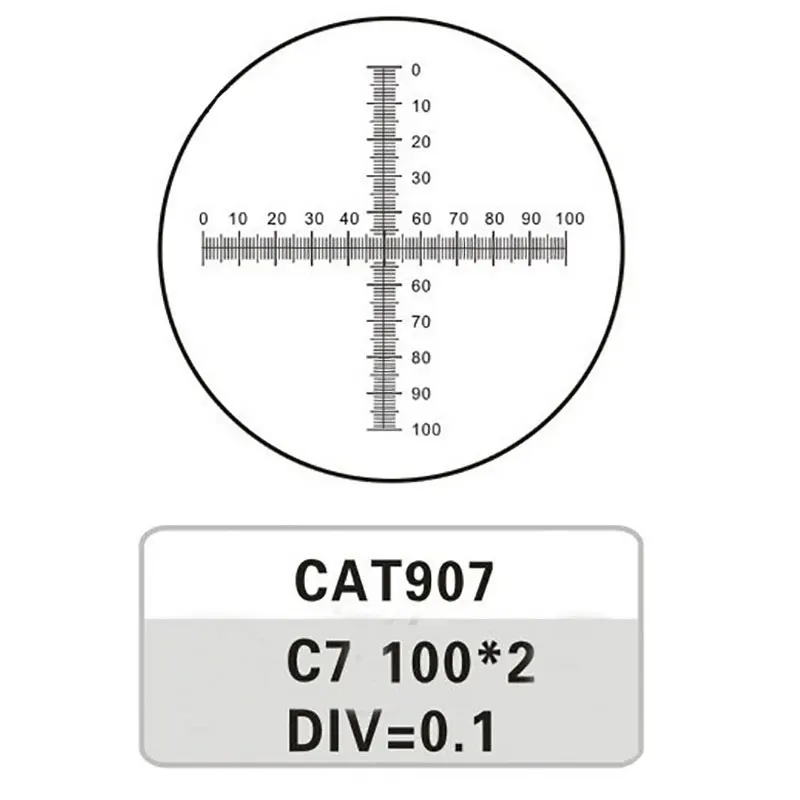

Specification of Calibration Reticle Inside

1 DIV = 0.1mm
10mm/100 = 0.1mm = X&Y
If you need other kinds of reticle inside, such as grid or fan-shaped. please contact me. thank you

How to calculate the objects real size

Real Value = 0.1mm x Number of Calibration / Objective lens magnification
