1500W Water Cooling CNC Spindle Motor ER11&1.5KW VFD&80mm Clamp&Pump&Pipe Kit


From CN via standard shipment delivery within one days handling time send out for you



Package include:

1 x 1.5KW Water-cooled spindle motor ER11 (220V,400Hz,24000rpm)
1 x 1.5KW VFD Inverter 220V input with 220V output
1 x 80mm calmp cast aluminium bracket
1 x 75W Water pump 3.2M
1 x 6M Water pipes
14Pcs ER11 collet  (1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm,3.175mm)

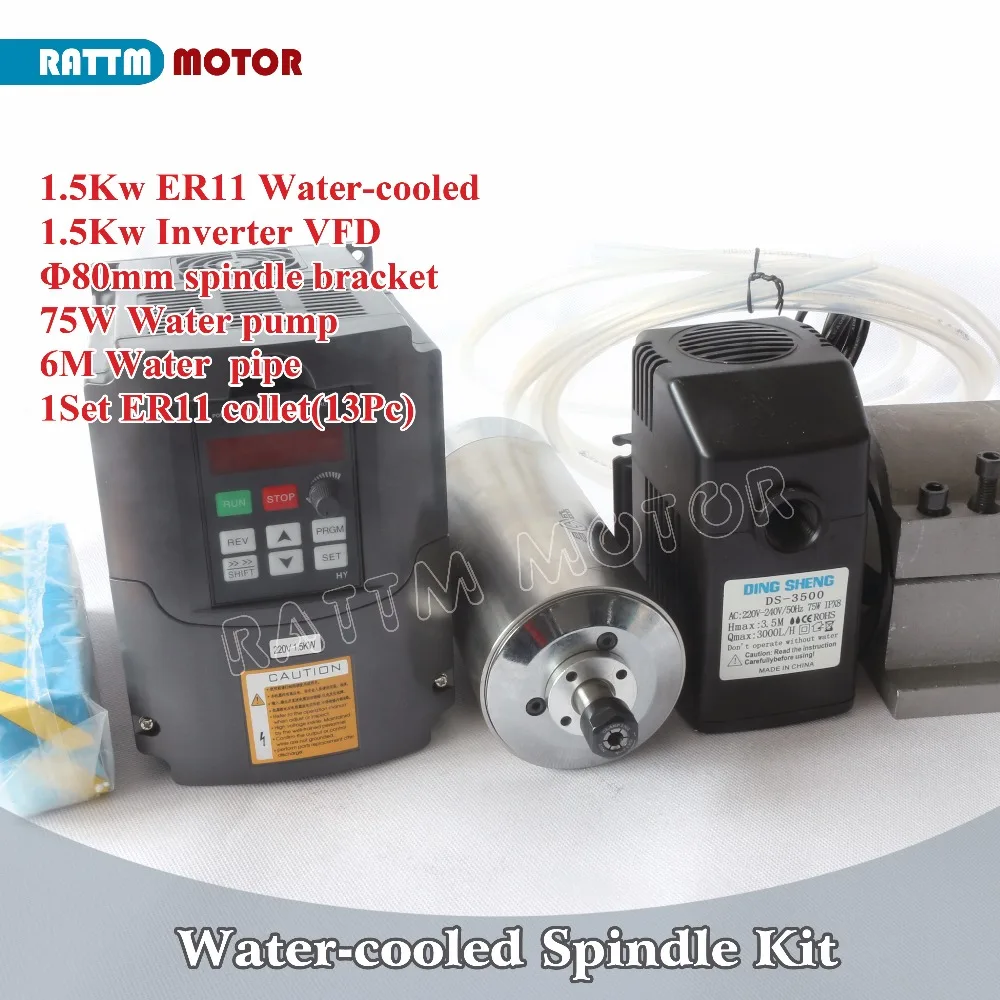

1.5KW CSYXSL+1.5KWHY220+80mm+75W+6M+ER11





1.5KW WATER-COOLED SPINDLE MOTOR ENGRAVING MILLING GRIND

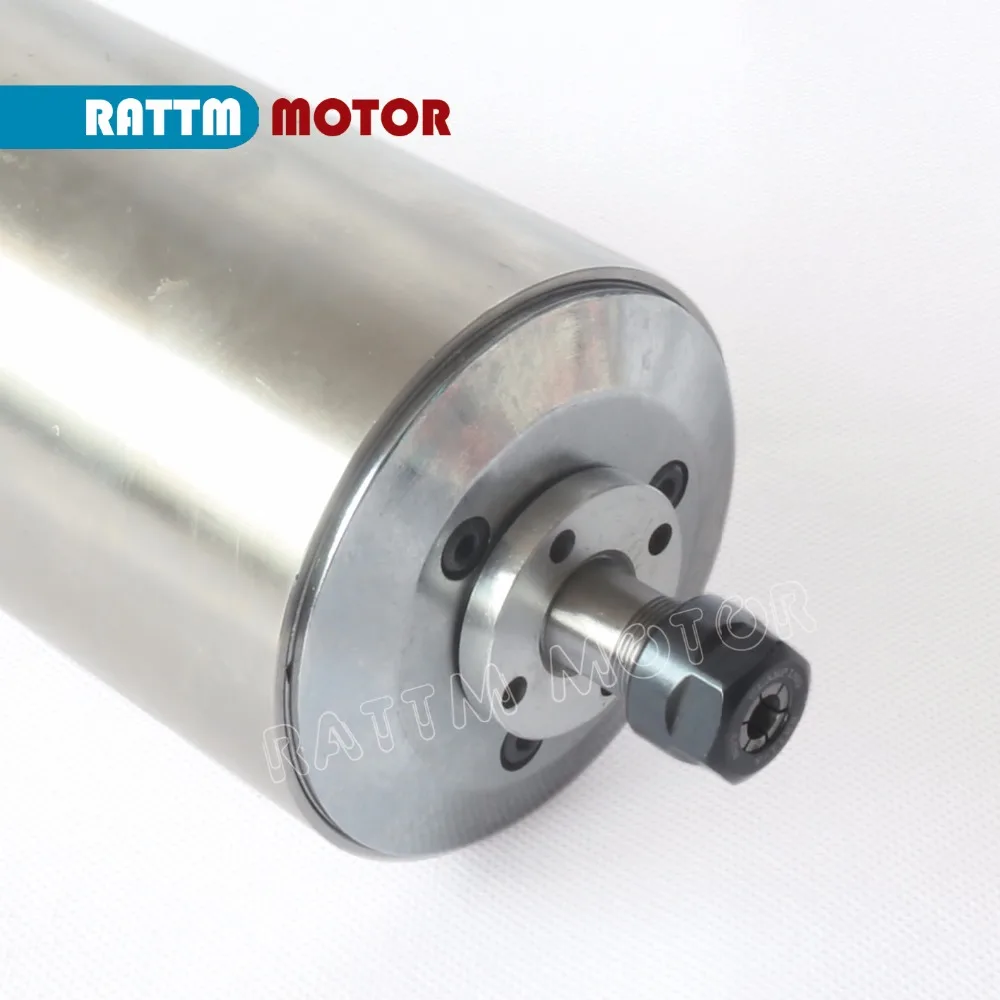

1.5KW 1


Specification:



Material: Stainless Steel



Size: Φ80x188mm(Middle body diameter:80mmxLength:188mm)



Power: 1.5Kw



Voltage: 220VAC



Current: 6A



Frequency: 0-400Hz



Speed: 10-24000rpm



Cooling: Water-cooled



Accuracy: 0.003--0.005



Runout off: Less than 0.02mm



Bearing Lubrication: Grease



Collet size: ER11



Bearings: 3 bearings (C7002x3),P4 class



Net Weight: 4.1kg



Power supply interface: Professional aviation Interface, Interface 1234 marked 123 respectively connected to the inverter output end of the (U, V, W), 4 ground wire this interface must be safe ground.



Main application: Wood, Aluminum, Stone, metal, glass, PVC industry





2. 1.5kw Inverter VFD 220V input with 220V output

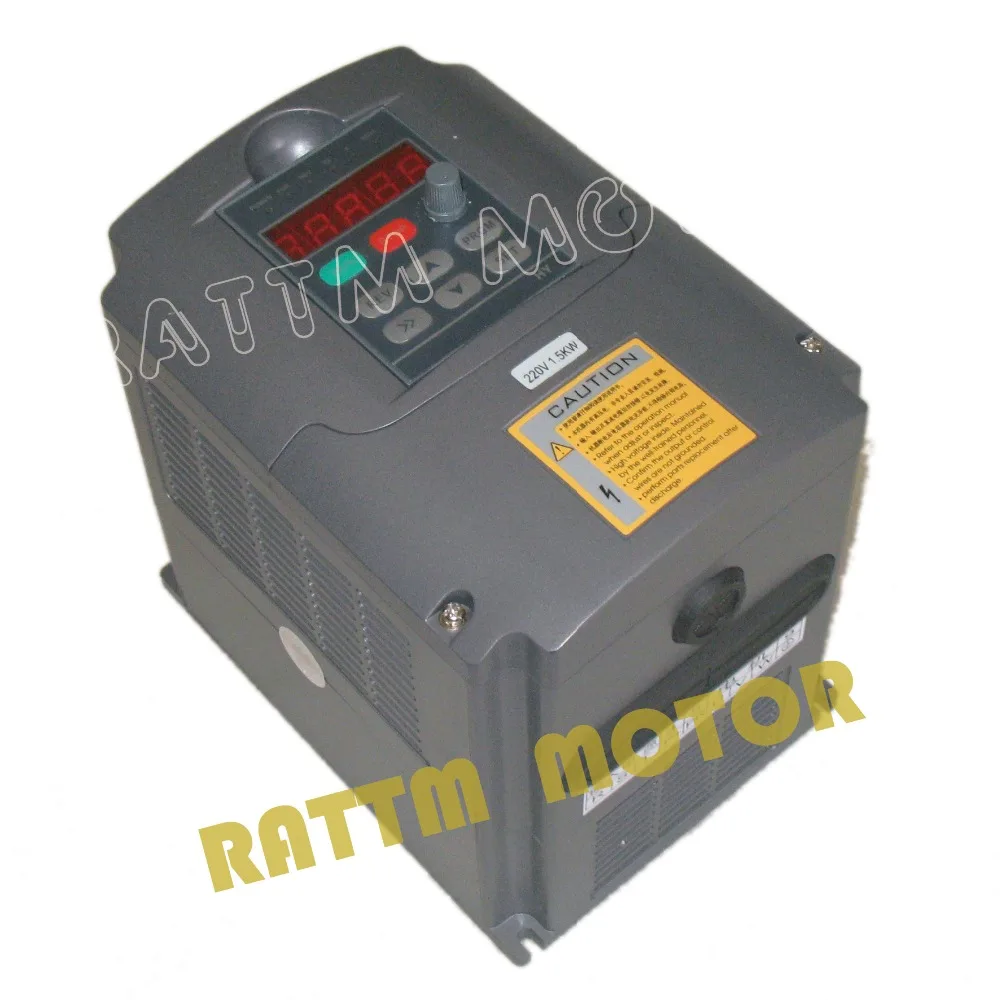

1.5KW VFD 220.1


Product Feature:

1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2)Easy PLC function can realize 16 legs of speed and inverter control function;

3)RS485 communication port, adopting standard international MODBUS main circuit control;

4)With extremely strong anti-jamming capability

5)Low output ratting torque0.5HZ-150%, low speed running ability;

6)Carrier adjustable by 16KHZ, completely soundless working environment;

7)Broad voltage working area, normal running in 304V-456V;

8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

10)With perfect error protection and short circuit starting protection capability;



Tech parameters:
1) Input Voltage: 220V(+/-15%)

2) Output Voltage: 220V(+/-15%)

3) Input Frequency: 48-63 Hz

4) Output Frequency: 0-400 Hz

5) Input Phase: 1 or 3 phase

6) Output Phase: 3 phase

7) Warranty: 1 year from the date you purchased

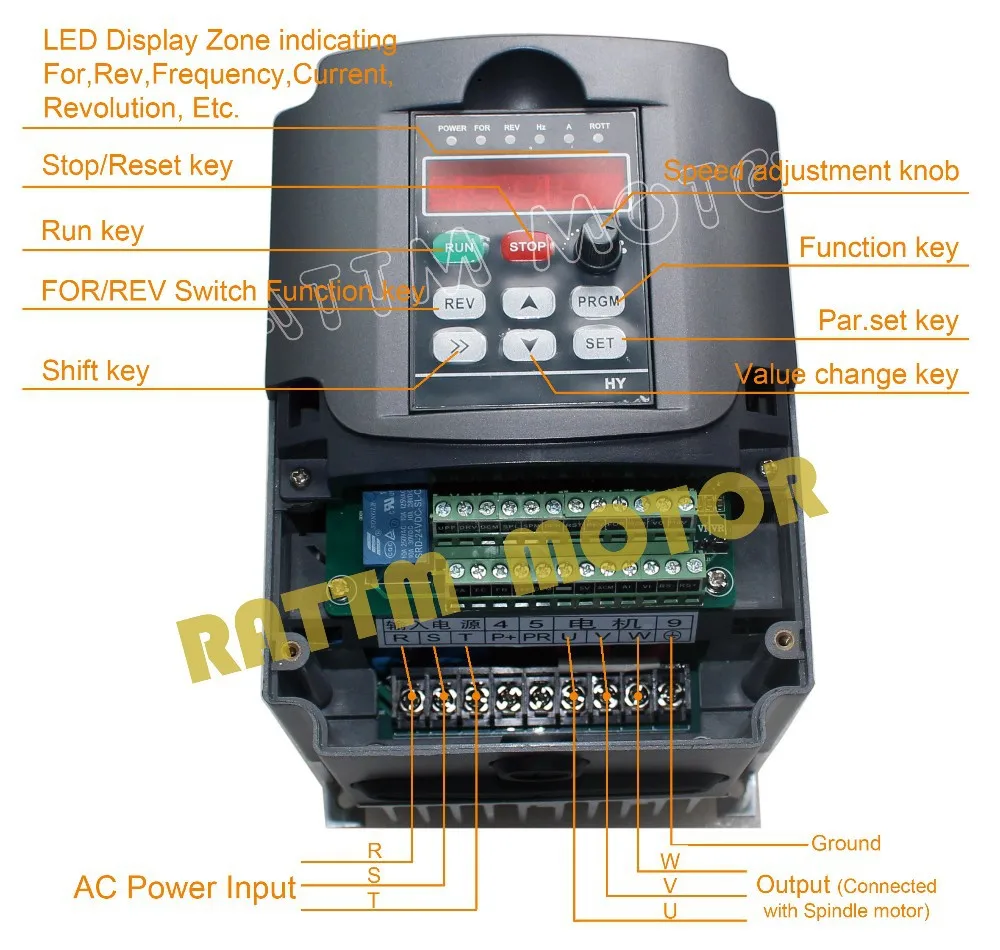

0.3

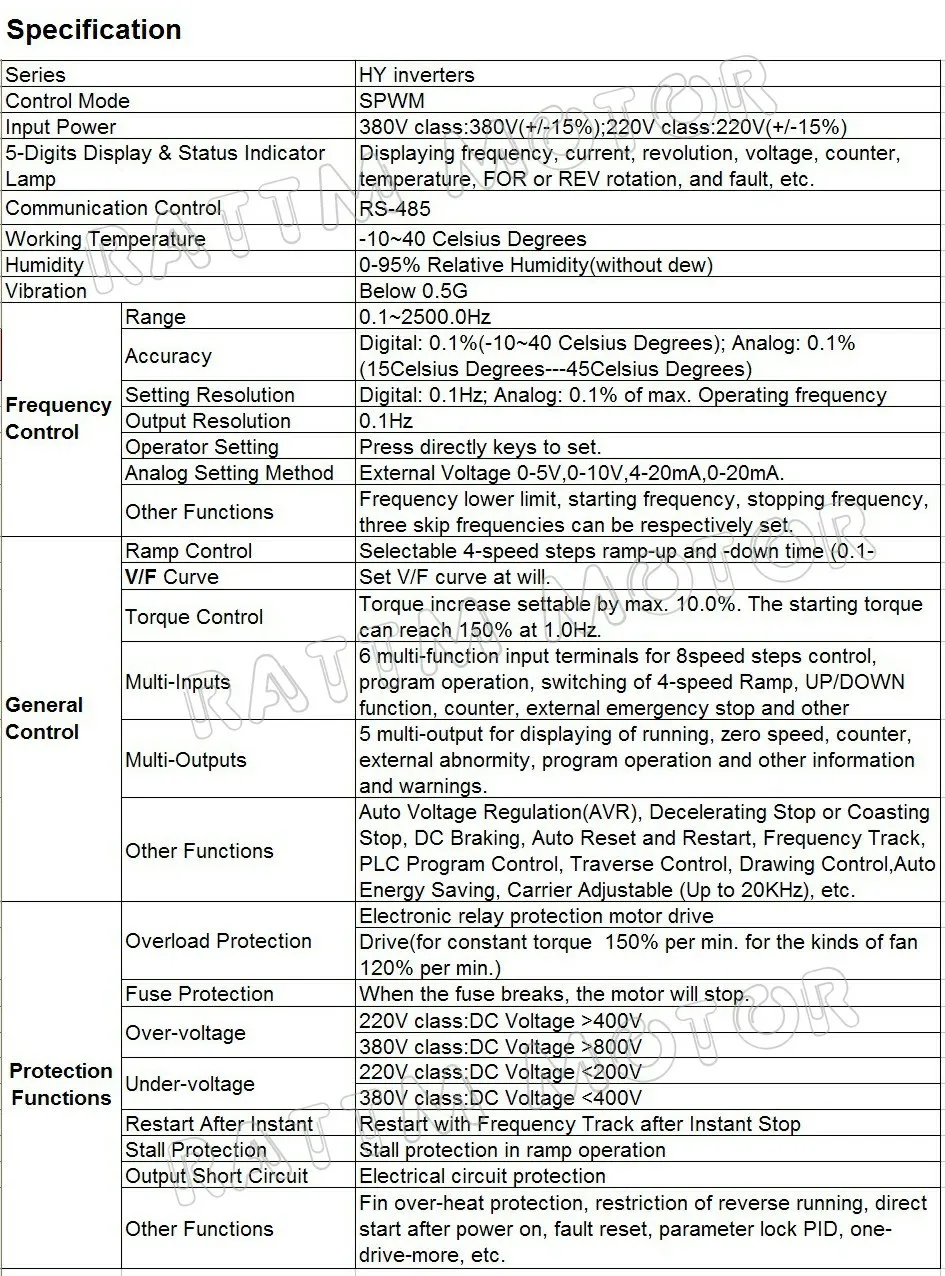

0.2

3. 80mm cast aluminium bracket

 80mm-1





4. 75W CNC spindle motor water pump 3.2m 220VAC


Specification:


Pump length:3.2m



Voltage:220-240VAC



Power:75W



Flow:3000L/H



Size:150x80x140mm



Water nozzle diameter:6mm



Application: fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too




5. ER11 Spring Collet (14 pcs,1mm-7mm)
(1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm,3.175mm)


Product Description

Out dia (D1):11.5mm

Height (H):18mm

Hole dia (D2):1-7mm

Run-out tolerance 0.1mm (0.006")
First class 1065 carbon steel
Hardened & precision ground

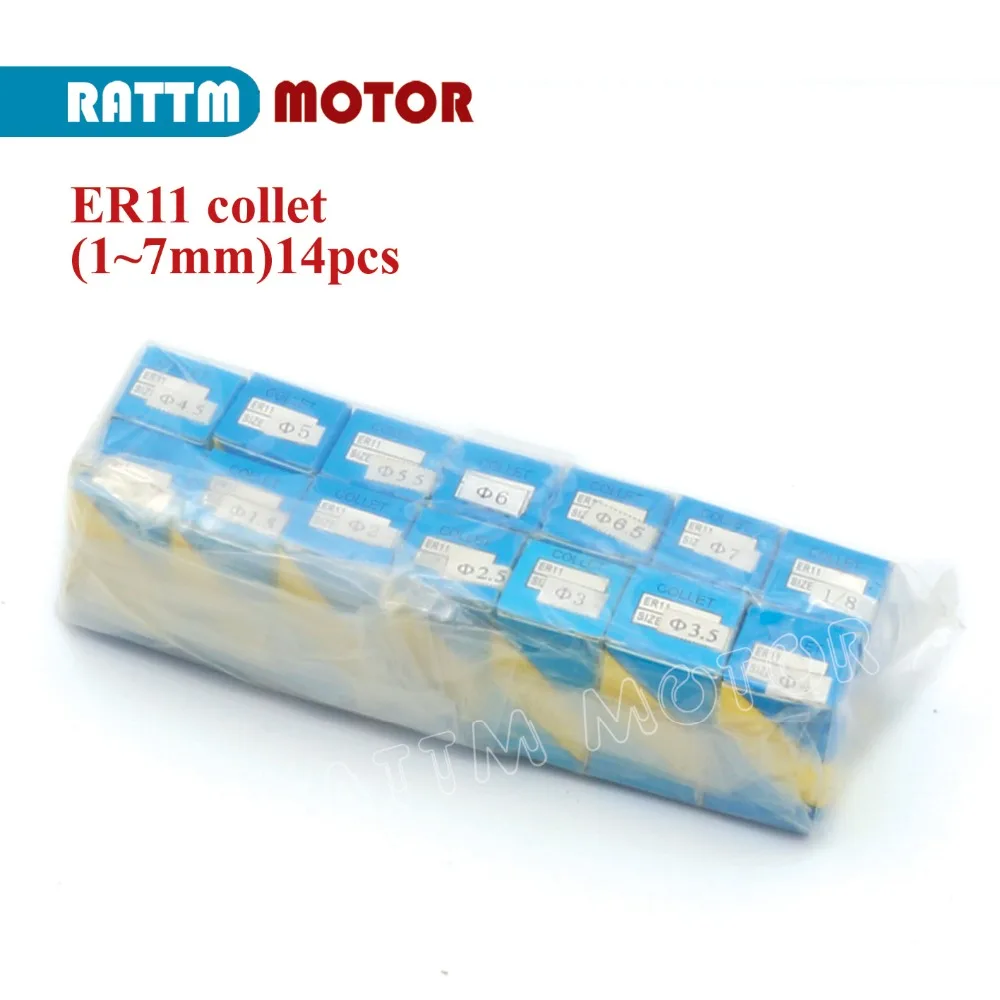

ER11夹头一套-1
