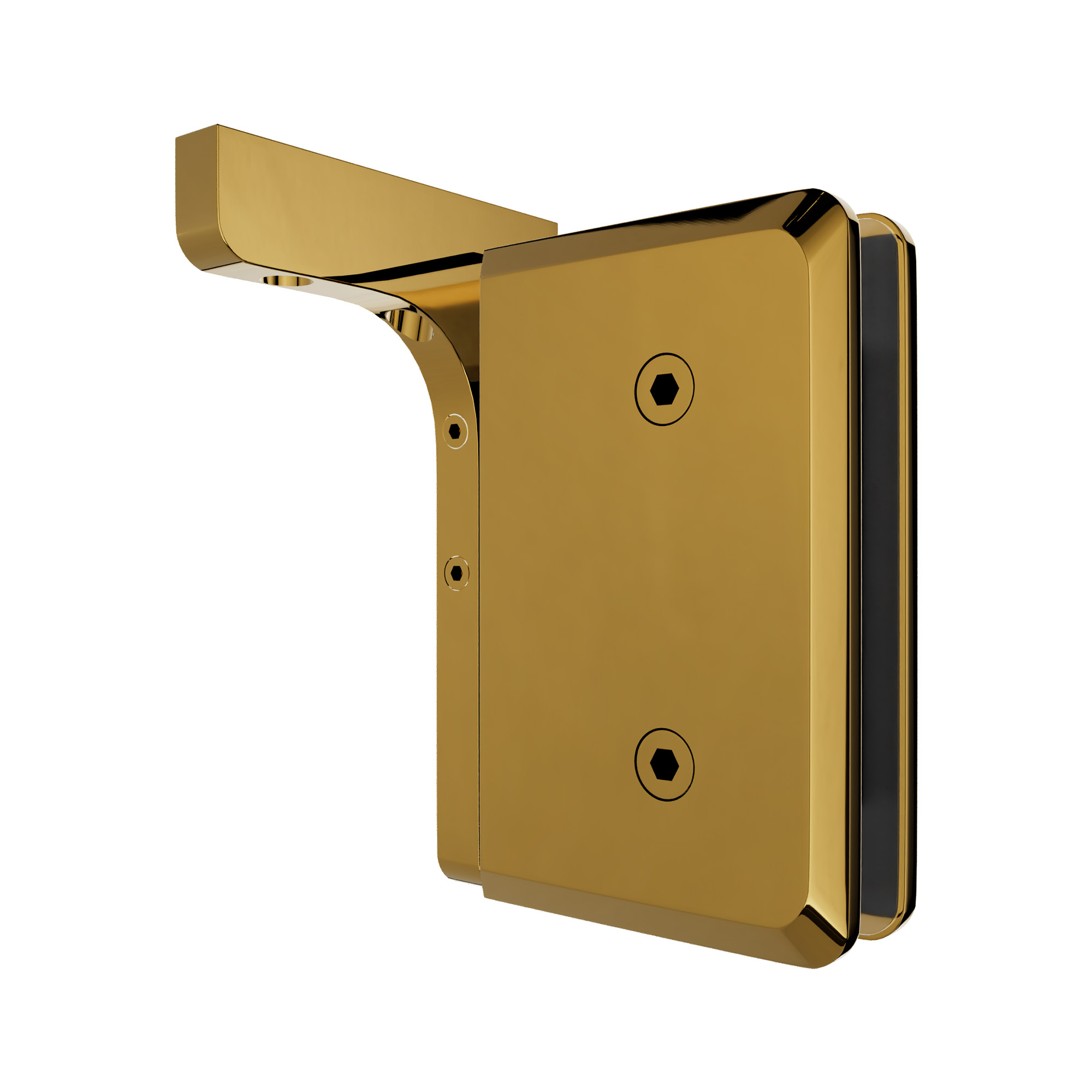

Brixwell H-PIVBGTWA-LB Glass To Wall Mount Pivot Hinge With Reversible L Bracket 3/8" and 1/2" Glass Thickness Lifetime Brass Finish

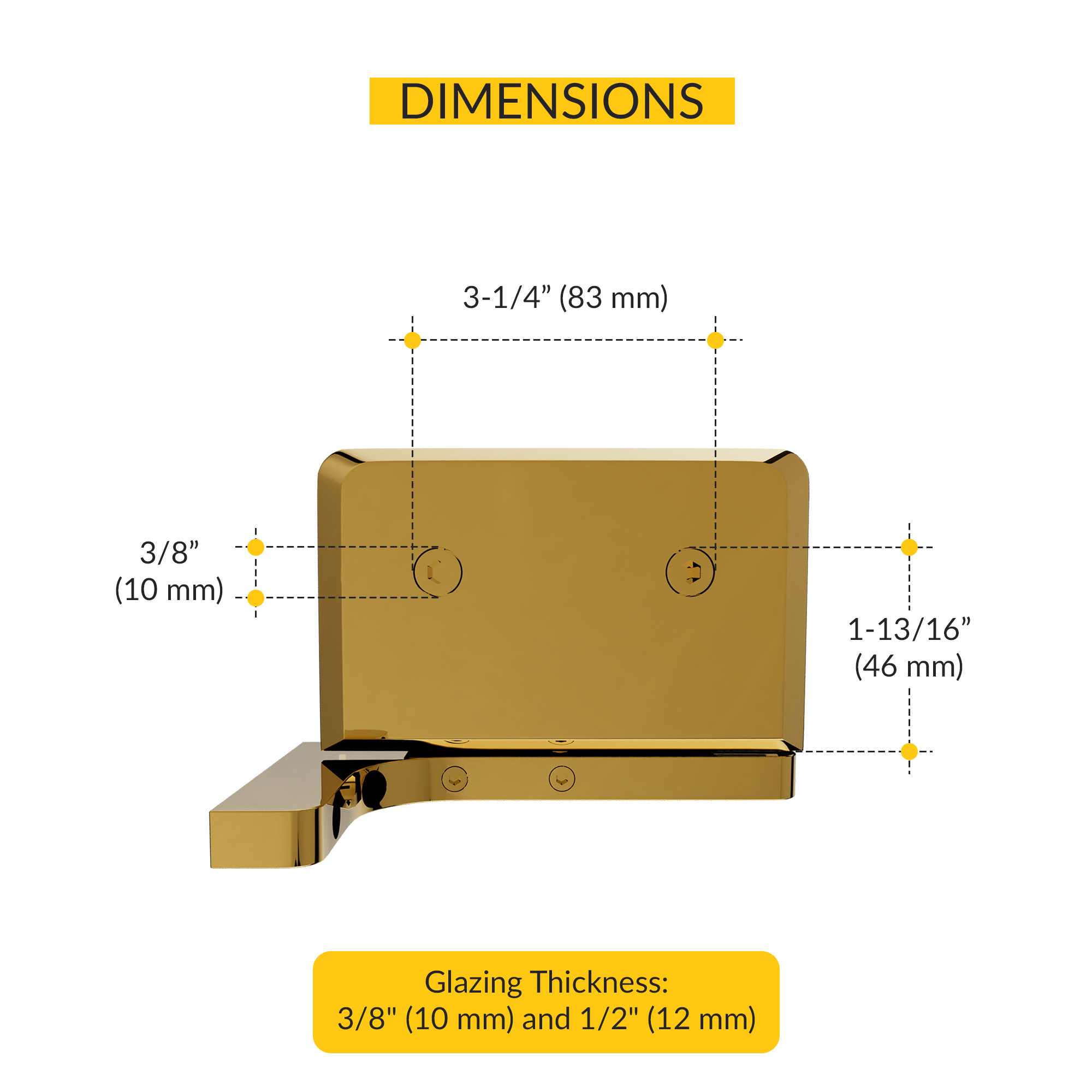

The Glass to Wall Mount Pivot Hinge With Reversible L Bracket in Lifetime Brass finish is designed for frameless shower enclosures that require a secure wall connection with adjustment capability. Constructed from solid forged brass with precision-machined stainless steel components, this hinge provides strength and consistent operation in shower hardware, glass hardware, and door hardware applications. The hinge features dual precision wound stainless steel return springs for self-centering 0 degree return and self-closing from a 25 degree door angle. An adjustable mechanism allows the closing position to be modified up to 90 degree in or out after installation. Installers can loosen two screws with a 3mm hex wrench, realign the door, and re-tighten for precise positioning. The non-mouse ear design provides easier adjustment, while the beveled edge profile ensures a smooth finish in frameless hinge setups. Designed for top and bottom mounting, it provides improved stability in frameless shower designs and compatibility with Euro Header and Elite Header systems. Suitable for 3/8" (10mm) and 1/2" (12mm) tempered glass, the hinge requires fabrication cutouts for installation. Each hinge is rated at 40 lbs capacity, with two hinges supporting doors up to 120 lbs and a maximum width of 36". Glass weight guidance is 5.05 lbs/sf for 3/8" panels and 6.40 lbs/sf for 1/2" panels. Dimensional details include glass edge to hole spacing of 1-13/16" and end to end hole spacing of 3-1/4". Hardware includes stainless steel hex clamping screws, crosshead screws, and a hex wrench in a matching finish.
