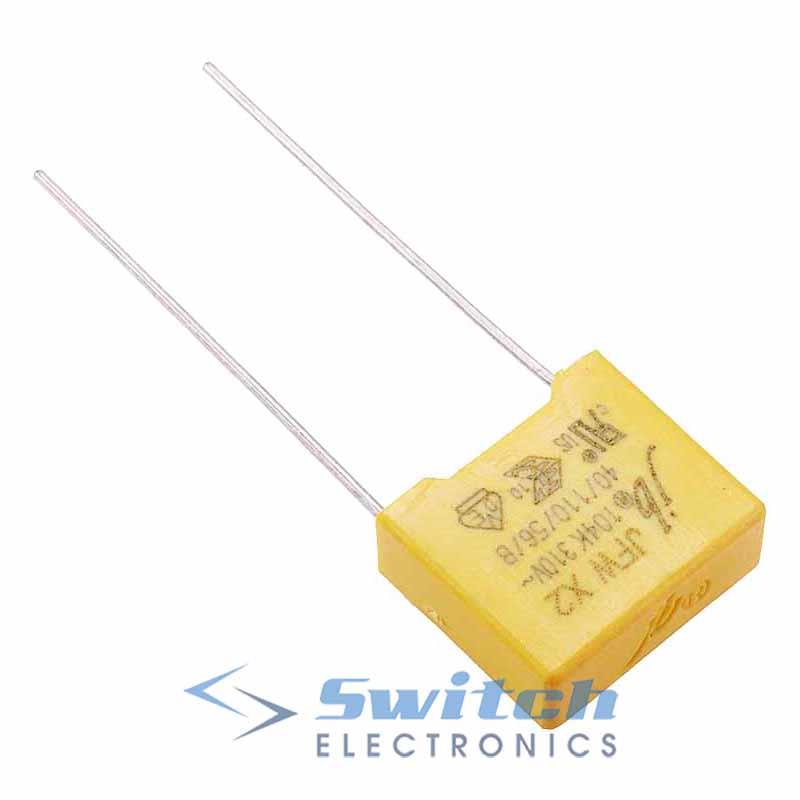

0.01uF to 2.2uF 310VAC X2 Metallised Polypropylene Film Capacitor
£
0.99 - 45.39
310VAC metallised polypropylene suppression capacitors manufactured from a non-inductive plastic case sealed with epoxy resin. The capacitors are used in across-the-line, interfernece supression circuits.
- 0.01uF to 2.2uF
- ±10% tolerance
- Class X2
| Capacitance | Length | Height | Thickness | Pitch |
| 0.01uF | 13mm | 11mm | 5mm | 10mm |
| 0.022uF | 13mm | 11mm | 5mm | 10mm |
| 0.047uF | 13mm | 12mm | 6mm | 10mm |
| 0.1uF | 13mm | 11mm | 5mm | 10mm |
| 0.1uF | 18mm | 11mm | 5mm | 15mm |
| 0.22uF | 13mm | 12mm | 6mm | 10mm |
| 0.22uF | 18mm | 12mm | 6mm | 15mm |
| 0.47uF | 18mm | 14.5mm | 8.5mm | 15mm |
| 1uF | 26.5mm | 19mm | 10mm | 22.5mm |
| 2.2uF | 31mm | 25mm | 14mm | 27.5mm |
