ANCEL V6 Pro+ obd2 scanner is a bi directional scan tool which can give commands directly to your automobile's E/CU to check vehicles' working status and functionality like fuel pump test, injectors coding, ABS breaks bleeding, throttle body reset, Read/erase codes, covering Transmission, Body, Sunroof, EPB, TPMS systems, etc, Bidirectional obd2 scanners can be a huge help and make it even easier for mechanics, DIYers to repair vehicles correctly and quickly.

The special reset functions the professional auto scanner ANCEL V6 PRO+ supports are as same as the model MK808TS but at a more favorable cost. If you are looking for a diagnostic scanner that is capable of doing almost all the common reset functions but does not have that much budget, V6 PRO+ is the most cost-effective model you could consider. The 25+ commonly used services are as follows:
Oil Reset: When the service lamp on the instrument cluster is up, changed the oil, then turn off the oil light and reset the service mileage.
ABS Bleeding: When the ABS contains air, the ABS bleeding function is required to bleed the brake system to get a firm brake pad.
BMS Reset: When the battery shows aging or damage, need to re-match and registering the battery, then clear the fault codes from the dashboard and reset BMS module.
DPF Regeneration: The diesel filter will become clogged after a long time. Once the engine recognizes the DPF clogging, it will trigger regeneration. This function performs diesel filter cleaning to clear the blockage and reset the DPF light.
EPB Reset: It performs the maintenance of electronic parking brake systems. The brake pad reset is required to turn the MIL off after replace the brake pad.
Injector Coding: Write the new injector code to the ECU after replacement of injector so that the cylinder can identify the new injectors to lower fuel emissions.
SAS Calibration: The steering angle sensor is used to detect the rotation angle of the steering wheel. This function performs calibration for the steering angle sensor to clear fault memories of the steering angle sensor.
Throttle Adaptation: After clearing or repairing the electronic throttle, re-learning and adapt throttle sensor position is necessary to precisely adjust the throttle opening.
TPMS Reset: The tire pressure monitoring system can perform real-time automatic monitoring of various tire conditions. When the tire pressure is insufficient, need to perform tire pressure reset after replace the tire or sensors.
IMMO Keys Function(All Keys Lost, Add Key, Reset Key): It supports add the new key and remotely disable the lost one when the key was lost to prevent your car from being stolen.
AT Set/Gearbox Matching: Perform complete the self-learning of the gearbox and improve the quality of shifting. After the gearbox is disassembled or repaired, it will cause problems such as shift delay. At this time, this function needs to be executed to make the gearbox automatically compensate according to the driving conditions to achieve a more ideal shift quality.

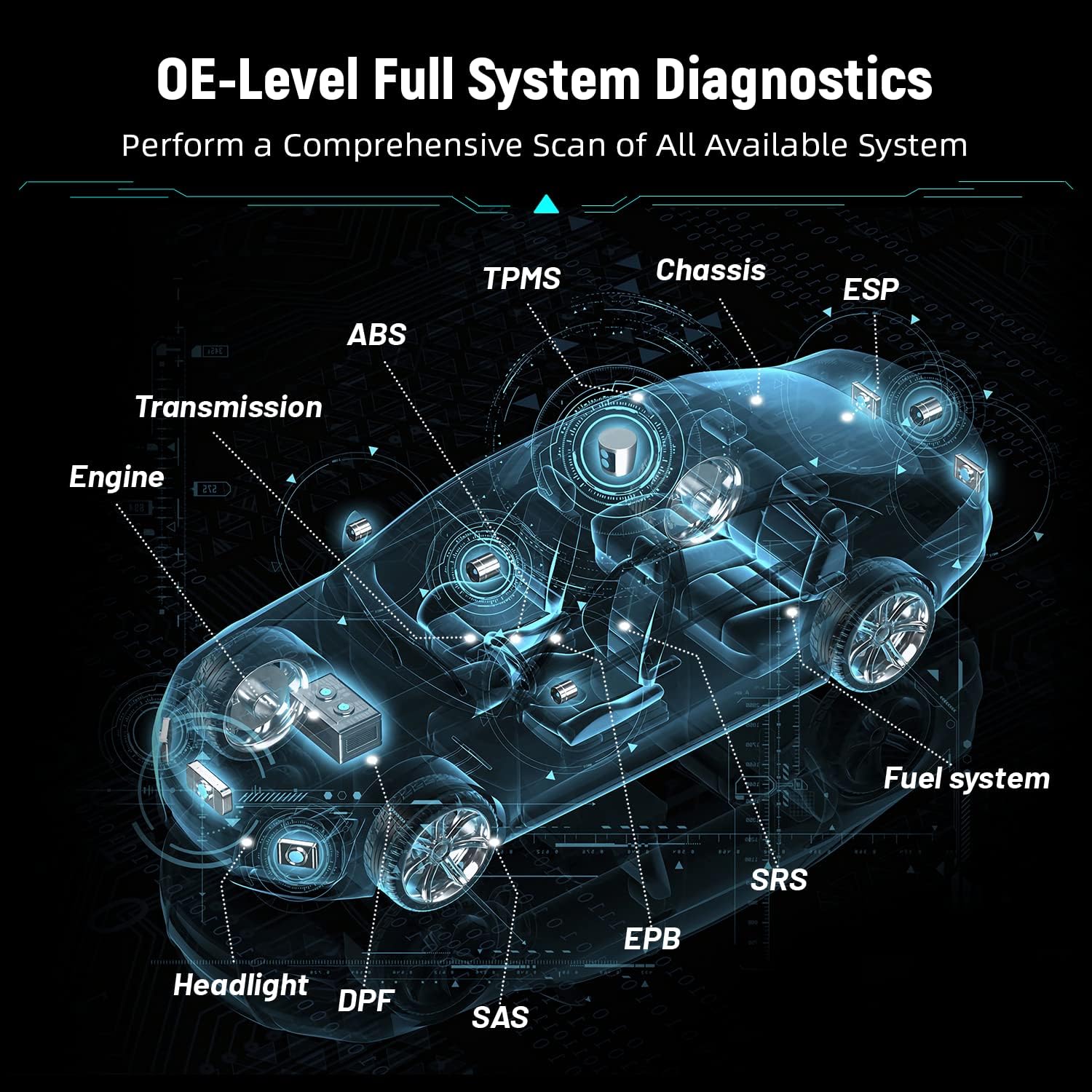

Full System Diagnostics: The V6 PRO+ is able to diagnostic systems include but not limited to the following systems
(Both auto scan and individual module scan are supported):

Supports OBDII 10 test modes on Engine system: read/clear codes, DTC look-up, view freeze frame data and I/M readiness monitor status, display live data stream and O2 sensor test data, on-board monitoring, EVAP system test, retrieve vehicle information.
Multiple universal languages support: English, French, Spanish, German, Russian, Italian, Polish, Portuguese, Dutch, Japanese and Korean.
ANCEL V6 PRO+ Support Car List :
EUROPEAN Area: For Ford(Europe), Jaguar, Lamborghini, Lancia, Landrover, Maserati, Mini, Opel, Peugeot, Porsche, Renault, Rolls Royce, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, VOLVO, VW, VWCW, Abarth, Aifa Romeo, Aston Martin, Audi, Bentley, Bugatti, Benz, BMW, Citroen, Dacia, Ferrari, Fiat vehicles diagnosis
AMERICAN Area: For Scion, Buick, Ford(America), Cadillac, GMC, Dodge, Chevrolet, Jeep, Chrysler, Ravon, GM vehicles diagnosis
ASIA Area: For Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Luxgen, Mazda, Mitsubishi, Nissan, Renault Samsung Motors, Ssangyong, Subaru, Suzuki, Toyota, TATA, Mahindra, Maruti, Perodua, Proton vehicles diagnosis
CHINA Area: For BYD, Emgrand, Gleagle, Huachen, Yuan, Changan, Englon, GWM, Lifan, Changhe, Foton, Hbsh, Wuling, Zotye, Geely, Chery vehicles diagnosis
AUSTRALIA Area: For Holden, Ford(Australia) vehicles diagnosis
Product Activation:
1. Click the Update function on the home page.
2. Please activate the product in the first login.
3. Fill in the activation information, and click ACTIVATION.
4. The activation request sent, your mailbox has received the activation link.
5. Log in to the mailbox where you just filled in the activation information and click the activation link to complete the activation.

One-click Feedback: This diagnostic tool supports one-click feedback. You can give us your feedback via this function if you have diagnostic problems, ANCEL's professional technical team will provide you with excellent solutions.
One-click WIFI Update: With this scan tool, you can one-touch update the diagnostic software via wifi anytime and anywhere, and no need to update on computer. Then you will get the latest version (more car models, bug fix) of this scanner.
One-click Screenshot: This function allows you to save important information about vehicle diagnosis through one-click screenshots, and then you can view the screenshots in “Data Manager”.
One-click Screen Recorder: Similar to a screenshot, you can save important information through one-click screen recording, and then open the “Data Manager” to playback those videos.
DTC Query: Provide DTC lookup function. With this feature, the fault information corresponding to the fault code can be quickly retrieved, which will save you time searching online.
Automatic Health Diagnostic Report: It supports automatically generating diagnostic 4 types of reports (Fault code report, ECU information report, Quick scan report and Live data report) after systems scanning.
Data Manager: It opens the organization system for saved data files such as screenshot pictures, record video, vehicle software, testing report, data playback and function list.
Compared with other similar diagnostic tools, what high-end hardware configurations does ANCEL V6 PRO+ have?
● 8000 mAh High-rate polymer battery supports up to 10 hours of continuous operation.
● Powered by a 2.0GHz Quad-Core processor, which makes the running speed has increased by 50% compared to its competitors.
● The large memory space of 2GB RAM and 32GB ROM helps improve the running speed of the diagnostic tool.
● 8.0 inches IPS multi-touch capacitive touch screen can improve your information reading experience.
● Turn on the built-in flashlight with one button to bring you bright light, which is convenient for you to diagnose and repair the vehicle at night.
● Multi-layer rubber protection, strong structure, shock-proof and drop-proof, which can meet the needs of specific working environment in the process of car maintenance.
|
|
|
|---|---|---|
Remote Diagnosis & Bluetooth and WIFI ConnectionThis scan tool provides remote diagnosis, which is convenient for the real-time interaction between car maintenance companies and car owners, and can accurately and quickly carry out remote diagnosis, communication and sharing (Remote technical support by Teamviewer). The Bluetooth & Wi-Fi connection function can bring great convenience to your diagnosis process. | Photo & Video RecordingThis latest comprehensive diagnostic tool V6 PRO+ is equipped with a 13-million pixel rear camera with auto focus and flashlight function. You can shoot pictures or videos about the vehicle’s condition and even edit the pictures and videos you have taken. Then share them with your friends or mechanics via Bluetooth. | Data Record & Playback & PrintClick the "record" button to record the data stream with one key to collect the diagnostic data in real time, and you can playback these data in the data manager for further analysis. In addition, the data can also be printed via PC for better diagnosis. This is an ideal scan tool for advanced DIYers and professionals. |

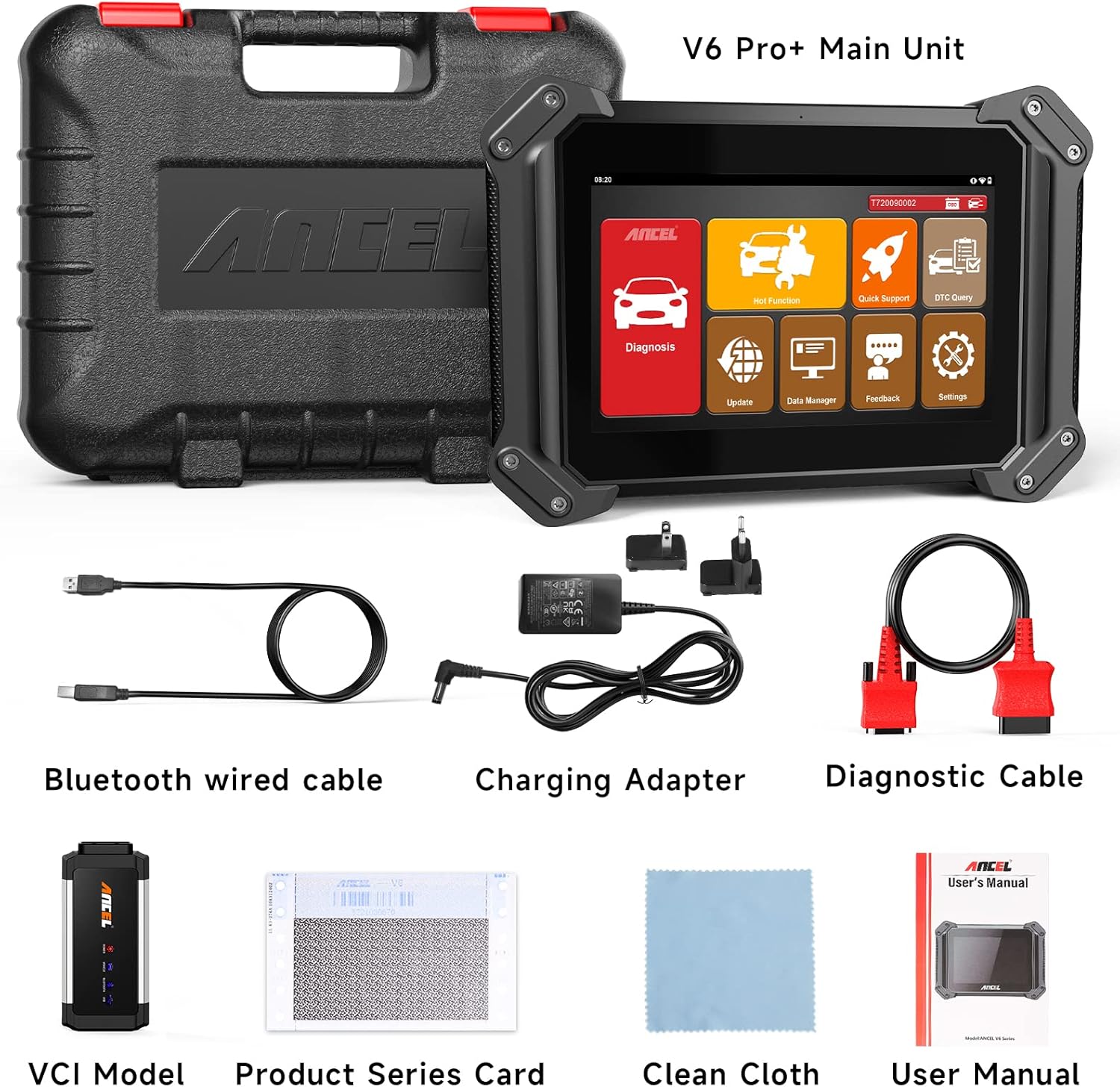

Product Specifications CPU: Quad-core Cortex-A53 2.0GHz Package List 1*V6 PRO Main tablet
GPU: G52 3EE MC1@800MHz
Operation system: Android 10. 0
ROM :32 GB EMMC
RAM:2G LPDDR4
Display :8.0 inch IPS Multi-touch Capacitive Touch Screen
with 800*1280 resolution
Camera(rear): 5.0 Megapixel, AF with Flashlight
Connectivity WIFI: 802.11 b/g/n/ac Support Hot spot/ 2.4/5GHz
BlueTooth 5.0, USB 2.0, Type-C
HDMI: 1080P Output
TF Card :(Support up to 32GB)
Audio :Microphone, Dual Speakers
Power and Battery :8000 mAh 3.7 V lithium-polymer battery
Input Voltage: 8V – 30V
Power Consumption: 6.5 W
Operating Temp.: -10 to 50°C (14 to 122°F)
Storage Temp:-20 to 60°C (-4 to 140°F)
Dimensions:(WxHxD) 270 mm(10.63 in) x 193 mm(7.60 in) x 38
mm(1.50 in)
Weight NW: 1.20 kg (2.65 lb) GW: 3.00 kg (6.61 lb)
1*Plastic box
1*OBD2 cable
1*Charge cable
1*US Plug/EU Plug
1*VCI Model
1*Manual
1*Password paper
