NEMA17 Stepper Motor Driver Screw Linear Kit Through Shaft 0.22NM For 3D Printer
Items Description

2 Phase Hybrid Stepper Motors

General specifications:

Item

specifications

Step Angle Accuracy

±5%

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80℃ Max.

Ambient Temperature

(-20℃)~(+50℃)

Insulation Resistance

100MΩ Min.500VDC

Dielectric Strength

500VAC 1minute

Electrical Specifications:

Series Model Step Angle(°) Rated Current（A） Phase Resistance(Ω) Phase Inductance(mH） Holding Torque(N.M) Mortor Length(mm) Lead Wire(NO.) Axial lenghth(mm)
42HZ1315M6B2 1.8 1.5 1.75 3.1 0.22 34 4 130
42HZ3115M6B2 1.8 1.5 1.75 3.1 0.22 34 4 300



Mechanical Dimensions and Wiring Diagram:
Product Description:

· 42 Two-phase Stepper Motor

· Machine Length: 34mm

· diameter of axle: 6.35mm

· Length of axis: 130mm, TR6.35*3.65(P2)


Wiring: black and green  A+/A-,Red and blue B +, B -.


Applications:

Used for robots stepper motor,electronic automatic equipment stepping motor,medical instrument stepping motor,

advertising instrument stepper motor,lighting& audio equipment stepper motor,printer stepper motor, textile machinery stepper motor.


Drive DM422C

DM Series Classis Analog Stepper Drives

Highlights

Step & direction or CW/CCW control

Advanced DSP-based current control algorithm

Low-middle speed anti-resonance

Extra low noise; extra low motor heating; smooth motor movement

Easy setup via DIP switches for microstepping resolution and output current

Free software for fine tuning, output current, resolutions...

Automatic stepper motor identification and self configuration

Electrical Specifications (Tj = 25oC/77oF)

Phase

Series

Model

Current

Voltage

Microstep

Motor Adapter

Weight

Size

Controlling Signal

2 Phase

DM

DM422C

0.5-2.2A

18-40DCV

2-32

42,57

0.115

86*55*20

Single-ended Signal

DM Series Applications

Suitable for applications require high performance, extra low motor noise, extra smooth movement stepper systems,

such as CNC routers, small and medium size milling or engraving machines, laser machines, lab automation instruments,

textile equipment, medical devices, assembly machines, pick-and-place devices, etc.

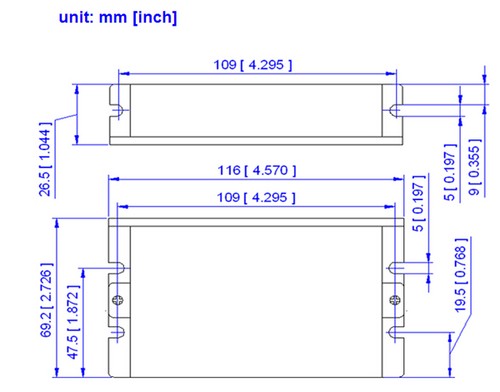

DM422C Dimension


Typical Connection
