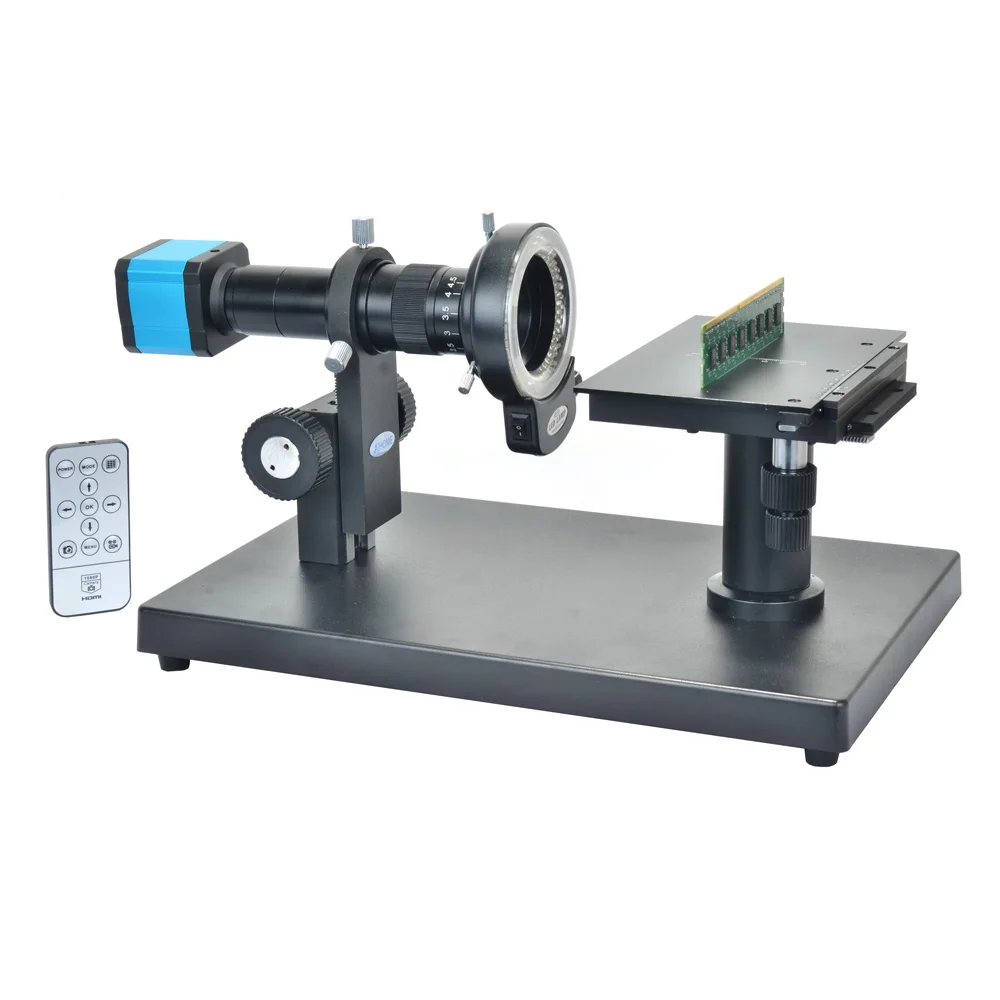

14MP HDMI HD USB Digital Industry Video Microscope Camera + Horizontal Microscope Table Stand + 180X C-MOUNT Lens+144 LED Light
Features:

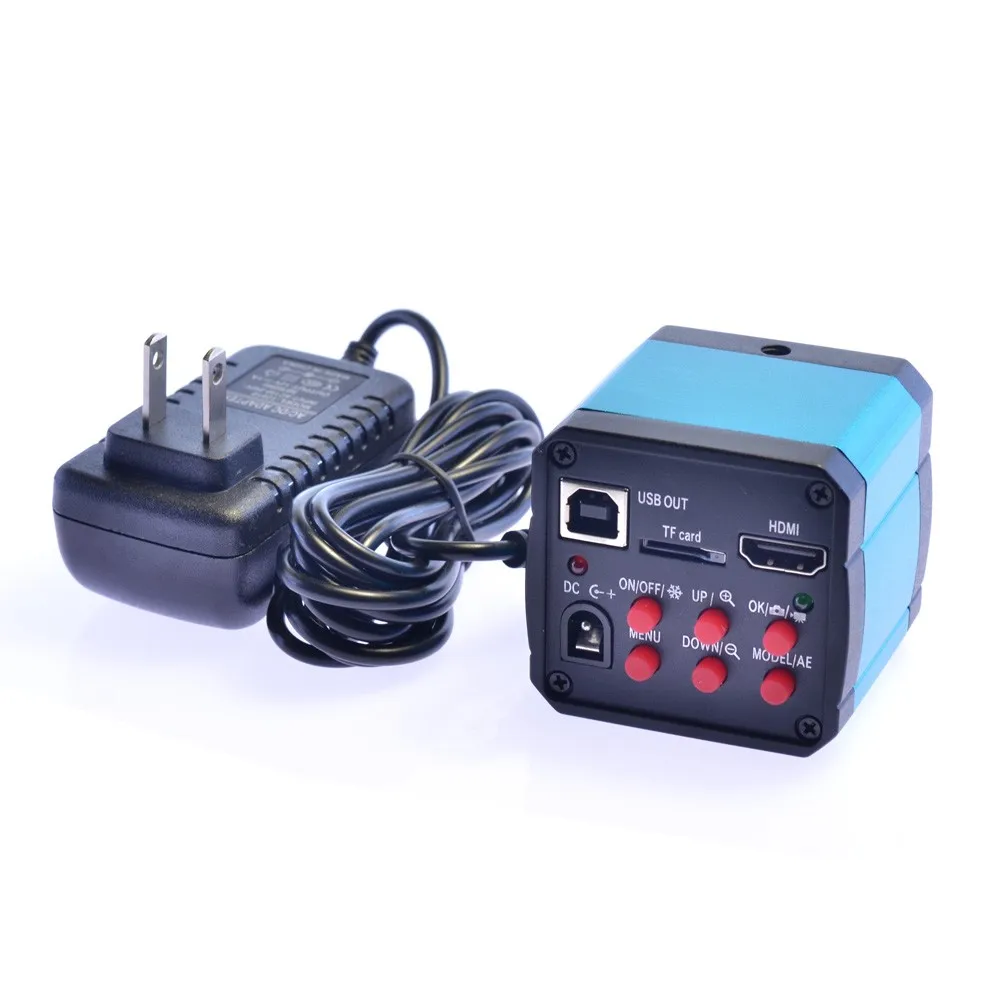

Model: Camera with HDMI USB2.0 two output
Image format: JPG
Image resolution: 4320*3240 (for TF card) 1280 *720 @ 30FPS(for TF card)
Video format: MOV(for TF card)
Video recorder:
1280 *720 @ 30FPS
(for TF Card)
USB Video resolution: 1280 *720 @ 30FPS
White Balance: Auto
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Line: different color,4 horizontal line , 4 vertical line,any positions
Specification:
Image sensor:14 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:14 megapixel
Pixel size:1.43x1.43um
Frame rate:30fps
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
White balance:Auto/manual
Video format: AVI
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Freeze:Support
OSD:Support
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 4 pcs of transverse lines/vertical lines, moveable
different color,4 horizontal line , 4 vertical line,any positions
SNR:Support
TF card interface:Max 32G
HDMI interface:Standard HDMI output (Type A)
Lens:C
OSD: English/Chinese/French/Spanish/Portuguese
USB interface:Standard usb2.0 interface (Type B)
Horizontal Microscope Table Stand
- We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the - head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.
- Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
- Steel Gears on Focusing Holder.
- Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
- Floor size: 380mm X 250mm
- Frame diameter: 50mm
- Load table size: 180mm X 120mm,
- Load table adjustable stroke: X: 70mm , Y: 40mm
- Weight: 3.9kg
- Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
- Steel Gears on Focusing Holder.
- Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
- Floor size: 380mm X 250mm
- Frame diameter: 50mm
- Load table size: 180mm X 120mm,
- Load table adjustable stroke: X: 70mm , Y: 40mm
- Weight: 3.9kg
C-MOUNT Lens:
Working distance: 100-125mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Weight: 450g
144 Bulbs Microscope LED Ring Light:
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
NOTED!!!
TF card storage is only for HDMI output. USB output will be storaged in PC.
Package Content:
Set 1: 1 x Horizontal Microscope Table Stand
Set 2:
1 x Horizontal Microscope Table Stand
1 x C-MOUNT Lens
Set 3:
1 x Horizontal Microscope Table Stand
1 x C-MOUNT Lens
1 x Microscope Camera
2 x Power supply
1 x USB line
1 x Software DISC
1 x LED Ring Light
1 x Remote Control
