3.4" 12V LED Under Cabinet Light Dimmable Pure White

FOR 12VOLT DC (DIRECT CURRENT) APPLICATIONS !
New Product!
• 3.4" LED Under Cabinet Puck Light with backup of ace LED, less electricity consumption, high energy efficiency, and higher cost efficiency for long term usage, ideal fit for 12V-applied Vehicles or other transportation : RV, camper trailer, mini-motorhome, car, truck, van, coach, boat, yacht, etc, ideal interior lighting solution for kitchen, living room, dining room, bedroom, bathroom,etc.
• 3500K pleasing diffused glow is offered without eye fatigue or headache.
• PC Lens is especially designed with fire resistant material, a plus for the reliability.
• Aluminum base with die-casting craft double the heat sink efficiency.
• Only 1.76 ounce weight, no burden for the supporting ceiling.
• The under cabinet light has got dimmable function,please attach it to a proper dimmer(not included).No Mounting Screws Included.

Please carefully check and measure the size and dimension of this light to ensure it meets your need before you place order.Please do not judge its size only based on pictures or imagination.

Voltage: DC 10-15volts
Wattage: 4.5W
Current draw: 350mA
Lighting color: pure white
Beam angle: 120 degrees
Luminous flux: 230 lumens
Life span: up to 50,000 hours
Material: PC lens and Aluminum base.
Color temperature: 3500K
Weight: 1.76 OZ / 50 g (each unit)

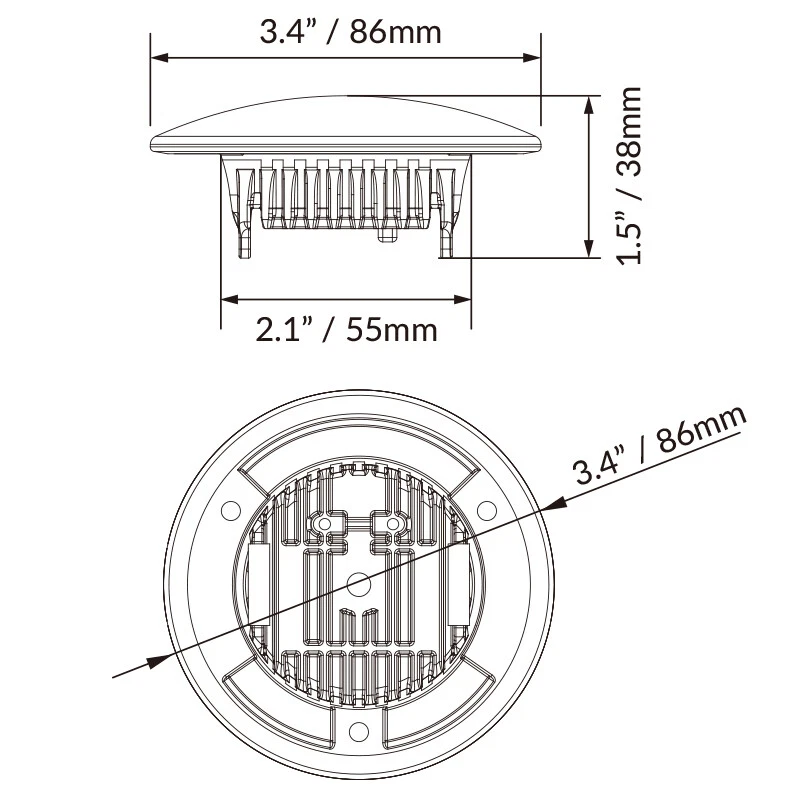

Dimension:3.4" x 3.4" x 1.5"
Cut hold for flush mount: 2.2inch
Wiring: black wire is positive(+), white wire is negative(-)

P.N.	Lighting Color	Input voltage	Wattage	Lumen	Current
16262CW	Pure White	12V DC	4.5W	230lm	350mA

1PCS of LED Recessed Ceiling Light, No screws included.
