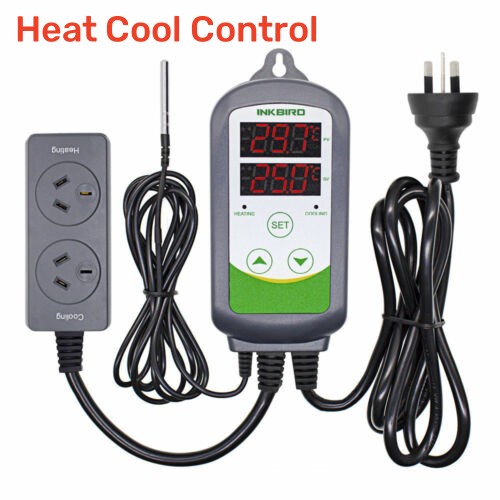

Temp Probe

• Sensor Type： NTC sensor (Including)
• Sensor Length：1.8m/6.0ft

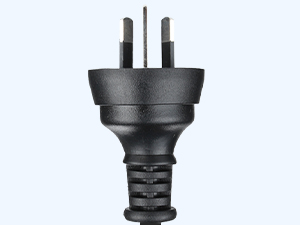

• Input Power Cable Length： 6ft (2m)

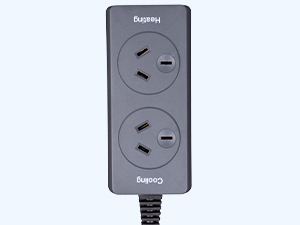

Heating&Cooling Socket

• Input Power: 100~240VAC,50Hz/60Hz
• Temperature Control Output： Max.10A, 100~240VAC
• Relay Contact Capacity：Heating(10A,100-240VAC)/Cooling(10A,100-240VAC)

Plug & Play

• Buzzer Alarm： High and Low-Temperature Alarm
• Ambient Temperature：-30~75°C / -22~167°F
• Dimension (Main Body)：5.5x2.7x1.3 inch (140x68x33mm)

Dual Display

• Temperature Control Range：-50~120°C / -58~248°F
• Temperature Resolution：0.1°C / 0.1°F
• Temperature Accuracy：±1°C (-50 ~ 70°C) / ±2°F (-58 ~ 160°F)

• Dual relay output, be able to connect with refrigeration and heating equipment at the same time
• Support reading with Centigrade or Fahrenheit unit
• Maximum output load: 2200W(220V), 10A.
• Dual display window, be able to display measured temperature and set temperature at the same time

• Temperature calibration
• Compressor delay protection for refrigeration control
• High and low temperature alarms are available
• Over-temperature and sensor fault alarm
• Heating/cooling differential function could be set separately for refrigeration and heating to protect temperature controller from violent change
