High Quality HDMI Extender over a Fiber optic Up to 60Km (20Km,40Km,60Km optional)

Sturdy Metal, Plug and Play, Factory price.

US/EU/UK/AU standard plug is optional, we default ship same power adapters against buyer country's power type.

Don't settel for low cost ,cheaper,not quality HDMI extender, Choose Optimal ,Choose us.

Features:

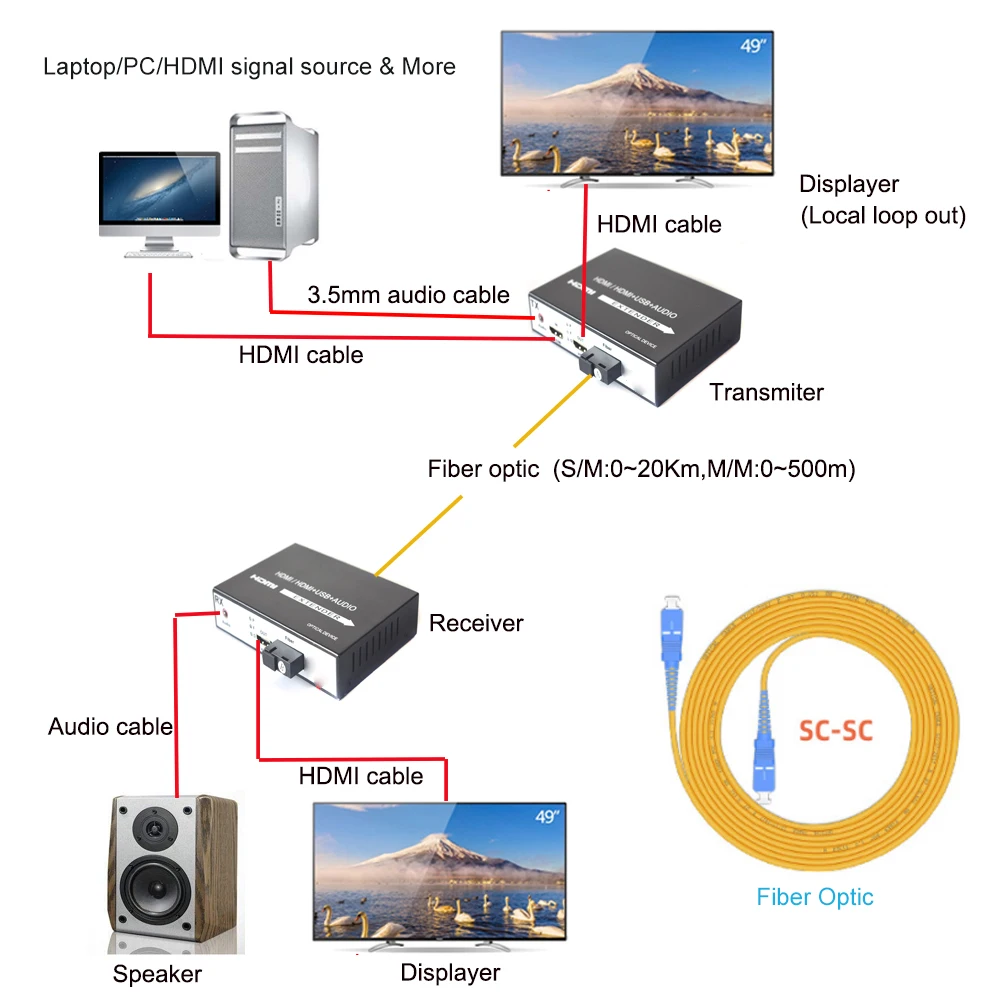

【Function】Extend HDMI signals up to 12.4miles(20Km) over singlemode single Fiber optic cable, with stereo 3.5mm audio and local loop out. Support Video resolution up to 1920x1080P@60Hz and compatible with backward.

【Universal for Fiber Types】Mainly use with Single-mode fiber optic 0-20Km.it is also compatible with Multimode fiber 0-500meters. Fiber connector: SC.

【Wide Applications】Compact design, Durable Metal. Bilateral heat dissipation. LED lights. Widely used in extendingUltra-HD sources such as Blu Ray players, game consoles, PCs and other HDMI sources to distant monitors, displays, TVs, and more.

【Why use Fiber Optic】With our HDMI over Fiber Optic extender you can get faster speeds, less signal degradation, longer distance data transfer, better reliability, and more flexibility. Using a fiber optic cable can decrease costs over time because of the durability and reliability of the fiber cables. Fiber optic cables carry a low rate of bit error due to the fiber being highly resistant to electromagnetic interference.

【Plug and Play】Plug and Play, No setup or configuration needed, Easy to use.

Specification:

1.Fiber connector: SC

2.Wavelength: Single-mode 1310/1550μm (9/125μm), Multimode 850μm (50/125μm), 1310μm (62.5/125μm).

3. Support protocol: HDMI1.3, HDCP1.2.

4. Optional : with KVM (USB port), local loop out and Stereo 3.5mm audio. KVM (USB port) can remote control HDMI signal by keyboard and mouse.

5. The usual time between failures (MTBF) greater than 100,000 hours.

6. Size: 127x90x25mm (LxWxH mm).

7. Working voltage: AC100-240V, DC5V2A, US/EU/UK/AU standard plug is available.

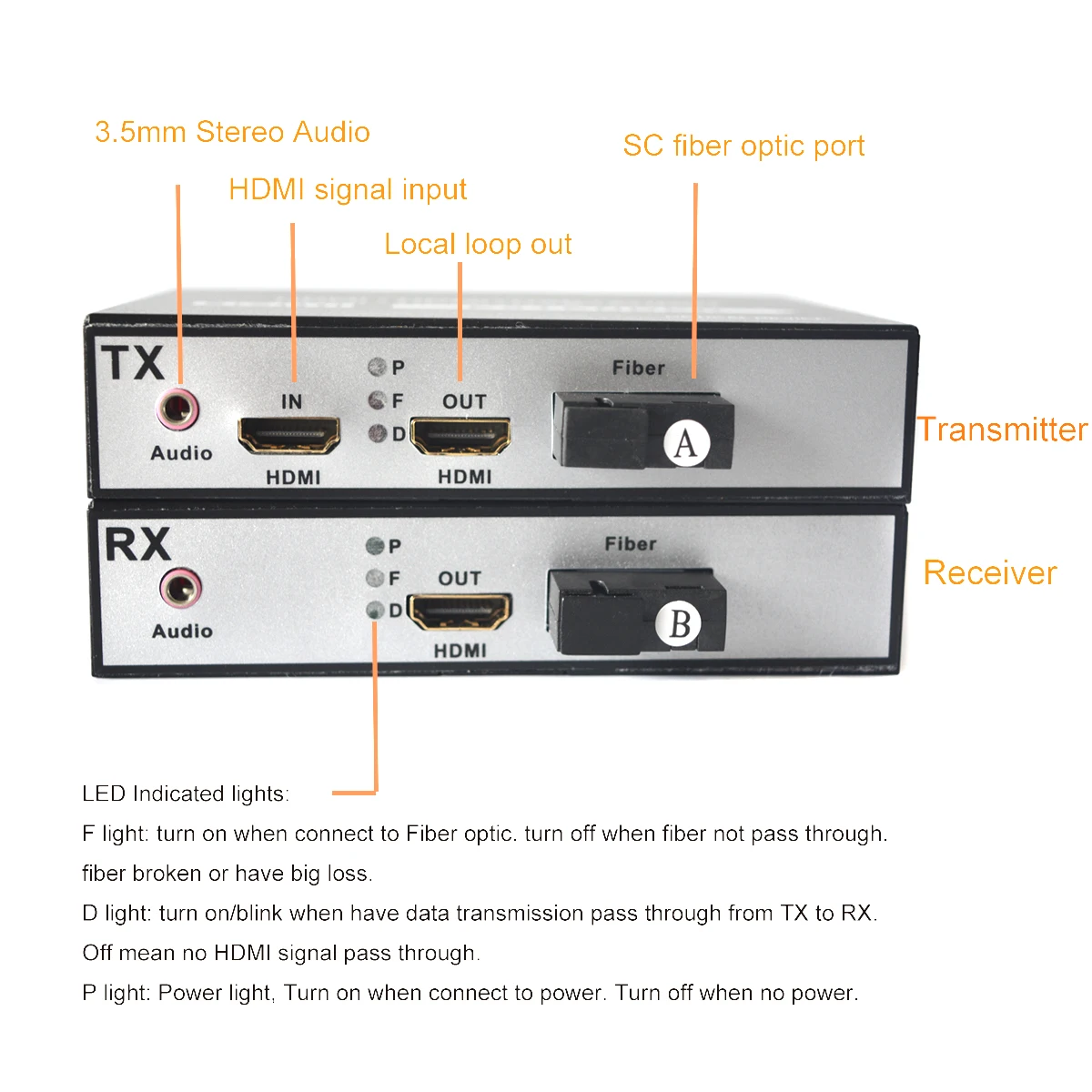

LED Indicated lights:

F light: turn on when connect to Fiber optic. turn off when fiber not pass through.fiber broken or have big loss.

D light: turn on/blink when have data transmission pass through from TX to RX. Off mean no HDMI signal pass through.

P light: Power light, Turn on when connect to power. Turn off when no power.

Package include:

1x HDMI to Fiber Transmitter

1x HDMI to Fiber Receiver

1x 3m SC-SC single-mode fiber patch cord

2 x Power supply adapters

1 x User manual

……………………………………………………………………………………………………………………..
