Edelbrock Victor Jr. 289-351W Cylinder Head Hydraulic Roller Camshaft for Ford

Description

BRAND NEW IN BOX

DETAILS:

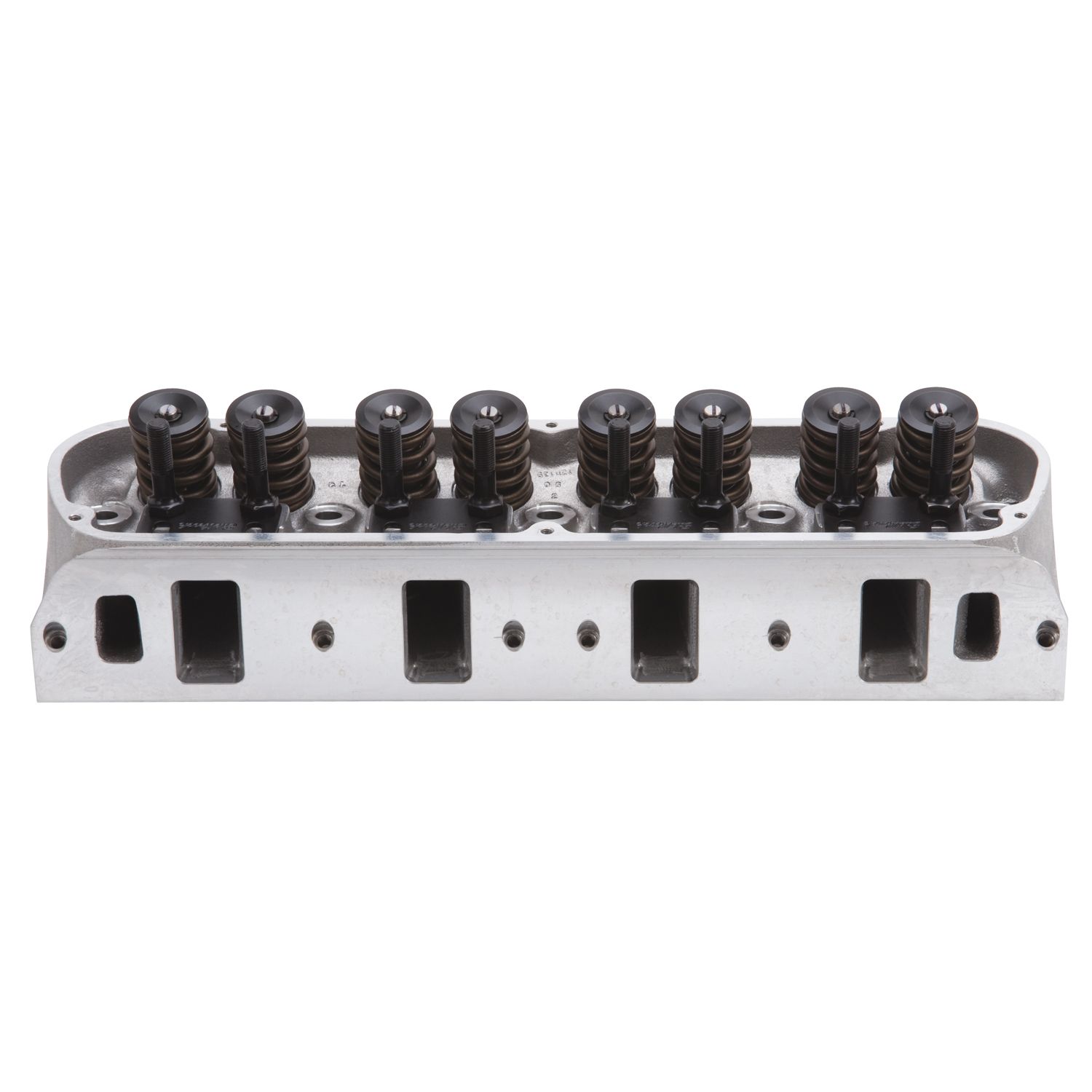

The Edelbrock 77199 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience. VICTOR JR. 20deg - 210cc FEATURES: 500+ horsepower potential out-of-the-box using stock valve train geometry High-flowing 210cc intake ports and .130" raised 75cc exhaust ports Available with 60cc or 70cc combustion chambers 70cc combustion chambers are ideal for turbocharged and supercharged applications CNC gasket-matched port entries/exits with blended valve bowls Spark plug holes and valves are in the stock location Valve cover rail raised .150" A relief in the head allows most roller lifters to be changed without removing the head


SPECS:

Availability

Available

Application

Application Specific

UPC

00085347771998

Ech Ival Dia

2.05 in

Series

Victor Jr.

Grade Type

Performance

Quantity

Sold Individually

Guide Plate Material

Hardened Steel

Camshaft Type

Mechanical Roller

Horsepower

400-600 HP

Availability Note

Available

Warranty

12 Months

Seat Angle

Exhaust 45 deg/Intake 45 deg

Emissions Code

Racing Only

Hazardous Materials Warning

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm.

Installation Notes
  • Check cam manufacturer's specs for compatibility with valve springs. Recommended valve sizes listed. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4" reach, flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate).

CNC Ported

No

Combustion Chamber Volume

60 cc

Deck Height

8.2 in

Deck Thickness

0.625 in

Exhaust Valve Diameter

1.60 in

Guide Plates Included

Yes

Intake Runner Volume

210 cc

Material

Aluminum

Push Rod Diameter

(Suggested) 0.3125 in

Rocker Stud Diameter

0.4375 in

Valve Angle

20 deg

Valve Spring Diameter

1.55 in

Valve Spring Maximum Lift

0.670 in

Valve Stem Diameter

0.3438 in
