Description:

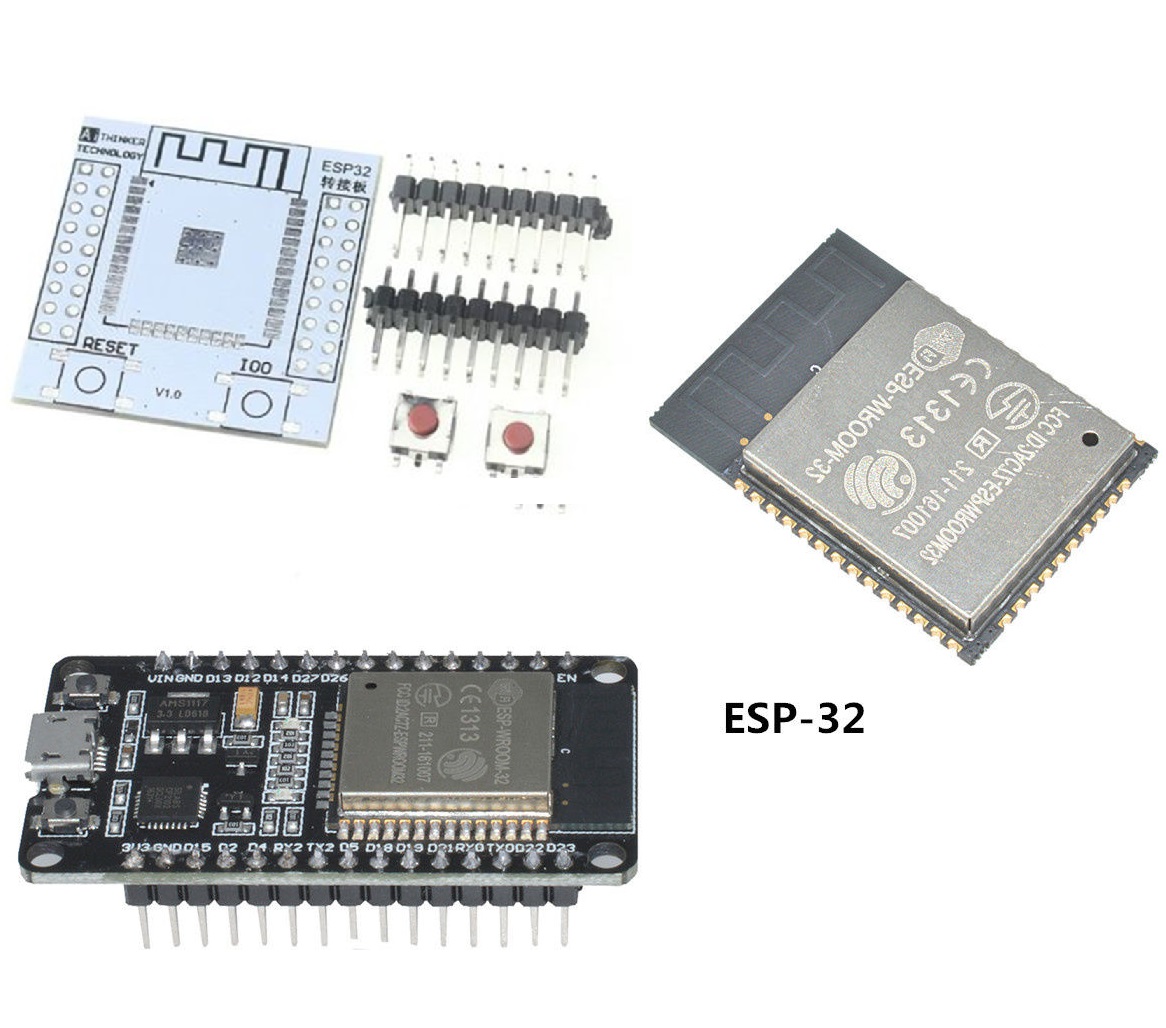

ESP-32S ESP32 Module
ESP-WROOM-32 is Powered by Espressif’s most advanced SoC, the ESP-WROOM-32 features high performance, a wide range of peripherals, Wi-Fi and Bluetooth radio, which provide a complete solution tailored to advanced IoT applications.
240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
Integrated 520 KB SRAM
Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP
Integrated dual mode Bluetooth (classic and BLE)
16 MByte flash
2.2V to 3.6V operating voltage
-40°C to +125°C operating temperature
On-board PCB antenna connector for external antenna
Supports sniffer, station, softAP and Wi-Fi direct modes
Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, and 11 Mbps@11b
Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
Minimum receiver sensitivity of -98 dBm
135 Mbps UDP sustained throughput
2.5 µA deep sleep current
Package included:1*ESP-32 ESP-32S ESP-WROOM-32 WLAN & BLE Module
ESP-32S ESP32 Adapter
This is a adapter board for ESP-32S Wireless Module. It can be inserted to breadboard with Dupont cable wire. Convenient to develop and debug.
RESET I/O Pins
Pin Pitch: 2.54mm
Package included:1*Adapter
ESP-32/ESP-32S Wifi Module+Adapter
Package included:
1*ESP-32 ESP-32S ESP-WROOM-32 WLAN & BLE Module
1*Adapter
ESP-32/ESP-32S Devolopment Board(CP2102)
ESP32 is already integrated antenna and RF balun, power amplifier, low-noise amplifiers, filters,
and power management module. The entire solution takes up the least amount of printed circuit board area.
This board is used with 2.4 GHz dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology,
power and RF properties best, which is safe, reliable, and scalable to a variety of applications.
Features:
High performance-price ratio
Small volume, easily embeded to other products
Strong function with support LWIP protocol, Freertos
Supporting three modes: AP, STA, and AP+STA
Supporting Lua program, easily to develop
Package included:1 x ESP32 Development Board
ESP-32S ESP32 Module
ESP-WROOM-32 is Powered by Espressif’s most advanced SoC, the ESP-WROOM-32 features high performance, a wide range of peripherals, Wi-Fi and Bluetooth radio, which provide a complete solution tailored to advanced IoT applications.
240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
Integrated 520 KB SRAM
Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP
Integrated dual mode Bluetooth (classic and BLE)
16 MByte flash
2.2V to 3.6V operating voltage
-40°C to +125°C operating temperature
On-board PCB antenna connector for external antenna
Supports sniffer, station, softAP and Wi-Fi direct modes
Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, and 11 Mbps@11b
Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
Minimum receiver sensitivity of -98 dBm
135 Mbps UDP sustained throughput
2.5 µA deep sleep current
Wi-fi |
802.11 b/g/n/e/i |
|---|---|
| 802.11 n (2.4 GHz), up to 150 Mbps | |
| 802.11 e: QoS for wireless multimedia technology | |
| WMM-PS, UAPSD | |
| A-MPDU and A-MSDU aggregation | |
| Block ACK | |
| Fragmentation and defragmentation | |
| Automatic Beacon monitoring/scanning | |
| 802.11 i security features: pre-authentication and TSN | |
| Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS) | |
| Infrastructure BSS Station mode/SoftAP mode | |
| Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management | |
| UMA compliant and certified | |
| Antenna diversity and selection | |
| Compliant with Bluetooth v4.2 BR/EDR and BLE specification | |
Bluetooth |
Class-1, class-2 and class-3 transmitter without external power amplifier |
| Enhanced power control | |
| +10 dBm transmitting power | |
| NZIF receiver with -98 dBm sensitivity | |
| Adaptive Frequency Hopping (AFH) | |
| Standard HCI based on SDIO/SPI/UART | |
| High speed UART HCI, up to 4 Mbps | |
| BT 4.2 controller and host stack | |
| Service Discover Protocol (SDP) | |
| General Access Profile (GAP) | |
| Security Manage Protocol (SMP) | |
| Bluetooth Low Energy (BLE) | |
| ATT/GATT | |
| HID | |
| All GATT-based profile supported | |
| SPP-Like GATT-based profile | |
| BLE Beacon | |
| A2DP/AVRCP/SPP, HSP/HFP, RFCOMM | |
| CVSD and SBC for audio codec | |
| Bluetooth Piconet and Scatternet |
ESP32 vs ESP8266:
| ESP32 | ESP8266 |
|---|---|
| Ethernet MAC Interface | Nicht vorhanden |
| GPIOs für 10 Touch-Sensoren | Nicht vorhanden |
| Temperatur-Sensor (on-chip) | Nicht vorhanden |
| Remote-Controller-Funktionalität | Nicht vorhanden |
| Hall-Sensor | Nicht vorhanden |
| Digital-to-Analog Converter (DAC) | Nicht vorhanden |
| CAN 2.0 | Nicht vorhanden |
| Analog-to-Digital Converter (ADC): 16 Kanäle mit 12-Bit SAR-ADC mit Unterstützung für einen Low-Noise Amplifier (LNA) |
10-bit ADC, kein LNA |
| 2 I2C-Schnittstellen | 1 I2C-Schnittstelle |
| 16 Kanäle für PWM | 8 Kanäle für PWM |
| GPIOs (General-Purpose Input/Output): 36 | GPIOs: 17 |
| 4 SPI-Schnittstellen mit Quad-SPI und maximal 80 MHz | 3 SPI-Schnittstellen mit Quad-SPI und maximal 80 MHz |
Pinbelegung:
Package included:1*ESP-32 ESP-32S ESP-WROOM-32 WLAN & BLE Module
ESP-32S ESP32 Adapter
This is a adapter board for ESP-32S Wireless Module. It can be inserted to breadboard with Dupont cable wire. Convenient to develop and debug.
RESET I/O Pins
Pin Pitch: 2.54mm
Package included:1*Adapter
ESP-32/ESP-32S Wifi Module+Adapter
Package included:
1*ESP-32 ESP-32S ESP-WROOM-32 WLAN & BLE Module
1*Adapter
ESP-32/ESP-32S Devolopment Board(CP2102)
ESP32 is already integrated antenna and RF balun, power amplifier, low-noise amplifiers, filters,
and power management module. The entire solution takes up the least amount of printed circuit board area.
This board is used with 2.4 GHz dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology,
power and RF properties best, which is safe, reliable, and scalable to a variety of applications.
Features:
High performance-price ratio
Small volume, easily embeded to other products
Strong function with support LWIP protocol, Freertos
Supporting three modes: AP, STA, and AP+STA
Supporting Lua program, easily to develop
Package included:1 x ESP32 Development Board
