Model Comparison

(The grey area represents the current product)

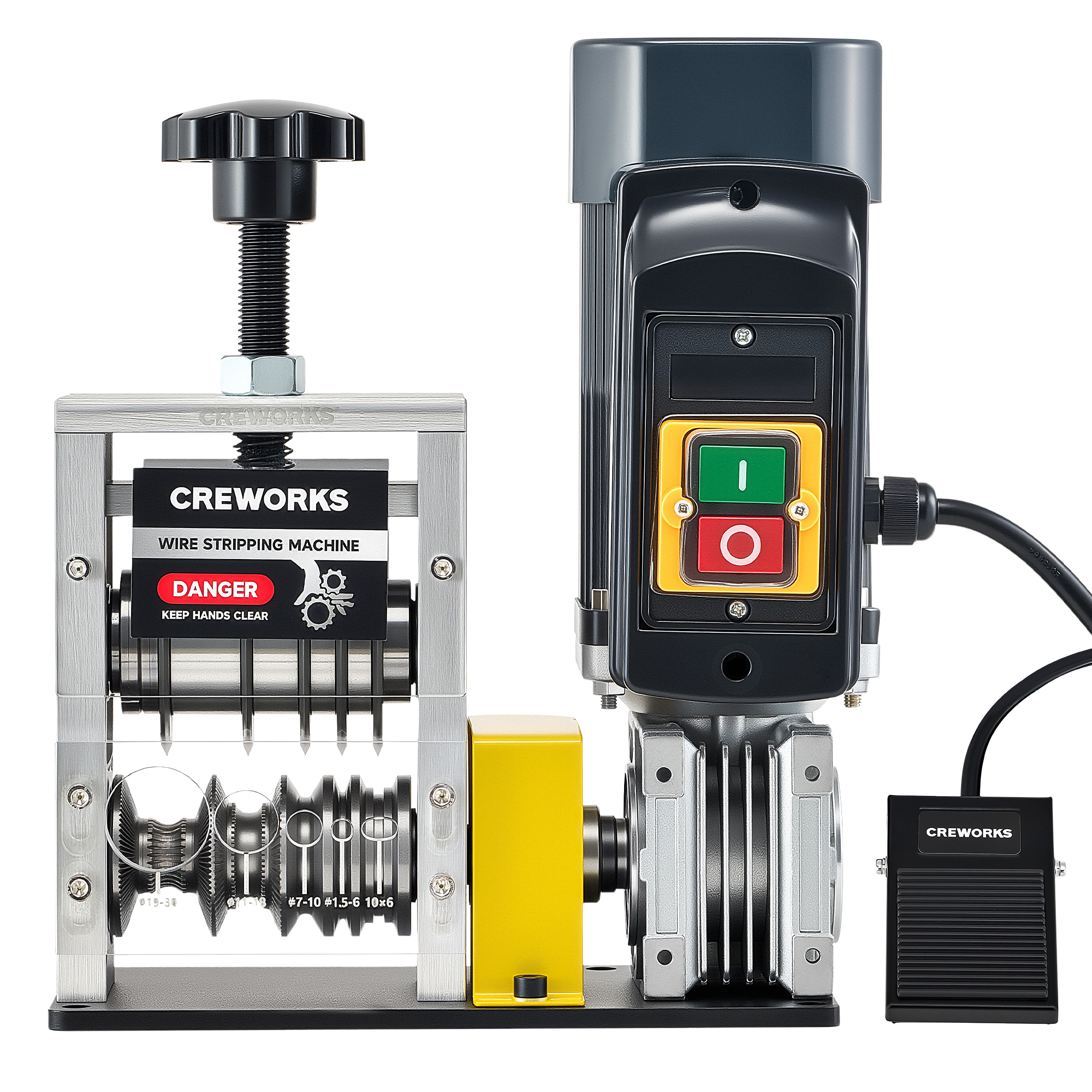

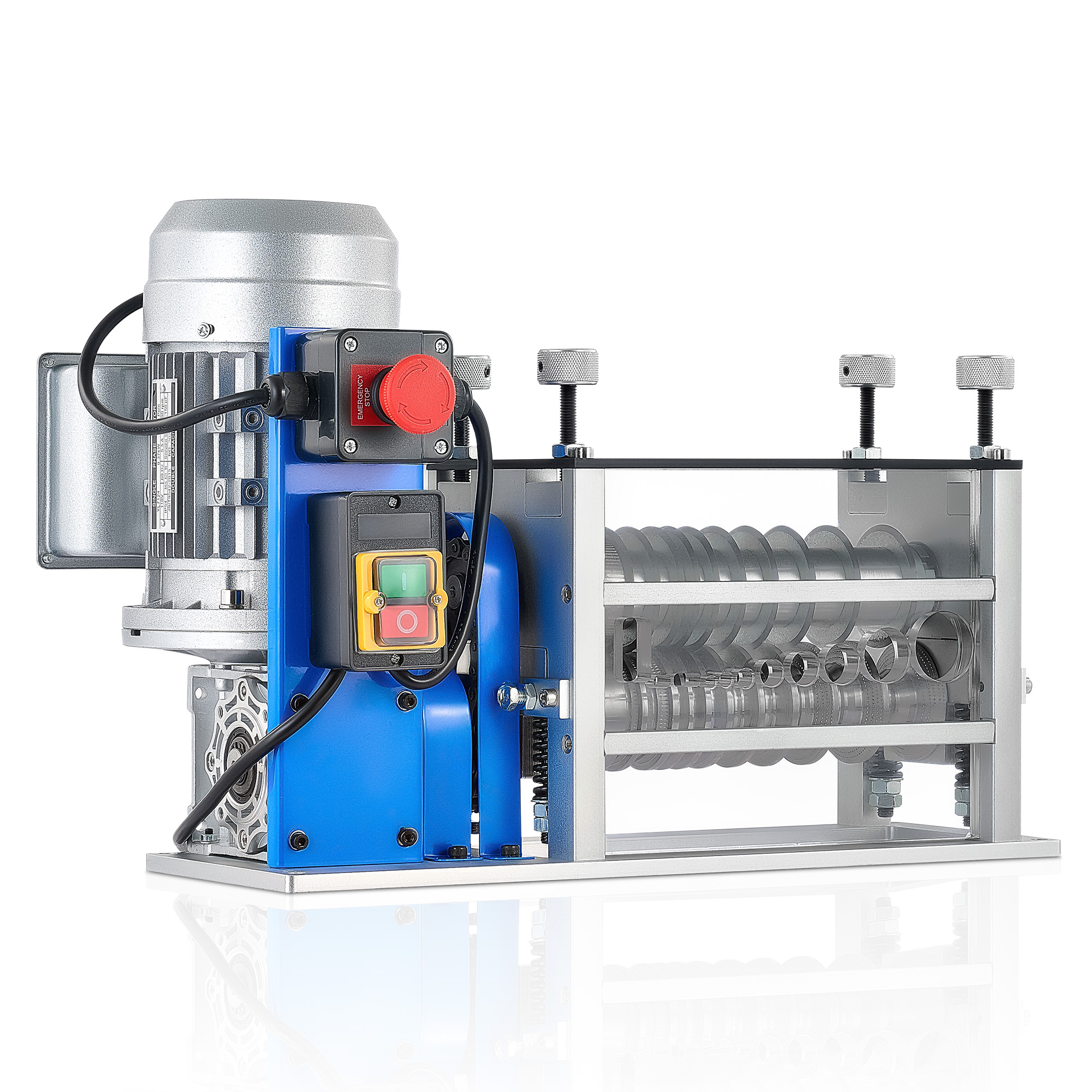

Model	180W Electric Wire Stripping Machine - DDSJ	220W Electric Wire Stripping Machine - S25M	200W Electric Wire Stripping Machine - ES30	180W Electric Wire Stripping Machine - EN30	550W Electric Wire Stripping Machine - NN40
Input Power	AC 110 V / 60 Hz	AC 110 V / 60 Hz	AC 110 V–120 V, 60 Hz	AC 110 V–120 V, 60 Hz	AC 110–120 V, 60 Hz
Rated Power	180 W	220 W	200 W	180 W	550 W
Acceptable Round Wire Diameters	0.05–0.90 in.	0.06–0.98 in.	0.04–1.18 in.	0.06 to 1.18 in.	0.06–1.57 in.
Round Wire Feed Holes Diameters	Adjustable size between 0.06 - 0.9 in.	0.2 in. 0.4 in. 0.5 in. 1 in. or adjustable size between 0.06–0.98 in.	0.19 in. 0.39 in. 1.18 in.	0.16 in. 0.24 in. 0.39 in.  0.47 in. 0.63 in.  0.7 in. 0.98 in. 1.18 in.	0.23 in. 0.31 in. 0.39 in. 0.55 in. 0.7 in. 0.86 in. 1.14 in. 1.57 in.
Flat Feed Hole Diameter	/	/	0.54×0.27 in.	0.24 x 0.39 in, 0.31 x 0.2 in	0.31 × 0.27 in., 0.62 × 0.31 in.
Number of blades	1	1	1	5	10
Adjustable Stripping Speed	NO	NO	YES	NO	NO

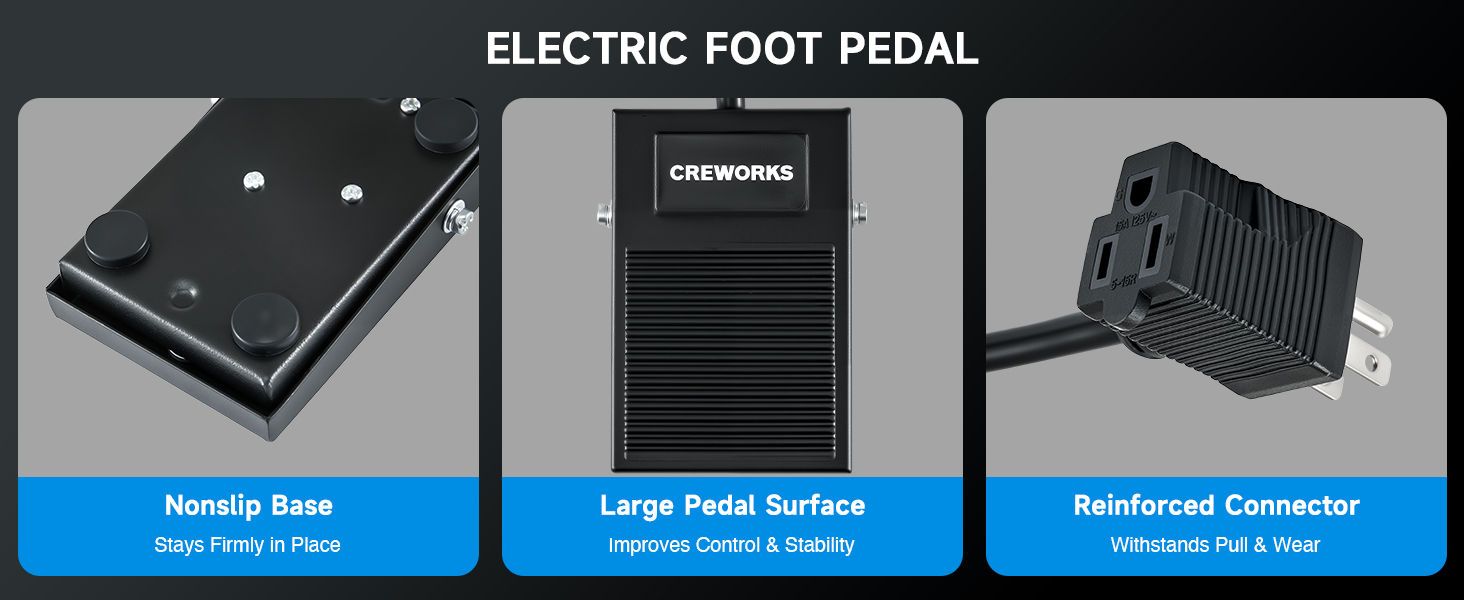

Pedal Switch	NO	YES	NO	YES	NO
Max. Work Speed	49 ft/min	Average 98 ft/min	164 ft/min	98.4 ft./min.	98 ft/min
Dimensions	10.24×5.52×11.82 in.	10.2×12.2×13.8 in.	8.58×5.35×7.32 in.	9.8 x 6.9 x 11.4 in.	19.8 × 10.8 × 15 in.
Net Weight	17.20 lb.	23.8 lb.	14.8 lb.	24.3 lb.	56.9 lb.



(1) Wire diameters INCLUDE insulation. (SWG/IWG conversion will vary with insulation thickness.)
(2) The larger the wire diameter is, the slower the stripping speed will be.
