Package List:

1 pcs motor

NOTICE:

  • Please check your frame dropout first(=motor open size).
  • This motor only works with 16''/ 18''/ 20''/ 22''/ 24''/ 26''/ 27.5''/ 700C mountain bicycle, not for others.
  • Front motor open size is 100mm.
  • Rear freewheel motor open size is 135mm, suitable for rotating thread freewheel.
  • Rear cassette motor open size is 135mm, suitable for cassette freewheel.

Specification:

Motor type: mountain electric bicycle motor

Open Size(mm) :Front Motor: 100mm; Rear: 135-142/145mm
Rated Voltage(V): 36V /48v
Rated Power(W) : 36V 250W/ 36V 350W / 48V 500W
Wheel Size (inch): 16''/ 18''/ 20''/ 22''/ 24''/ 26''/ 27.5''/ 700C
RPM: 350 for 36V ,425 for 48V
Rated Speed(km/h): 25-32/30-35
Rated Efficiency(%): >=80
Reduction Ratio: 1:05
Weight(KG): about 3.5
Drive and Freewheel: N/6-9S/7S-11S
Cable Location: shaft center right
Spokes Specification: 12G/13G
Hallsensor: Yes
Integrate speed sensor: Yes
Surface: Black
Brake type: V/Disc brake
Salt fog test: 24/96
Noise(db): <55db
Waterproof Grade: IP54

Product Details:

Mxus XF70 36V 250W Front Motor(Nett Weight: 2.74kg)

23172320

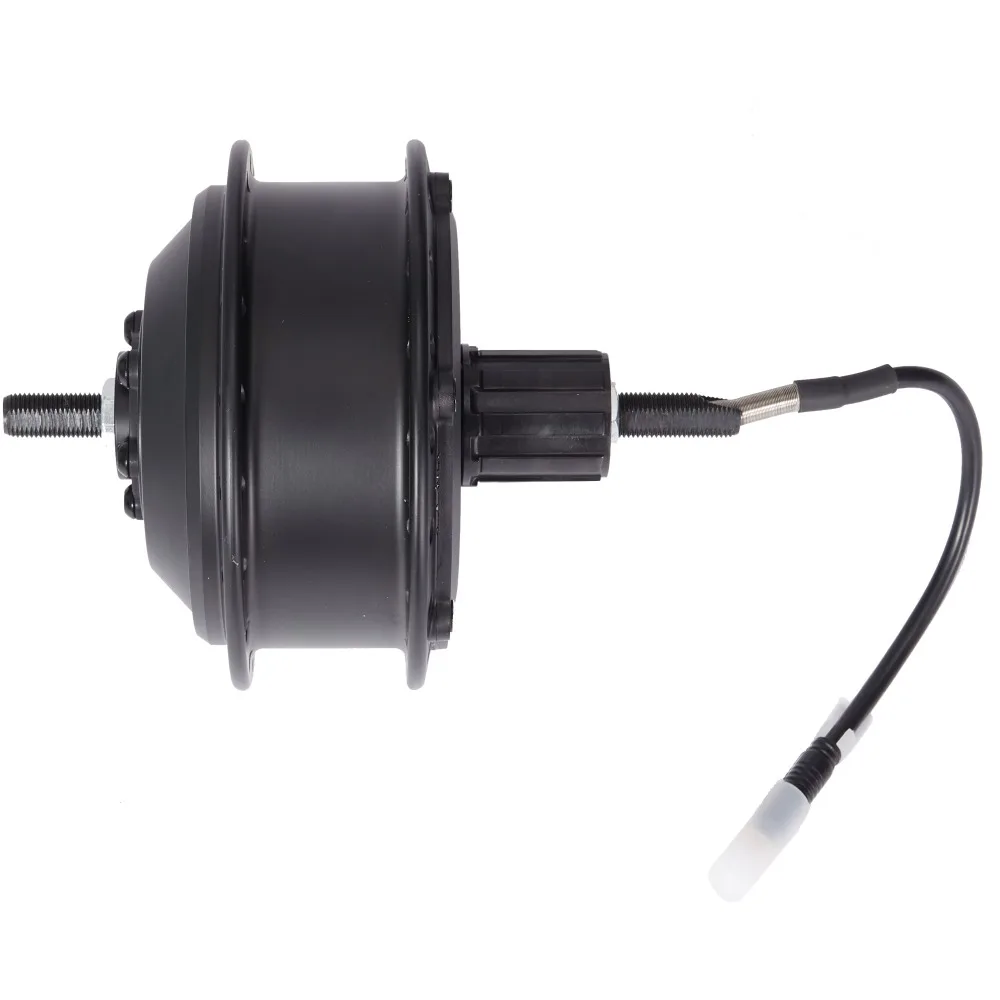

MXUS XF08C 36V 250W Rear Cassette Motor: cassette is stuck into the small lid and then locked.

Nett Weight: 3.05kg

23212337

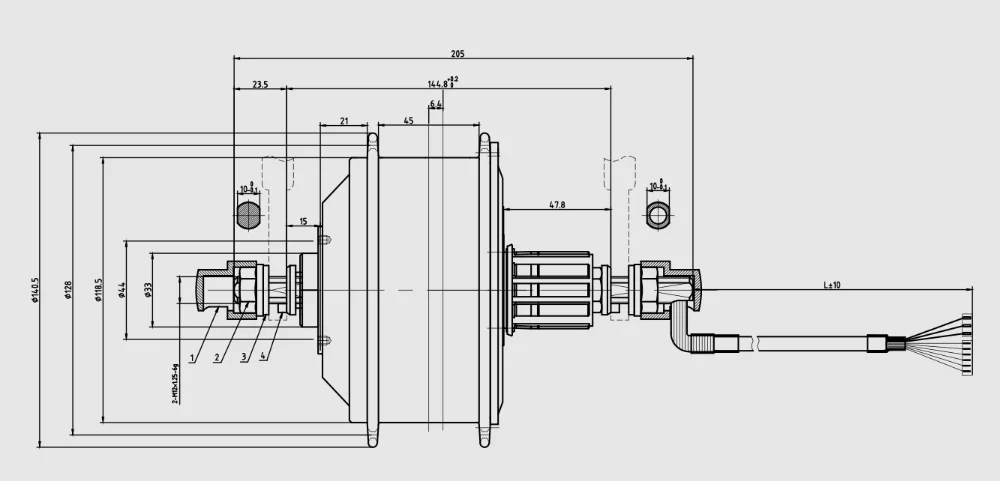

XF08C

MXUS XF08 36V 250W Rear Freewheel Motor: suitable for freewheel have roating thread

Nett Weight: 2.94kg

23272329

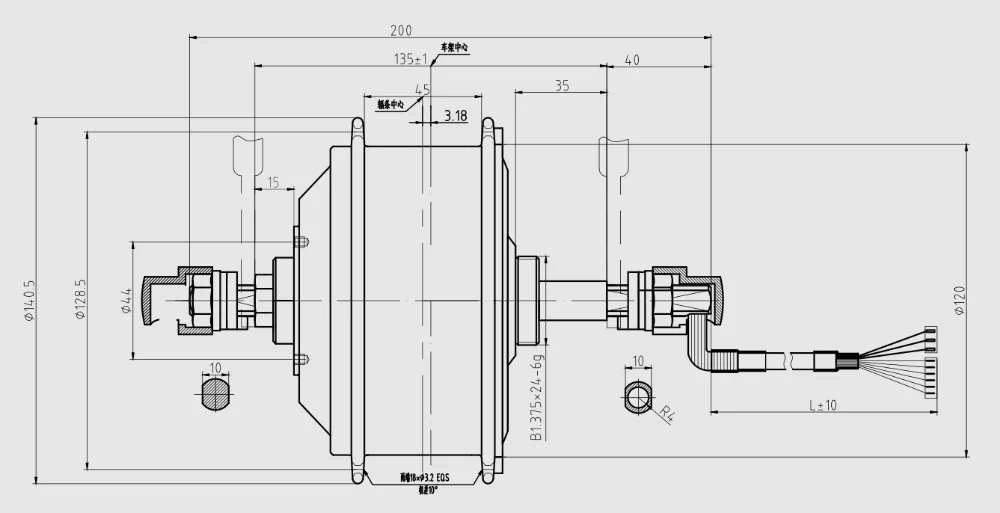

XF08

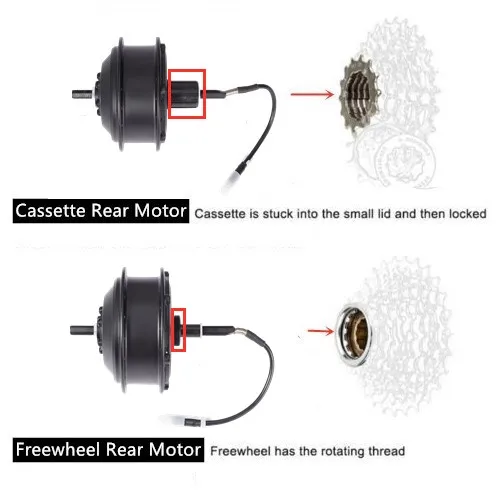

MXUS-XF08卡飞旋飞

MXUS XF15F 36V 350W/ 48V 500W Front Motor

36V 350W Front Motor Nett Weight: 3.48kg

48V 500W Front Motor Nett Weight: 3.55kg

2333

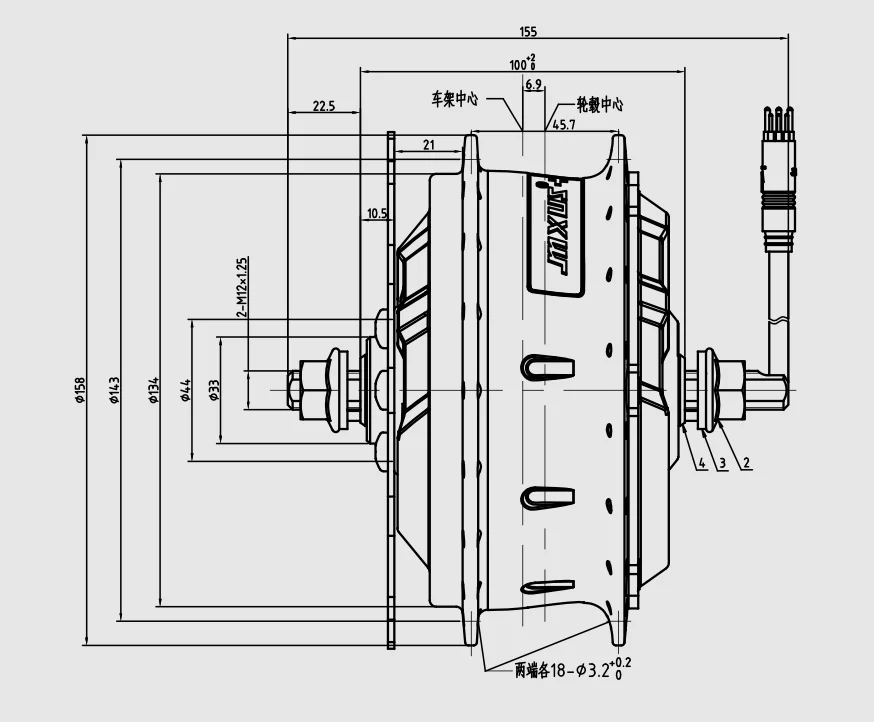

XF15F

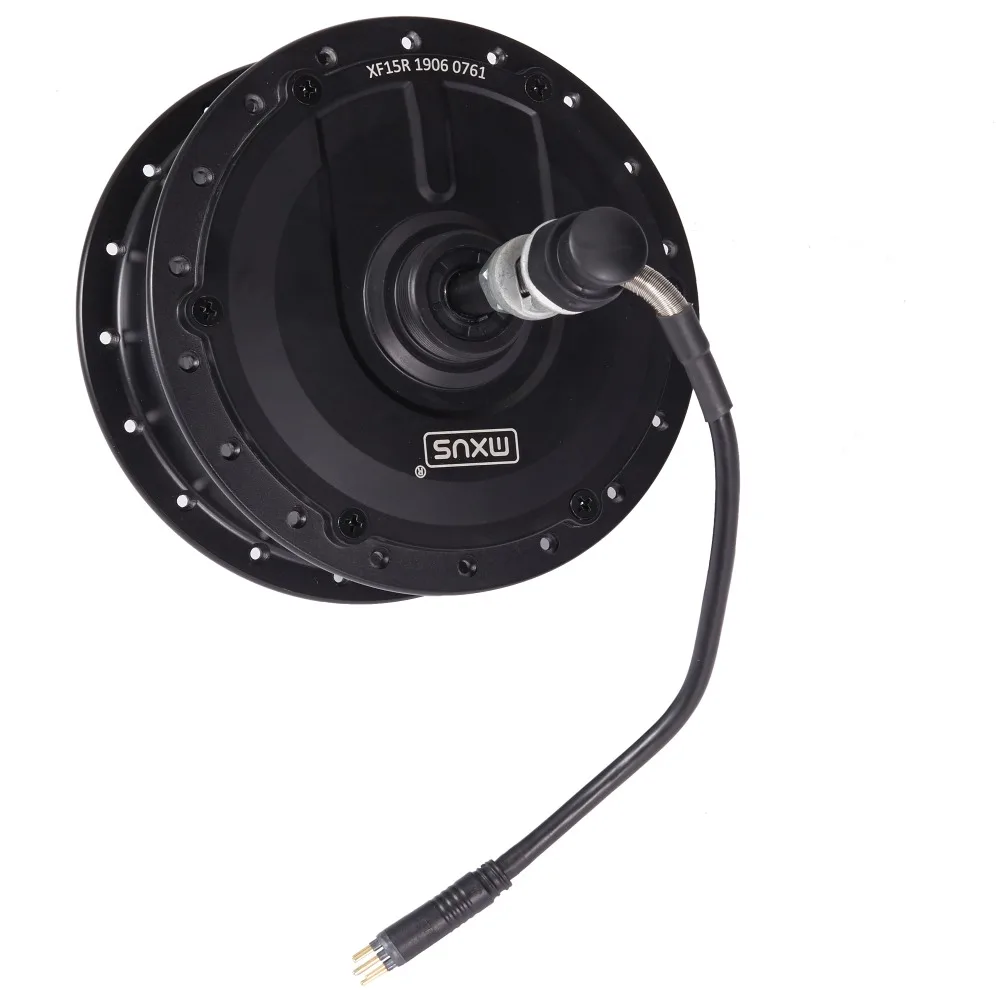

MXUS XF15R 36V 350W/ 48V 500W Freewheel Rear Motor: fits for roating thread freewheel

36V 350W Rear Freewheel Nett Weight: 3.66kg

48V 500W Rear Freewheel  Weight: 3.72kg

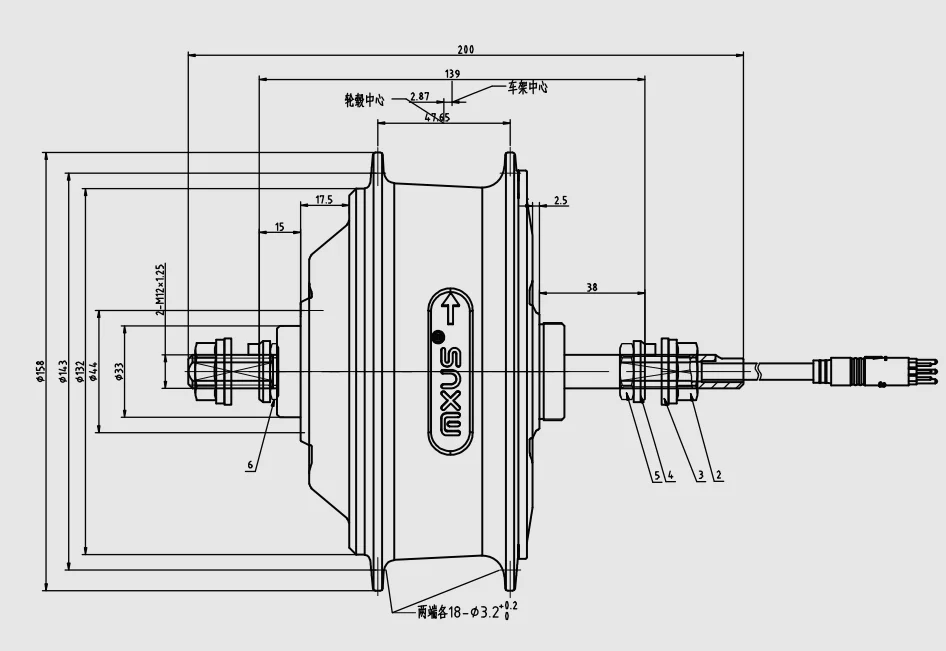

2342XF15R

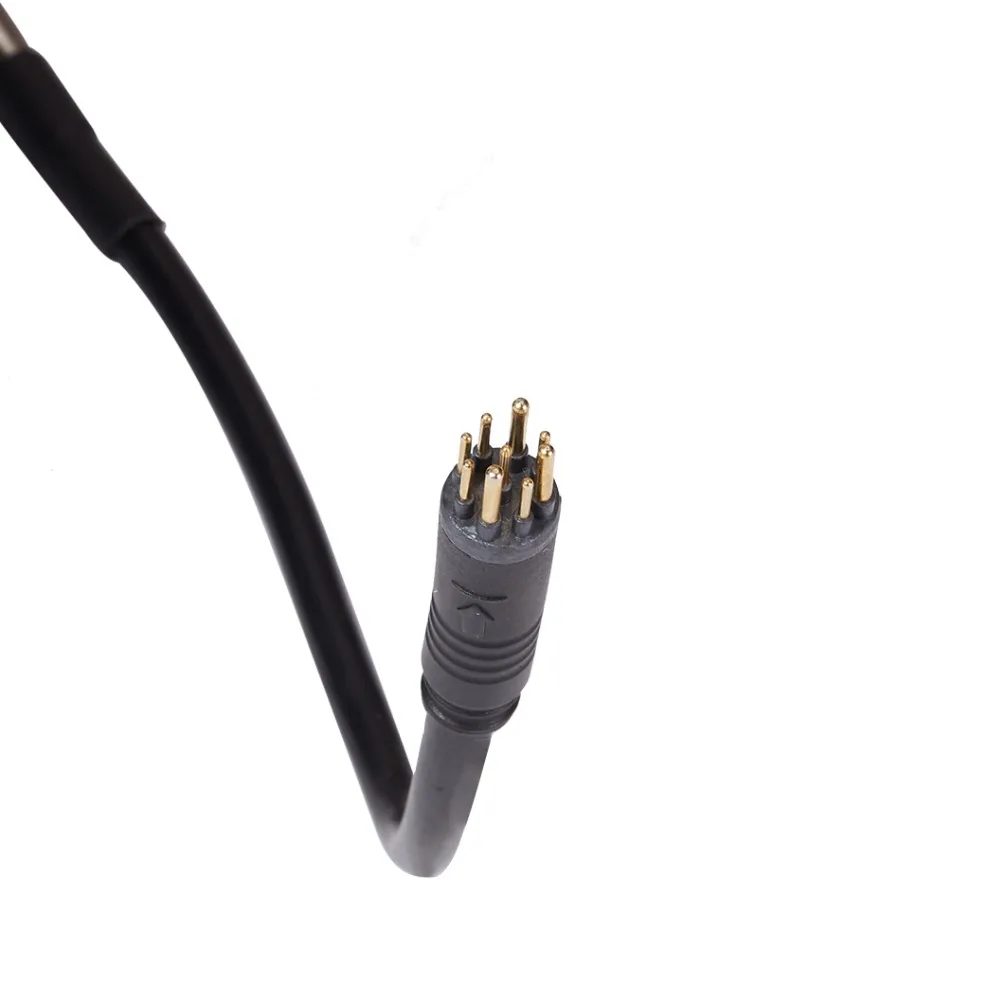

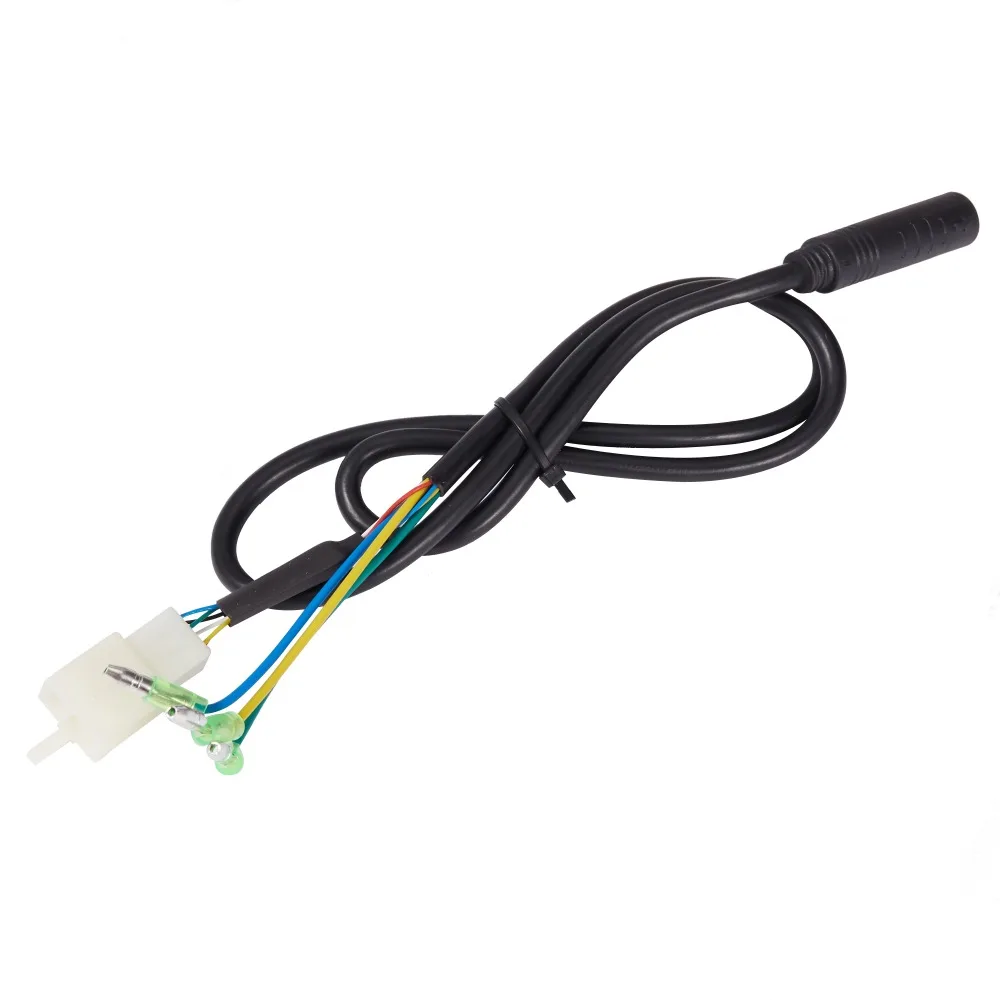

Wire and Connection:

2339-12390

Buyer Guidence:

  • Please kindly notice that the import duty, second delivery, remote fees doesn't be included.
  • One- year warranty limited to quality problem not caused by human factors.
