Description
High End 8CH 12MP 2592x1920P NVR With 3TB Hard Drive & (8) 5.0 MP 2.8-12mm Varifocal Camera System
NVR Feature
Channels: 8CH
– Built-in POE : 8 Port PoE
– LAN Ports:
– SATA: 1X SATA PORT
– Video Outputs: HDMI / VGA
– Compliance: NDAA
– VCA Features: Basic VCA
– Hardware Features: Audio in, Audio out
- Support 8/16 CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/DI/CIF IP video input
- Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-mode recording: manual / timed / motion / sensor / POS / AI recording
- Playback : 8/16 CH simultaneous playback
- Search : time slice, time, event, tag, smart search
- Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
- Support POS information overlay on live view and playback
- Express and flexible backup via USB, network and so on
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
- 8/16 PoE network ports; IPC can be directly connected to NVR; PoE power supply supported
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high resolution display Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Android OS

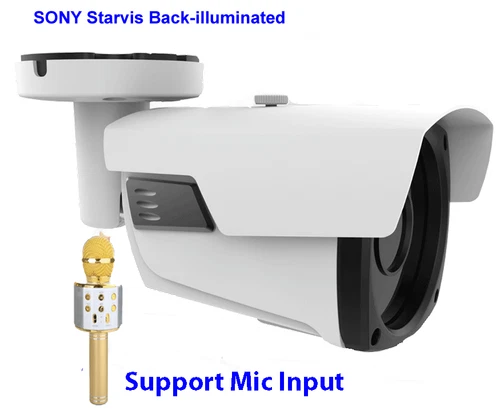

Bullet Camera Feature :
Camera Specifications
Image Sensor 1/2.8" SONY Starvis Back-illuminated CMOS Sensor Resolution 5MP IP POE Security camera Effective Pixels 2592(H)*1920(V) Compression H.265/H.265+/JPEG/AVI /MJPEG TV System PAL/NTSC Electronic Shutter Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec Minimum Illumination 0.005Lux S/N Radio ≥52dB Scanning System Progressive Video Output Network Lens Focus Length Varifocal Lens 2.8-12mm Lens Focus Control Manual Lens Type Varifocal Pixels 5MP Infrared Led 42μ x 4PCS Infrared Distance 40M IR Status Auto Control IR Power On Auto Control Ethernet RJ-45 (10/100Base-T) Wireless / Protocol TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP Onvif Support ONVIF 2.4 P2P YES, Support QR Code POE / Sub Stream 2 / Sub Stream 3 / Tri Stream 352*288@15fps; 352*288@30fps IE Browser IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12) Smart Phone iPhone, iPad, Android, Android Pad Day/Night Color/ B&W (IR-CUT ) Image Config Saturation/Brightness/Contrast /Sharpness, Mirror, White Balance, FLK(Flicker Control) Full Starlight / Corridor Pattern Support defog Mode Support ROI Support BLC Support HDR / WDR Yes Motion Detection Support Privacy Masking 3 Rectangular Zone Recording Mode NVR/CMS/Web Language Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese Audio Optional Alarm / SD Card Slot Optional, Support Max 512GB RS485 / Housing Metal, IP66 Anti-cut Bracket Yes IR Cut Filter Yes Operation Temperature -20℃ ~ +60℃ RH95% Max Storage Temperature -20℃ ~ +60℃ RH95% Max Power Source DC12V±10%, 950mA Dimension (WxDxH) 211(W) x 92(H) x 90(D)mm Weight 1400g

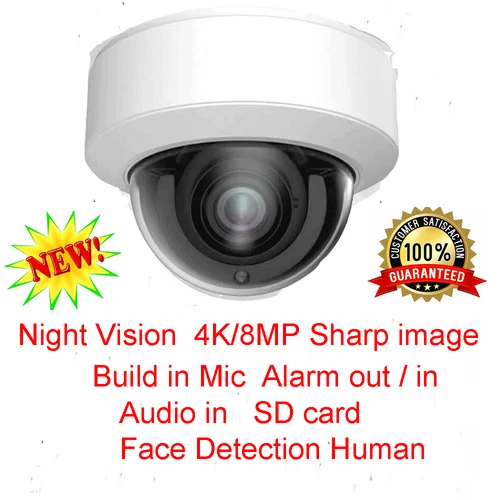

Dome Camera Feature
- H.265+/H.265/H.264+/H.264/MJPEG coding
Max.resolution: 8MP ( 3840 × 2160 )
ICR auto switch, true day / night vision
3D DNR, true WDR, HLC, BLC and ROI coding
20~30m IR night view distance
1CH audio input; 1CH built-in MIC
Built-in micro SD card slot, up to 256GB
DC12V/PoE power supply
Support three streams
IP 67&IK10
Support mobile surveillance by smart phones with iOS and Android OS
Intelligent analytics
Package includes
- SVLTN8608-8P HD 8Channel 12MP IP NVR
- 3TB CCTV hard drive
- 6 x 5MP- 2592x1920P Manual Bullet Verifocal Zoom IP POE Security Camera
- 2 x SVN288 – 8MP Dome Varefocal Zoom IP POE Security Camera
- Power Supply for NVR
- Power Cable No Include
- One Year warranty
