PICKIT3 Programmer+Universal PIC ICD2 PICKit 2 PICKIT 3 Programming Adapter NEW
  • 100% brand new and high quality
  • PICKIT3 Programmer Description:
  • USB (Full speed 12 Mbits/s interface to host PC)
  • Real-time execution
  • MPLAB IDE compatible (free copy included)
  • Built-in over-voltage/short circuit monitor
  • Firmware upgradeable from PC/web download
  • Totally enclosed
  • Supports low voltage to 2.0 volts (2.0v to 6.0v range)
  • Diagnostic LEDs (power, busy, error)
  • Read/write program and data memory of microcontroller
  • Erase of program memory space with verification
  • Freeze-peripherals at breakpoint
  • Program up to 512K byte flash with the Programmer-to-Go
  • The MPLAB PICkit 3 allows debugging and programming of PIC® and dsPIC® Flash microcontrollers at a most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to the design engineer's PC using a full speed USB interface and can be connected to the target via an Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2, MPLAB ICD 3 and MPLAB REAL ICE)
  • Universal Programmer Seat Description:
  • Instructions for use:
  • Installing the microcontroller, 28-pin, 40-pin microcontroller left aligned 28/40P (A) This flag line short-circuit cap on the A position
  • The 8,14,18,20-pin microcontroller aligned on the left 8P/14P/18P/20P flag line (B), shorting cap on the B position
  • The ICD2, KIT2, KIT3 crystal head or 6Pin Block programming connection for programming the programming operation. (Note: a separate program of the seat can not be programmed the chip is programmed functions)
  • The seat supports the following programming microcontroller:
  • PIC16/18XX 40PIN Series devices (except 16F59)
  • PIC16/18XX 28PIN Series devices (except 16F57)
  • PIC16/18XX 18PIN Series devices
  • The PIC 8PIN/14PIN/20PIN family of devices (except 10FXX)

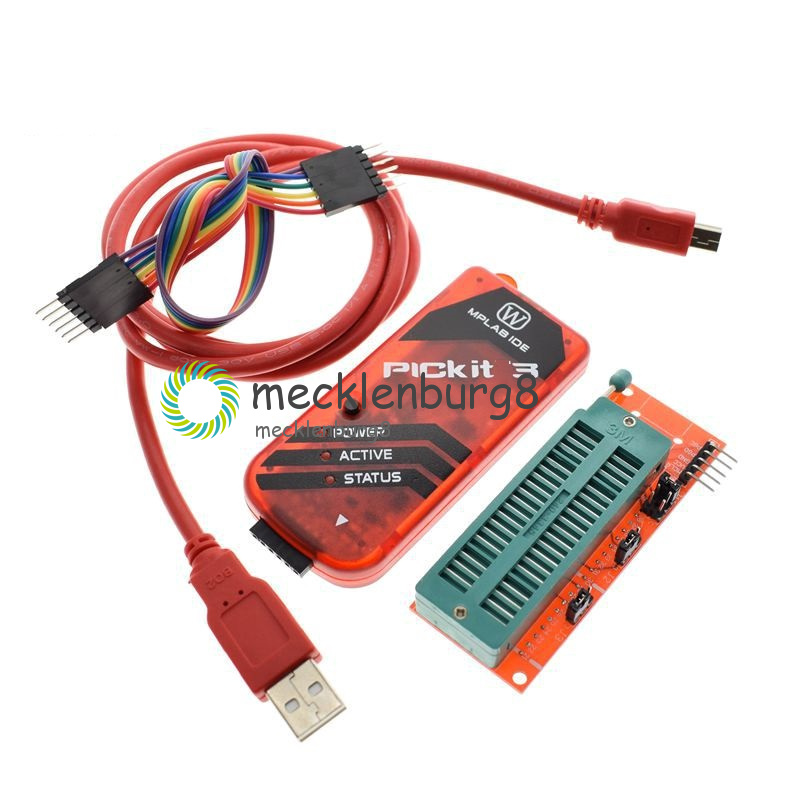

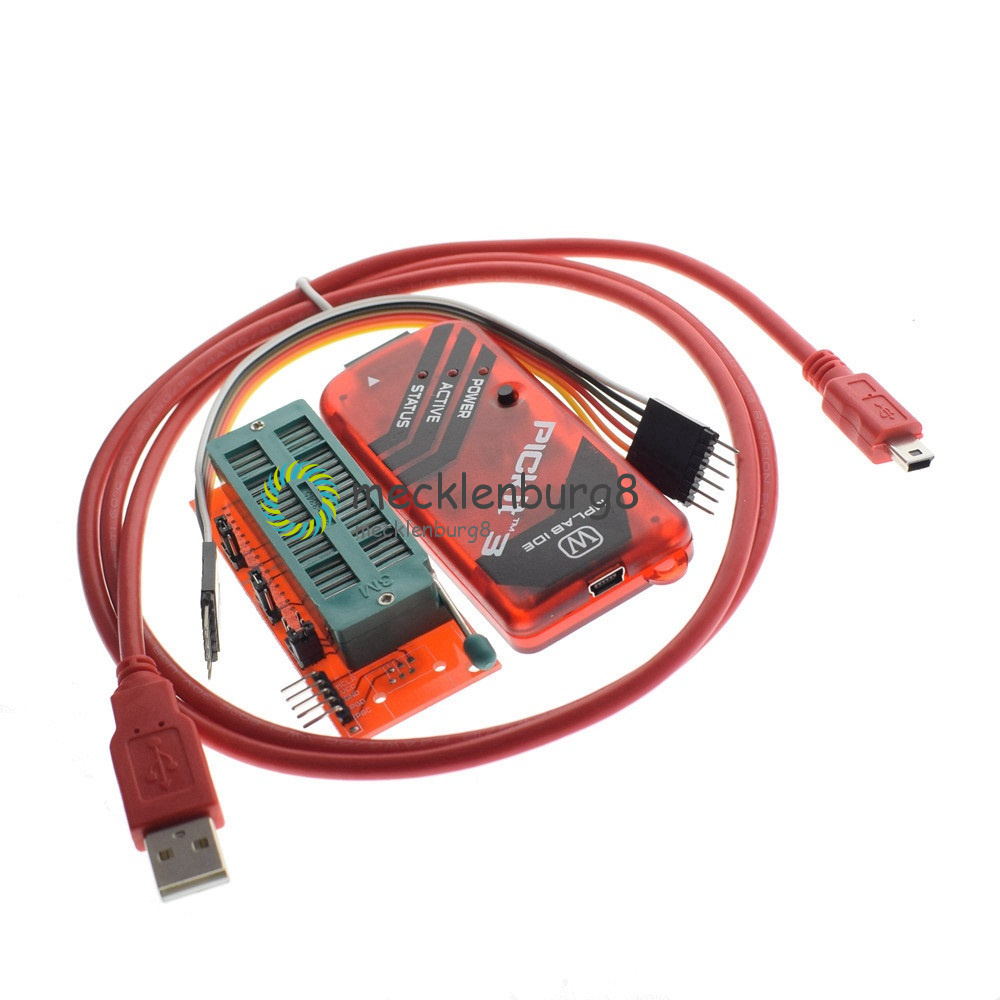

    • Package Included:
    • 1 X PICKIT3 Simulator
    • 1 X USB Cable
    • 1 X 6Pin cable
    • 1 x Universal Programmer Seat
