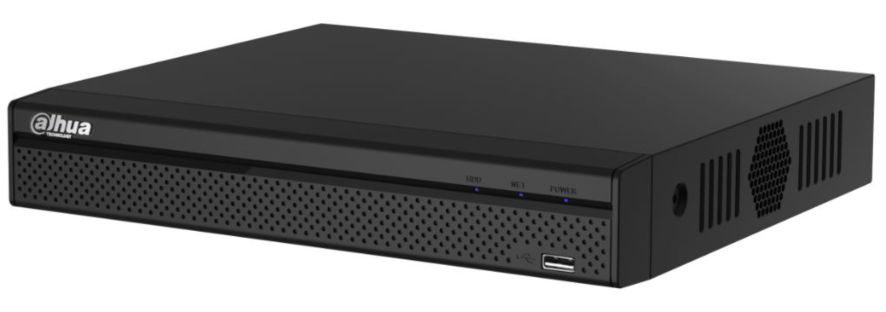

| Model: DVR |
XVR5116H-X |
| SYSTEM |
| Main Processor |
Embedded processor |
| Operating System |
Embedded LINUX |
| VIDEO & AUDIO |
| Analog Camera Input |
16 Channel, BNC |
| HDCVI Camera |
4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD Camera |
4MP, 1080P@25/30, 720P@25/30fps |
| TVI Camera |
4MP, 1080P@25/30, 720P@25/30fps |
| CVBS Camera |
PAL/NTSC |
| IP Camera Input |
16+8 Channel, each channel up to 6MP |
| Audio In/out |
1/1, RCA |
| Two-way talk |
Reuse audio in/out, RCA |
| RECORDING |
| Compression |
H.265+/H.265/H.264+/H.264 |
| Resolution |
4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| Record Rate |
Main stream:4M-N/1080P(1~15fps); 1080N/720P/960H/
D1/CIF (1~25/30fps)
Sub stream: D1/CIF(1~15fps)
|
| Bit Rate |
32Kbps ~ 6144Kbps Per Channel
|
| Record Mode |
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
|
| Record Interval |
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec
|
| Audio Compression |
AAC(only for the 1st channel), G.711A, G.711U, PCM
|
| Audio Sample Rate |
8KHz, 16 bit Per Channel
|
| Audio Bit Rate |
64Kbps Per Channel
|
| DISPLAY |
| Interface |
1 HDMI ,1 VGA |
| Resolution |
1920×1080, 1280×1024, 1280×720
|
| Multi-screen display |
When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25
|
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
|
| NETWORK |
| Interface |
1 RJ-45 Port (1000M) |
| Network Function |
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Max User Access |
128 users |
| Smart Phone |
iPhone, iPad, Android |
| Interoperability |
ONVIF 16.12, CGI Conformant |
| VIDEO DETECTION AND ALARM |
| Trigger events |
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video detection |
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| PLAYBACK AND BACKUP |
| Playback |
1/4/9/16 |
| Search mode |
Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback function |
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup mode |
USB Device/Network |
| STORAGE |
| Internal HDD |
1 SATA Port, up to 10TB capacity |
| AUXILIARY INTERFACE |
| USB |
1 USB 2.0 , 1 USB 3.0 |
| RS485 |
1 Port, for PTZ Control |
| ELECTRICAL |
| Power supply |
DC12V/2A |
| Power consumption |
＜15W |
| CONSTRUCTION |
| Dimensions |
Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2") |
| Net Weight |
1.3kg (2.9 lb) |
| Gross Weight |
2kg (4.4 lb) |
| Installation |
Desktop installation |
| ENVIRONMENTAL |
| Operating Conditions |
-10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH |
| Storage Conditions |
-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| THIRD-PART SUPPORT |
| Third-part support |
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| CERTIFICATIONS |
| Third-part support |
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
UL: UL 60950-1
|
