10 - 1000 Bootlace Ferrules Cable End Crimp Terminal 0.34 - 50mm² Set DIN 46228
Item specifics:
| Maximum Operating Temperature (Nominal): | 110°C |
| Contact Material: | Copper |
| Brand: | Auprotec |
| Country/Region of Manufacture: | Germany |
| Maximum Operating Temperature (Actual): | 110°C |
| Cross section: | 0.34 mm² - 50 mm² |
| Product type: | Bootlace Ferrules |
| Maximum electrical voltage: | 300V |
| conductor: | Tin plated copper |
| Max Operation Temperature (approx.): | 110°C |
| Heat-resistant: | up to 110°C |
Description:
Specifications:
Bootlace ferrules prevent fan out of the conductor strands of multi-core copper leads and simplify the insertion into the terminal. The ferrules are made of nickel plated copper.
- For Conductors 0.34 mm² - 50 mm²
- Funnel is heat-resistant up to 110°C
- Tube: Cu, tin plated
- Halogen-free
- Manufactured according to DIN 46228
- Premium Quality
- Made in Germany
Available in sizes of 10, 50, 100, 500, 1000 pieces or in pre-assorted sets.

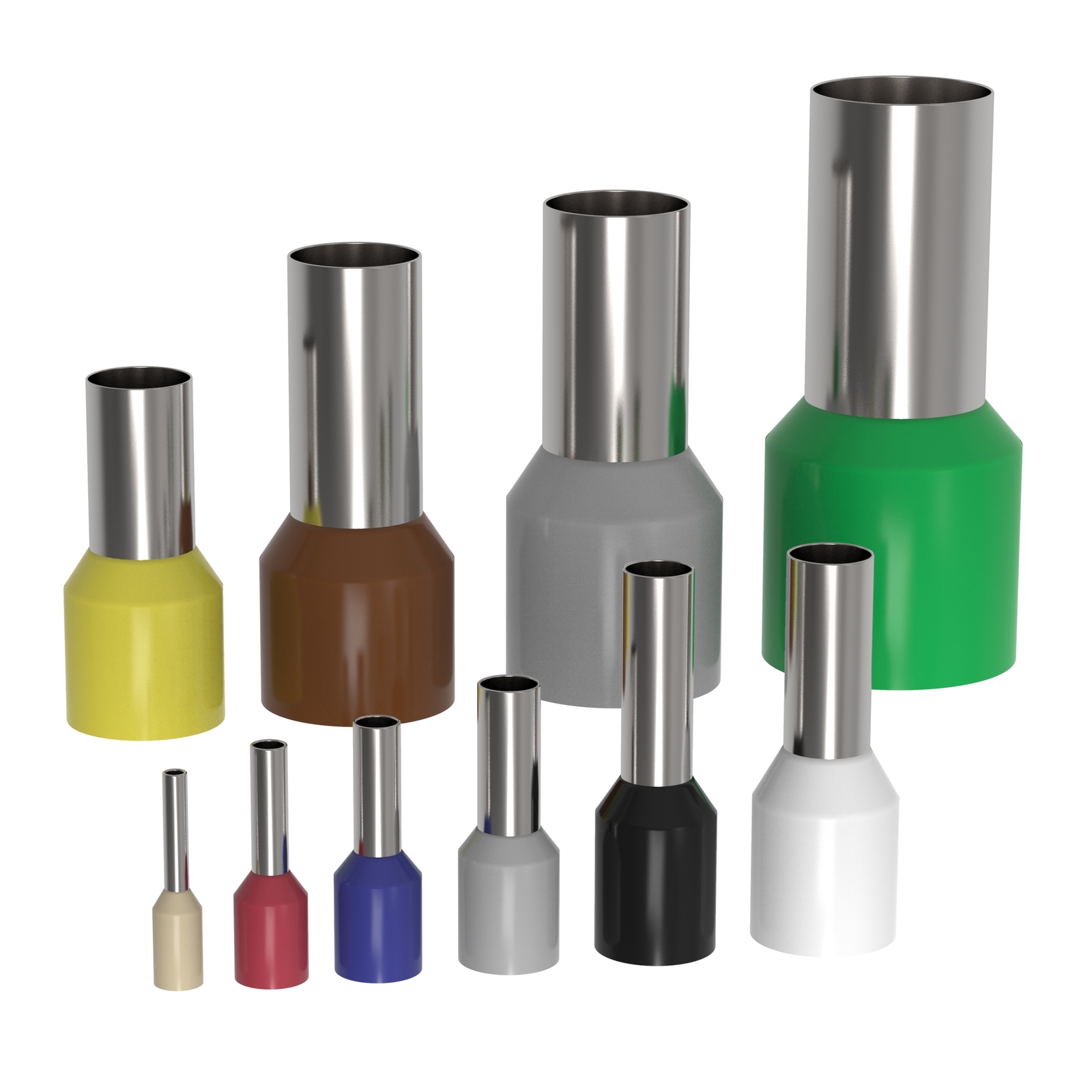

Insulated ferrules for single conductors.
- 0.34 mm² Length 6mm / yellow
- 0.50 mm² Length 6mm / orange
- 0.75 mm² Length 6mm / white
- 1.00 mm² Length 6mm / yellow
- 1.50 mm² Length 8mm / red
- 2.50 mm² Length 8mm / blue
- 4.00 mm² Length 10mm / grey
- 6.00 mm² Length 12mm / black
- 10.0 mm² Length 12mm / ivory
- 16.0 mm² Length 12mm / ivory
- 25.0 mm² Length 16mm / brown
- 35.0 mm² Length 16mm / grey
- 50.0 mm² Length 20mm / green

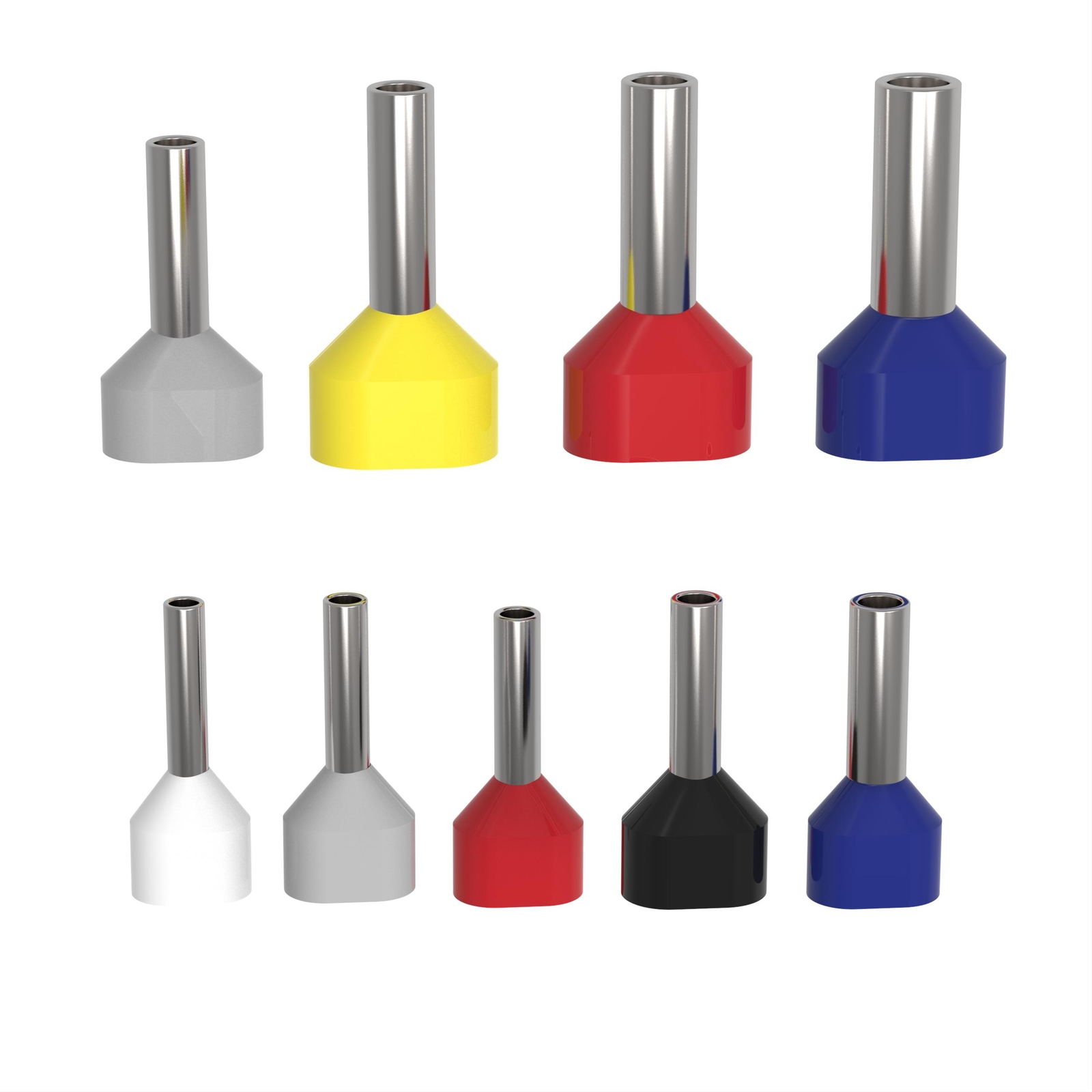

Insulated ferrules, Twin for two conductors.
- 0.50 mm² Length 8mm / white
- 0.75 mm² Length 8mm / grey
- 1.00 mm² Length 8mm / red
- 1.50 mm² Length 8mm / black
- 2.50 mm² Length 10mm / blue
- 4.00 mm² Length 12mm / grey
- 6.00 mm² Length 14mm / yellow
- 10.0 mm² Length 14mm / red
- 16.0 mm² Length 14mm / blue

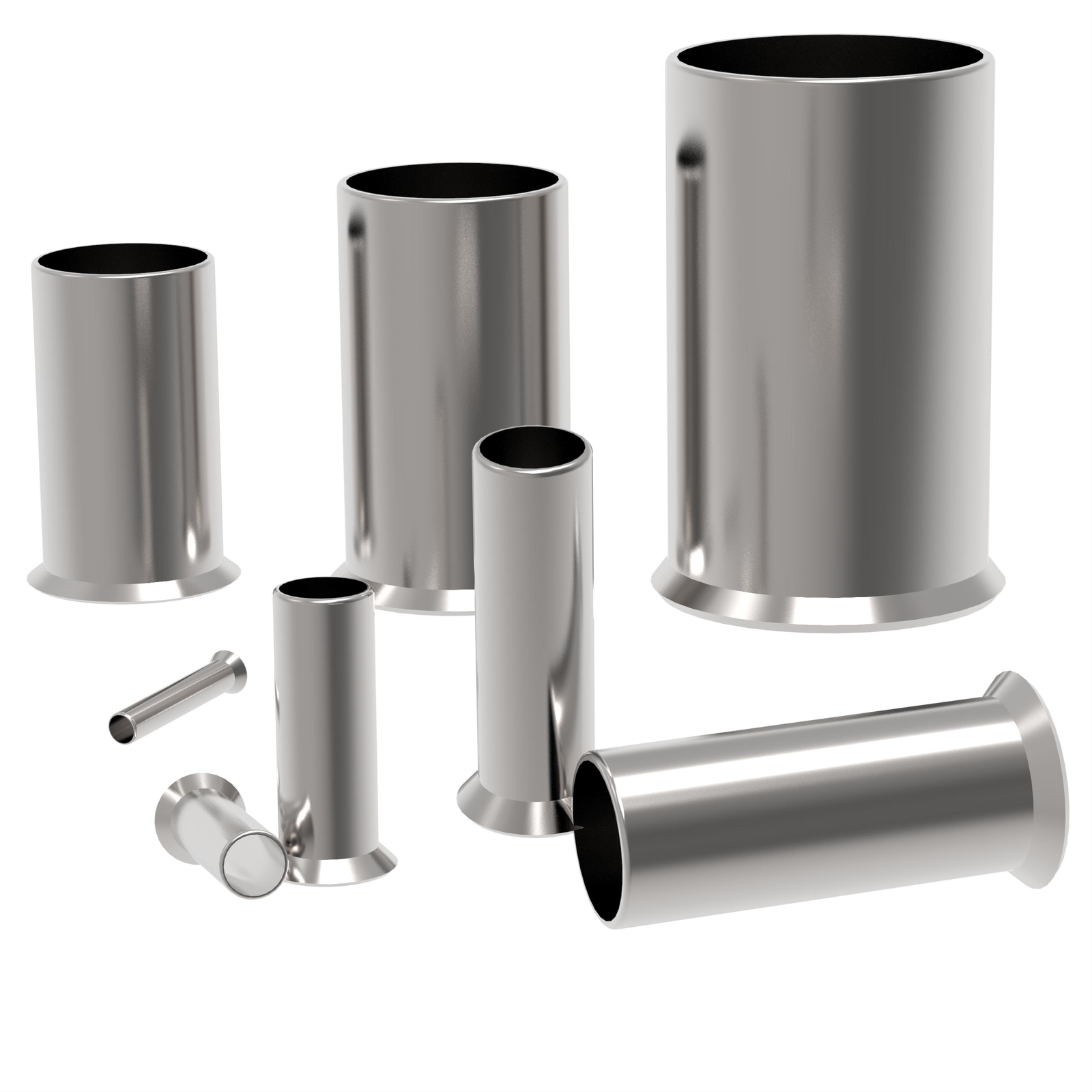

Uninsulated ferrules for single conductors.
- 0.50 mm² Length 6mm
- 0.75 mm² Length 6mm
- 1.00 mm² Length 6mm
- 1.50 mm² Length 7mm
- 2.50 mm² Length 7mm
- 4.00 mm² Length 9mm
- 6.00 mm² Length 10mm
- 10.0 mm² Length 12mm
- 16.0 mm² Length 12mm
- 25.0 mm² Length 18mm
- 35.0 mm² Length 18mm
- 50.0 mm² Length 28mm
Content / Set:
| Set 1: 0.5 - 2.5mm² | Set 2: 4 - 16 mm² | Set 3: 10 - 50 mm² |
| = 1000 Pieces | = 400 Pieces | = 250 Pieces |
| 0.50 mm² = 200 Pieces | 4.00 mm² = 100 Pieces | 10.0 mm² = 50 Pieces |
| 0.75 mm² = 200 Pieces | 6.00 mm² = 100 Pieces | 16.0 mm² = 50 Pieces |
| 1.00 mm² = 200 Pieces | 10.0 mm² = 100 Pieces | 25.0 mm² = 50 Pieces |
| 1.50 mm² = 200 Pieces | 16.0 mm² = 100 Pieces | 35.0 mm² = 50 Pieces |
| 2.50 mm² = 200 Pieces | 50.0 mm² = 50 Pieces |
