- The Parts Compatibility listed in eBay are for reference Only.
- In some cases, for the same year range & model variants, there could be different part.
- Please check the following listing details carefully.
- If you are not sure, please contact us with your VIN number to verify.
Quote this code in your enquiry.
Quote this Code in your enquiry.
- Perfect match to OE Design
- Optimal thermal conductivity
- Help to prevent brake judder
- Avoid braking noise due to better damping coefficient
- Higher resistance to distortion and thermal cracking
- Improve braking safety and performance
- Maximum rotor life
- Brake effectiveness (requires less pedal effort)
- Lower temperature (reduces stress on the rotors and other brake components)
- Lower wear (long life as cooler brakes last more)
Brake Pads Features:
- Advanced Ceramic Formula
- Specifically designed for Australian/Japanese/Korean Models
- excellent pedal feeling
- Low brake noise
- Low Dust
- suitable for everyday driving
| Diameter | 289mm/300 | mm |
| Height | 46mm/73 | mm |
| Max. Thickness | 25.8mm/22 | mm |
| Min. Thickness | 24.4mm/20 | mm |
| Centre Holes | 94mm/94 | mm |
| No. of Studs | 6/6 | |
| Vented/Solid | V/V |
Brake Pads Measurement:
| Length | 139/112/91 | mm |
| Height | 58/45 | mm |
| Thickness | 15/15 | mm |
| Sensor Length | mm |

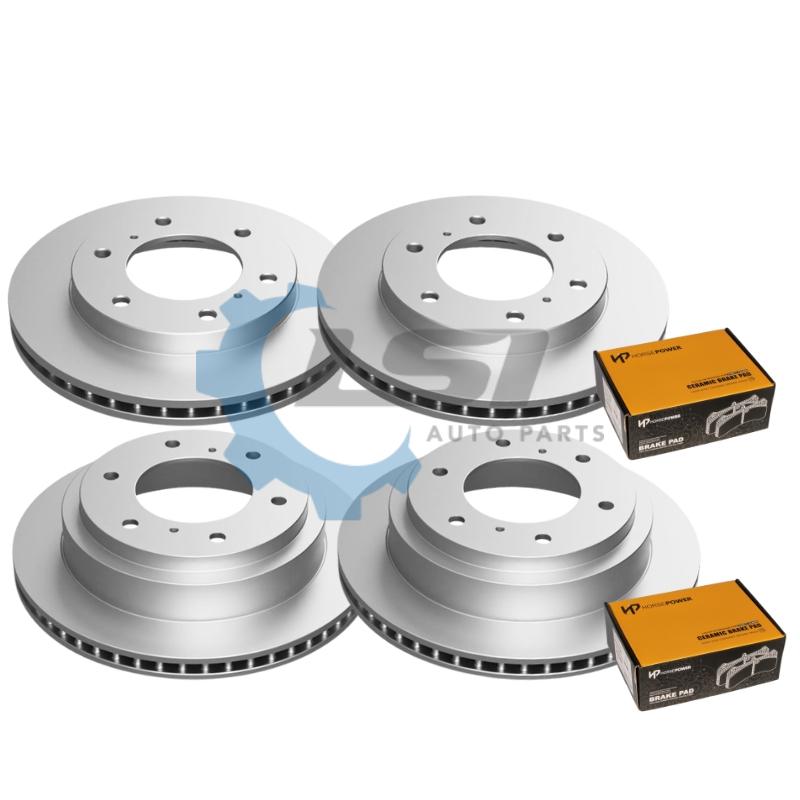

Full Set F+R Horsepower Brake Disc Rotors & Ceramic Brake Pads Kit
The Full Set F+R Horsepower Brake Disc Rotors and Ceramic Brake Pads Kit is a premium, ultra-clean braking upgrade engineered for the heavy-duty demands of the Mitsubishi Pajero NM–NP series (2000–2006) as well as the 2007–2009 NS Short Wheel Base (SWB) 3-Door models. This fully matched setup pairs high-density ceramic friction technology with protective-coated metallurgy to provide a smooth, exceptionally quiet, and low-dust driving experience for daily commuting, highway touring, and trail driving.
Product Description
Upgrade your vehicle's braking performance with this complete, direct-replacement front and rear package. By combining Horsepower Ultra-Premium Ceramic Brake Pads with matching Horsepower Geomet-Coated Disc Rotors, this kit ensures perfectly balanced wear profiles, predictable pedal modulation, and pristine wheels.
- Ultra-Low Dust Ceramic Formula: Engineered with an advanced ceramic matrix that produces virtually zero dark carbon dust, keeping your alloy wheels cleaner for significantly longer.
- Advanced Rust Protection: Every rotor features a premium silver Geomet anti-corrosion coating on the hubs, outer edges, and internal cooling vanes to prevent ugly rust buildup during water crossings.
- Whisper-Quiet Braking: Premium rubberized vulcanized shims work alongside chamfered and slotted pad designs to completely isolate and eliminate high-frequency brake squeal.
- Thermal Stability: High-carbon rotor metallurgy works in total synergy with the ceramic friction material to dissipate operational heat smoothly up to 550°C, protecting against brake fade and warping.
Vehicle Application Model List
Fits the following Mitsubishi Pajero models equipped with standard 4WD configurations:
Pajero NM & NP Series (05/2000 – 12/2006) - All Models
- 3.5L V6 Petrol (6G74 SOHC/DOHC) – 2000 to 2006
- 3.8L V6 Petrol (6G75 SOHC) – 2003 to 2006
- 2.8L Turbo Diesel (4M40) – 2000 to 2002
- 3.2L Di-D Turbo Diesel (4M41) – 2000 to 2006
- 2.5L TDi Turbo Diesel (4D56) – 2000 to 2006
Pajero NS Series (2007 – 2009) - Short Wheel Base (SWB) 3-Door ONLY
- 3.2L Di-D Turbo Diesel SWB 3-Door (4M41 / V88W Layout) – 2007 to 2009
- 3.8L V6 Petrol SWB 3-Door (6G75 / V87W Layout) – 2007 to 2009
Technical Specifications
- Front Rotors: 289mm Diameter | Vented | 6-Stud | 94mm Centre Hub
- Rear Rotors: 300mm Diameter | Vented | 6-Stud | 94mm Centre Hub

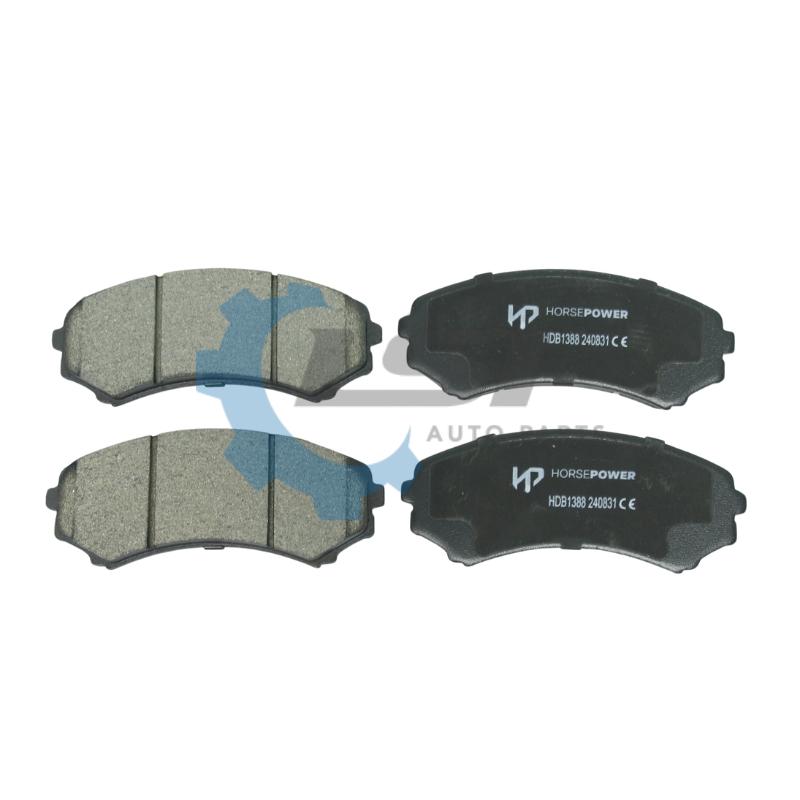

- Front Pads Set: 4 Premium Ceramic Pads (139mm × 58mm × 15mm)

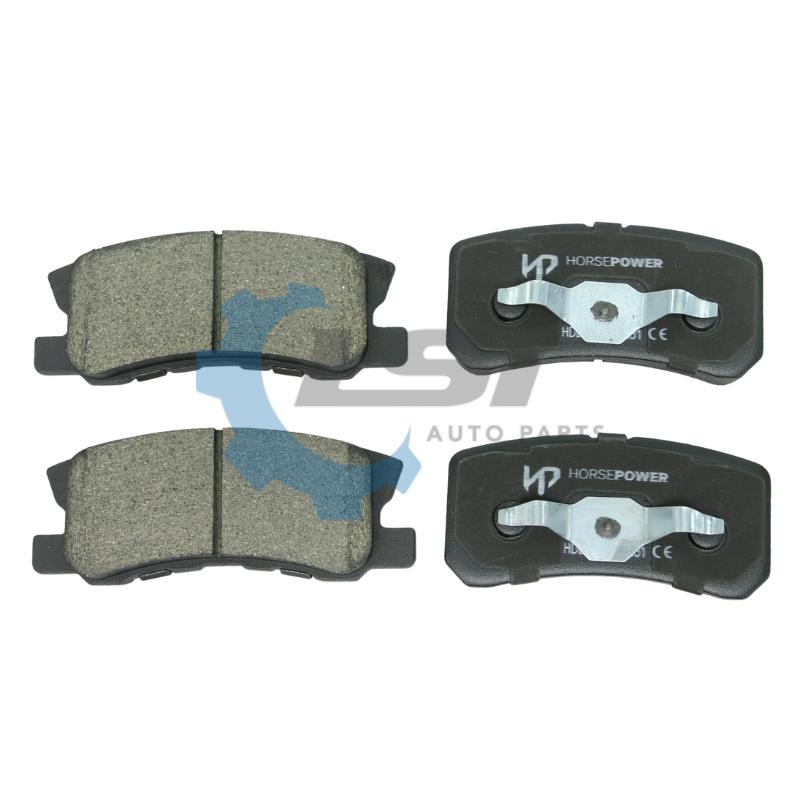

- Rear Pads Set: 4 Asymmetric Ceramic Pads (2 Inner: 112mm × 45mm × 15mm | 2 Outer: 91mm × 45mm × 15mm)
