| PVF60-05-S2-P2 60mm 90 degree right angle planetary gearbox reducer Ratio 5:1 for 400w 60 AC servo motor |
Note:
If the diameter of your motor NOT matched, please ask if we can offer the sleeve for the shaft to match it

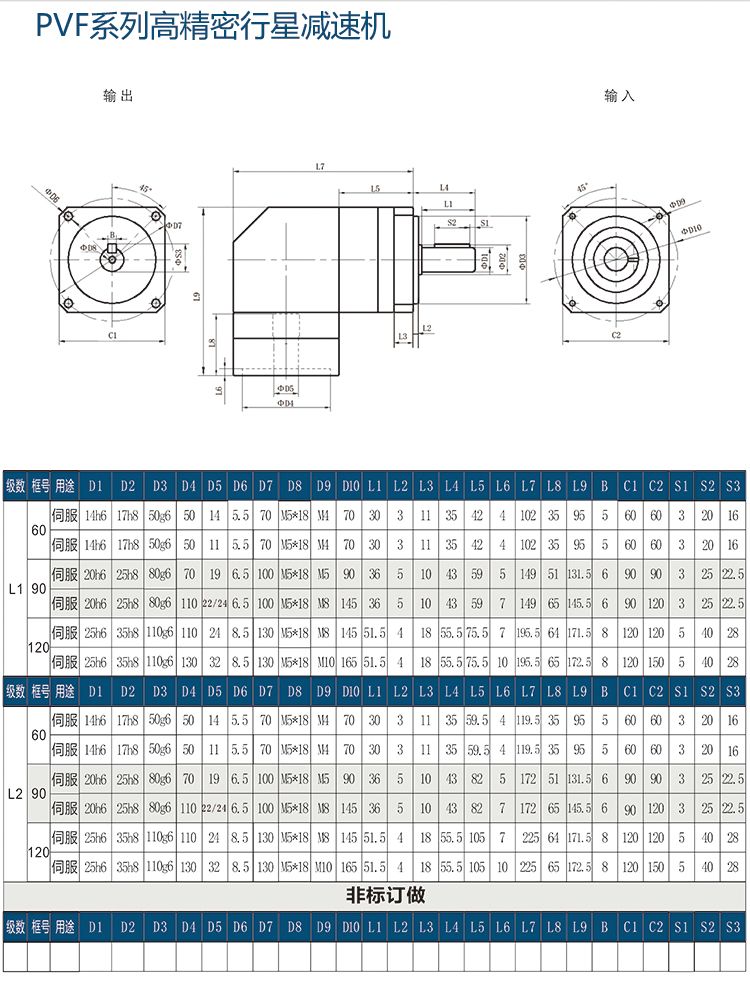

The matched motor size:
Frame | Shaft diameter | Rabbet | diagonal Screw hole distance |
60mm | 14mm | 50mm | 70mm |

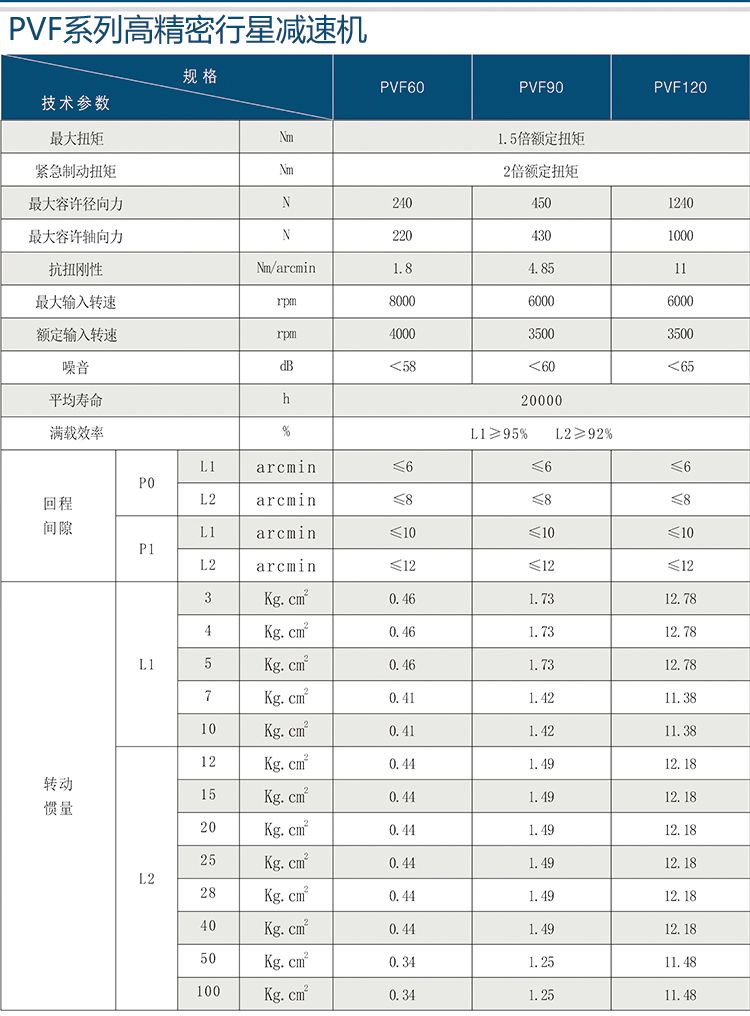

Ratio | 5:1 |
Rated output torque | 40N.m |
Maximum | 1.5*rated torque |
Rated Input speed | 4000rpm |
Maximum input speed | 8000rpm |
backlash | <=10 arcmin |
Maximum output radial force | Fr=240N |
Maximum output axial force | Fa=220N |
