PLF90-20-S2-P2 19-70-90 90mm planetary gear reducer Ratio 20:1 for 80mm 750w AC servo motor shaft 19mm
Note:
1,If
the diameter of your motor NOT matched, please ask if we can offer the sleeve
for the shaft to match it
2,If you need the PLE circular type reducer, Please note it after order.
The

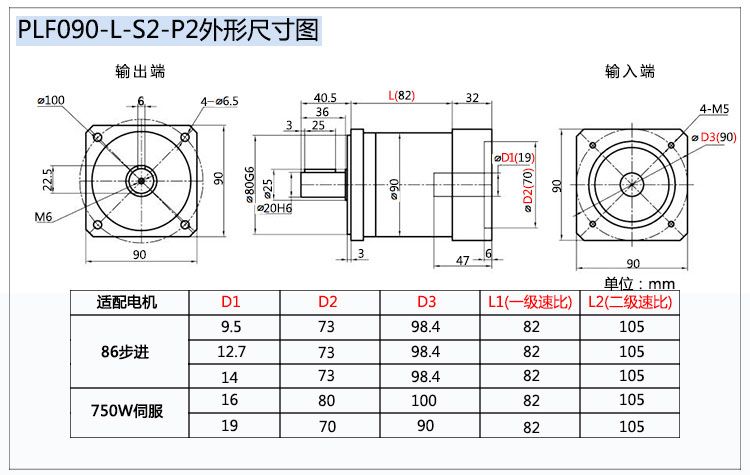

matched motor size:
|
Frame |
Shaft
diameter |
Rabbet |
diagonal
Screw hole distance |
|
80MM |
19mm |
70mm |
90mm |
The

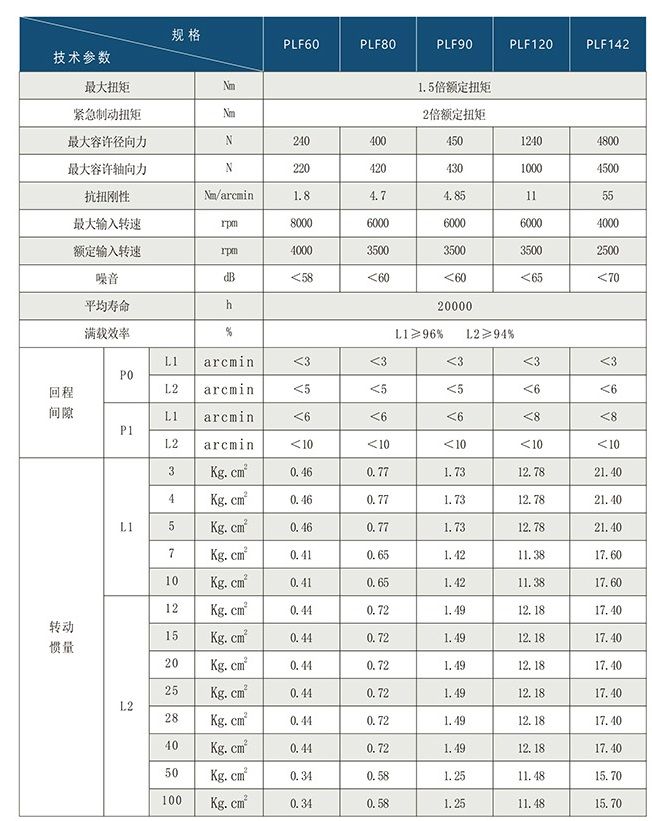

main specification of the PLF90-20-S2-P2 planetary gear reducer:
|
Ratio |
20:1 |
|
Rated
output torque |
56N.m |
|
Maximum
|
1.5*rated
torque |
|
Rated
Input speed |
3500rpm |
|
Maximum
input speed |
6000rpm |
|
backlash |
<=7
arcmin |
|
Maximum
output radial force |
Fr=400N |
|
Maximum
output axial force |
Fa=420N |
