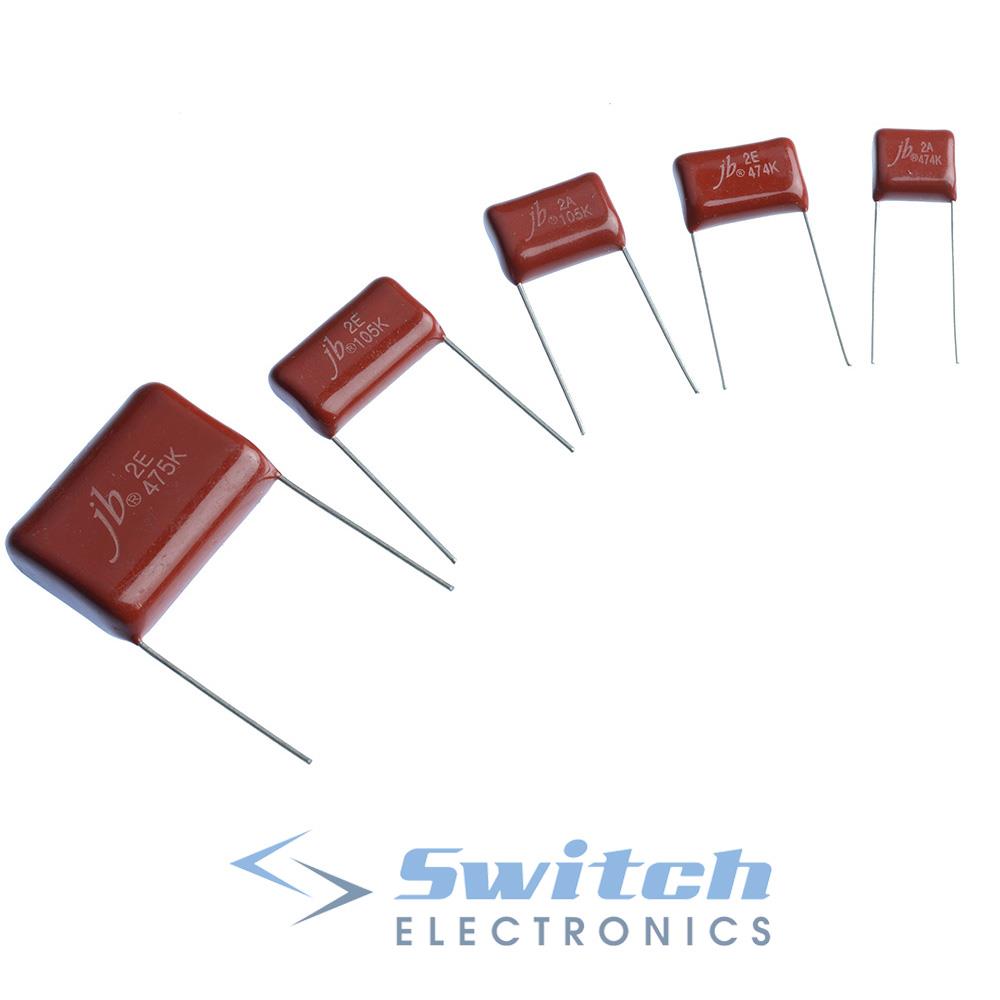

Metallised Polyester Film Capacitor ±10% 100V 250V 400V 630V
£
0.99 - 29.89
Metallised polyester capacitors with epoxy coating providing excellent heat and solvent resistance. Suitable for coupling and decoupling applications.
Range of sizes available Self-healing properties ±10% tolerance Excellent heat and moisture resistance Non-inductive construction Wide temperature range
| Capacitance | Voltage | Length | Width | Height | Pitch |
|---|---|---|---|---|---|
| 0.1uF | 100V | 13mm | 7mm | 10mm | 10mm |
| 0.22uF | 100V | 13mm | 7mm | 11mm | 10mm |
| 0.33uF | 100V | 18mm | 6mm | 11mm | 15mm |
| 0.47uF | 100V | 13mm | 7mm | 13mm | 10mm |
| 1uF | 100V | 18mm | 8mm | 13mm | 15mm |
| 0.1uF | 250V | 13mm | 7mm | 10mm | 10mm |
| 0.22uF | 250V | 13mm | 8mm | 12mm | 10mm |
| 0.47uF | 250V | 18mm | 7mm | 12mm | 15mm |
| 1uF | 250V | 23mm | 8mm | 15mm | 20mm |
| 2.2uF | 250V | 23mm | 12mm | 18.5mm | 20mm |
| 4.7uF | 250V | 31mm | 13.5mm | 21.5mm | 27.5mm |
| 0.01uF | 400V | 13mm | 6mm | 9mm | 10mm |
| 0.022uF | 400V | 13mm | 7mm | 11mm | 10mm |
| 0.047uF | 400V | 13mm | 7mm | 10.5mm | 10mm |
| 0.1uF | 400V | 13mm | 7mm | 11mm | 10mm |
| 0.22uF | 400V | 18mm | 7mm | 11.5mm | 15mm |
| 0.47uF | 400V | 18mm | 9mm | 15mm | 15mm |
| 1uF | 400V | 31mm | 8.5mm | 15mm | 27.5mm |
| 0.1uF | 630V | 18mm | 6.5mm | 12mm | 15mm |
