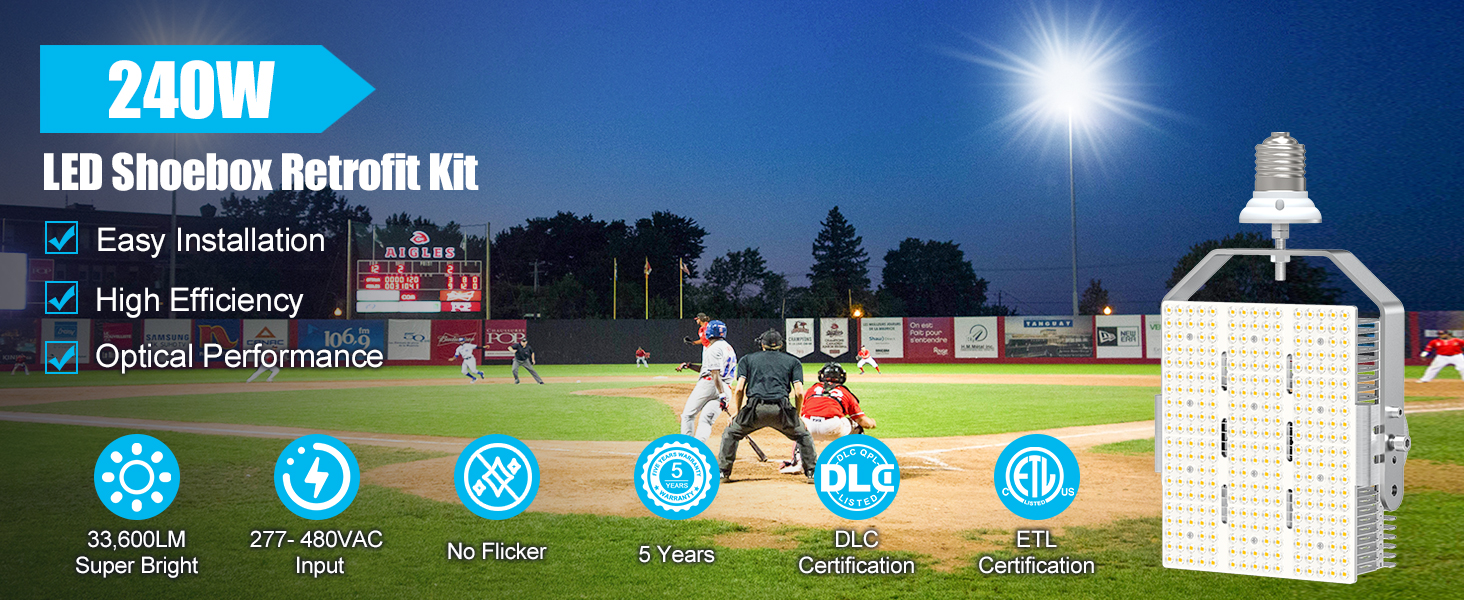

【 Low Energy High Brightness】 Outstanding 145 LM/W provides 34800 lumen output. 480V The LED module is a perfect replacement for 600W traditional light, brighter and more than 90% energy saving.80+ CRI 5000K daylight for outdoor large area lighting.
【Safety & Energy Saving】The LED shoebox retrofit kit has passed ETL & DLC certification,ETL Certified products ensure better quality, safety and reliability.It can save up to 80% electric bill compared with old shoebox fixtures, 1000w replacement with this 240W shoebox led retrofit.It also offers lower maintenance costs.
【 Easy Installation】 Our LED retrofit kit comes with an E39 Mogul Base and adjustable U bracket for horizontal and vertical mounting, please remove or bypass the ballast and confirm your shoebox and retrofit kit size before installation to ensure fit.

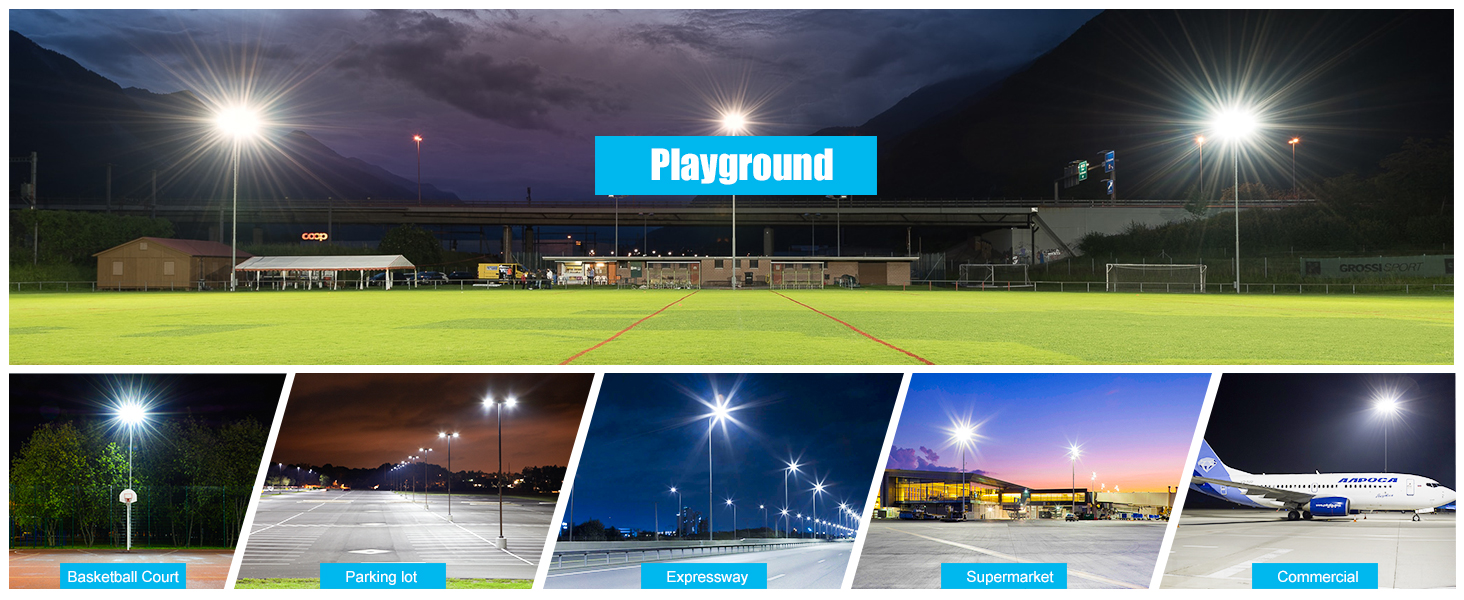

【 Wide Application】 Shoebox LED retrofit kit is perfect for retrofitting ceiling lights, wall packs, parking lot pole lights, shoebox lights for tennis courts, and many other fixtures. The best solution for commercial and Industrial equivalent.
【BEST SUPPORT TEAM & 5 YEARS WARRANTY】 The safety and quality of retrofit light are proudly by ETL and DLC listed ensuring Rebate eligibility and lowest maintenance, All NUOGUAN LED comes with a 5-year service. Professional technical support is always available.
Specifications:
Rated Power: 240W
Luminous Flux: 34,800 Lumens
Input Voltage: AC 277-480V 50/60Hz
Color temperature: 5000K
Bulb Base Type： E39 Screw Base
Power Supply: MEANWELL Driver
Materials: Aluminum
Beam Angle: 120°
Operating Temperature:-31ºF-131ºF
Certificate：ETL & DLC
Lifespan: > 50,000 Hours
Attention :
1.Caution: Please remove Ballast, Capacitors and Ignitor.
2. Please fix the retrofit kit in fixture socket with screws(Recommended) Or E39 E40 install in fixture socket
3. Output of LED Power Supply:
Red Wire (L) to connect Red Wire(DC+) of the light panel;Black Wire (N) to connect White Wire(DC-) of the light panel;
Input of LED Power Supply(AC 277-480V):
Green/Yellow Wire(GND) to connect Ground Wire; Brown Wire(AC+) connect Live Wire; Blue Wire (AC-) connect Neutral Wire
Package Included:
1 x 480V 240W Led retrofit kits light (E39 mogul base)
