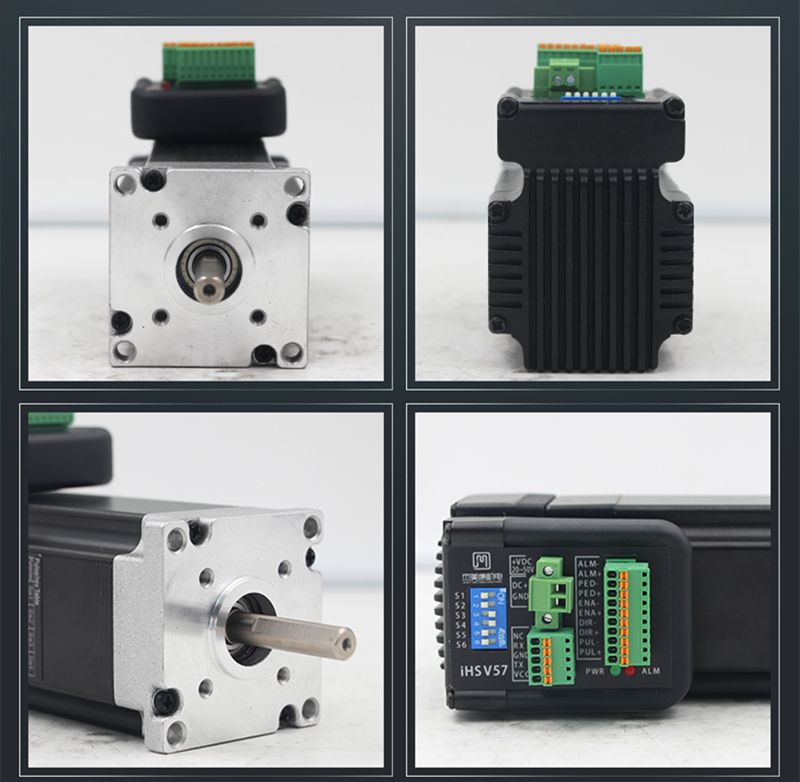

180W NEMA23 0.57Nm Integrated Servo Motor 36VDC 3000rpm JMC iHSV57-30-18-36
Now the version is V609 .I will ship the latest version .
- Multi Pulse Input Modes Pulse+Direction
- Opto-isolator Servo Reset Input Port ERC
- Current Loop Bandwidth:（-3dB）2KHz(Typical)
- Speed Loop Bandwidth: 500Hz(Typical)
- Position Loop Bandwidth: 200Hz(Typical)
- Motor Quadrature Encoder Input Interface: Differential
Input(26LS32)
- Download parameters via RS232C from PC or Text Display.
- Users can definite subdivisions via external Dial-up switches
or software.
- Overcurrent, I2T, Over-voltage, Undervoltage, Overheat,
Overspeed, Overerror Protections.
- Green light indicates running, red light indicates protection
or offline.
Typical applications：
CNC, printinng, lazer, textile
machine, etc.
Introduction:
iHSV57-XX Integrated AC Servo Driving Motor
is perfectly integrated AC servo drive into servo motor, adopts vector control
in DSP chip, features in low cost, full closed loop, all digital, low heat,
small vibration, and high response, as well as includes three adjustable
feedback loop control modes(postition loop, speed loop, and current loop).
iHSV57-XX is a series of stable performance, high cost-effective motion control
products.

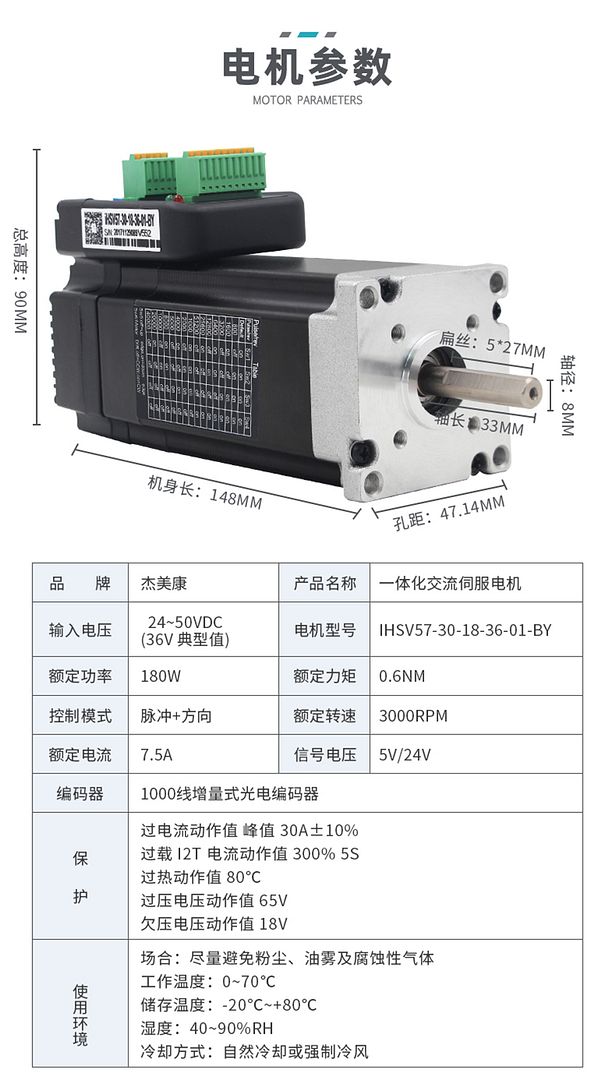

Specifications:
|
input voltage |
24~50VDC(36V typical value ) |
|
|
Continuous output current |
6A |
|
|
Maximum pulse frequency |
250K |
|
|
Default rate |
9.6Kbps（Required external
conversion interface） |
|
|
protect |
▸Peak value of over current action value
30A + 10% ▸Overload I2t current action value of
300% 5S ▸Overheating action value of 80 ▸Overvoltage action value 65V ▸Action value of under voltage voltage
18V |
|
|
Use environment |
occasion |
As far as possible to avoid dust, oil
mist and corrosive gases |
|
working temperature |
0~+70℃ |
|
|
Storage temperature |
-20℃~+80℃ |
|
|
humidity |
40~90%RH |
|
|
Cooling mode |
Natural cooling or forced air cooling |
|
Environment:
|
Cooling |
Natural Cooling or Forced Convection
|
|
|
Environment |
Space |
Avoid dust, oil frost and corrosive gases |
|
Ambient Temperature |
65°C |
|
|
Humidity |
<80%RH |
|
|
Vibration |
5.9m/s² Max |
|
|
Storage Temp. |
-10°C －80°C |
|
|
Weight |
Approx. 1.8 Kg |
|
Microstep Resolution Setting:
The micro steps
setting is in the following table,while SW1、SW2、SW3、SW4 are all
on,the internal default micro steps inside is activate,it can
set by our servo software.
