NEMA 23 1Nm 142ozf.in Integrated Closed Loop Stepper
motor 36VDC JMC iHSS57-36-10
- Integrated compact size for saving mounting space
- Without losing step, High accuracy in positioning
- 100% rated output torque
- Variable current control technology, High current efficiency
- Small vibration, Smooth and reliable moving at low speed
- Accelerate and decelerate control inside, Great improvement in
smoothness of starting or stopping the motor
- User-defined micro steps
- No adjustment in general applications
- Over current, over voltage and over position error protection
- Green light means running while red light means protection or
off line
Typical applications：
CNC, Printing, lazer, textile machine, etc.
Introduction:
JMC IHSS57 Integrated Closed Loop Stepper
Motor is all-in-one closed loop stepper system which integrates closed loop
stepper motor with digital driver. Servo control and digital stepper driving
technology are perfectly merged into this smart system. Optical encoder with
high speed position sampling feedback of 50μs built inside, can help system
avoid losing-step, greatly improve low-speed instability and reduces noise.
This Series products have the advantages of both stepper and servo, features in
low heat, smooth motion, fast response, high speed and big torque output.

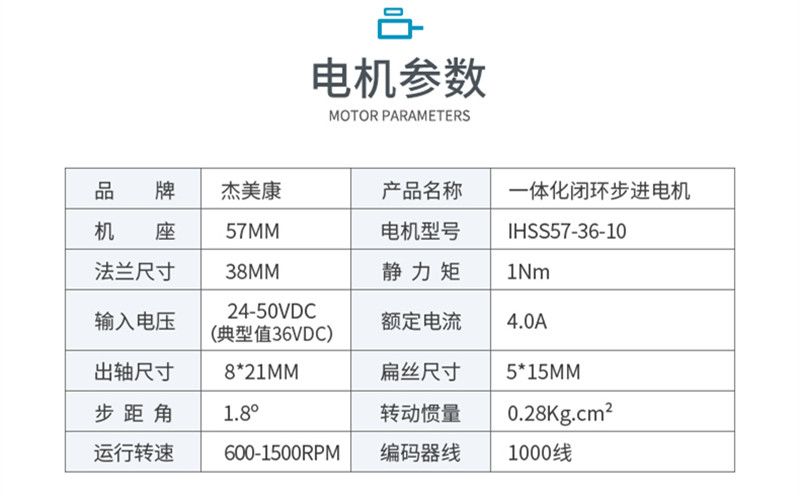

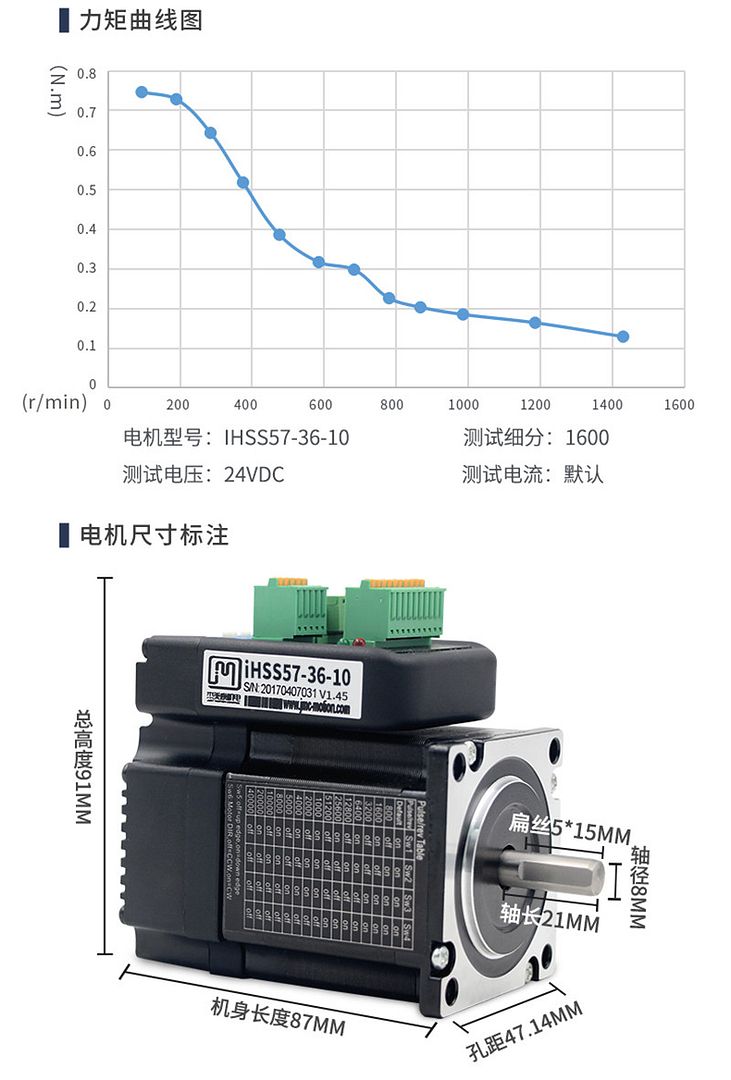

Technical Specifications:
|
Input Voltage |
24~50VDC(36V Typical) |
|
|
Output Current |
4.5A 20KHz PWM |
|
|
Pulse Frequency max |
200K |
|
|
Communication rate |
57.6Kbps |
|
|
Protection |
l Over current peak
value 8A±10% l Over voltage value 80V l The over position error range can
be set through the HISU |
|
|
Environment Specifications |
Environment |
Avoid dust, oil fog and corrosive gases |
|
Operating Temperature |
70℃ MAX |
|
|
Storage Temperature |
-20℃~+65℃ |
|
|
Humidity |
40~90%RH |
|
|
Cooling method |
Natural cooling or forced air cooling |
|
Microstep Setting:
The micro steps setting is in the following
table, while SW1、SW2、SW3、SW4 are all on, the internal default micro steps inside is
activate，this ratio can be setting through the HISU.
|
Dial switch Micro steps |
SW1 |
SW2 |
SW3 |
SW4 |
|
Default |
on |
on |
on |
on |
|
800 |
off |
on |
on |
on |
|
1600 |
on |
off |
on |
on |
|
3200 |
off |
off |
on |
on |
|
6400 |
on |
on |
off |
on |
|
12800 |
off |
on |
off |
on |
|
25600 |
on |
off |
off |
on |
|
51200 |
off |
off |
off |
on |
|
1000 |
on |
on |
on |
off |
|
2000 |
off |
on |
on |
off |
|
4000 |
on |
off |
on |
off |
|
5000 |
off |
off |
on |
off |
|
8000 |
on |
on |
off |
off |
|
10000 |
off |
on |
off |
off |
|
20000 |
on |
off |
off |
off |
|
40000 |
off |
off |
off |
off |
