120V Electric Radiant Floor Heating Mat - various sizes available
With Adhesive Backing - lays flat and stays flat
All sizes of floor heating mat kits with programmable thermostats available in our Store.
Free shipping (lower 48 states only)
Best price + quality guaranteed: buy it once & buy it right. Compare before you buy - ours is of a superior quality and costs less.
Buy from experts - heat transfer and radiant floor heating is our specialty.
Specifications:
Electric radiant floor Heating Mat dimensions:7.5 sq.ft. heating mat - 20" wide x 4.6ft long
10 sq.ft. heating mat - 20" wide x 6.1ft long
15 sq.ft. heating mat - 20" wide x 9.1ft long
20 sq.ft. heating mat - 20" wide x 12.2ft long
25 sq.ft. heating mat - 20" wide x 15.2ft long
30 sq.ft. heating mat - 20" wide x 18.3ft long

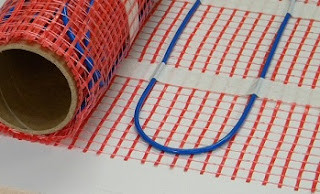

Lays flat & stays flat

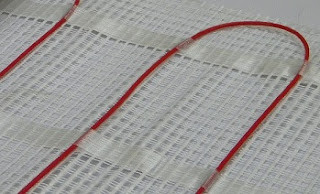

Bulges & sticks out
HeatTech floor heating cable is more versatile than mats and allows for virtually unrestricted routing of the cable across the heated area. Larger heating cable spacing (up to 4") may be used for areas that require less heat and the total cable length needed will be less compared to mats (hence - lower material costs). Cable spacing of around 2" may be used when greater heat output is needed. HeatTech radiant heating cable is best suited for heating areas containing lots of turns, round corners, etc.
35 sq.ft. heaing mat - 20" wide x 21.3ft long
40 sq.ft. heating mat - 20" wide x 24.4ft long
50 sq.ft. heating mat - 20" wide x 30.5ft long
60 sq.ft. heating mat - 20" wide x 36.6ft long
70 sq.ft. heating mat - 20" wide x 42.7ft long
80 sq.ft. heating mat - 20" wide x 48.8ft long
90 sq.ft. heating mat - 20" wide x 54.9ft long
100 sq.ft. heating mat - 20" wide x 61.0ft long
Installation manual for electric radiant floor heating mat system
Heating wire cannot be cut. Cut mesh to accommodate various shapes:
Features:
- Premier, commercial-grade self-adhesive mesh backing for faster & easier installation.Our mat lays flat and stays flat. Other brands have floppy and bulging mesh and will require constant stapling of the mat, making it difficult to position. See for yourself:
Lays flat & stays flat
Bulges & sticks out
- This product is UL LISTED for USA and CANADA!
- Our listings feature full-sized mats, not chunks.
- The cable is only ~1/8" thick and will not significantly raise finished floors.
- Made using the highest quality materials in the industry.
- These radiant heating mats are suitable for whole-house heating.
- Fast and easy to install with no expensive equipment to buy (such as boilers, pumps, controls, etc.)
- Zero Electromagnetic Field
- Comes with a single cold lead (~10ft long), making installation fast and simple.
- Includes a complete and straightforward installation manual.
- Factory tested and comes with a 25 year limited warranty
Applications:
- Bathrooms
- Kitchens
- Saunas
- Whole-house heating
- Many others
For use with:
- Tile
- Stone, Marble, Granite
- Laminate
- Engineered Wood Floors
- Vinyl, Linoleum
- And many other floor coverings with R-value not exceeding 1.0
Recommended Controls (sold separately):
- 120V Radiant Floor Sensing Thermostats by Honeywell / AUBE we sell are specifically designed for our mats and come packed with features, such as 7-day programmability, large backlit LCD display, temporary override and many others. These thermostats are capable of handling up to 15.0 Amps load, equivalent to approx. 150 sq. ft coverage area for 120V radiant heating mats.
- Floor Sensor (included with Honeywell Thermostats we sell) - highly recommended when the radiant heating cable is submerged into cement, mortar, etc. Sensor will assure faster system response and improved energy savings.
Sizing:
Sizing is simple - just e-mail us a drawing of your project and one of our professional technicians will size the radiant heating mats for you and will advise on other necessary controls at no extra cost. Be sure to include details such as desired thermostat location, finished flooring type, etc.Heating Mat or Cable?
HeatTech electric radiant floor heating mats are the best suited for typical residential radiant floor heating applications. HeatTech mats consist of heating cable attached to a fiberglass mesh with self-adhesive backing. The cable is spaced at 3" apart (optimal for electric floor heating systems), while the adhesive backing of the mat makes installation faster and easier.HeatTech floor heating cable is more versatile than mats and allows for virtually unrestricted routing of the cable across the heated area. Larger heating cable spacing (up to 4") may be used for areas that require less heat and the total cable length needed will be less compared to mats (hence - lower material costs). Cable spacing of around 2" may be used when greater heat output is needed. HeatTech radiant heating cable is best suited for heating areas containing lots of turns, round corners, etc.
