Specification:
1.Model: ZQ02116
1.Model: ZQ02116
2. Input Voltage: AC100V–240V, 50/60Hz
3. Rated Power: 380W

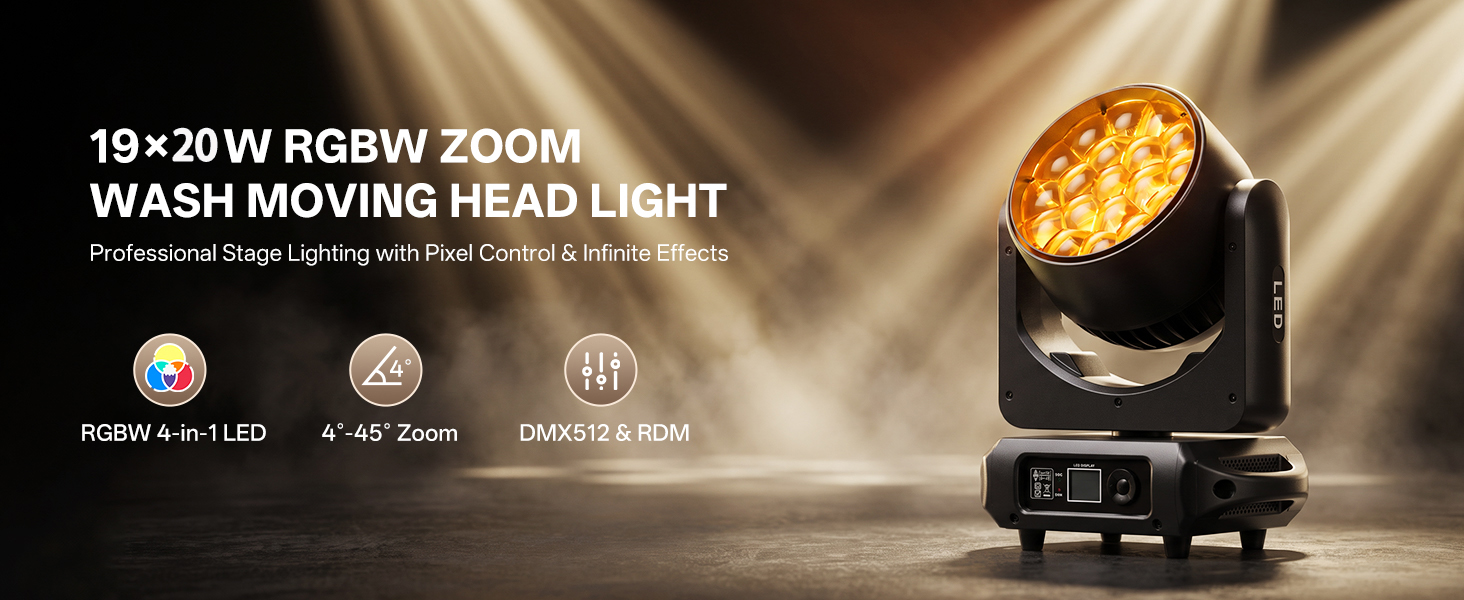

4. Light Source: 19 × 20W RGBW LEDs
5. Color Temperature: 2200K–7000K
6. CRI: Ra≥80
7. Optimal Projection Distance: 5–8m
8. Average LED Lifespan: 50,000h
9. Dimming Curve: 0–100% Linear Dimming

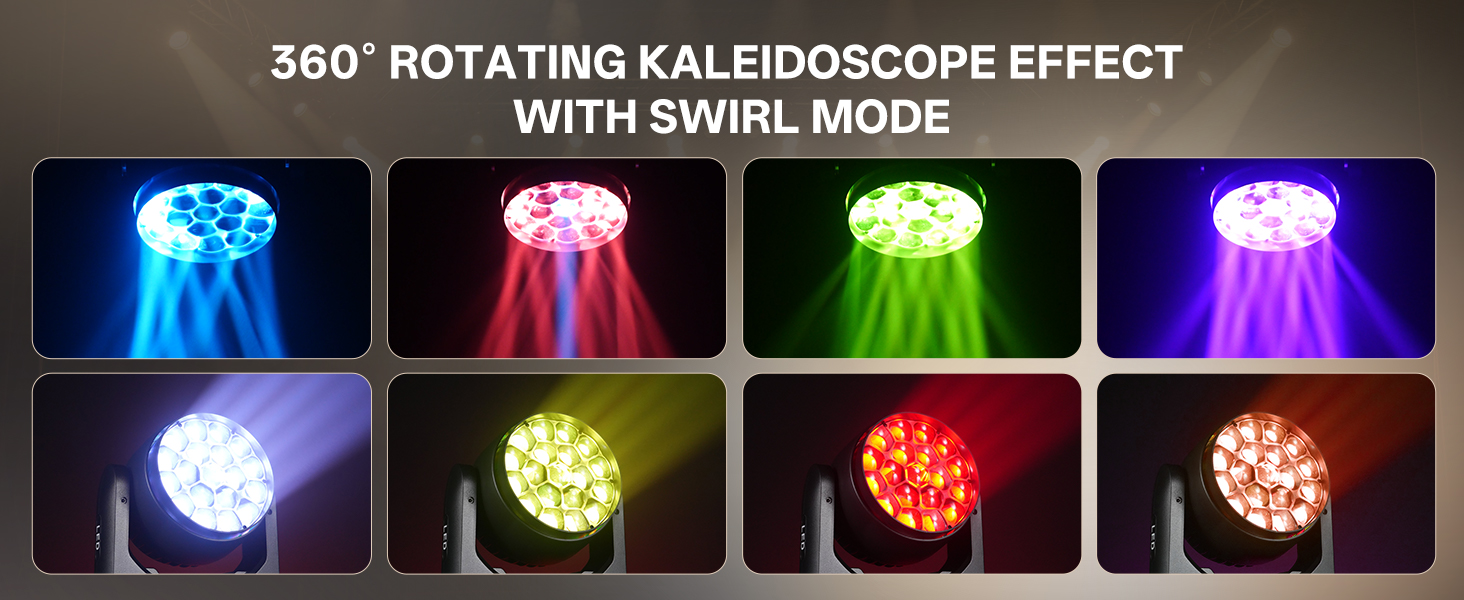

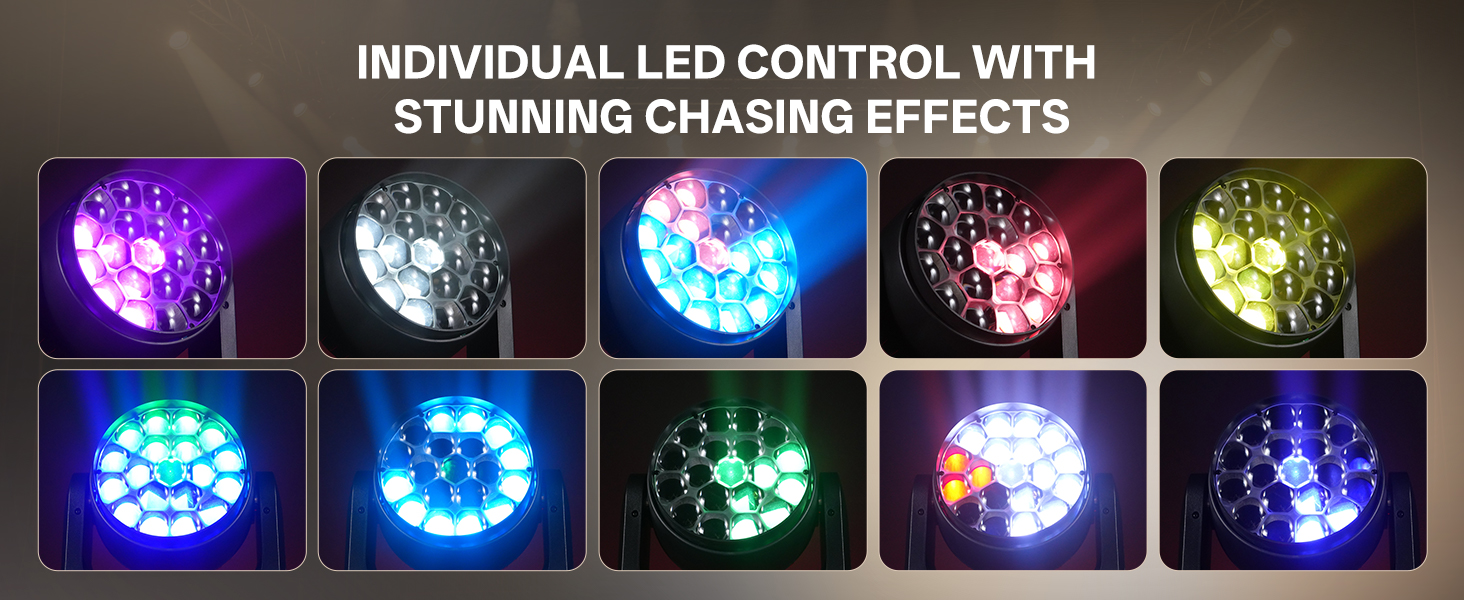

10. Effects: Wash, Beam, Swirl, Kaleidoscope, Individual Pixel Control
11. Strobe: 1–25Hz
12. Focus: Electronic Focus
13. Zoom Range: 4°–45°
14. Pan: 540° with 16‑bit micro‑step adjustment and auto‑correction
15. Tilt: 240° with 16‑bit micro‑step adjustment and auto‑correction
16. Z‑axis Mirror Wheel: Stepless (infinite) rotation
17. Operating Modes: Auto, Sound‑Activated, Master‑Slave, DMX512
18. Control Channels: 18 / 90 CH
19. Protocol: Standard DMX512 and RDM
20. Data Connection: 3‑pin XLR Input/Output
21. Display: LCD Screen
22. Protection Rating: IP20
23. Operating Environment: –10°C to +40°C
24. Housing Material: Sheet Metal + ABS Plastic
25.Product Size: 32.3x22.6x41.4cm/12.7x8.9x16.3in
26.Net Weight: 7.2kg/15.9lb
Features:

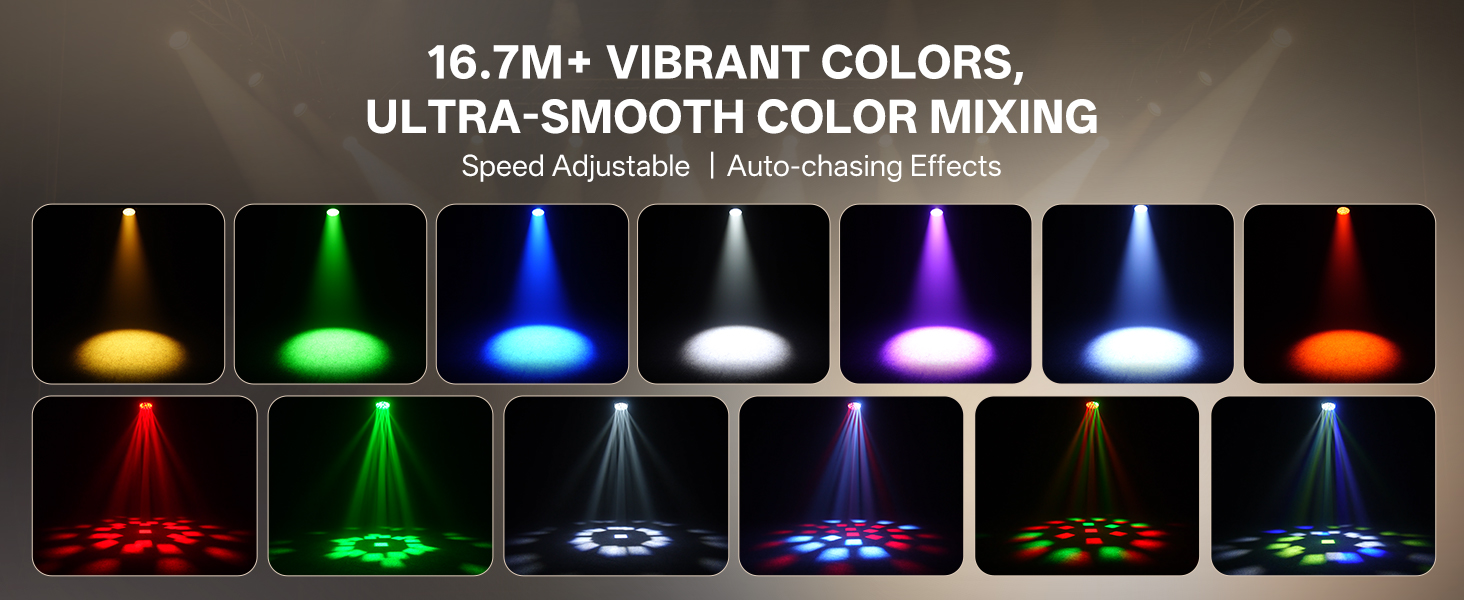

1. Premium RGBW 4‑in‑1 LED Engine with Tunable White & High CRI
Powered by 19 high‑output 15W RGBW LEDs, this moving head delivers a vast palette of saturated colors and pastels. The color temperature adjusts smoothly from 2200K to 7000K, while a CRI of Ra≥80 ensures true‑to‑life color rendering—ideal for stage, event, and architectural lighting. With an optimal projection distance of 5–8 meters, it fills any venue with vivid, immersive light.
1. Premium RGBW 4‑in‑1 LED Engine with Tunable White & High CRI
Powered by 19 high‑output 15W RGBW LEDs, this moving head delivers a vast palette of saturated colors and pastels. The color temperature adjusts smoothly from 2200K to 7000K, while a CRI of Ra≥80 ensures true‑to‑life color rendering—ideal for stage, event, and architectural lighting. With an optimal projection distance of 5–8 meters, it fills any venue with vivid, immersive light.
2. Five Versatile Effect Modes & Precision Zoom for Unlimited Creativity
Unleash your imagination with Wash, Beam, Swirl, Kaleidoscope, and individual Pixel Control effects. The electronic strobe operates from 1 to 25Hz, and the electronic focus combined with a 4°–45° motorized zoom lets you switch seamlessly from wide washes to tight beams—giving you total control over every scene.
Unleash your imagination with Wash, Beam, Swirl, Kaleidoscope, and individual Pixel Control effects. The electronic strobe operates from 1 to 25Hz, and the electronic focus combined with a 4°–45° motorized zoom lets you switch seamlessly from wide washes to tight beams—giving you total control over every scene.

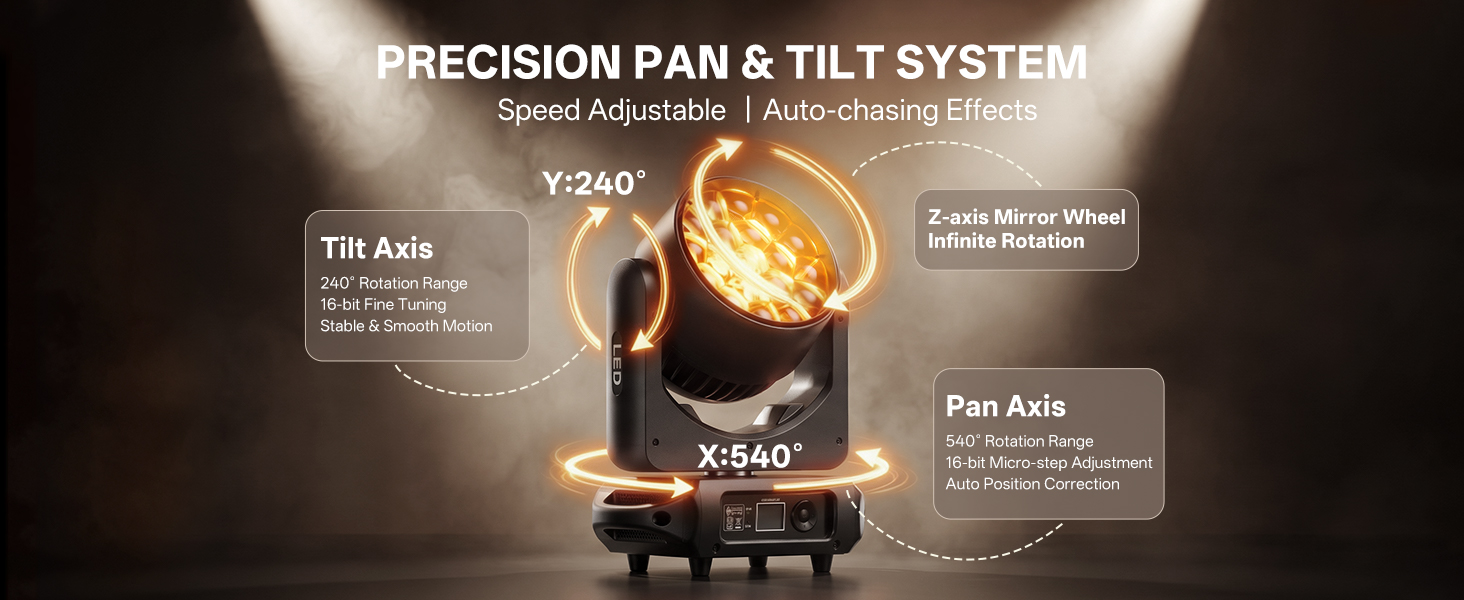

3. High‑Precision 3‑Axis Movement with 16‑bit Micro‑Stepping & Auto‑Correction
Engineered for flawless performance, the fixture features a 540° Pan and 240° Tilt, both with 16‑bit micro‑step adjustment and automatic position correction for silky‑smooth, accurate movements. The Z‑axis mirror wheel offers stepless (infinite) rotation, enabling dynamic, continuous effects that elevate any production.
Engineered for flawless performance, the fixture features a 540° Pan and 240° Tilt, both with 16‑bit micro‑step adjustment and automatic position correction for silky‑smooth, accurate movements. The Z‑axis mirror wheel offers stepless (infinite) rotation, enabling dynamic, continuous effects that elevate any production.

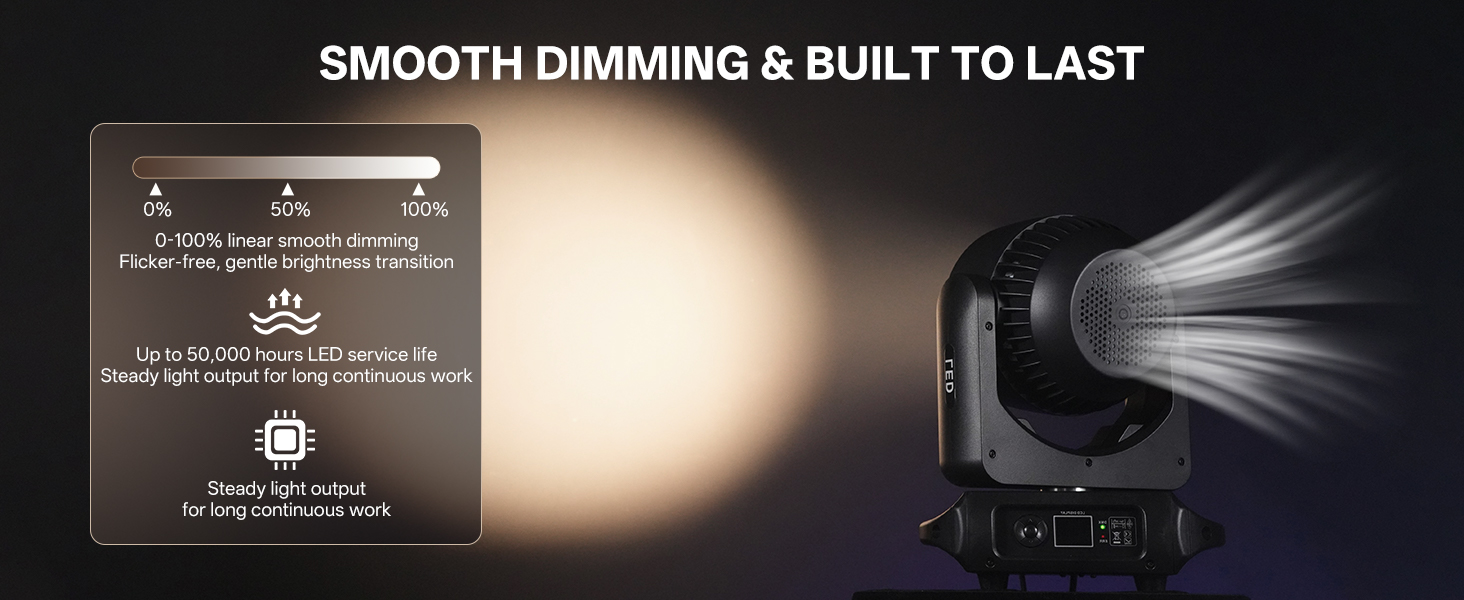

4. 0–100% Linear Dimming & 50,000‑Hour LED Lifespan for Reliable Long‑Term Use
The ultra‑smooth, flicker‑free 0–100% linear dimming ensures seamless brightness transitions, perfect for broadcast and camera‑sensitive environments. With an average LED lifespan of 50,000 hours and robust thermal management, this light delivers consistent, dependable performance night after night—reducing maintenance and replacement costs.
The ultra‑smooth, flicker‑free 0–100% linear dimming ensures seamless brightness transitions, perfect for broadcast and camera‑sensitive environments. With an average LED lifespan of 50,000 hours and robust thermal management, this light delivers consistent, dependable performance night after night—reducing maintenance and replacement costs.

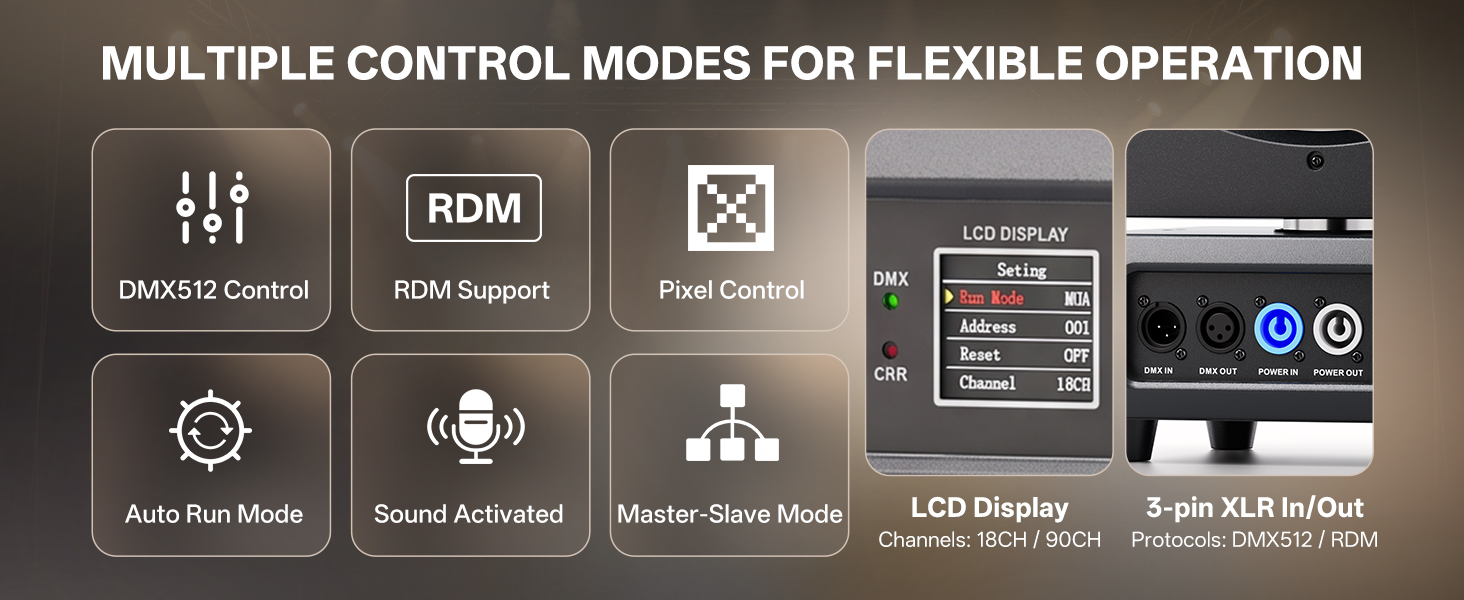

5. Flexible Control Options: DMX512, RDM, 18/90CH Modes & User‑Friendly Interface
Compatible with standard DMX512 and RDM protocols, the fixture offers both 18‑channel and 90‑channel modes for integrated or pixel‑mapped control. It also supports Auto, Sound‑Activated, and Master‑Slave modes for standalone operation. The 3‑pin XLR input/output and intuitive LCD screen make setup and adjustments quick and effortless—perfect for DJs, bands, rental companies, and permanent installations in clubs, weddings, theaters, bars, and live events.
Compatible with standard DMX512 and RDM protocols, the fixture offers both 18‑channel and 90‑channel modes for integrated or pixel‑mapped control. It also supports Auto, Sound‑Activated, and Master‑Slave modes for standalone operation. The 3‑pin XLR input/output and intuitive LCD screen make setup and adjustments quick and effortless—perfect for DJs, bands, rental companies, and permanent installations in clubs, weddings, theaters, bars, and live events.

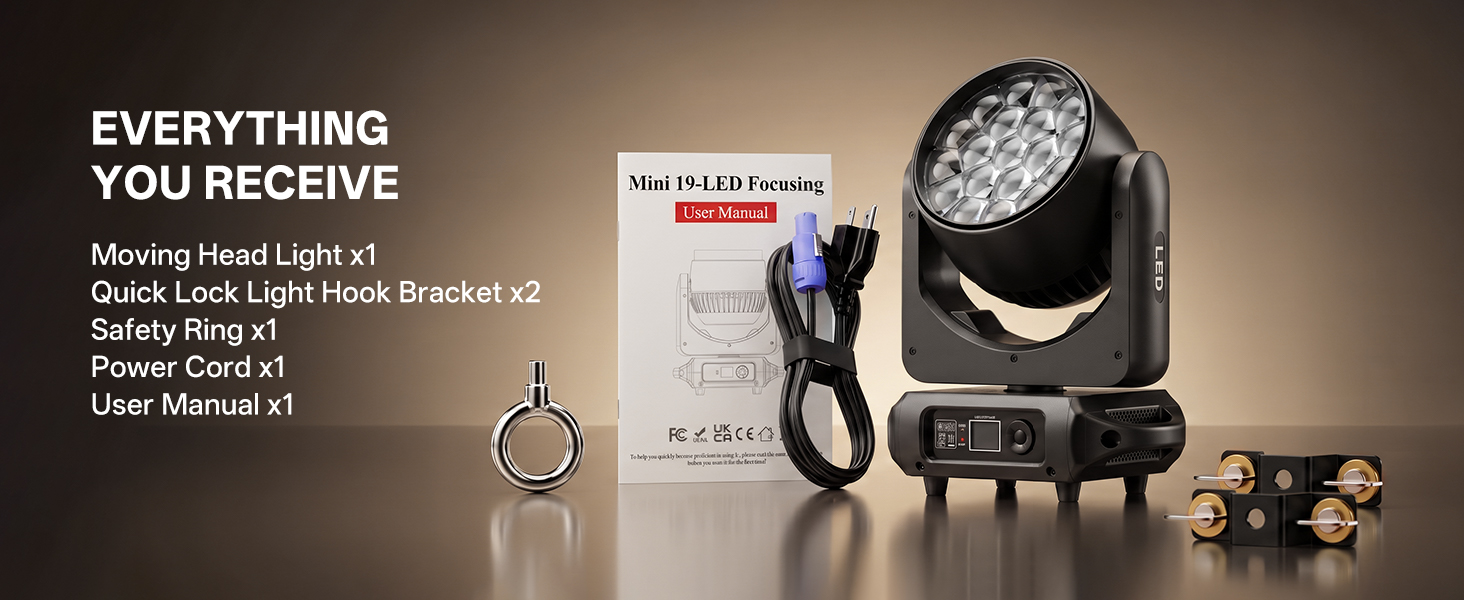

Packing List:
Moving Head Light x1
Quick Lock Light Hook Bracket x2
Safety Ring x1
Power Cord x1
User Manual x1
Moving Head Light x1
Quick Lock Light Hook Bracket x2
Safety Ring x1
Power Cord x1
User Manual x1
