GT235 Thickness Gauge for Coating on Steel Iron Aluminum Non Ferrous Metals
DESCRIPTION

Features:

1. Basic Functions: Measures the thickness of non-magnetic coatings on magnetic metal substrates and non-metallic coatings on non-magnetic metal substrates.

2. Intelligent Measurement: Automatically identifies non-magnetic and magnetic metal substrates.

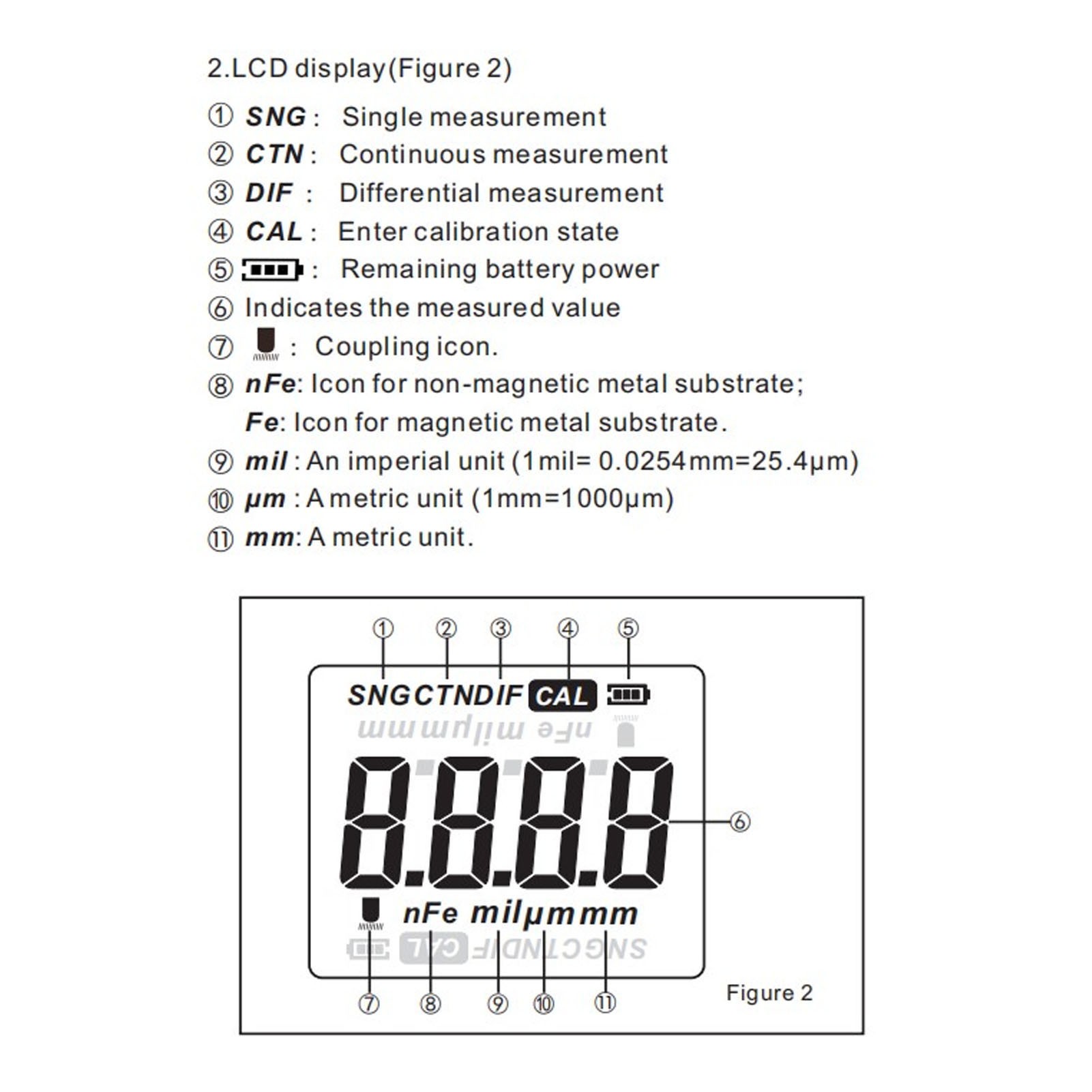

3. Switchable Measurement Modes: Offers Single ( for SNG), Continuous ( for CTN), and Differential ( for DIF) measurement modes; switchable via a short press of the for MODE button.

4. Calibration Operations: Includes zero-point calibration, offset calibration, and basic calibration.

5. Metric and for Imperial Units: Short-press the UNIT button to for toggle between μm (metric), mil ( for imperial), and mm (metric).

6. Additional Features: Backlit LCD display, screen flip function, and 1-minute automatic for power-off.

7. Wide Range of Applications: Widely used in automotive manufacturing, metal processing, the industry, commodity inspection, and more.


Specifications:

Part Name: GT235 Coating Thickness Gauge

Material: ABS

for color: Red and Black

Size: 121.5 x 62 x 27 mm

Units: μm, mil, mm;

Measurement Range: 0–1800 μm / 70.8 mil / 1.8 mm

Resolution: 0.1 μm (<100 μm) / 0.1 mil / 0.001 mm;

Measurement Error: ≤150 μm: ±5 μm; >150 μm: ±(3%H + 1 μm);

Minimum Diameter (Magnetic for Substrate): 12 mm;

Minimum Thickness (Magnetic for Substrate): 0.5 mm;

Minimum Curvature Radius ( for Convex Magnetic for Substrate): 2 mm;

Minimum Curvature Radius (Concave Magnetic for Substrate): 11 mm;

Minimum Diameter (Non-magnetic for Substrate): 50 mm;

Minimum Thickness (Non-magnetic for Substrate): 0.5 mm;

Operating Environment: Temperature: -20 to 40°C; Relative Humidity: 10–95%


Package Contents:

1*Thickness Gauge


for Note:

1. The real for color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
