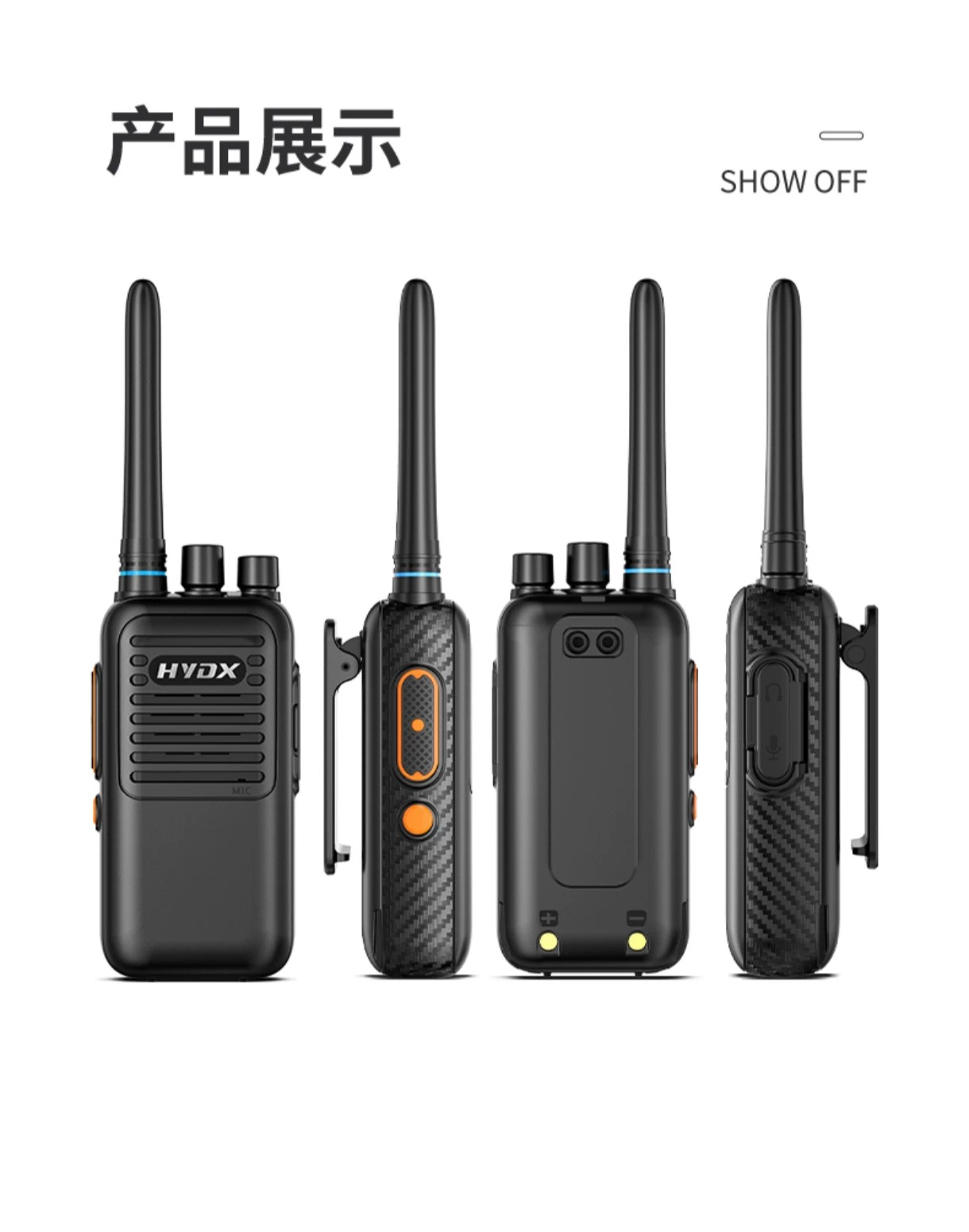

5W UHF Rugged Commercial Two Way Radio


Product Description:

·Portable and Simple Walkie Talkie; work out of the box; simple enough that adults use them comfortably.
·Durable 2 Way Radio; rugged enclosure; one meter free fall; the walkie-talkie has no damage and can continue to work normally; longer service life.

·Wide Range and Strong Penetrating Power; HYDX H5 walkie talkies can work in buildings and between concrete walls; provide you with good range and clear communication.
·Long Battery Life; with 1500 mAh large capacity Li-ion battery; usually takes 4-5 hours to fully charge; provides up to 24 hours of battery life; allows you to stay in communication through out the day.


Main Functions

1.430-440MHz

2.Chinese/English voice report

3.High/Low Power Switchable

4.Compandor

5.Scrambler

6.16 Channels

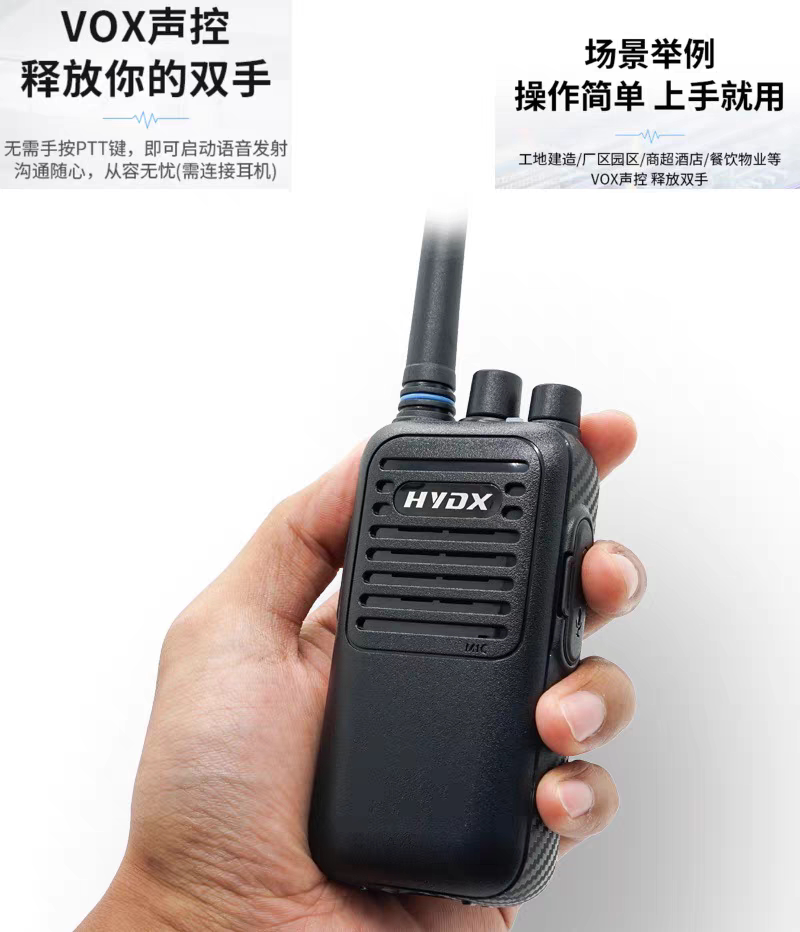

7.VOX

8.CTCSS/DCS

9.Power Output 5W

10.Scanning

12.Wide/Narrow Bandwidth

13.Battery Save


Technical Specification

GENERAL
    Frequency Range

    UHF:430-440MHz

    RF Output Power     H:≤5W   L:≤1W
    Channels     16
    Channel Spacing     Wide:25KHz   Narrow:12.5KHz
    CTCSS/DCS     50 CTCSS / 105 DCS
    Antenna Impedence     50Ω
    Operating Temperature     -30℃+60℃
    Operating Voltage     DC 7.4V
    Battery Type     1500mAh
    Dimension(Excluding antenna)     108(H)×58(W)×30(D)mm
    Weight(Battery,Antenna Including)     About 230g
TRANSMITTER
    Output Power

    H:≤5W

    L:≤1W

    Modulation Mode     F3E
    Modulation Distortion     ≤ 5%
    Spurious and Harmonics

    -65 dB

    FM Noise     ≤ -45 dB
RECEIVER
    Reference Sensitivity     ≤ -123 dBm
    Adjacent Channel Selectivity     ≤ -65 dB
    Inter-modulation response immunity     ≤ -55 dB
    S/N

    ≥ 45 dB

    Rated Output Power     ≤750mW
    Rated Audio Distortion     ≤5%
