Application:

Universal motors are suitable for common equipments. Please purchase motors according to specific parameter requirements.

Specification:

Enclosure Type: Open Drip Proof (ODP)
Phase: Single Phase
Horse power: 5 HP
Rated Speed: 3450 RPM
Frequency: 60HZ
Voltage: 230 Volts
Frame: 184TZ
Duty: Cont. Compressor
Full Load Amps: 24.9A
Insulation Class: F
Rotation: CCW-SE Only
Shaft Diameter: 7/8"
Shaft Length: 2.25"
Shaft Type: Keyed

Part Number:

54421193, P09988A, CC1021885, 23378805, 23220064, 56283138


Package Include:

1 x Compressor Electric Motor

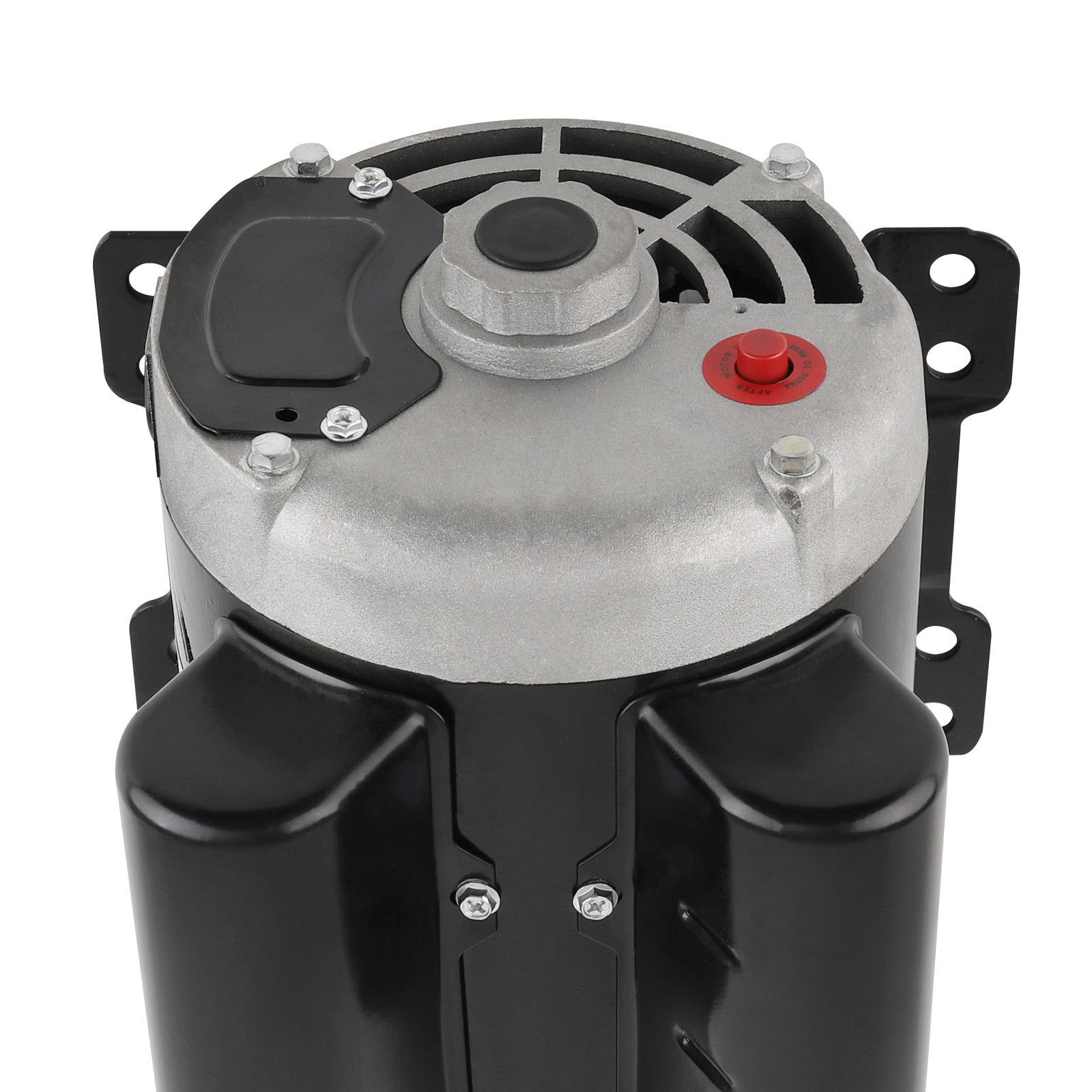

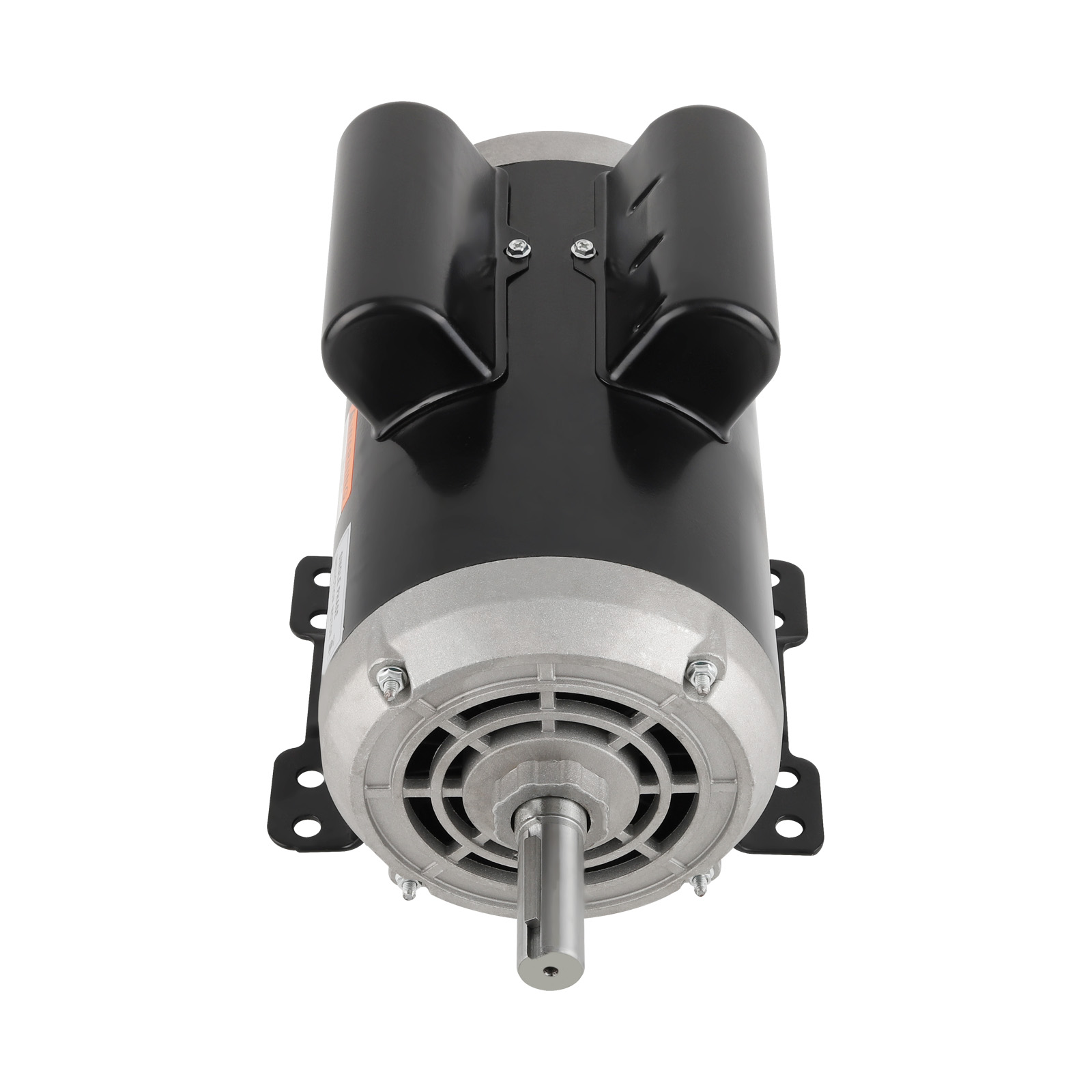

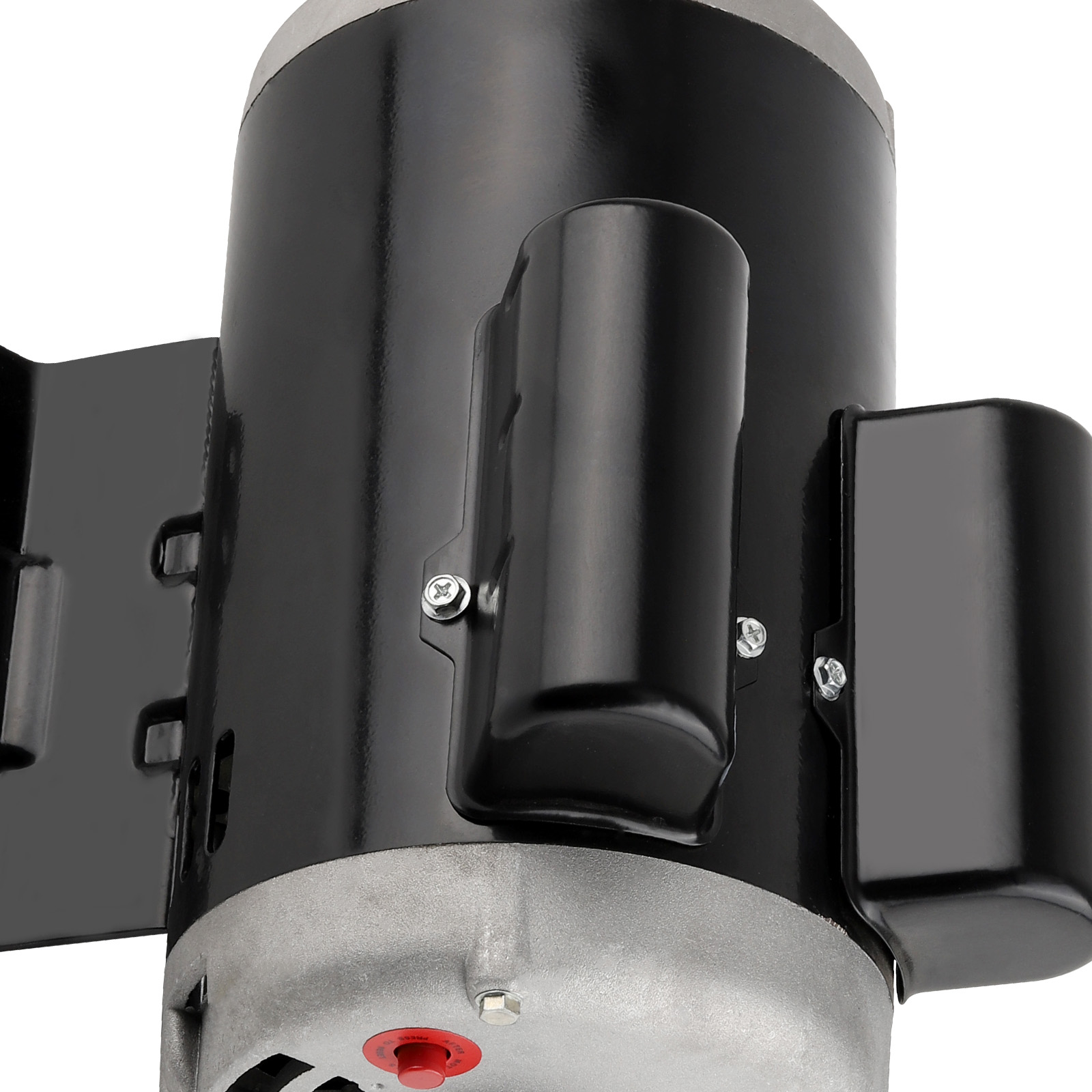

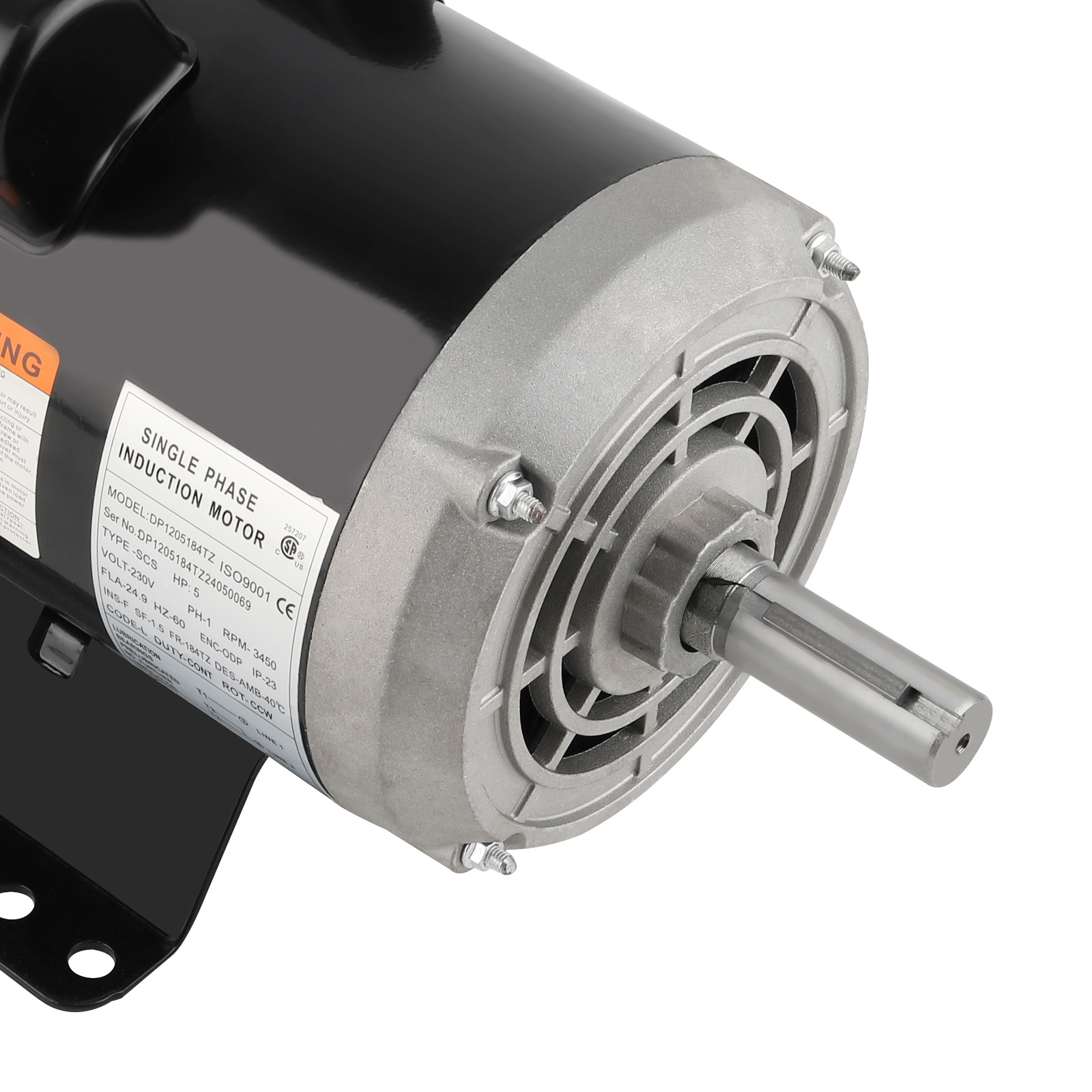

1. Air Compressor Motor: 5 Horse Power, 184TZ Frame, Open Drip-Proof, Rotation - CCW-SE Only, Shaft diameter - 7/8” Keyed shaft.

2. This Air Compressor Electric Motor is designed with an open drip-proof feature that ensures the motor's longevity by preventing water and dust from entering.

3. This electric motor features CCW-SE, providing versatility and convenience for a variety of applications.

4. Constructed with high-quality materials, this durable electric motor promises long-lasting use and excellent resistance to wear and tear.

Note:

- Suggest using in clean and dry environments.
- Please purchase motor according to the specific needs of the parameters.
