2" Lift Kit with Shocks/Springs for Lexus GX460 2010-2023 Front Rear Springs



All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Overview

  • Long-Lasting Smoothness: Engineered with a high-pressure nitrogen-charged twin-tube design, this shock absorber delivers consistent performance mile after mile. Paired with premium rubber bushings, it effectively filters out road imperfections for a noticeably smoother and more comfortable ride.
  • High Tensile Strength: With a rated tensile strength of 36KN, this shock absorber offers reliable structural integrity, providing the confidence needed for daily driving and varied load conditions.
  • Uncompromised Comfort: Transform your off-road adventures with a smoother, more controlled ride that tackles rough terrain while keeping you comfortable mile after mile.

Feature

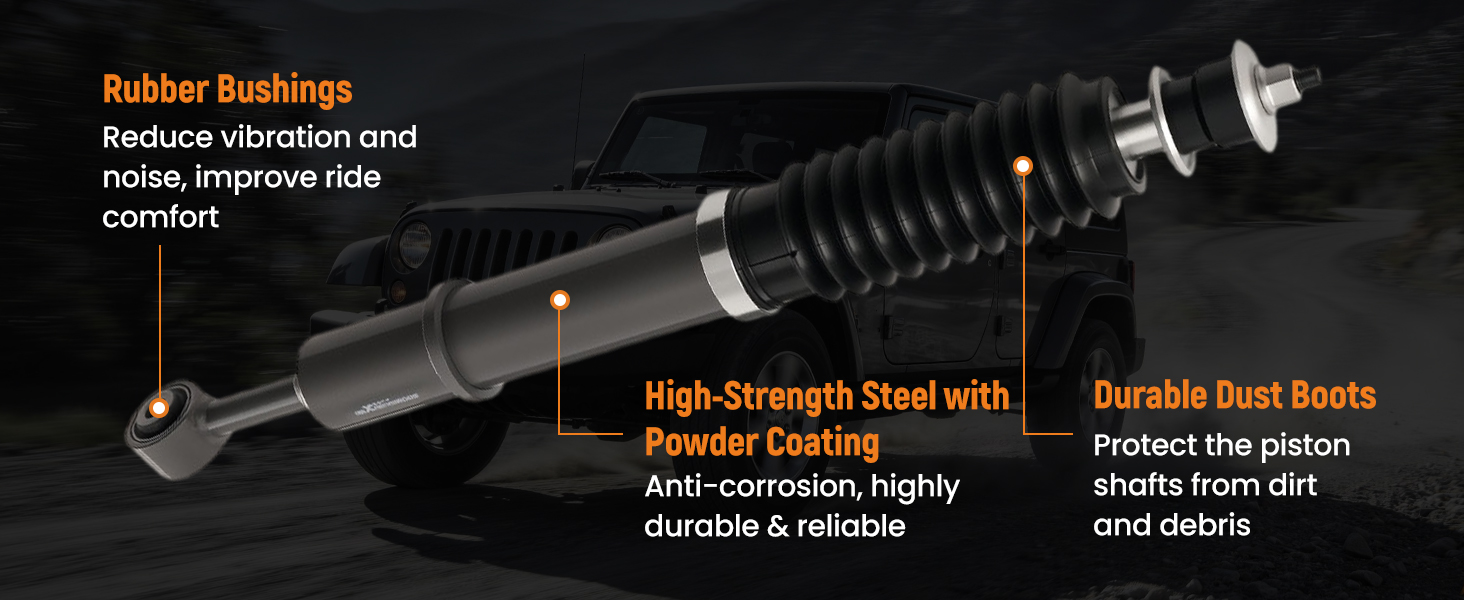

  • Robust Construction：Built to handle demanding conditions, the unit features an 18mm chromed hardened piston rod and a 35mm sintered iron piston for superior strength. The generous 54mm body diameter enhances heat dissipation, helping to maintain optimal damping performance even during extended use.
  • Extended Protection：Each unit comes equipped with a protective dust cover, designed to shield the piston rod and oil seal from debris and environmental wear, helping to extend the overall service life of your suspension system.
  • Precision Engineering: Built with exact cutting and expert welding techniques, every component fits seamlessly for a secure and stable installation.
  • Factory Comfort: Enjoy enhanced clearance and capability while maintaining the refined, comfortable ride quality your vehicle was designed to deliver.
  • Chromium-Silicon Strength: Built with a cold-wound chromium-silicon structure, the spring offers superior tensile strength and resilience, ensuring reliable support and a responsive feel mile after mile.
  • Enduring Strength: Engineered with high-tensile steel and rigorously validated through 600,000 continuous cycles, our lift spring delivers reliable performance you can count on, cycle after cycle.
  • Aggressive Stance：Elevate your vehicle's presence with added ground clearance, confidently accommodating up to larger tires for a bolder, more commanding look on any terrain.

Specification:

Specification:

For Lexus GX460 2010-2023

Type：Lift Shock Kit

Shock

  • Lift Height：2"(Front & Rear)
  • Shock Material：High Tensile Strength Carbon Steel
  • Finish: Powder Coated
  • Bushing Material: Rubber
  • Diameter of piston rod: 18mm/0.71"
  • Piston Diameter：35mm/1.38"
  • Outer Cylinder Diameter: 54mm/2.13"

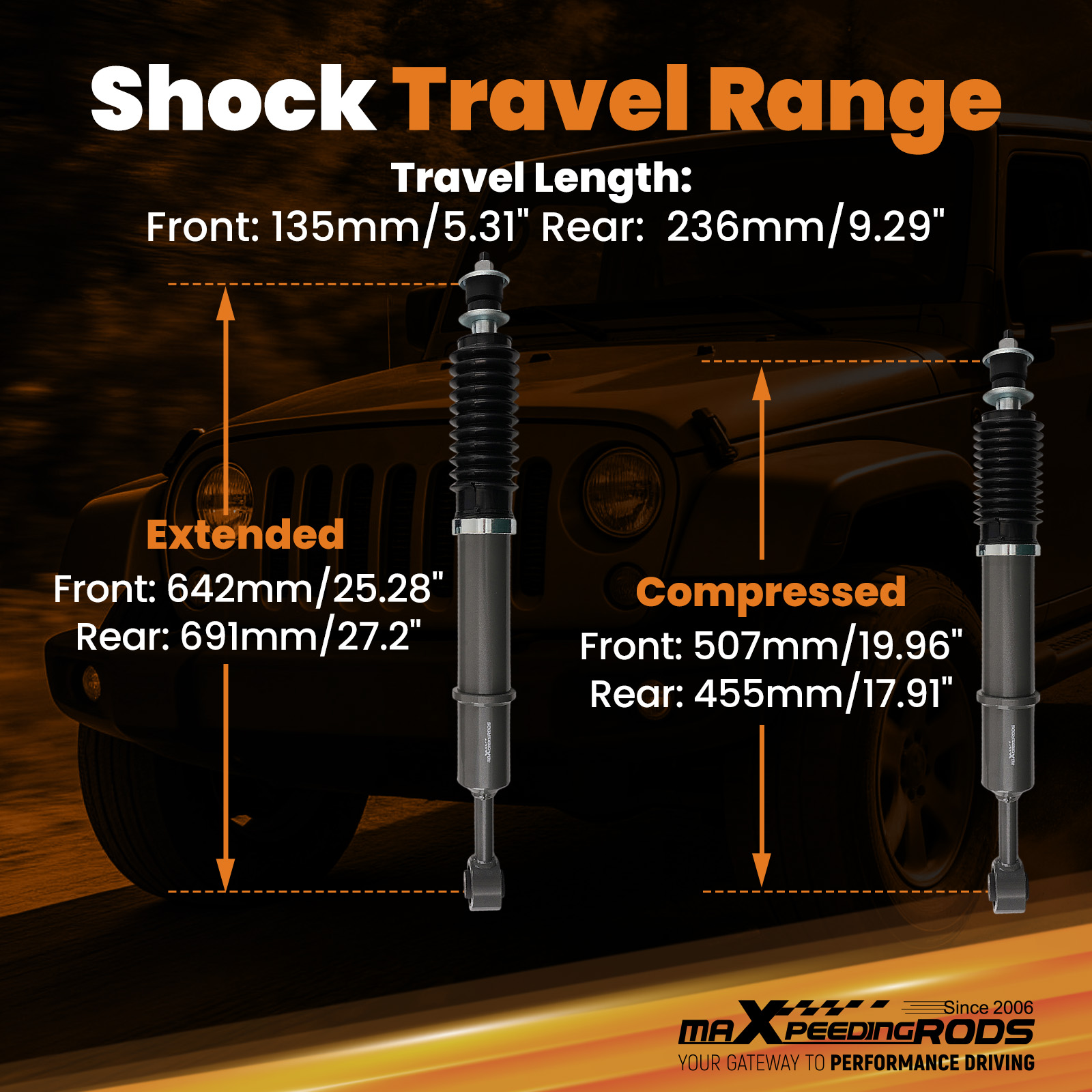

  • Travel:   (Front) 135mm/5.31"     (Rear) 236mm/9.29"
  • Extended Length：(Front) 642mm/25.28"   (Rear) 691mm/27.2"
  • Collapsed Length：(Front) 507mm/19.96"   (Rear) 455mm/17.91"
  • Nitrogen Charged：Yes
  • Dust Cover Equipped: Yes

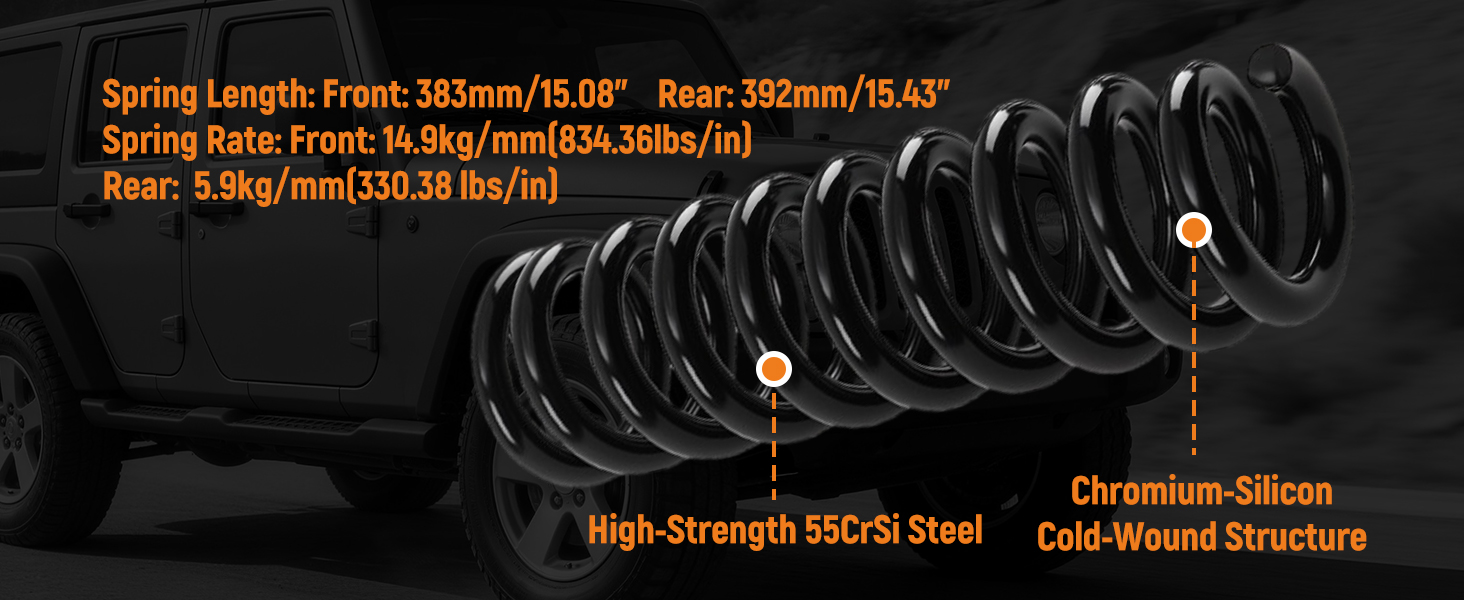

Springs

  • Spring Material:（55CrSi）Steel
  • Spring Rate:  Front: 14.9kg/mm (834.36 lbs/in)   Rear:  5.9kg/mm (330.38 lbs/in)
  • Spring Length: Front: 383mm/15.08"    Rear: 392mm/15.43"
  • Spring Tensile Strength：1500-1600MPA
