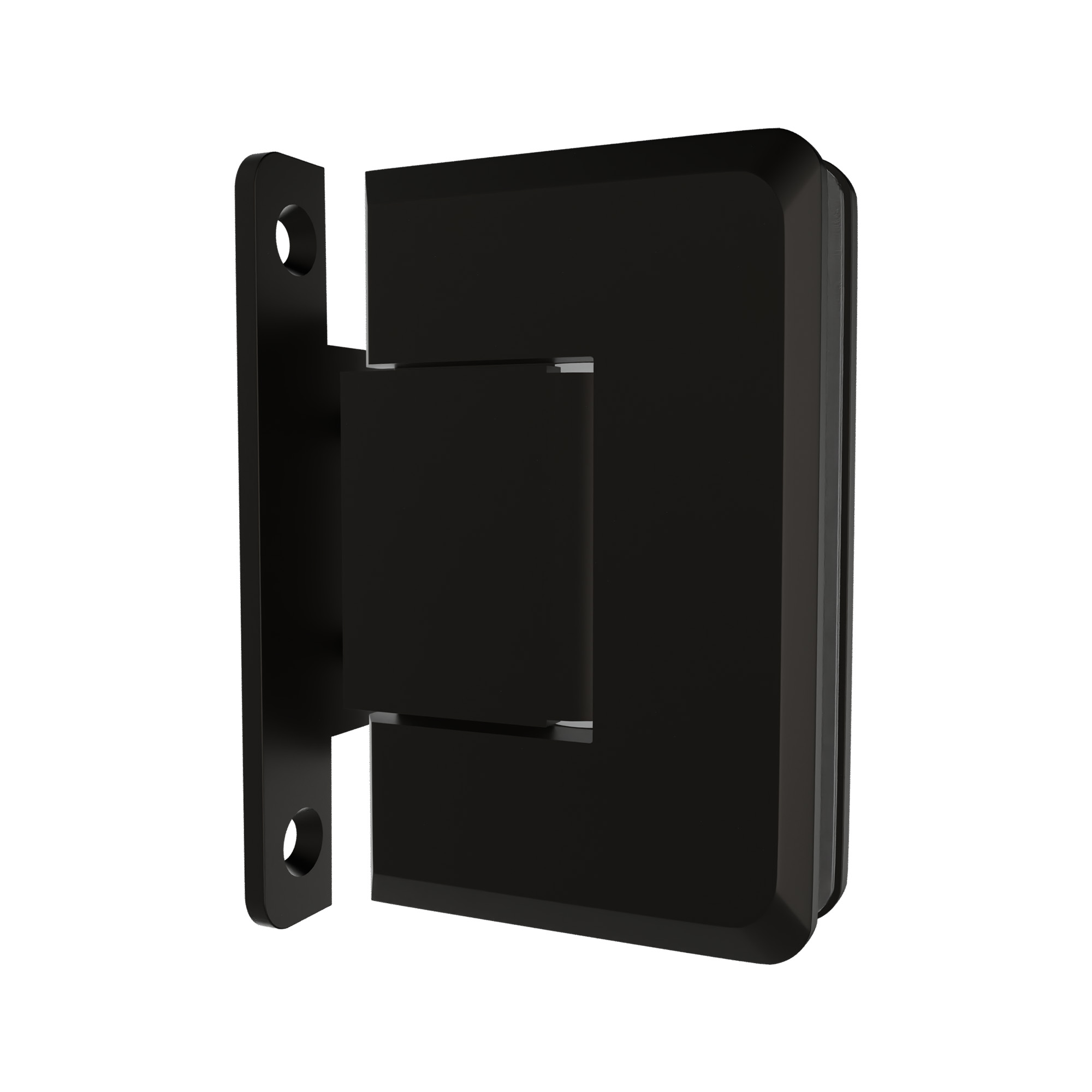

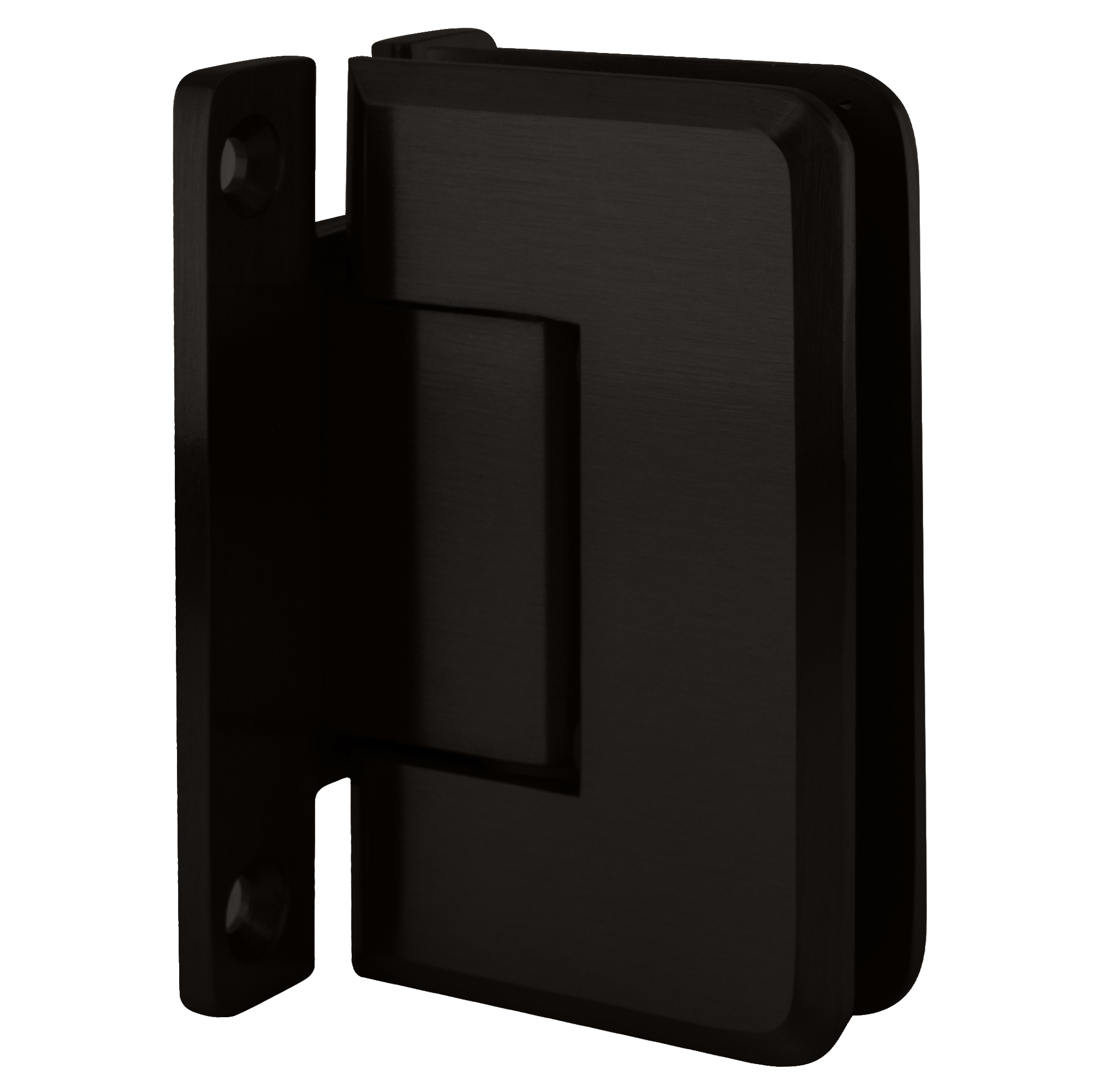

Brixwell P0370RB Wall Mount H Back Plate Shower Door Hinge Oil Rubbed Bronze

FEATURES

  • Constructed from brass with an oil rubbed bronze finish, this hinge supports wall mount installations using an H-back plate for glass shower door use.
  • Designed for monolithic tempered glass with supported glazing thickness ranging from 5/16" to 1/2" for proper glass panel mounting.
  • Allows approximately 90 Degree IN and 90 Degree OUT door swing, supporting standard shower door opening and closing movement.
  • Self centering closing action engages when the door reaches within 15 Degree of the closed position to guide the panel back to center.
  • Supports door widths up to 28" when using two hinges and up to 32" when using three hinges for proper load distribution.
  • Load ratings support door weights up to 80 lbs with two hinges and up to 120 lbs with three hinges installed.
  • Includes gaskets and mounting screws, with a dual degree pivot pin that allows optional 5 Degree inward adjustment.

DESCRIPTION

This wall mount H-back plate shower door hinge is designed for fixed wall installations where controlled glass door movement and proper alignment are required. The hinge is made from brass and finished in oil rubbed bronze. It uses an H style back plate that mounts directly to the wall and supports monolithic tempered glass panels with glazing thickness from 5/16" to 1/2". The hinge measures 3-1/2" in height and 2-3/16" in width. The back plate height is 3-1/2" with a back plate width of 1-15/16". When two hinges are installed, the system supports a maximum door width of 28" and a maximum door weight of 80 lbs. When three hinges are installed, it supports door widths up to 32" and door weights up to 120 lbs. The hinge allows approximately 90 Degree IN and 90 Degree OUT swing movement. A self centering action engages when the door is within 15 Degree of the closed position. The beveled edge profile supports clean glass contact points. The hinge includes gaskets, screws for installation. It contains a dual degree pivot pin that can be reversed to adjust the closing position by 5 Degree inward if required. This hinge commonly used in residential and hotel shower door installations. Care: Wipe dry after use. Clean weekly with mild soap and warm water using a soft cloth. Do not use abrasive cleaners or scrubbing tools.

SPECS

FinishOil Rubbed Bronze
Back Plate Height3-1/2" (89mm)
Height3-1/2" (89mm)
Hinge Swings90 degree IN and 90 degree OUT
Glass Thickness5/16" to 1/2" (8mm to 12mm)
Maximum Door Width - 3 Hinges32" (813mm)
Edge ProfileBeveled
Width2-3/16" (56mm)
IncludesGaskets and Screws
Mounting TypeWall Mount
Back Plate Width1-15/16" (49mm)
Maximum Door Weight - 2 Hinges80 lbs.
Cut-Out RequiredYes
5 Degree Pre-SetNo
Maximum Door Width - 2 Hinges28" (711mm)
Maximum Door Weight with 3 Hinges120 lbs.
Back PlateH
Glass RequirementMonolithic Tempered Glass
MaterialBrass
Closing TypeSelf Centering Within 15 Degree Closed Position
AdjustableNo
Self-CenteringYes
