Product Specifications


Technical Parameters

  1. Temperature Range: -65℃ ~ +165℃ (PE Cable: -40℃ ~ +85℃)
  2. Impedance: 50Ω

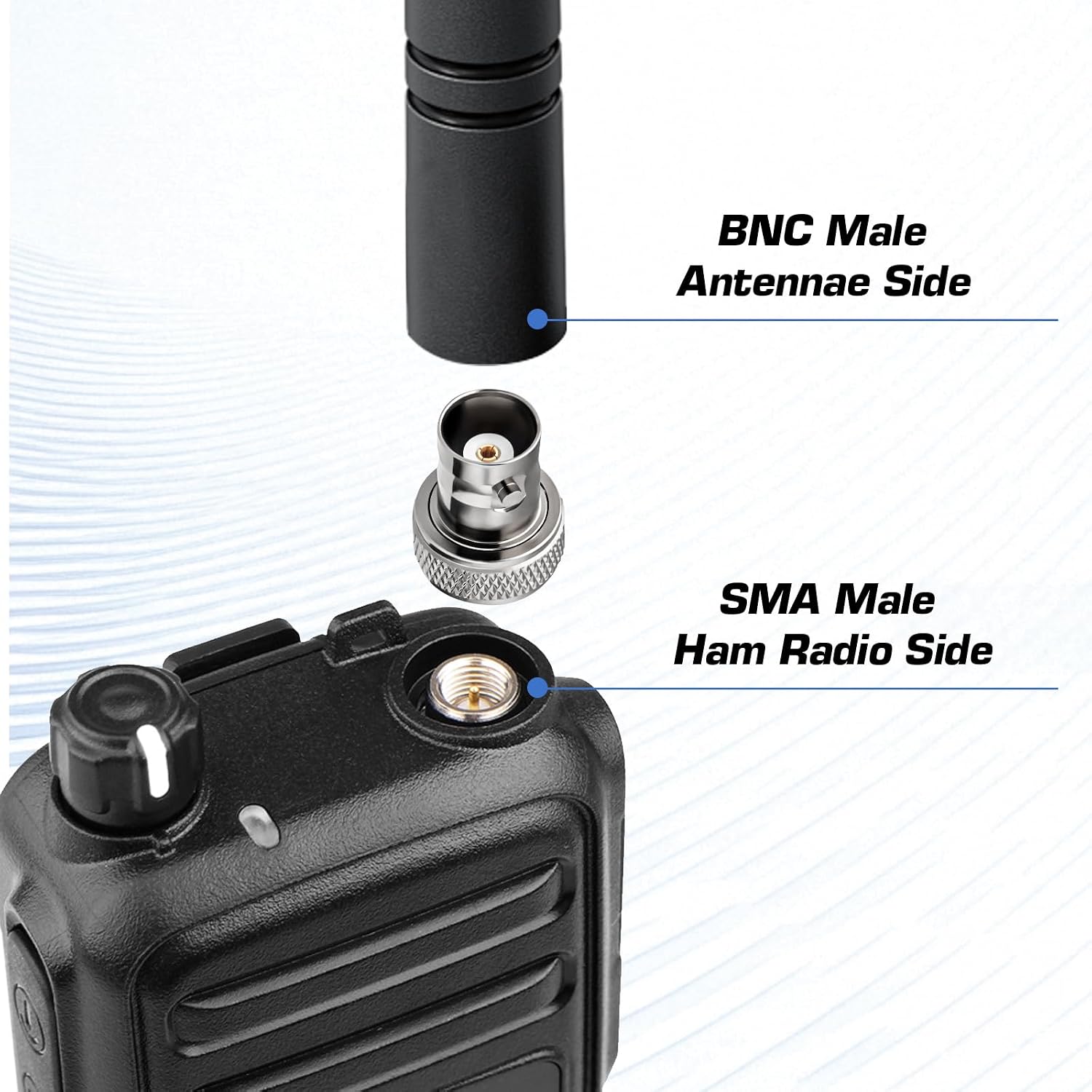

  3. Application Scenarios: RF DIY Projects, Handheld Radios, HAM Radio

Detailed Specs

  1. Product Type: Connectors & Interconnects
  2. Product Family: Coaxial RF Adapters
  3. Series Type: SMA to BNC Between-Series Adapter

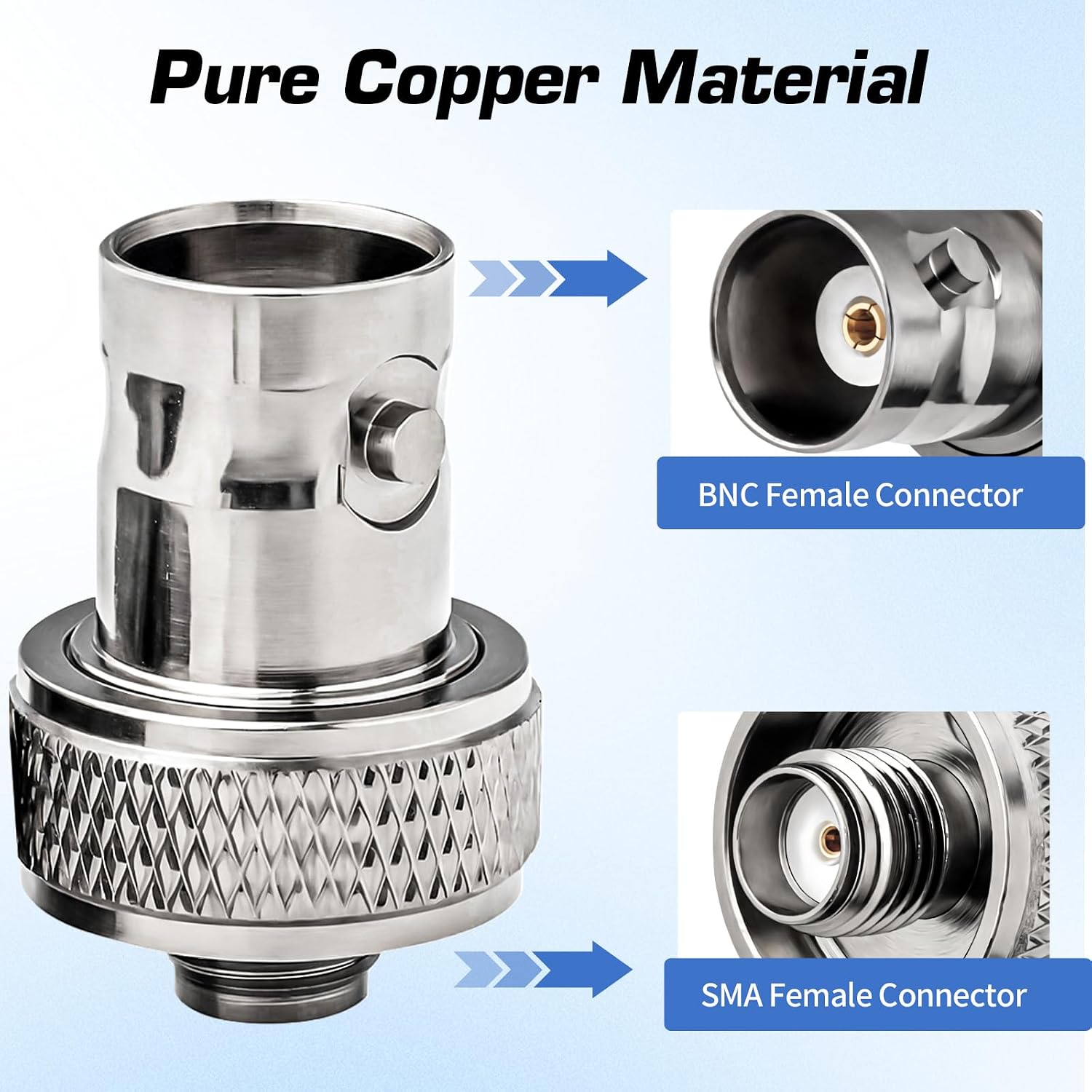

  4. Interface 1: SMA Female Jack
  5. Interface 2: BNC Female Jack
  6. Impedance: 50 Ohm
  7. Shape: Straight
  8. Design Feature: Chassis Mountable

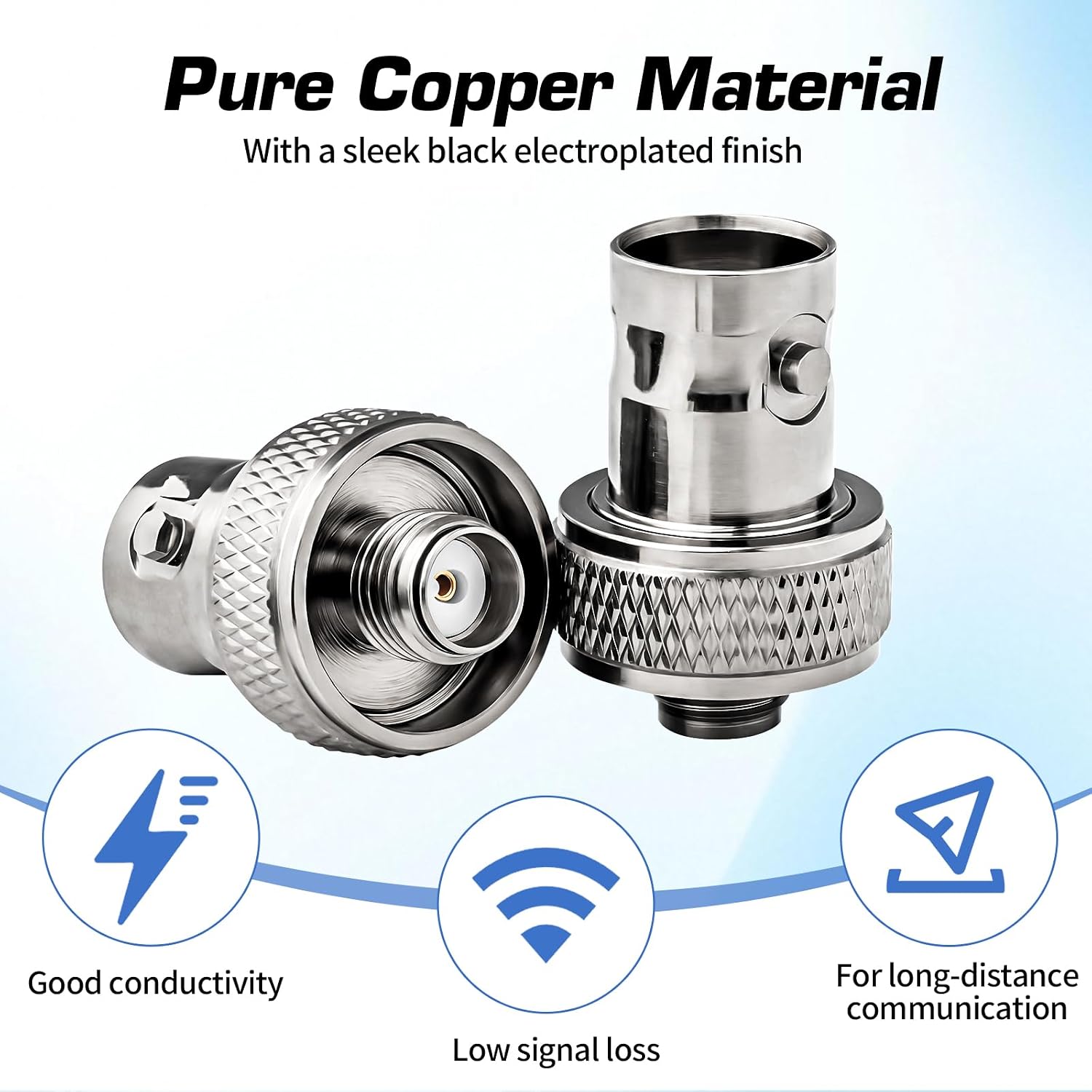

  9. Surface Plating: Nickel-Plated
  10. Mounting Method: Free Hanging

Compatibility List


Motorola Radios

MTX8000, MTX800, MTX8250, MTX8250LS, MTX838, MTX850, MTX850LS
XTS1500, XTS2500, XTS3000, XTS3500, XTS5000
GTX LTR Portable, GTX Privacy Plus Portable
HT1000, HT2000, JT1000, MT2000, MTS2000

Baofeng Radios

UV-5R, UV82, BF-888S, GT-3

Not compatible with UV-3R

Wouxun Radios

KG-UVD-1P, KG-2D, KG-659, KG-669, KG-679, KG-689, KG-699
Not compatible with KG-UV6D, UV8D

Packing List

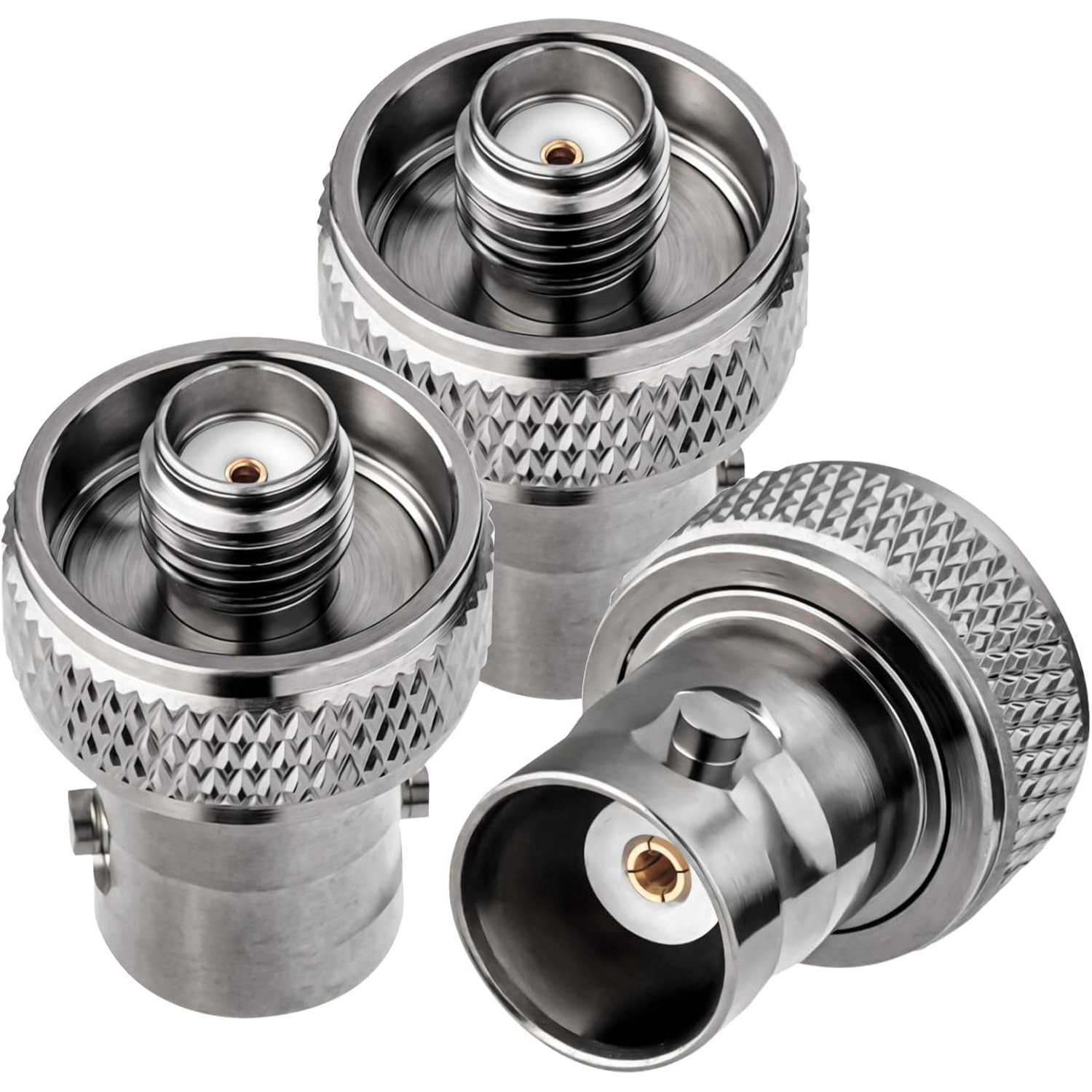

3 × BNC Female to SMA Female Adapter
