Enhance your classic Mopar A-Body vehicle's braking performance with the DBK6272A-40-LX Front Disc Brake Conversion Kit. Designed for 1962-1972 models with a 5x4" bolt pattern, this comprehensive kit replaces outdated drum brakes with high-performance drilled and slotted rotors, ensuring improved stopping power and safety.

Key Features:

• 11" Drilled and Slotted Rotors: Provides superior heat dissipation and enhanced braking efficiency.

• Large Slider-Type Kelsey Hayes Calipers: Ensures reliable and responsive braking performance.

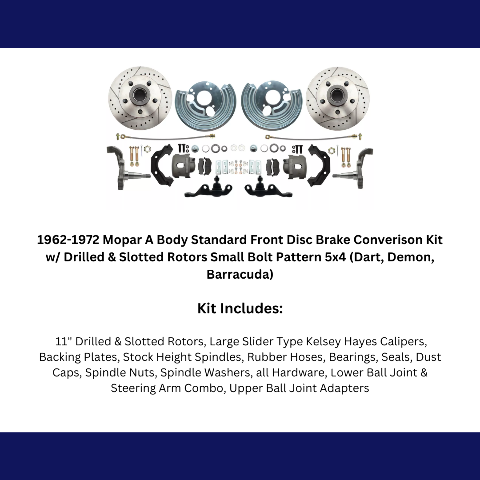

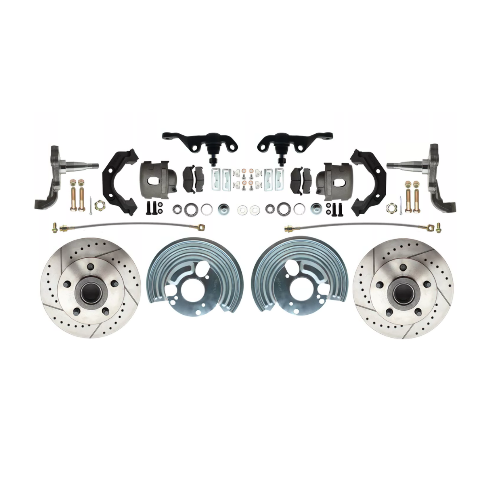

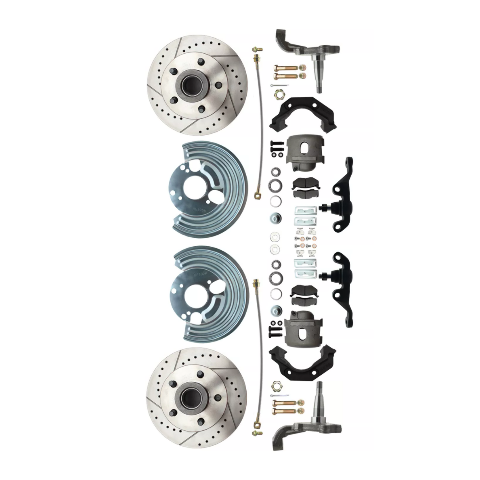

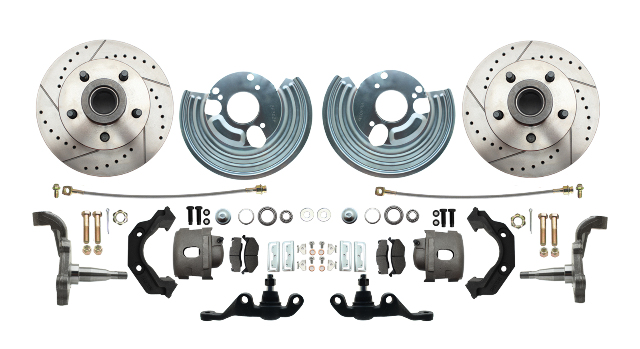

• Complete Hardware Set: Includes backing plates, stock height spindles, rubber brake hoses, bearings, seals, dust caps, spindle nuts, spindle washers, and all necessary hardware for straightforward installation.

• Lower Ball Joint Steering Arm Assembly: Facilitates proper alignment and steering response.

• Upper Ball Joint Adapters: Allows compatibility without the need to replace upper control arms.

Vehicle Fitment:

This kit is compatible with the following Mopar A-Body models from 1962 to 1972:

• 1963-1972 Dodge Dart
• 1962 Dodge Lancer
• 1964-1969 Plymouth Barracuda
• 1970-1972 Plymouth Duster
• 1971-1972 Plymouth Scamp
• 1962-1972 Plymouth Valiant

Specifications:

• Rotor Diameter: 11 inches.

• Rotor Construction: Vented, Drilled, and Slotted

• Bolt Pattern: 5x4 inches.

• Minimum Wheel Size: 14 inches (fits most original 14" rims; does not fit Steely Rims, Cragar Steel SST Rims, Year One Rally, or any drum 14" rim that had smaller than 10" drums).

• Caliper Material: Cast Iron.

• Caliper Finish: Natural.

• Brake Pads: MKD84 Pads included.

Installation Notes:

• This kit does not require replacing upper control arms, as it includes adapters to fit the existing upper ball joints.

• Expect approximately a 1/4" outward shift of the wheels toward the fender well.

• Ensure your vehicle's bolt pattern is 5x4 inches before installation.

• Professional installation is recommended to ensure optimal performance and safety.

• Fit's Most 14" Wheels. The measurement requirement are a minimum 13.25" overall inside diameter with at least a minimum of 4" backspacing. Anything less than that will not allow the calipers to clear the wheel.

Upgrade your Mopar A-Body's braking system with the DBK6272A-40-LX Front Disc Brake Conversion Kit, offering enhanced safety and performance for your classic ride.
