This is a Brand New
5 Way Audio 1000W Crossover 4 Treble 1 Bass Speaker Adjustable Frequency Divider


Description

WEAH-6503 Professional HiFi Crossover 4 High and 1 Low 5-Way Frequency Divider 2600Hz~3200Hz Adjustable 1000W Power Multicolor

Features: HiFi class high-power frequency divider, with four high and one low channels, independent sound quality adjustment, and 1000W high-power. Adopts a 1.57mm diameter low-frequency large capacitor and four blue skeleton high-frequency inductors, achieving more accurate, stable, and quality audioed frequency division. Quality audioed specific capacitors, high-quality components, exquisite craftsmanship, optimize sound quality while maintaining circuit stability, and improve divider performances. Using 2 high current adjustment switches and 4 independent high pitched adjustment switches, the desired sound quality can be freely adjusted. Solderless terminal block are convenient and practical, making it easy to connect speaker and audioed cable, and instantly enjoy a wonderful auditory feasts. Specifications: Material: ABS+Metal Size: Approx. 238x150x50mm/9.37x5.91x1.97inch Model: WEAH-6503 Filtering characteristics: 4 high and 1 low (five division frequency) Power withstand: 1000W Applicable impedance: 4~8Ω Frequency point: approximately 2600Hz~3200Hz (multi bands adjustable)





Specification
Product Name
Audio Crossover
Model
WEAH - 6503
Max Power
1000W
Size
238*150*50 (mm)
Frequency Point
2600Hz~3200Hz
Impedance
4 ~ 8Ω


Excellent audio enhancer
* This product is exquisite in workmanship and materials, and is equipped with overcurrent protection device.

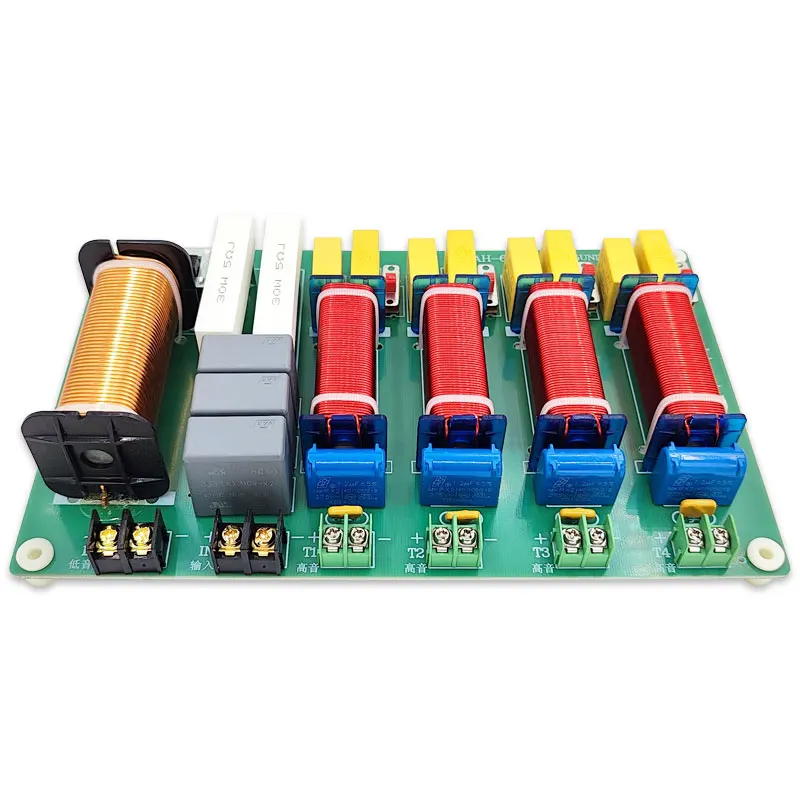

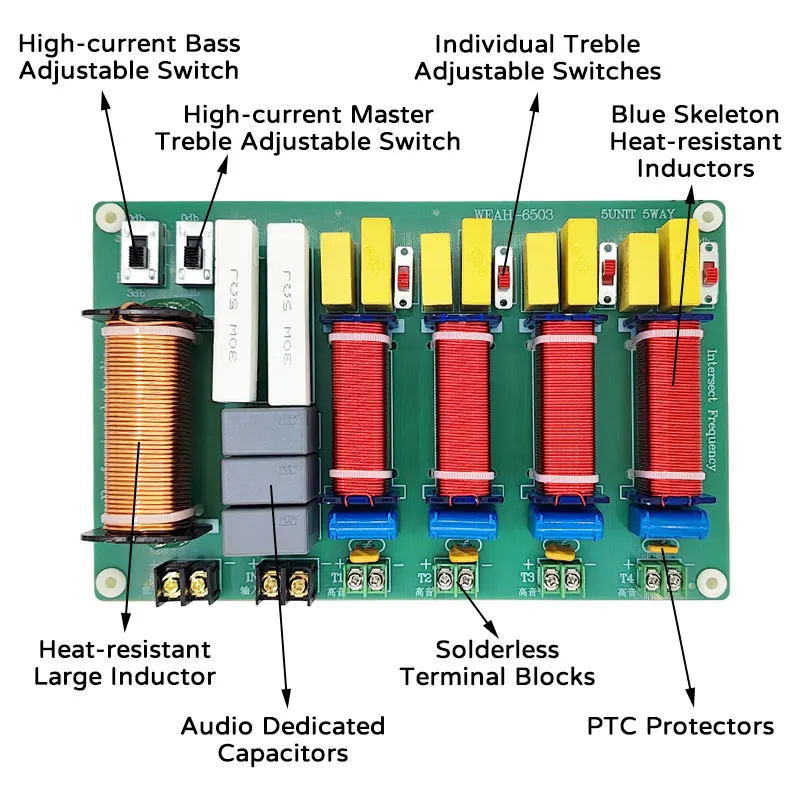

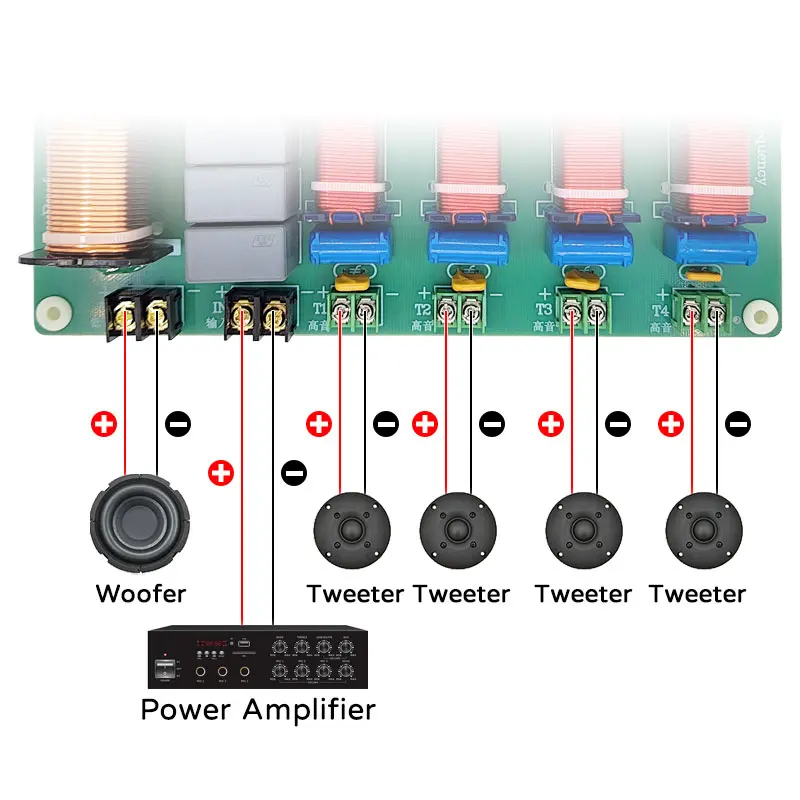

* The product adopts a heat-resistant large inductor with a wire diameter of 1.57mm, 4 blue skeleton heat-resistant inductors, special audio capacitors and so on. And there are 6 tone adjustable switches that can adjust bass and treble. Apply to a woofer and four tweeters, less than 1000W in total.
* The product adopts 12 solderless terminal blocks. Convenient installation, exquisite appearance and beautiful sound quality is our traits.

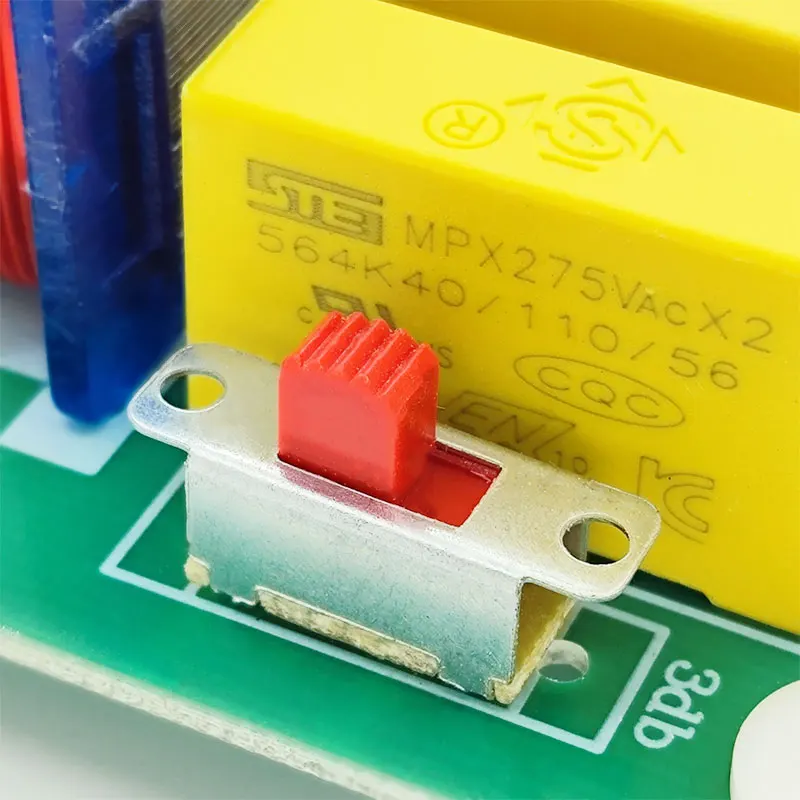

About Switches:

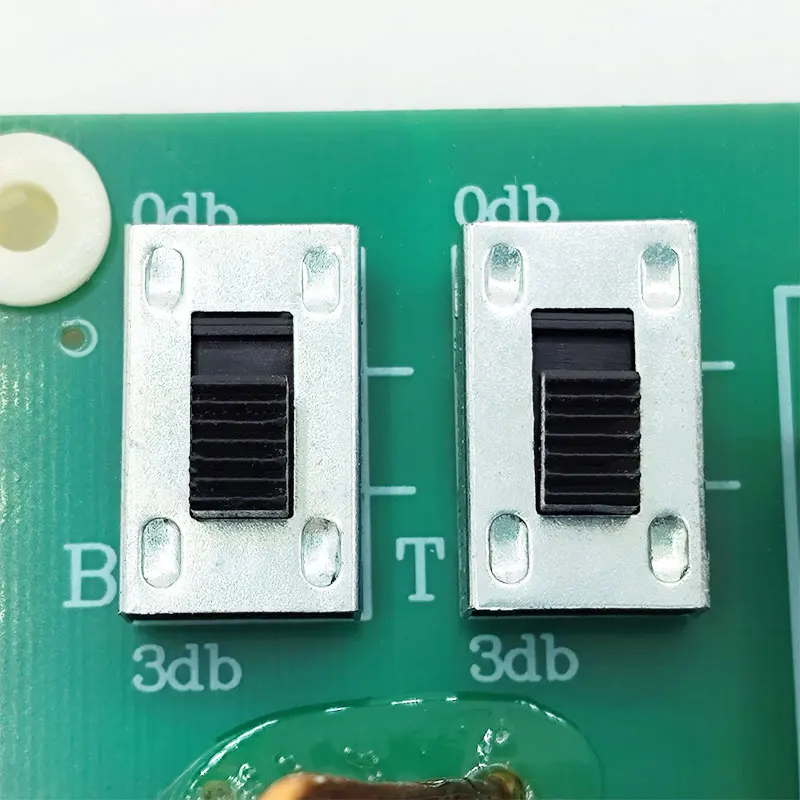

These two high current switches are used to adjust the bass (left) and treble (right).



There are four such switches used to independently adjust the treble.
