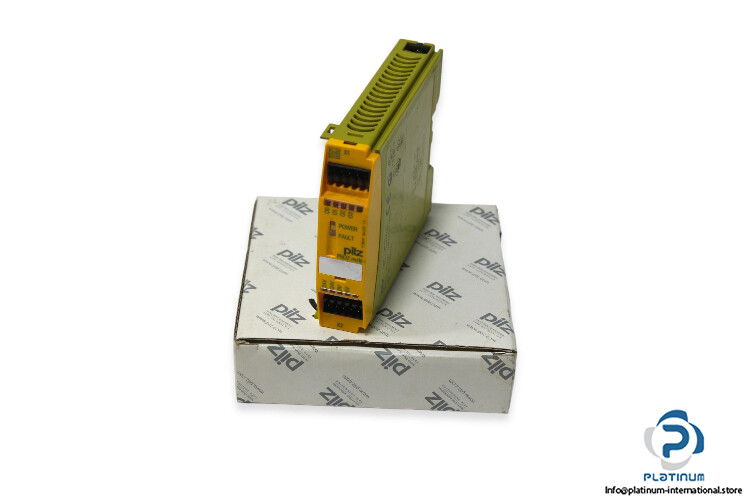

PILZ PNOZ MO1P CONFIGURABLE SAFETY SYSTEM

PILZ Configurable Safety System - PNOZ MO1P

The PILZ PNOZ MO1P is a configurable safety system designed to meet high safety standards with flexible configuration options. Ideal for industrial applications, it provides reliable output control and protection features, including semiconductor outputs and various protection classes.

• Manufacturer: PILZ
• Type: Configurable Safety System
• Model: PNOZ MO1P
• Part No.: 773500

Electrical Information:

• Supply Voltage (SC outputs): 24 V DC
• Voltage Tolerance (SC outputs): -15 / +20 %
• External Power Supply Output: 192.0 W
• Supply Voltage (Module Supply): 5.0 V DC
• Voltage Tolerance (Module Supply): -2 / +2 %
• Power Consumption: 2.5 W

Output Information:

• Number of Semiconductor Outputs: 4
• Switching Capability: 24 V, 2.0 A, 48 W
• Switch-On Delay: 5.00 s

Physical and Environmental Information:

• Degree of Protection: Mounting IP54, Housing IP20, Terminal IP20
• Ambient Temperature: 0 - 60 °C
• Dimensions: 94 x 22.5 x 121 mm
