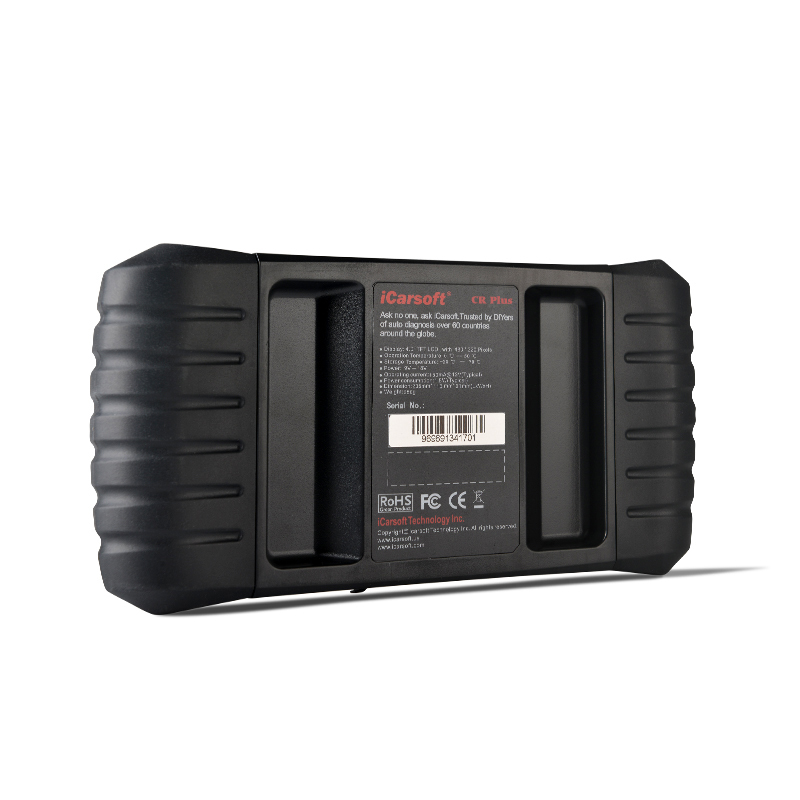

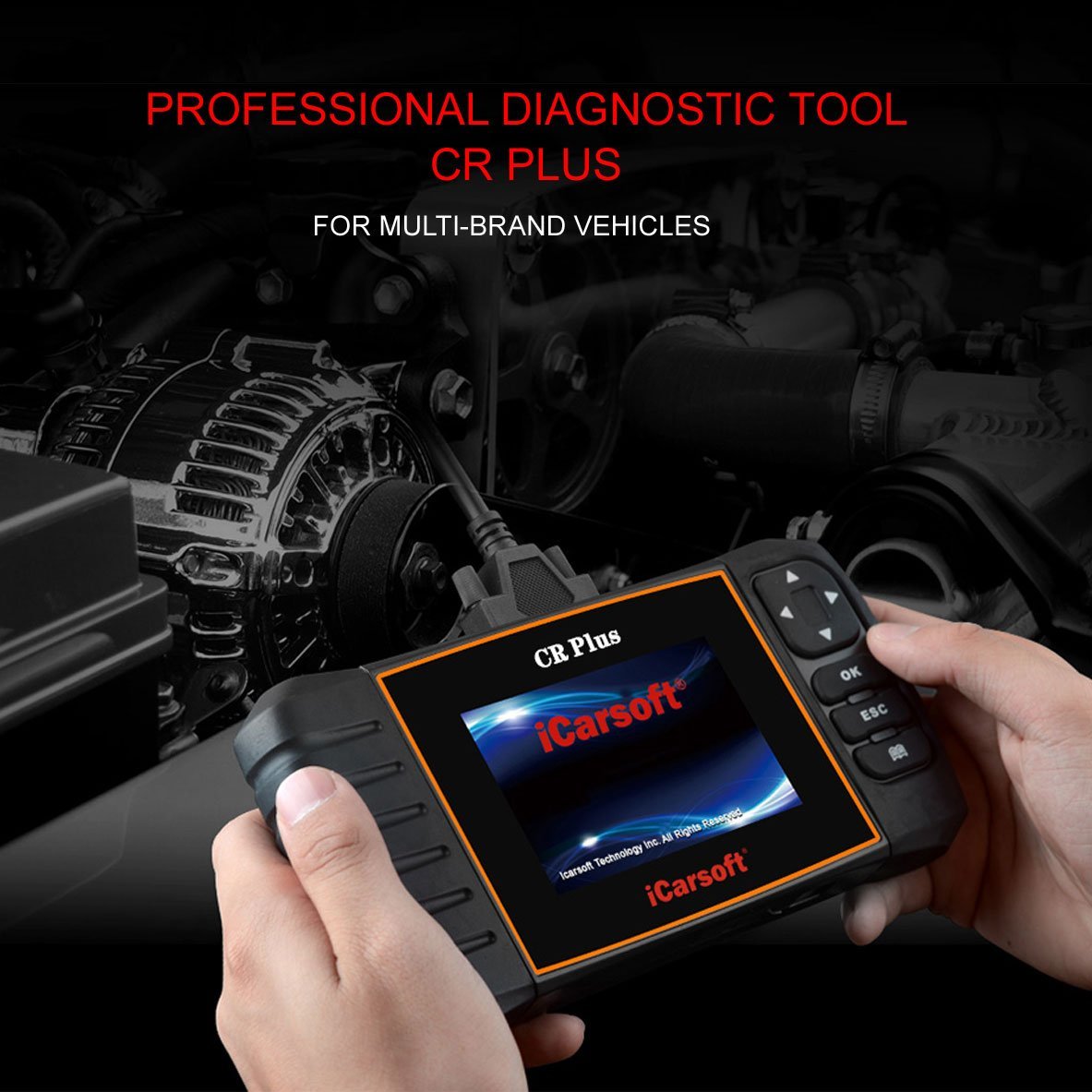

iCarsoft CRPLUS OBDII Diagnostic Scan Tool

The perfect diagnostic scan tool to make sure your car is running at it's optimum. The CR Plus is a must have tool for technicians and DIYers who want to run multi system diagnosis on most OBD-II & CAN compatible cars sold worldwide. You will be able to read and clear diagnostic trouble codes DTCs from a number of ECU sensor clusters and view live data stream.

Scan Tool Main Feature

• Multiple car models (covering over 40 prevailing models from Asia, America and Europe). (OBDII, EOBD) only.
• Support multipe Systems including Engine, Transmission, ABS, and Airbag.
• Read & Clear Check Engine Lights • Turn off MIL & reset monitors
• Basic diagnostic functions: read DTCs, clear DTCs, and read data stream
• Support DTCs help, data stream wave display, history data record and replay
• Online upgrade, you can download the latest version anytime anywhere.
• Auto module search
• Enhanced OBDII Mode 6
• Retrieves generic P0, P2, P3 & U0 codes, along with manufacturer specific P1, P3 & U1 codes – both permanent & pending •
• View freeze frame data & I/M Readiness monitor status
• Display live PCM data stream & O2 Sensor test data
• Graph, record & replay data in full color
• Resets Oil Service Light • Brake Pads Reset • Steering Angle Sensor Calibration • Code cause / solution tips guide users to the root cause of trouble codes faster, saving diagnosis and repair time (Vehicle dependent)
• Retrieves vehicle information ( VIN, CIN and CVN )



COVERAGE
Vehicle Coverage	Asian, American, European and Australian car makes
OBDII Compatible	✅
OBDI Compatible
Software Coverage	Ready to use with latest software
Year Models	Older Vehicles Up to 2014 / 2015

DIAGNOSTICS FEATURES
Reads & Clears Codes	✅
Engine System	✅
4 SYS ENG,ABS, SRS, ATF	✅
ALL System*	Multi System
Live Data (Text)	✅
Live Data (Graph)	✅
Merge Sensor Data
Freeze Frame	✅
Code Database	✅
VIN Identification	✅

DIAGNOSTICS FUNCTIONS *(Car Dependent)
Oil Service Reset	✅
Electronic Park Brake EPB	✅
Diesel Particular Filter DPF
Battery Configuration BTG
Throttle Body Alignment
Steering Angle Sensor SAS	✅
Tyre Pressure Monitor TPMS
Bi-Directional Tests / Coding
Key Programming
Injector Coding
Brake Bleed

*Functions are car dependent.

Covers More Than 40 Car Makes & Models

The CR Plus work with almost any OBD-II compatible car with easy access to more than 40 car makes and models including AU Ford and Holden.

Vehicle coverage and functionality is car dependent and will differ from one model to another. If buying for a specific car to perform a specific function, please check suitability before ordering.

Nissan	Infinity	Toyota	Lexus
Scion	Honda	Acura	Subaru
Mitsubishi>	Isuzu	Hyundai	Kia
Daewoo	Mazda	US Ford	EU Ford
AUS Ford	GM	Chrysler	Benz
Sprinter	BMW	Mini	VW
Seat	Skoda	Audi	Opel
Land Rover	Volvo	Porche	SAAB
Vauxhall	Peugeot	Citroen	Renault
Dacia	Alfa Romeo	Lancia	Holden
Suzuki	Smart	Jaguar	Fiat



Specifications

• Operation Temperature: 0℃ -- 50℃
• Storage Temperature: -20 ℃ -- 70 ℃
• Power: 9V -- 18V
• Operating current:150mA@12V(Typical)
• Power consumption: 1.8W(Typical)
• Dimension:205mm*110mm*31mm(LxWxH)
• Weight:350g

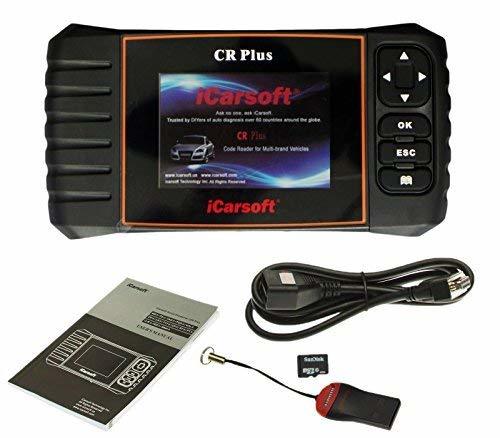

Package Includes

• CR Plus main unit scan tool
• User's manual
• Main OBD-II cable
• USB Cable
• TF Card Reader
• TF Card
• Nylon Carry Case
