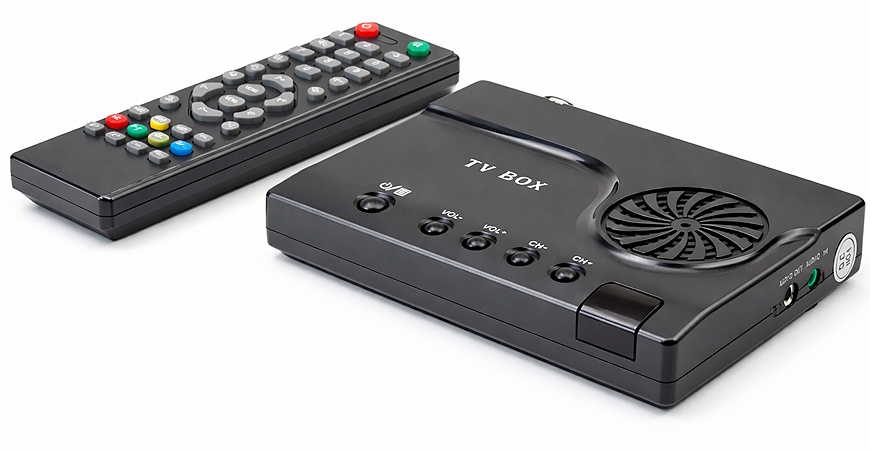

Universal RF Coax Composite Video To 1080p HDMI VGA Up Converter Switcher
This external analog cable TV tuner doubles as a video up-converter and switcher.

Mainly designed to convert analog coax TV signals such as cable TV or satellite channels or any modulated coax TV signals into high resolution HDMI or VGA formats for visual entertainment or further A/V broadcast and distribution.

Total of 3 selectable video inputs including 1 TV tuner input, 1 RCA AV input and 1 VGA input for loop-through only.

This coax TV channel converter delivers selectable VGA output up to 1920x1200 pixels or HDMI output up to 1080p with sharp video quality.

Easy operation by IR remote provided or manual push buttons on the converter unit.

This device supports multiple video signal inputs from:

• RF or coax TV feeds for analog cable TV outlet, video modulator, satellite receiver or any other set top box with CH3/CH4 output and other RF modulated systems.
• AV receiver or media player such as DVD or signage player
• Video camera such as camcorder or surveillance camera
• Game consoles such as PS2, PS3, Xbox, Wii, etc.
• Computer or CCTV DVR

Universal Analog TV Tuner With HDMI VGA Output
The RF input of this TV tuner converter supports worldwide analog RF TV channel frequencies and standards including NTSC, PAL B/G and PAL D/K system.

It works for all regions in the world and able to decode all standard analog cable TV channels within the range of 48.25 to 883.25MHz.
[Note: This tuner does not support over-the-air antenna TV channels]

This tuner can provide multiple HDMI output resolutions including:

• 1080p or 1920x1080
• 720p or 1280x720

And total of 13 VGA output resolutions including:

• 1920x1200
• 1920x1080
• 1680x1050
• 1600x1200
• 1600x900
• 1440x900
• 1366x768
• 1280x1024 at 60/75Hz
• 1024x768 at 60/75Hz
• 800x600 at 60/75Hz

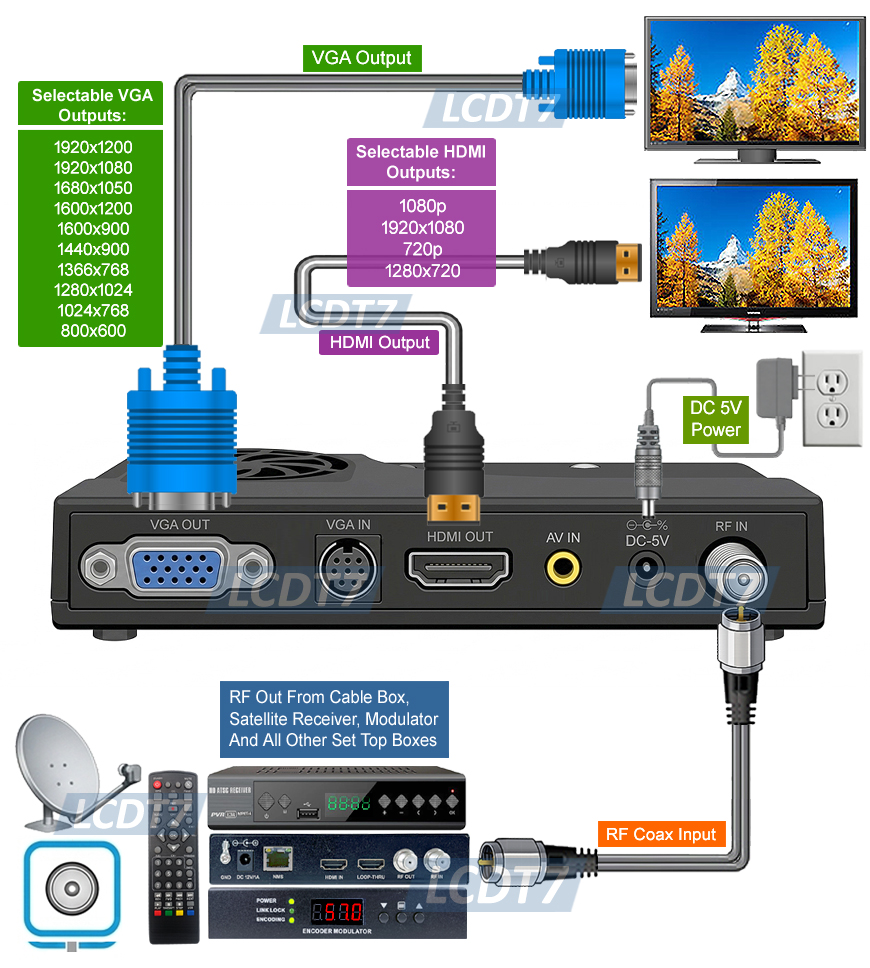

RF Coax CATV Channel To HDMI VGA Video Demodulator
This TV video converter switch is an easy add-on tuner module for those LCD monitors projectors that do not have TV tuner built in or LCD TV with broken RF terminals.

It can demodulate the RF outputs from all coax video sources such as cable set top boxes, video modulators, game consoles, surveillance DVR, etc and output in selectable VGA or HDMI format.

VGA output up to 1920x1200 pixels or HDMI output up to 1080p.

This RF coax TV demodulator can also be used for those satellite receivers with modulated TV out from DirecTV, Dish Network and all other free-to-air set top boxes.

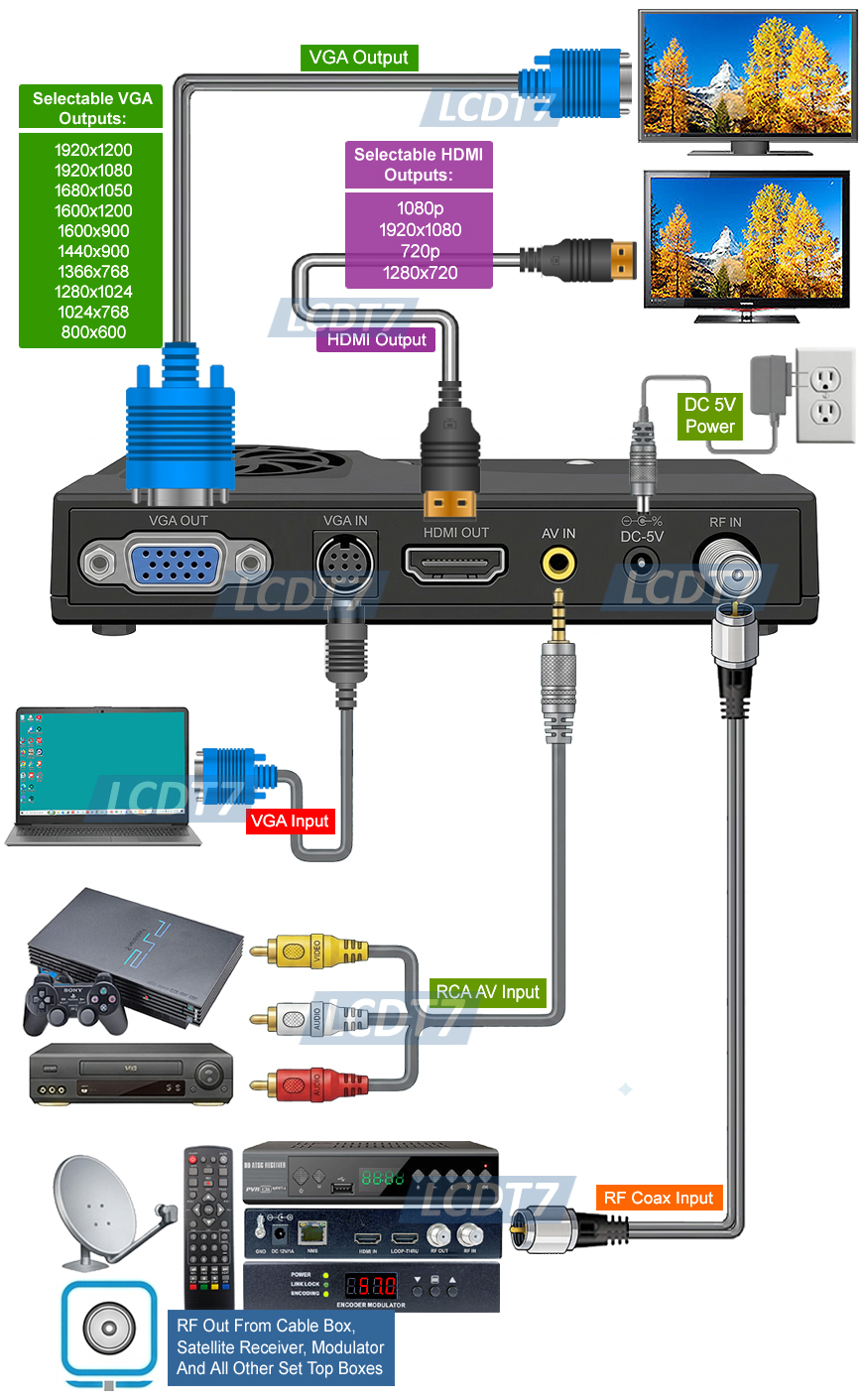

Multi-Format Analog Video To HDMI VGA Scaler Switcher
This multi-function TV video converter unit supports total of 3 video inputs including coax, composite RCA and VGA Input.

This unit is great for various applications including:

• RF Coax CATV To VGA HDMI: decode analog cable TV channels or the satellite coax output to 1920x1080/1920x1200 VGA pixels for display.
• Composite RCA S-Video To HDMI VGA: up-convert composite RCA or S-Video to 1920x1080 or 1920x1200 VGA pixels for display.
• Audio/Video Switch: easy IR remote control for selecting desired RF TV signal, RCA video signal or computer signal from video sources connected into this TV tuner box for presentation in classroom, tradeshow or personal visual entertainment.

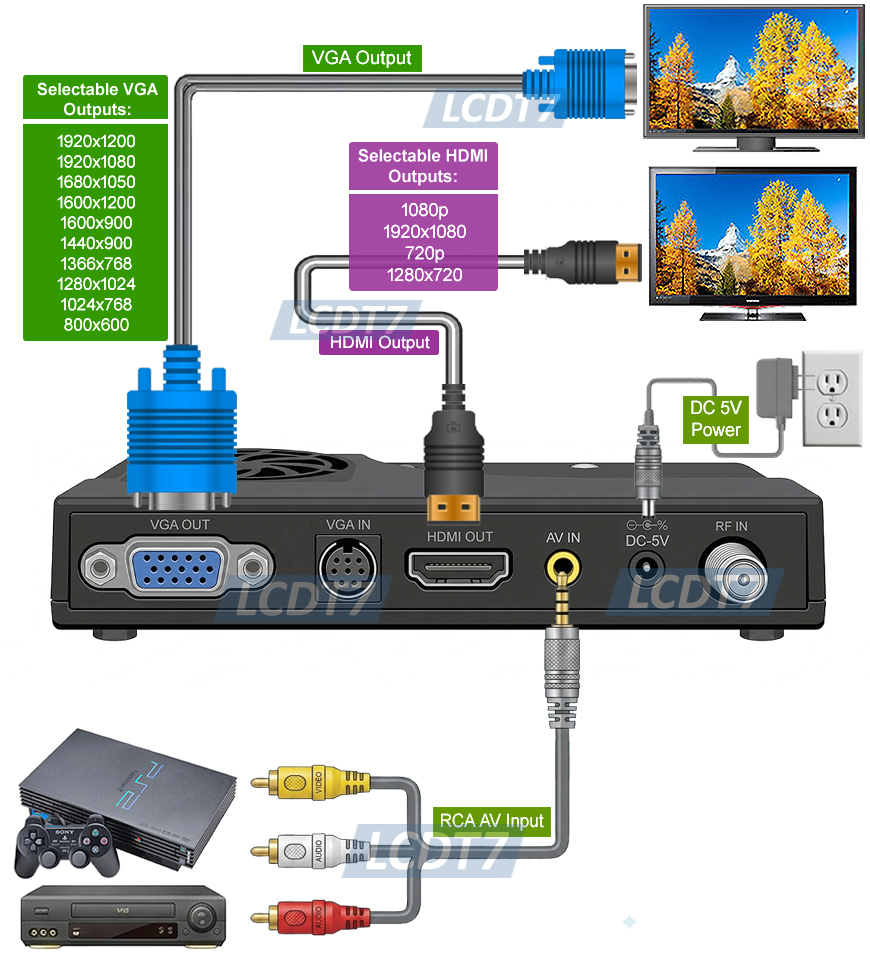

Analog RCA Video To 1080p HDMI VGA Converter
This TV tuner box can also convert the analog RCA video from DVD player, game console, video camera and so on to either HDMI output or VGA output.

Selectable VGA output up to 1920x1200 pixels or HDMI output up to 1080p with sharp video quality.

PC VGA Pass-Through
This TV tuner box supports computer VGA type signal for input and will be passed through its VGA output with no conversion performed.

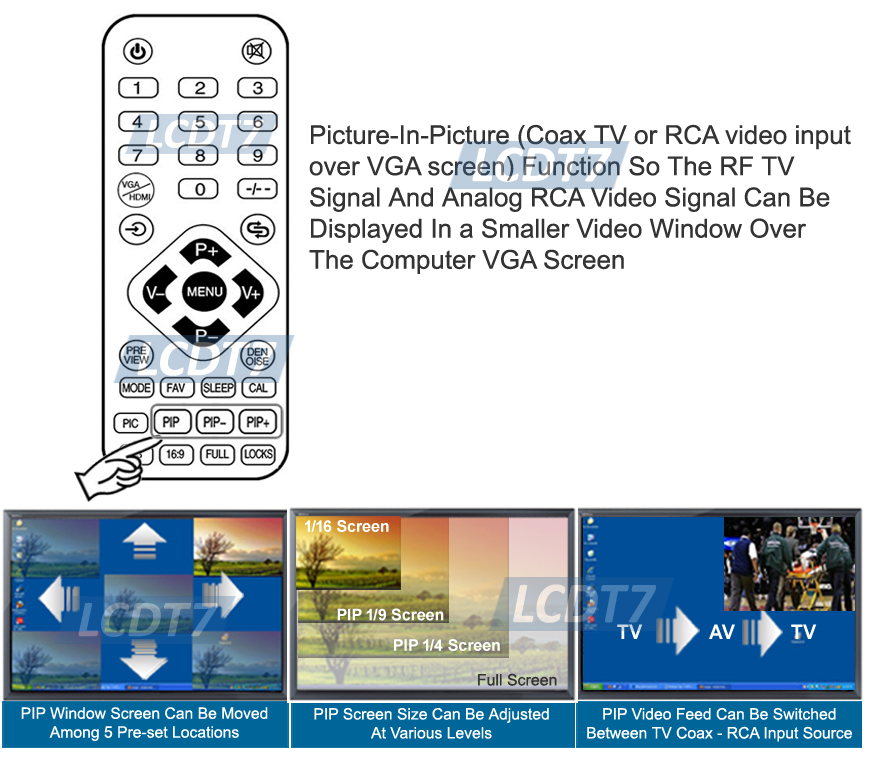

Real-Time Picture-In-Picture Video Viewing
This unit supports picture-in-picture (video over VGA screen) function so the RF TV signal and analog RCA video signal can be displayed in a smaller video window over the computer VGA screen.

With all its advanced PIP features provided, users can enjoy using computer and watching TV shows or video camera on the same screen.

The available PIP control functions includes:

• PIP Input Selection: Select the desired input video source (TV channel or RCA) to be displayed on the video sub-window on the monitor.
• PIP Size: Users can re-size the PIP video window screen at 1/16, 1/9, 1/4 and up to full screen for display.
• PIP Location: The PIP video window can be moved around the computer screen to any desired position. The horizontal and vertical position adjustment are available through using the IR remote.

Advanced Video Processor Engine
With image enhancement technologies implemented, this converter produces greater detail for a more true-to-life image.

Internal Speaker
The audio output of this TV video converter can be played directly through its internal speaker or routed through its 3.5mm audio port for hookup with multimedia speakers or home stereo system.

And the volume level or TV channel up/down can be controlled via the IR remote or the push buttons on the unit.

• Universal analog TV tuner video demodulator with HDMI and VGA output
• Supports worldwide RF TV channel frequencies for NTSC, PAL B/G and PAL D/K system.
• Easy add-on TV tuner module for all VGA-based monitor or projector without coax input.
• Decoding RF coax signals from cable outlet, satellite box, RF modulator or CCTV surveillance camera system to sharp HDMI or VGA pixels for display.
• Excellent RCA video to HDMI VGA converter with great video clarity and sharpness.
• 3 selectable video inputs: RF/Coax, RCA A/V and VGA pass through.
• 2 selectable video outputs: HDMI and VGA.
• 13 selectable VGA RGBHV output resolutions with maximum output up to 1920 x 1200 and 1920 x 1080 pixels.
• 2 selectable HDMI output resolutions including 720p(1280x720) and 1080p(1920x1080).
• Supports Picture-In-Picture (Coax TV or RCA video input over VGA screen) function so the RF TV signal and analog RCA video signal can be displayed in a smaller video window over the computer VGA screen.
• PIP TV video sub-window can be resized from 1/16, 1/9, 1/4 screen or full screen display.
• PIP window screen location can be re-positioned to anywhere on the monitor screen if needed.
• Premium motion adaptive de-interlacer built in for minimizing jagged edges noticed on big screen.
• Adjustable controls of video color elements for brightness, contrast, hue, saturation, color temperature and picture modes.
• Supports all NTSC and PAL systems with automatic video mode detection.
• Full-function IR remote controller.
• Featured with internal speaker for direct audio output.
• Easy on-screen operation by IR remote provided or manual push buttons on the converter unit.

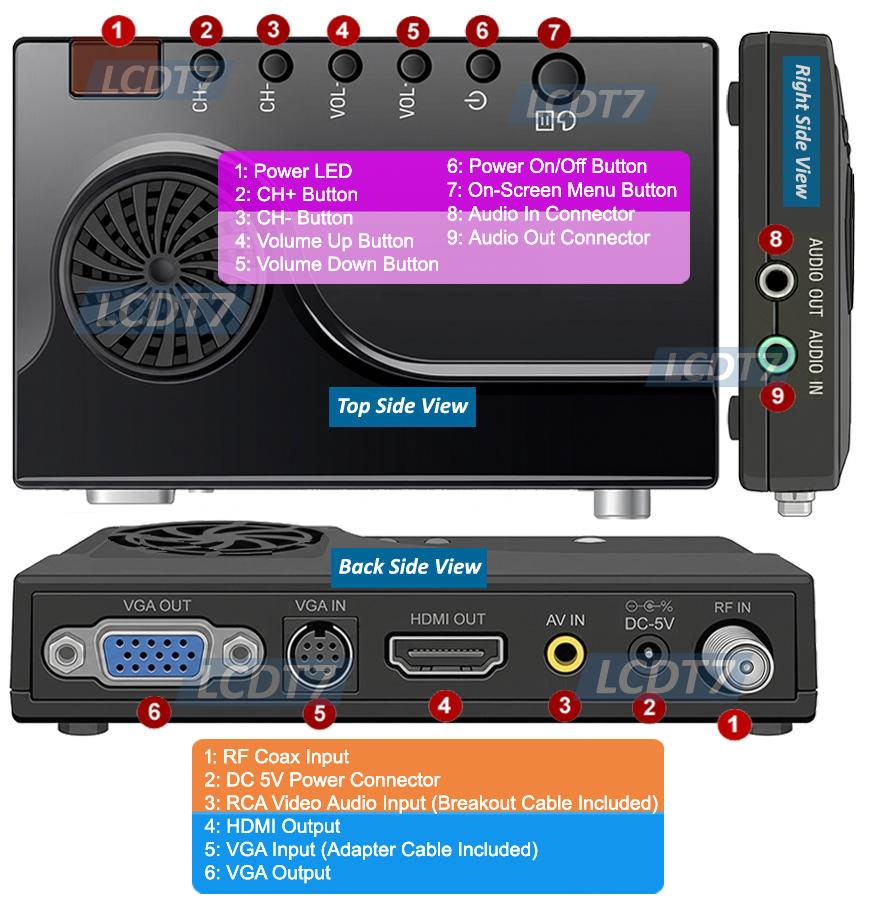

• TV Tuner Type: Universal Type for all NTSC, PAL B/G and PAL D/K system
• 3 Video Inputs:
  • Video 1 Input: Coaxial (RF) for cable TV input [not supporting UHF/VHF coax input]
  • Video 2 Input: Composite RCA video Input
  • Video 3 Input: PC VGA input via mini Din adapter cable for pass-through
• Video Outputs: selectable HDMI or VGA output
• VGA Output Resolutions:
  • 1920x1200
  • 1920x1080
  • 1680x1050
  • 1600x1200
  • 1600x900
  • 1440x900
  • 1366x768
  • 1280x1024 at 60/75Hz
  • 1024x768 at 60/75Hz
  • 800x600 at 60/75Hz
• HDMI Output Resolutions:
  • 1080p or 1920x1080
  • 720p or 1280x720
• 2 Audio Inputs:
  • Audio 1 Input: RCA Stereo L/R connectors
  • Audio 2 Input: 3.5 mm jack x 1 for PC VGA input
• Audio Output: 3.5 mm stereo phone jack x 1
• Video Adjustment  Support: Brightness, Contrast, Color, Hue, Sharpness, Tint
• TV Audio Support: stereo, mono, mute
• Power Supply: DC 5V 1A out, center positive

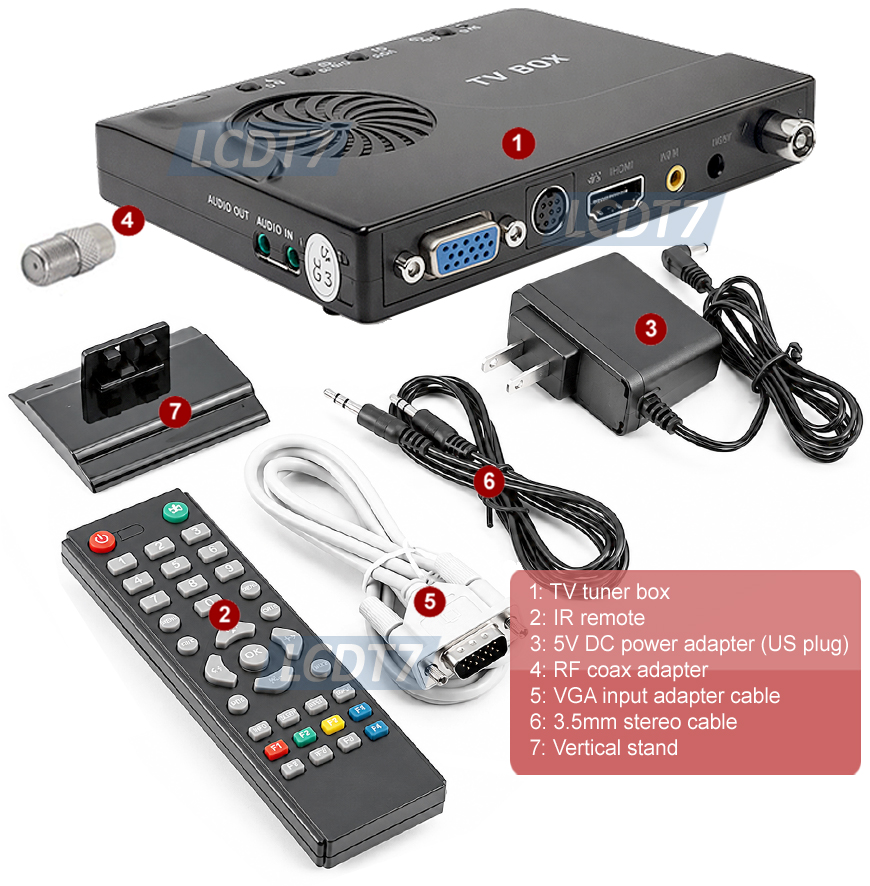

• TV video converter/tuner unit
• IR remote control
• 5V DC power adapter (US plug)
• coax adapter
• VGA input adapter cable
• User manual
