Agilent DSO81304B 13 GHz, 40GSa/s High Performance Oscilloscope - CALIBRATED!

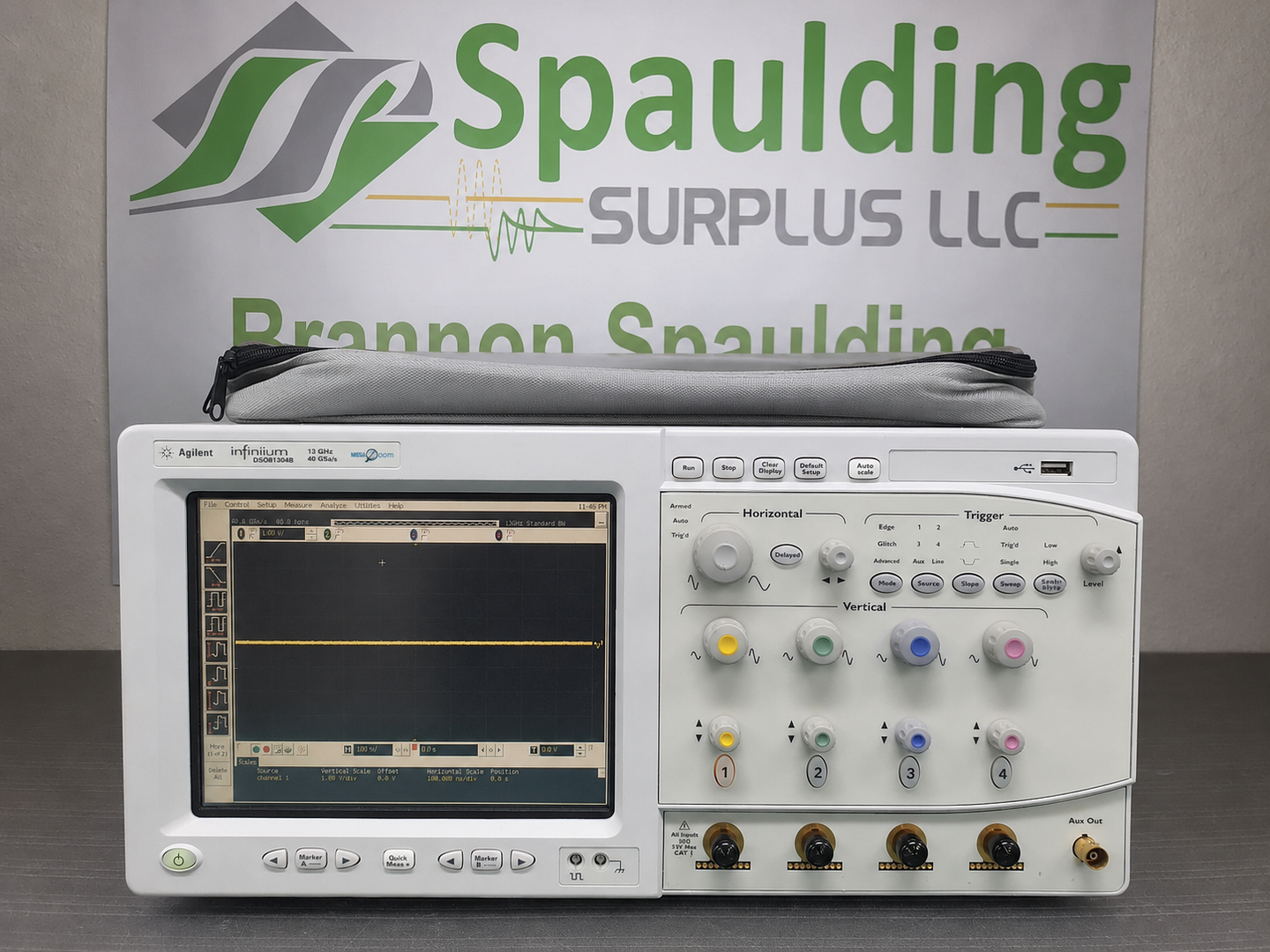

Agilent Infiniium DSO81304B 13 GHz Digital Oscilloscope - CALIBRATED!

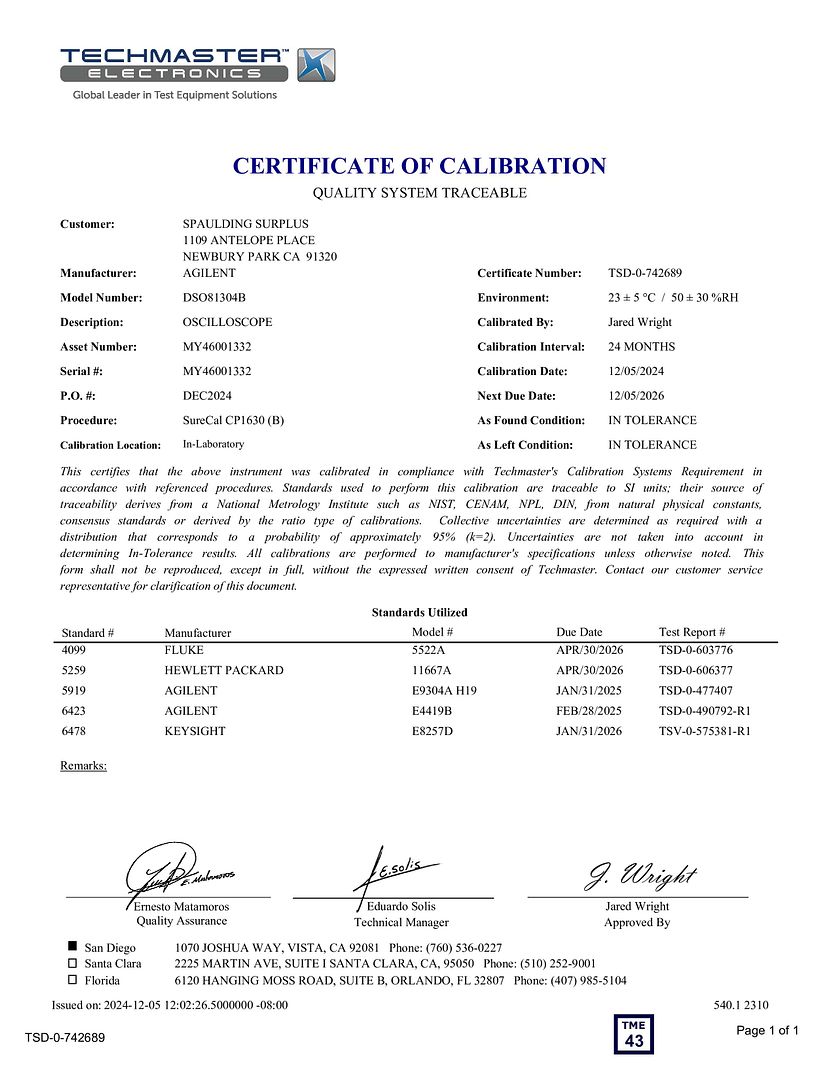

You are bidding on an Agilent Infiniium DSO81304B 13 GHz Digital Oscilloscope in excellent physical and electrical condition. It will arrive with a calibration performed by an ISO 17025 accredited lab.
With the superior signal integrity, probing and application software selection of Agilent Technologies' Infiniium 80000B Series and InfiniiMax II probing system will lead to improved measurements and increased design margins.
The signal integrity advantages of Agilent's Infiniium 80000B Series scopes and InfiniiMax probing system include the industry's lowest noise floor, lowest jitter measurement floor, lowest trigger jitter and flattest frequency response. These foundational capabilities are crucial for achieving accurate and repeatable measurements. These superior signal integrity capabilities come from Agilent's RF design experience, proprietary packaging technologies and unique CMOS ADC architecture. Superior signal integrity maximizes your design margins by not wasting any measurement accuracy due to poor noise, jitter or frequency response of the scope or probing system.
The probing advantages of the InfiniiMax Series probes include the low noise and flat frequency response mentioned above. The InfiniiMax Series also offers the industry's widest selection of probe amplifier bandwidths (currently six) and the industry's widest variety of different probe head types (currently 11 + one extension cable). InfiniiMax is also the probing system that offers 13 GHz bandwidth for the differential solder-in, differential browsing and differential SMA use models. It now supports a unique environmental chamber probe extension solution as well. Since its inception, the award-winning InfiniiMax probe system has provided maximum performance with unmatched usability.
The application software for the Infiniium 80000B Series is the industry's largest – currently offering a choice of 29 different application packages. Application specific software solutions include compliance test packages for industry standards such as: PCI-Express®, DDR, FBD, SATA, SAS, FC, DVI, HDMI, USB, FireWire, Ethernet, XAUI, Serial Rapid IO, CPRI, OBSAI RP3, and DisplayPort, as well as more general purpose jitter and serial data analysis packages. Agilent is also the industry-leading vendor to offer innovative packages for ultra-wideband vector signal analysis, noise reduction and bandwidth control, and InfiniiScan event identification software.
The industry-leading signal integrity, probing and software application capabilities of the Infiniium 80000B Series scopes and InfiniiMax Series probes have recently won four industry awards.
Superior signal integrity and probing for your application
Agilent doesn't only deliver industry leading oscilloscope performance. It also uses the company's extensive technology base to provide superior signal integrity, probing and analysis software for the designer's specific application. The most notable benefits of the Agilent solution are:
- Industry's lowest scope noise floor
- Industry's lowest jitter floor
- Industry's lowest trigger jitter
- Industry's flattest frequency response
- Industry's leading hardware sensitivity
- Industry's only bandwidth upgradeable series
Probing
- Industry's lowest probe noise floor
- Industry's widest range of probe amplifier bandwidths
- Industry's widest range of probe head types
- Industry's flattest probe frequency response
- Industry's only environmental chamber probing solution supporting temperatures from –55 to +150 °C
Applications
- Industry's largest set of applications
- Industry's only event identification software
- Industry's only wideband spectrum analyzer software
- Industry's first noise reduction software
- Industry's only calibrated jitter measurement
- Industry's only compliance test framework to support FibreChannel, DDR1, 2, and 3, XAUI, Serial Rapid IO, CPRI, OBSAI PR3, and DisplayPort
- Industry's only application server license solution for the oscilloscopes
Features:
- 2 GHz to 13 GHz bandwidth with up to 40 GSa/s sample rate
- Up to 2 Mpts MegaZoom memory at 40 GSa/s sample rates and 64 Mpts MegaZoom deep memory at 4 GSa/s
- Full bandwidth probe system for all use models – up to 13 GHz bandwidth for differential solder-in, browser and SMA connections
- Industry's lowest noise floor for both oscilloscopes and probes
- Industry's lowest jitter measurement floor
- Industry's only environmental chamber probing solution supporting temperatures from –55 to +150 °C
- Industry's flattest frequency response
- Industry's only full bandwidth economical lead-free solder-in probe solution
- Industry's only bandwidth-upgradeable series from 2 GHz to 13 GHz
- Industry's largest selection of application software packages
- Industry's first software event finder "InfiniiScan"
- Industry's only server based oscilloscope application software license solution
- Now LXI Class C compliant
Specifications:
Bandwidth (Model DSO81304B)
- Real-time bandwidth on 2 channels at 40 GSa/s: 13 GHz
- Equivalent-time bandwidth on 4 channels: 13 GHz
- Real-time bandwidth on 4 channels at 20 GSa/s: 8 GHz
Vertical
- Input channels: 4
- Analog bandwidth (–3 dB): 12 GHz
- DSP enhanced bandwidth: 13 GHz real-time, user selectable DSP enhanced-bandwidth
- Rise time / fall time: 32 ps (10–90%); 24 ps (20–80%)
- Input impedance: 50 ? ± 3%
- Sensitivity: 1 mV/div to 1 V/div
- Input coupling: DC
- Vertical resolution: 8 bits, ? 12 bits with averaging
- Channel-to-channel isolation (equal V/div): DC to 3 GHz: 60 dB; 3 to 8 GHz: 40 dB; 8 GHz to BW: 35 dB
- DC gain accuracy: ± 2% of full scale at full resolution channel scale
- Maximum input voltage: ± 5 V
- Offset range / available offset: ? 40 mV/div: ± 0.4 V; ? 75 mV/div: ± 0.9 V; ? 130 mV/div: ± 1.6 V; ? 240 mV/div: ± 3.0 V; > 240 mV/div: ± 4.0 V
- Offset accuracy: ? 3.5 V: ± (2% of channel offset + 1% of full scale) + 1 mV; > 3.5 V: ± (2% of channel offset + 1% of full scale)
- Dynamic range: ± 4 div from center screen
- DC voltage measurement accuracy: dual cursor: ± [(DC gain accuracy) + (resolution)]; single cursor: ± [(DC gain accuracy) + (offset accuracy) + (resolution/2)]
- RMS noise floor (scope only): 5 mV: 419 µV; 10 mV: 498 µV; 20 mV: 737 µV; 50 mV: 1.71 mV; 100 mV: 3.34 mV; 200 mV: 6.55 mV; 500 mV: 17.3 mV; 1 V: 33.9 mV
- RMS noise floor (scope with probe): 20 mV: 3.0 mV; 50 mV: 3.4 mV; 100 mV: 4.6 mV; 200 mV: 7.8 mV; 500 mV: 117 mV; 1 V: 34 mV
Horizontal
- Main timebase range: 5 ps/div to 20 s/div real-time; 5 ps/div to 500 ns/div equivalent-time
- Main timebase delay range: –200 s to 200 s real-time; –25 µs to 200 s equivalent-time
- Delayed timebase range: 1 ps/div to current main time scale setting
- Channel deskew: ± 25 µs range, 100 fs resolution
- Time scale accuracy: ± 1 ppm pk
- Delta-time measurement accuracy: 45 fs rms / 500 fs peak (? 256 averages); 0.9 ps rms / 5 ps peak (averaging disabled)
- Jitter measurement floor: time interval error 0.70 ps rms; period jitter 0.9 ps rms; N-cycle / cycle-cycle jitter 1.4 ps rms
Acquisition
- Maximum real-time sample rate: 40 GSa/s (2 channels simultaneously); 20 GSa/s (4 channels simultaneously)
- Memory depth per channel (standard): 524,288 (2 channels); 262,144 (4 channels)
- Sampling modes: real-time (successive single-shot); real-time with averaging (selectable 2 to 65534); real-time with peak detect (2 GSa/s on 4 channels, 4 GSa/s on 2 channels); real-time with hi-resolution boxcar averaging; equivalent-time (alternating real-time) for capturing bursting signals
- Max segments (4-channel mode): 20 GSa/s: 64; 5 GSa/s: 64; ? 4 GSa/s: 128
- Max segments (2-channel mode): 40 GSa/s: 128; 20 GSa/s: 128; 5 GSa/s: 128; ? 4 GSa/s: 256
- Filters: Sin(x)/x interpolation, on/off selectable FIR digital filter
Hardware Trigger
- Sensitivity: internal low 2.0 div p-p (0 to 5 GHz); internal high 0.3 div p-p (0 to 4 GHz), 1.0 div p-p (4 to 7.5 GHz); auxiliary DC to 1 GHz, 200 mV p-p into 50 ?
- Level range: internal ± 4 div from center screen or ± 4 V (whichever is smallest); auxiliary ± 5 V
- Sweep modes: auto, triggered, single
- Trigger jitter: ? 500 fs rms (8–13 GHz models); ? 1 ps rms (2–6 GHz models)
- Trigger holdoff range: 100 ns to 10 s
- Trigger modes: edge, glitch, line, pattern / pulse range, state, delay by time, delay by events
- Violation triggers: pulse width, setup/hold, transition
Measurements and Math
- Voltage measurements: peak-to-peak, min, max, average, RMS, amplitude, base, top, overshoot, preshoot, upper, middle, lower
- Time measurements: rise time, fall time, period, frequency, positive/negative width, duty cycle, burst width, Tmin, Tmax, setup time, hold time, delta time, channel-to-channel phase
- Mixed: area, slew rate. Frequency domain: FFT frequency, FFT magnitude, FFT delta frequency, FFT delta magnitude
- Statistics: mean, standard deviation, min, max, number of measurements
- Histograms: vertical and horizontal modes with mean, std dev, peak-to-peak, median, min, max, total hits, peak, mean ± 1, 2, 3 sigma
- Eye-diagram measurements: eye height, eye width, eye jitter, crossing percentage, Q factor, duty-cycle distortion
- Jitter analysis (E2681A EZJIT / N5400A EZJIT Plus): cycle-cycle, N-cycle, data rate, unit interval, TIE data/clock, setup/hold, phase, period, frequency, width, duty cycle, rise/fall time
- Mask testing: pass/fail testing to user-defined or Agilent-supplied templates with AutoMask
- Waveform math: four functions including absolute value, add, average, common mode, differentiate, divide, FFT magnitude/phase, high/low-pass filter, integrate, invert, magnify, max, min, multiply, smoothing, square, square root, subtract, versus, optional user-defined (Option 010)
- FFT: frequency range DC to 20 GHz (at 40 GSa/s) or 10 GHz (at 20 GSa/s); best resolution 20 kHz; window modes Hanning, flat-top, rectangular
- Measurement modes: automatic measurements, QuickMeas+, drag-and-drop measurement toolbar
- Marker modes: manual markers, track waveform data, track measurements
Display
- 8.4-inch (21.34 cm) color XGA TFT-LCD with touch screen
- 256-level intensity-graded display; XGA resolution 1024 × 768
- Annotation: up to 12 labels, up to 100 characters each
- Grids: 1, 2 or 4 waveform grids
- Waveform styles: connected dots, dots, infinite persistence, color-graded infinite persistence (up to 256 intensity levels)
- Waveform update rate: up to 4,800 waveforms/sec (fastest); 800 waveforms/sec (nominal)

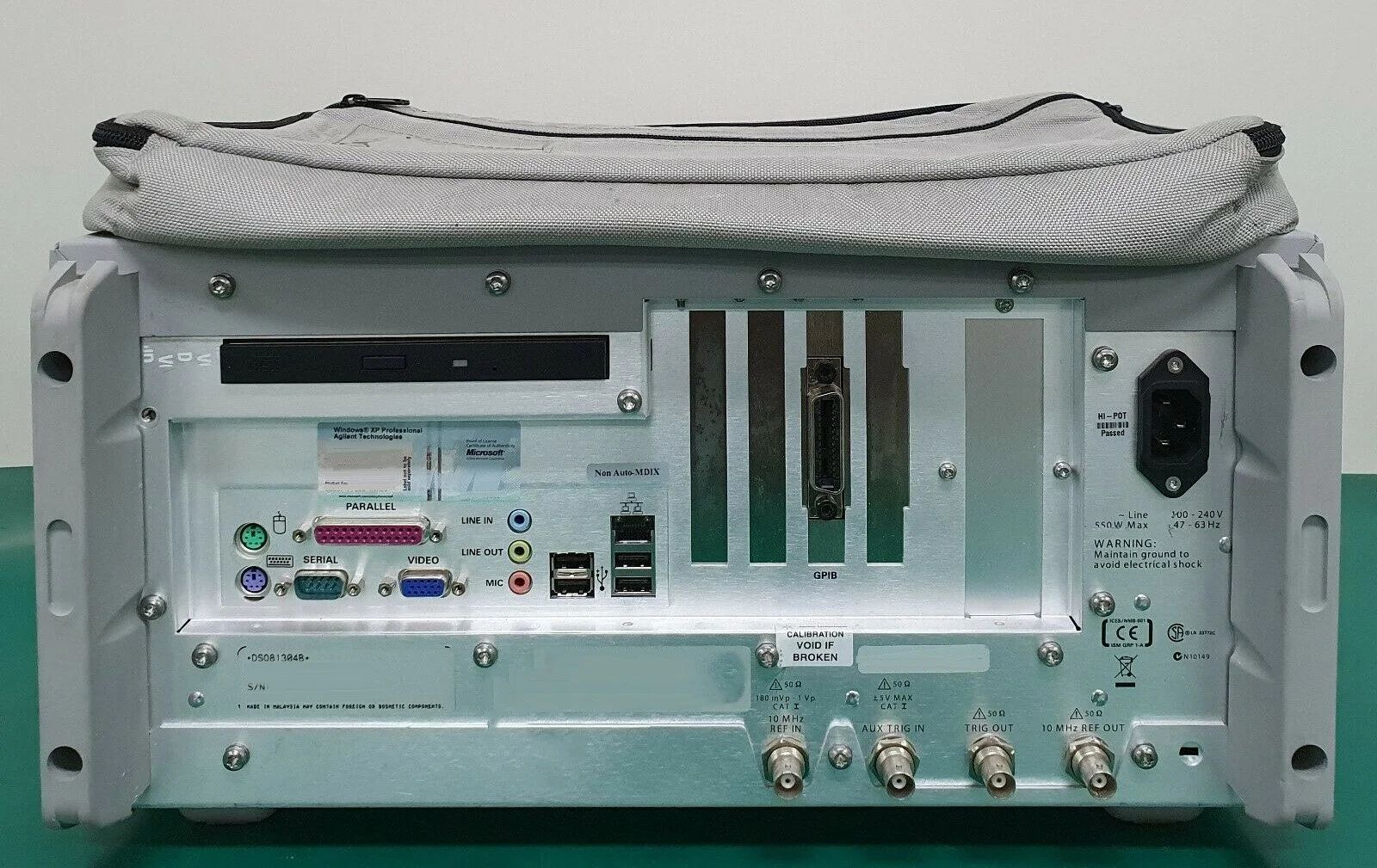

Computer System and I/O Ports
- Operating system: Windows XP Pro
- CPU: Intel® Celeron 3.2-GHz
- System memory: 1 GB DDR2
- Drives: ? 40 GB internal hard drive (optional removable), rear-panel CD-ROM
- Peripherals: Logitech optical USB mouse, compact keyboard and stylus supplied
- File types: waveforms (*.wfm, *.csv, *.tsv, *.txt); images (BMP, PCX, TIFF, GIF, JPEG)
- LAN: RJ-45, 10/100/1000Base-T with web-enabled remote control, e-mail on trigger/demand
- GPIB: IEEE 488.2, fully programmable
- RS-232 (serial): COM1; parallel Centronics printer port; PS/2 (two ports); USB 2.0 Hi-Speed (one front, four rear)
- Dual-monitor video output: 15-pin XGA (up to SXGA in dual-monitor use)
- Auxiliary output, trigger output (5 V, 50 ? back-terminated), 10 MHz time base reference input/output
- LXI compliance: Functional Class C
This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes with a 30 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.
