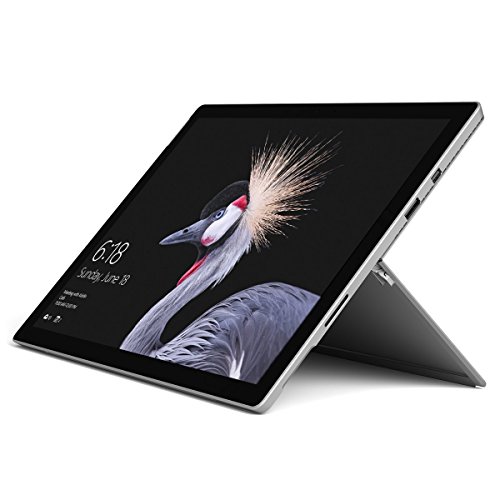

Surface Pro 5 12.3 M3 4GB-128GB Platinum

Microsoft Surface Pro 5th Gen (LJJ-00001)

• Core Hardware & Parts

  • Processor: Intel Core m3-7Y30 (Dual-Core)—runs at a 1.00 GHz base frequency with an Intel Turbo Boost ceiling reaching up to 2.60 GHz, utilizing a fanless cooling design for silent operation during document sorting and lightweight applications.

  • Memory: 4GB LPDDR3 RAM—integrated memory channels soldered directly onto the main motherboard architecture; cannot be adjusted or upgraded.

  • Storage: 128GB NVMe SSD—solid-state storage drive module embedded onto the mainboard layout to host system files and localized cache pools.

  • Graphics / GPU: Integrated Intel HD Graphics 615—shares system RAM boundaries to manage visual rendering workloads and drive native system interface components.

• Display & Build Features

  • Display: 12.3-inch PixelSense 10-point Multi-Touch display panel—delivers a high-density native resolution of 2736x1824 pixels with a 3:2 productivity aspect ratio and support for Surface Pen active stylus inputs.

  • Chassis: Magnesium alloy unibody casing layout—finished in Platinum with a built-in multi-angle friction hinge kickstand capable of tilting back up to 165 degrees into "Studio Mode"; total weight is 1.69 lbs (766 g).

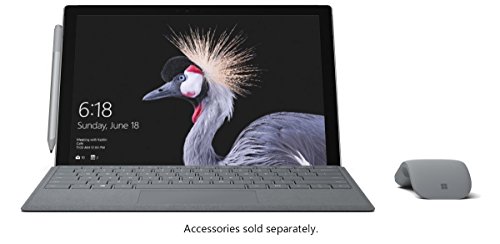

  • Keyboard & Input: Includes a bundled detachable Surface Pro Signature Type Cover (Platinum) featuring physical mechanical keys, backlighting indicators, and an integrated glass trackpad module.

• Connectivity & Media

  • Physical Ports: 1x full-size USB 3.0 Type-A port, 1x Mini DisplayPort video output terminal, 1x Surface Connect magnetic charging/docking interface, 1x MicroSDXC card reader slot hidden beneath the kickstand, and 1x 3.5mm headphone jack.

  • Power Input: Proprietary Surface Connect power interface—interacts with a matching 39W magnetic breakaway AC power supply brick configuration.

  • Camera & Audio: 5.0MP front-facing camera with Windows Hello face-authentication sign-in, paired with an 8.0MP autofocus rear-facing camera (1080p HD video), dual microphones, and 1.6W stereo speakers backed by Dolby Audio Premium processing.

  • Wireless: Marvell AVASTAR wireless chip supporting 802.11ac Wi-Fi channels and Bluetooth 4.1 low-energy data profiles.
