ITEM DESCRIPTION
Welcome to car_part_accessories~ Hope you have a great purchase.
Pls check the item pictures and size to get the suitable items.

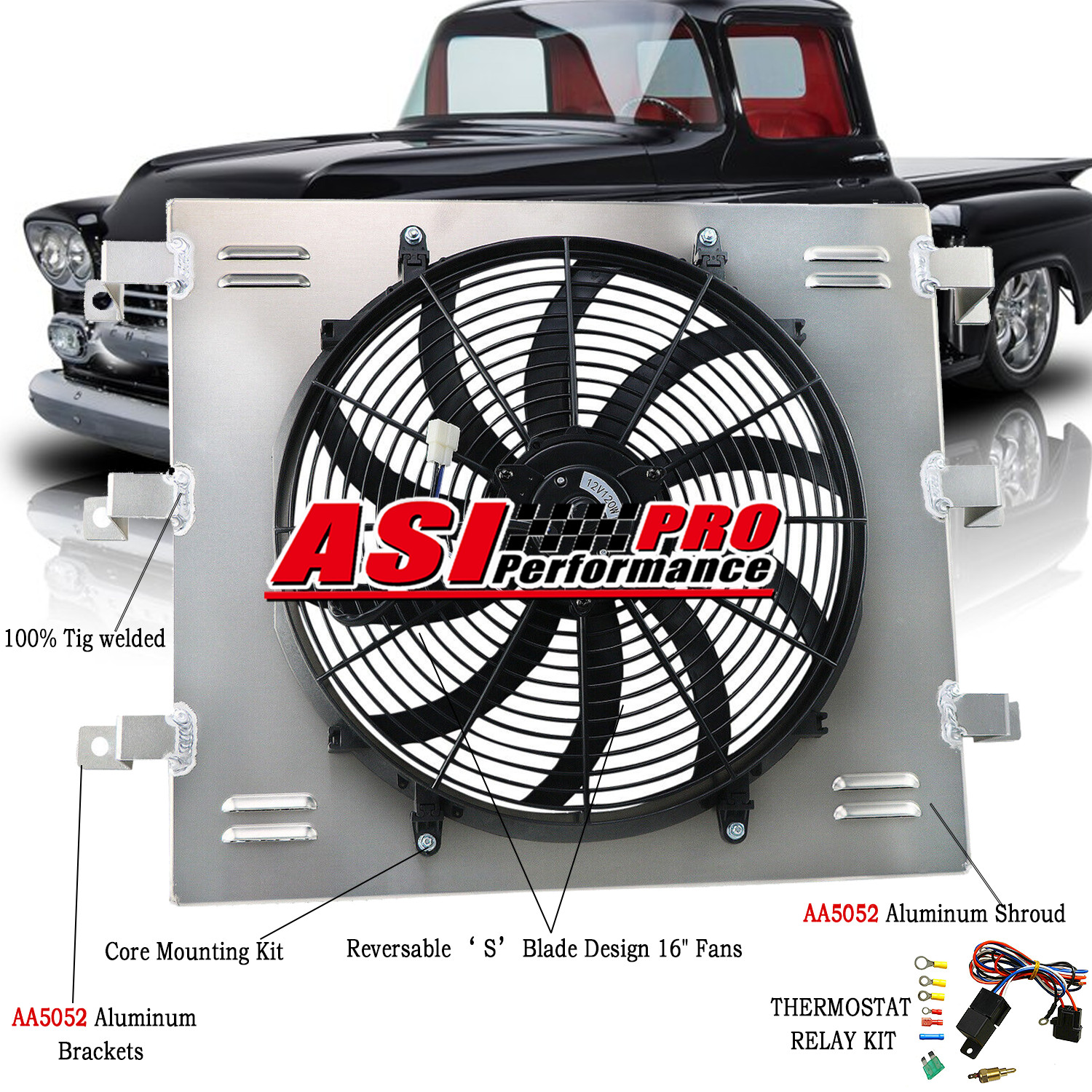

Package Includes:
1 X AA5052 Aluminum Shroud
1 X 16" Fan (Includes mounting kits)
1 X Thermostat Relay Kit
Size:
Core Dimensions: 19 3/8" x 21 3/4"
Application:
For Chevy /GMC Truck Pickup 1955-1959
For Chevy 3100 3200 3400 3500 3600 3800 1955-1959
For Chevy Truck Pickup Suburban Panel 1955-1959
For Chevy /GMC 100/150 Truck Pickup l6/V8 1955-1959
Manufacturer Part Number: 5559,CC5559,EC5559,DREC5559.MC5559
Fan Specification:
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Amp Draw: 10amp
Fan Thickness: 2.95"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.

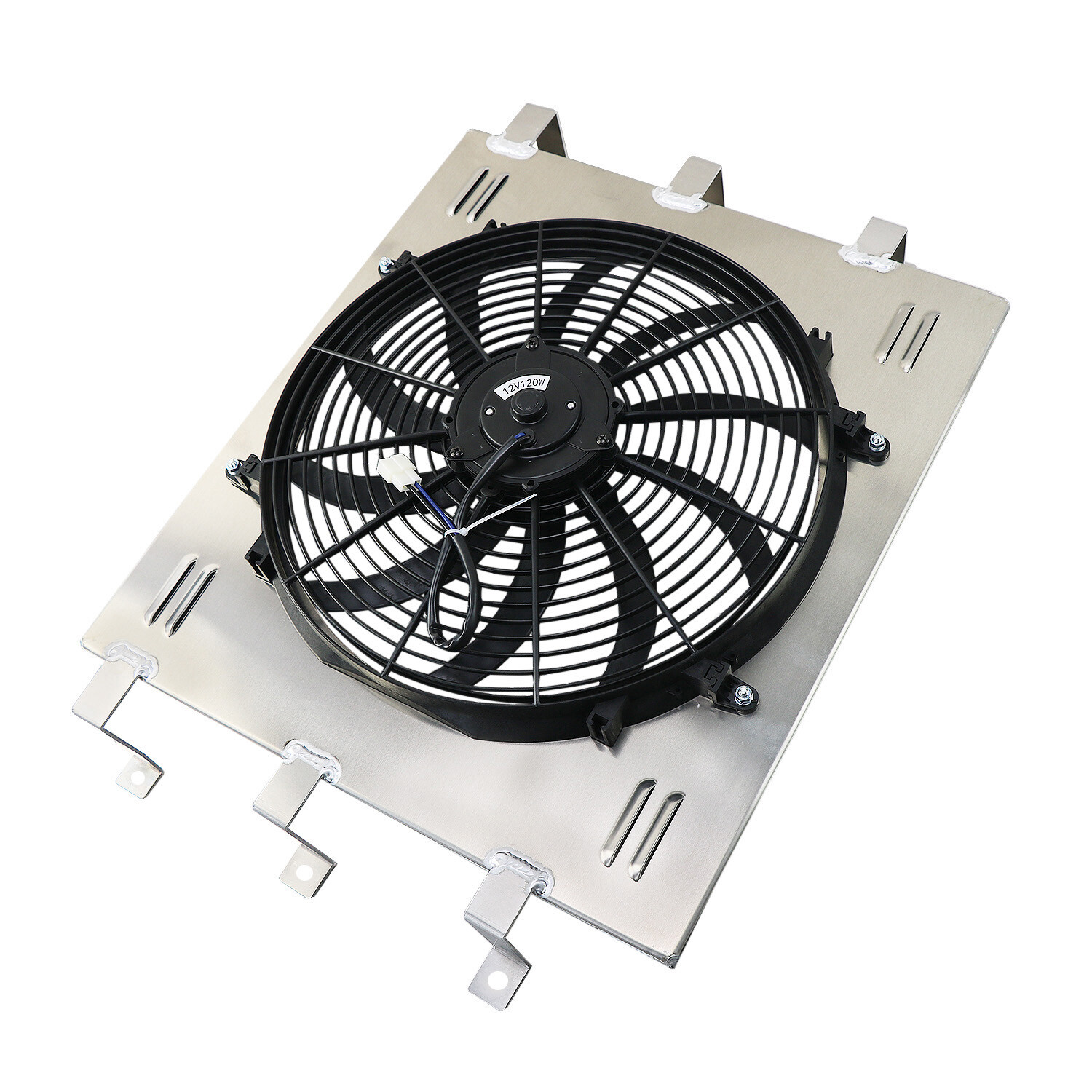

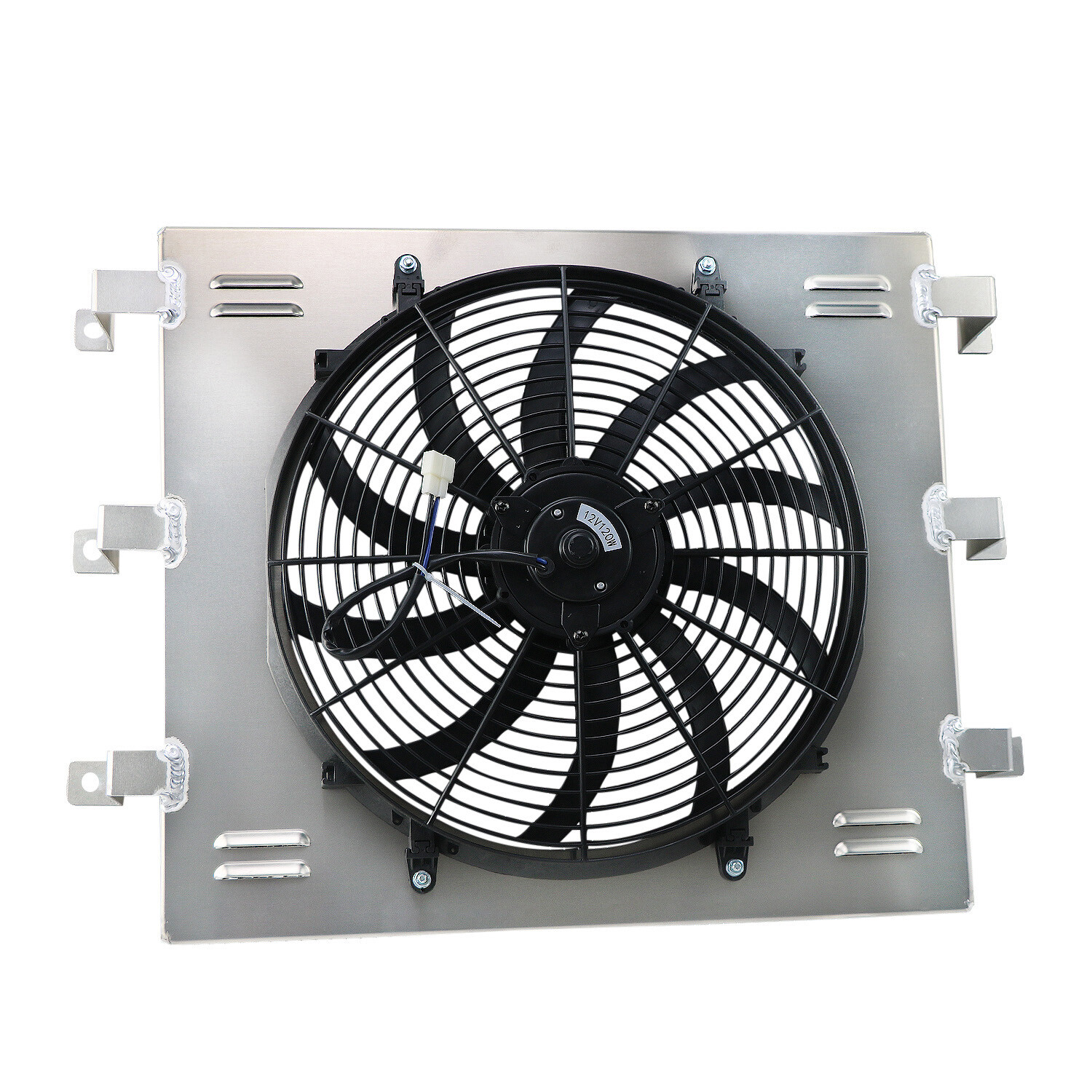

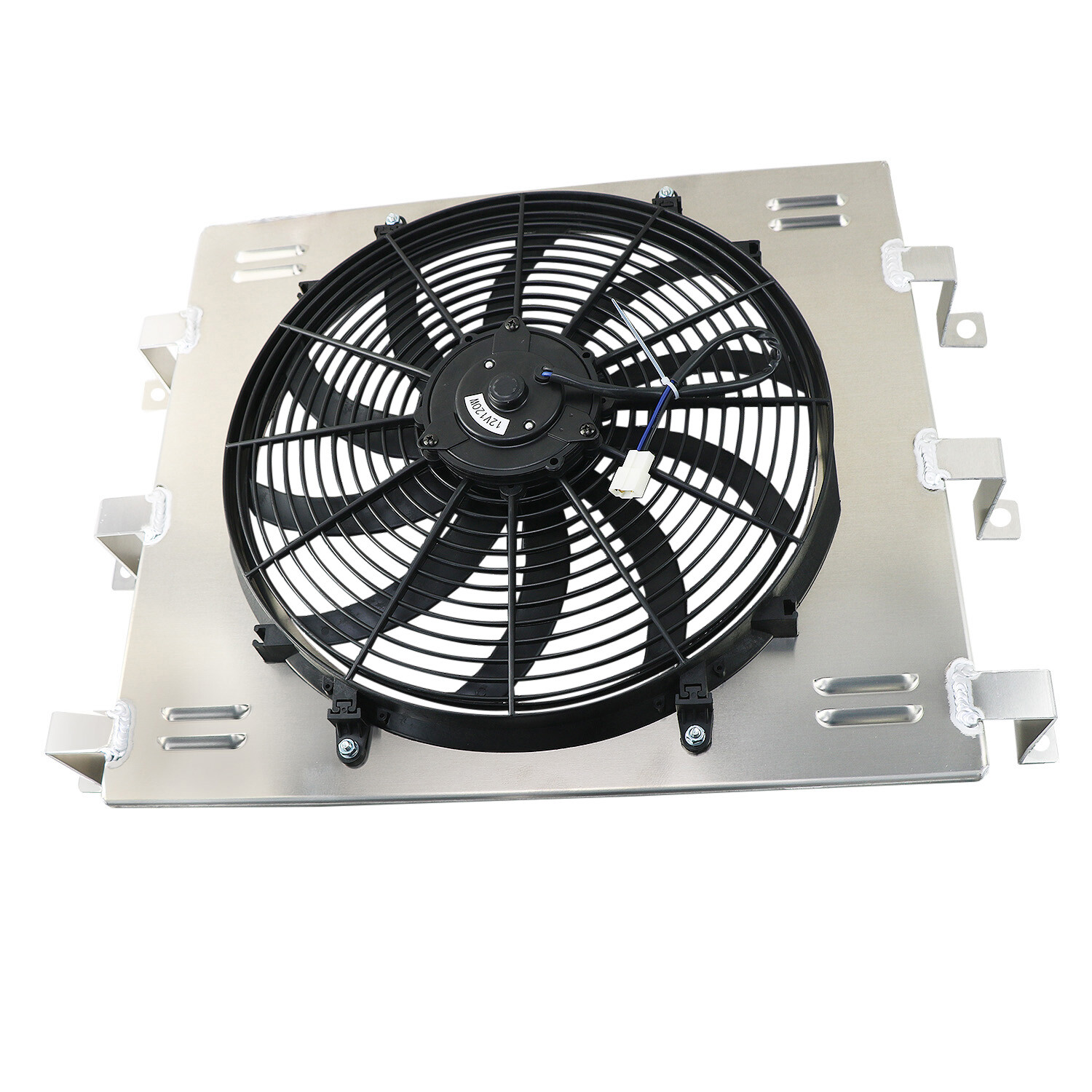

AA5052 Aluminum Shroud+Fan:
Our custom-made AA5052 aluminum fan shrouds are manufactured to fit our ALLOYWORKS and ASI PERFORMANCE radiators. These fan shrouds are fabricated for use with our electric cooling fans but allow for use with most low profile electric fans.
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect.
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
