12 Volt Fuse Block, Waterproof 6 Way Fuse Box with 6 Ground Negative Busbar for Automotive[100 Amp Max] [LED Indicator] for Car Golf Cart Boat Marine RV DC 12-24V

Description

Part Number	FFB-O-6
Style	6 Way
Current Rating	100 Amps
Mounting Type	Panel Mount
Upper Temperature Rating	150 Degrees Celsius
Product Dimensions	3.46"W x 1.44"H
Material	Polybutylene Terephthalate (PBT)
Material Type	Polybutylene Terephthalate (PBT)
Connector Type	Screw
Number of Positions	6
Voltage	12 Volts
Item Dimensions W x H	3.46"W x 1.44"H
Model	FB-6W-100A
Number Of Contacts	12
Number Of Poles	6

• PREMIUM QUALITY --- Made of environment fire-resist PBT material, this fuse box meets all the standards of an ideal fuse block. It is mechanically strong, insulated, heat resistant and flame resistant. There will hardly cause any issue like produce fracture, deformation, combustion or short circuit phenomenon
• LED WARNING INDICATOR --- Red LED warning light on fuse box will light up immediately when the corresponding fuse is blown. It is both safe and easy for you to check and replace the blown fuse
• EASY TO SET UP --- No need to worry about getting your fuse box ready to use. This 6 circuit fuse box is very easy to install. Make your wiring clean
• PERFECT FOR YOUR VEHICLE --- This premium fuse box with bus bar is essential for all vehicles with a 10-32 Volt DC power source so you can use it on every car or boat
• Free Blade Fuses --- 6-Way fuse box Package includes: 4x 20A Fuse, 4x 15A Fuse,2x 10A Fuse, 2x 5A Fuse, 2x Labels, 4x Screws

Product description

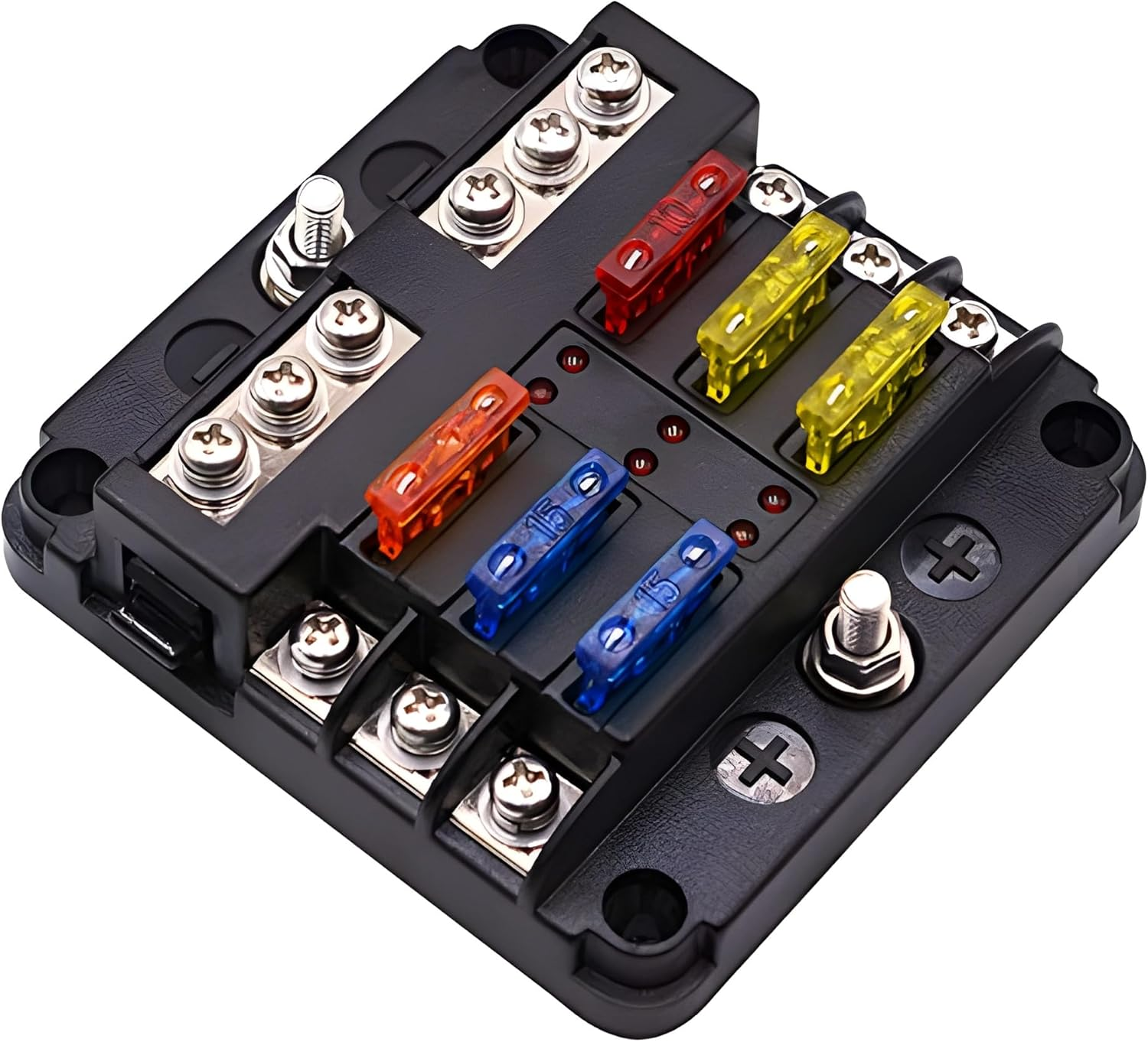

6 Way Fuse Box with Clip-Lock Cover and LED Indicator-6 Circuit with Negative Bus Fuse Block

• Don’t you just hate it when there’s something wrong with your car but you don’t exactly know what?
• Have you tried to find a simple way to better fix the problem instead of wasting lots of time to figure out the error?
• This update 6-way fuse box is everything you’ve been looking for and more

Features

• Red LED illuminates when fuse is blown.
• Clip-Lock Protection Cover
• Maximum of 30 Amp per circuit and 100 Amp per panel.
• Input Voltage: 12V-24V DC
• Input / Output Current: 100A / 30A max. per circuit
• PBT base + PC waterproof and dustproof cover + Nickel plated copper connection terminal

Package Include:

• 1*6 Way Fuse Box
• 4*20A Blade Fuse
• 4*15A Blade Fuse
• 2*10A Blade Fuse
• 2*5A Blade Fuse
• 2*3A Blade Fuse
• 4*Screws
• 2*Sticker

SPECIFICATIONS

Input Voltage 12V-24V DC Maximum Voltage 32V Quantity of Fuse Slots 6 Fuse Type ATC or ATO Product Dimensions 112 × 85 × 51 mm G.W./N.W. 229g/227g LED Indicator Light Red Main Line Terminal M5 threaded stud Main Wire ＃4-6 Single Wire Terminal M4 threaded stud Single Wire #12-16 Type Fuse Blocks

LED Indicator for Blown Fuse

With red led warning indicator, you can quickly identify & replace blown fuses immediately

Clip-Lock Protection Cover

Fuse box for boat insulating cover with black push latch system, easy to open the cover by pressing it. Also this transparent design also helps to add extra protection to your fuses

Make Wiring Clean

Compact size allows it to be installed in tight spaces close to the loads they protect. Can be widely used in autos, modified cars, buses, trucks, RVs, golf cart, motor cycles, ships, boats etc.
