Metal Oxide Varistors MOV 39V to 470V Varistor
£
3.69 - 16.59

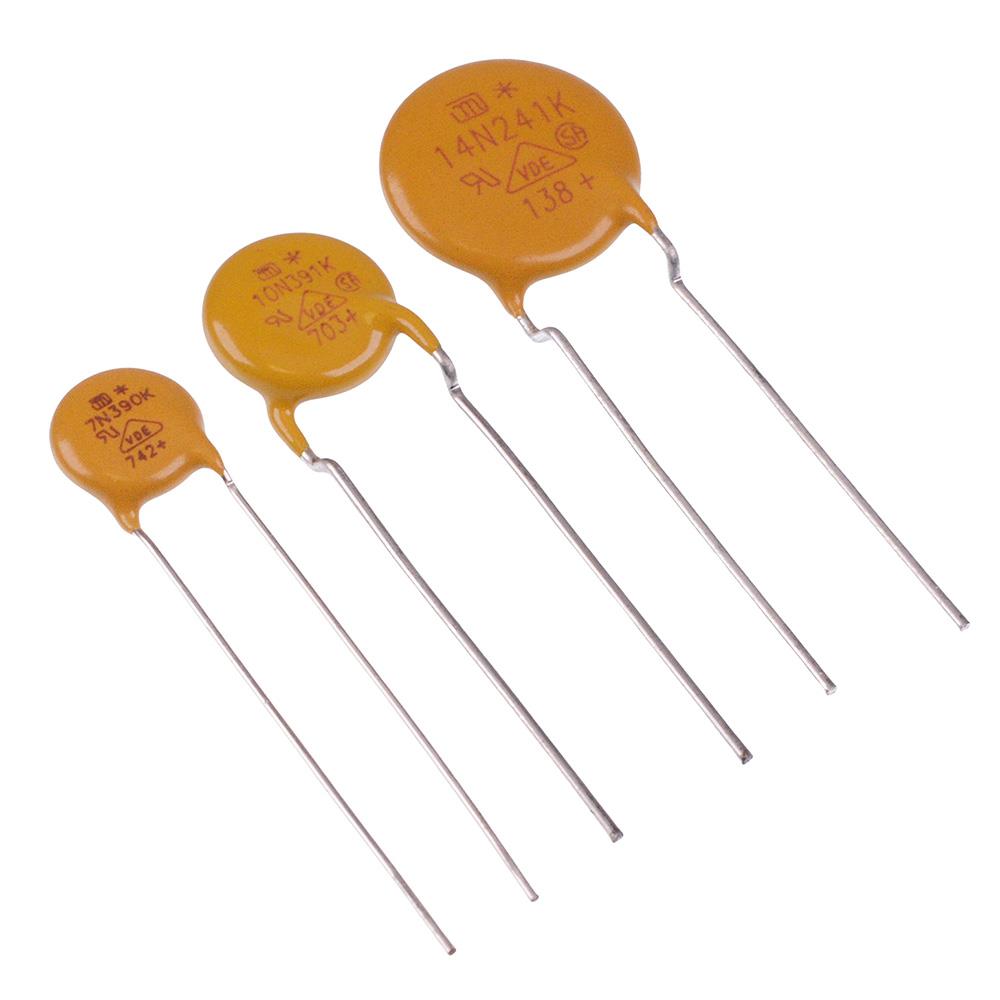

Metal oxide varistors featuring radial leads and epoxy coated disc construction, suitable for protecting sensitive components against unwanted voltage spikes.
| Varistor Voltage | Energy | Maximum Operating Voltage | Disc Diameter | Pitch |
|---|---|---|---|---|
| 39V | 1.2J | 25V AC, 31V DC | 5mm | 5mm |
| 39V | 2.4J | 25V AC, 31V DC | 9mm | 5mm |
| 47V | 3J | 30V AC, 38V DC | 9mm | 5mm |
| 100V | 7J | 60V AC, 85V DC | 9mm | 5mm |
| 200V | 14.3J | 130V AC, 170V DC | 9mm | 5mm |
| 240V | 67J | 150V AC, 200V DC | 16.5mm | 7.5mm |
| 390V | 30J | 250V AC, 320V DC | 9mm | 5mm |
| 390V | 60J | 250V AC, 320V DC | 7.5mm | 7.5mm |
| 390V | 120J | 250V AC, 320V DC | 16.5mm | 7.5mm |
| 430V | 33J | 275V AC, 350V DC | 9mm | 5mm |
| 430V | 66J | 275V AC, 350V DC | 12.5mm | 7.5mm |
| 430V | 132J | 275V AC, 350V DC | 16.5mm | 7.5mm |
| 430V | 264J | 275V AC, 350V DC | 23mm | 10mm |
| 470V | 12.5J | 300V AC, 385V DC | 12.5mm | 7.5mm |
| 470V | 35J | 300V AC, 385V DC | 9mm | 5mm |
| 470V | 70J | 300V AC, 385V DC | 12.5mm | 7.5mm |
